ROHS COMPLIANT
PRODUCT DATA DRAWING
2X
.134 3.40
REV
REVISION HISTORY
DESCRIPTION
DATE
APPROVED
-
DCN 38497
08/11
PJS
RP
.114 2.90
.276 7.01
.193 4.90
.126 3.20
.205 5.21
2X .039 0.99
SV P/N
3211-60086
3211-60087
INTERFACE
SMOOTH BORE
FULL DETENT
2X .070±.008 1.78±0.20
2X
.040±.007 1.02±0.18
.012 0.29
MATERIAL:
2X .102 2.59
BODY &
SHROUDS:
CONTACTS:
INSULATORS:
STAINLESS STEEL PER AMS-5640,
ALLOY UNS S30300, TYPE 1
BERYLLIUM COPPER PER ASTM B196,
ALLOY No. UNS C17300, TD04
PTFE PER ASTM D1710, TYPE I, GRADE 1, CLASS B
.077 1.96
.384 9.75
FINISH:
BODY,
SHROUDS, &
CONTACTS:
.008 0.20
GOLD PER ASTM B488, TYPE II,
CODE C, CLASS 1.27, OVER NICKEL
PER AMS-QQ-N-290, CLASS 1, .00005" MIN.
.069 1.75
.138 3.51
3X .020 0.51
.142±.002 3.61±0.05
.280±.004 7.11±0.10
MATERIAL:
FINISH:
DIMENSIONS ARE IN INCHES TOLERANCES:
FRACTIONAL:
DECIMAL: .X
.XX
.XXX
1/64
.030
.010
.005
ANGULAR: X
X X'
1 0'
15'
PERFORMANCE:
IMPEDANCE:
FREQ. RANGE:
RETURN LOSS:
INSERTION LOSS:
SHROUD TO
BODY RETENTION:
50 OHMS
DC TO 65 GHz
35dB DC TO 15.0GHz
23dB 15.0 TO 25.0GHz
20dB 25.0 TO 40.0GHz
.10 X SQRT(F(F IN GHz))
8 LBS MIN (AXIAL)
SEE NOTES
SEE NOTES
N/A
PROPRIETARY
UNLESS OTHERWISE SPECIFIED
1) ALL DIMENSIONS ARE IN INCHES [MILLIMETERS]
2) ALL DIMENSIONS ARE AFTER PLATING.
3) BREAK CORNERS & EDGES .005 R. MAX.
4) CHAM. 1ST & LAST THREADS.
5) SURFACE ROUGHNESS 63
e
MIL-STD-10.
6) DIA.’S ON COMMON CENTERS TO BE CONCENTRIC
WITHIN .005 T.I.R.
7) REMOVE ALL BURRS
SV Microwave, Inc.
2400 Centrepark West Drive, Suite 100
West Palm Beach, FL 33409
TITLE:
SURFACE AREA:
INTERPRET DIMENSIONS AND TOLERANCES
PER ASME Y14.5M - 1994
THE INFORMATION CONTAINED IN THIS DRAWING
IS THE SOLE PROPERTY OF SV MICROWAVE, INC.
ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
SV MICROWAVE, INC IS PROHIBITED.
THIRD ANGLE PROJECTION
DRAWN:
CHECKED:
APPROVED:
FED 08/25/11
PJS 08/25/11
PJS 08/25/11

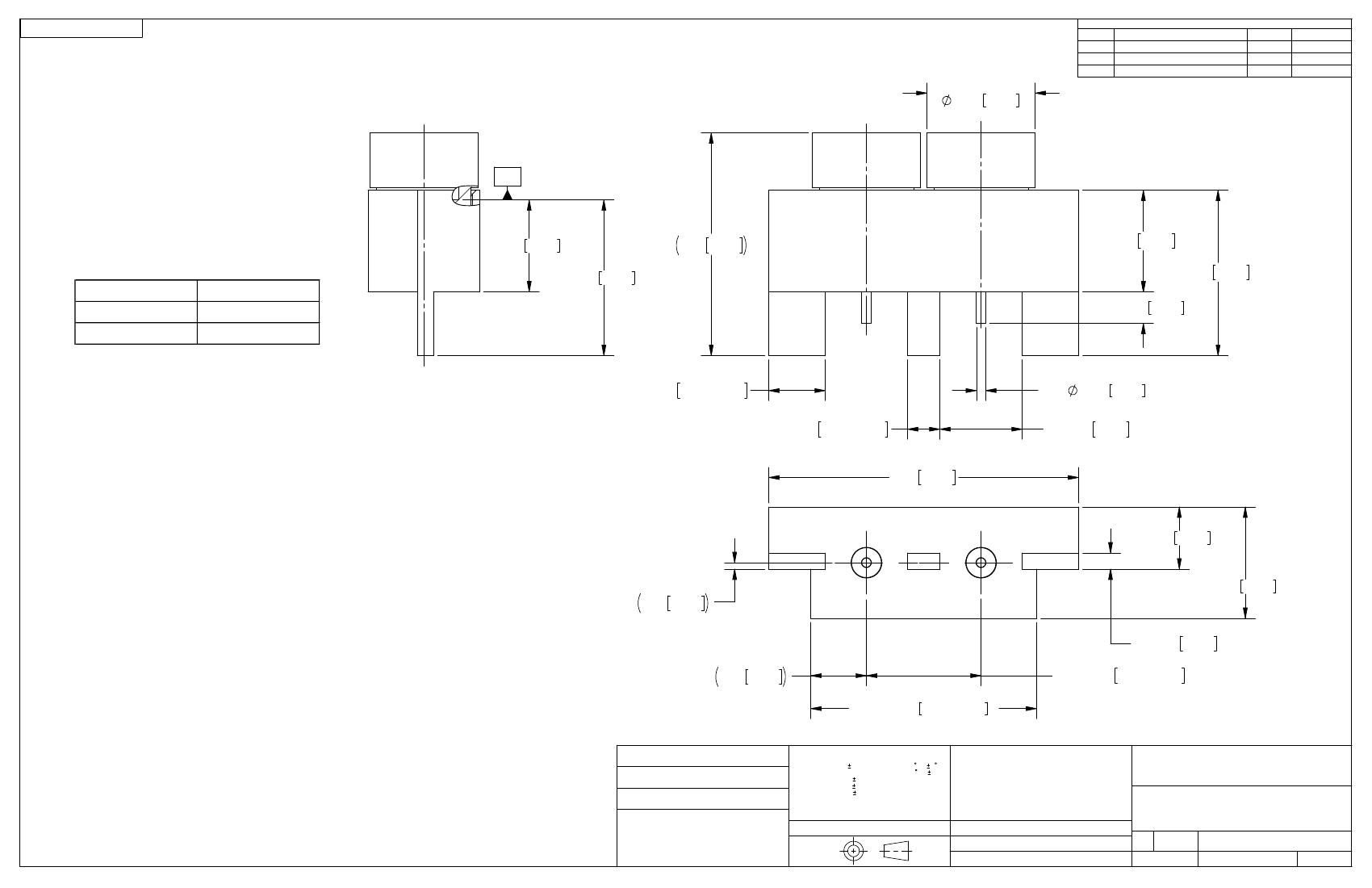

SMPM MALE 2-PORT
EDGE LAUNCH
SIZE CAGE CODE DWG. NO.
B
95077
SCALE: 10:1
3211-60086-60087
SHEET 1 OF 1
