The Most Flexible Small Diameter RF Cable on the Market
FEATURES
Standard and custom cable options, including SMA, BMA, 2.92 mm, SMP, SMPM, SMPS connectors
Three unique cable solutions available:
•
Standard Fl extra - Flexible replacement for Ø.047” semi-rigid
•
Rapid Flextra - Lowest loss Ø.047” flex cable on the market
•
Ultra Flextra - The most flexible Ø.047” flex cable on the market
APPLICATIONS
•
•
•
Inside-the-box short cable runs where space is at a premium and tight bends are required
High frequency applications (up to 100 GHz)
Dynamic applications requiring low flex resistance
BENEFITS
•
•
•
The most flexible cable options available with proven performance at < 0.125” bend radius
Low solder wicking and high flexibility allows for tight bends behind the cable ferrule
High flex-life ensures excellent performance after repeated usage
SPECIFICATION
Outer Diameter
Cut-Off Frequency (GHz)
Velocity of Propagation
Min. Internal Bend Radius (Static)
Weight (1 lb/100 ft)
Jacket Material
Center Conductor
Temperature Range
Shielding Effectiveness (dB, 0-18 GHz)
Jacket Color
SV Part Number
STANDARD
.056”
108
70%
.100”
3.5
FEP
Solid SPC
-65°C to +165°C
> 90 dB
BLUE
200-70-214
RAPID
.056”
144
87%
.100”
3.7
FEP
Solid SPC
-65°C to +165°C
> 90 dB
BROWN
200-70-219
ULTRA
.056”
130
85%
.100”
3.7
POLYURETHANE
Stranded SPC
-45°C to +80°C
> 90 dB
RED
200-70-232
Phone: (561) 840-1800
Email: sales@svmicro.com
2400 Centrepark West Drive, Ste 100
West Palm Beach, FL 33409
The Most Flexible Small Diameter RF Cable on the Market
Ask Us About Our Cable Assembly Capabilities

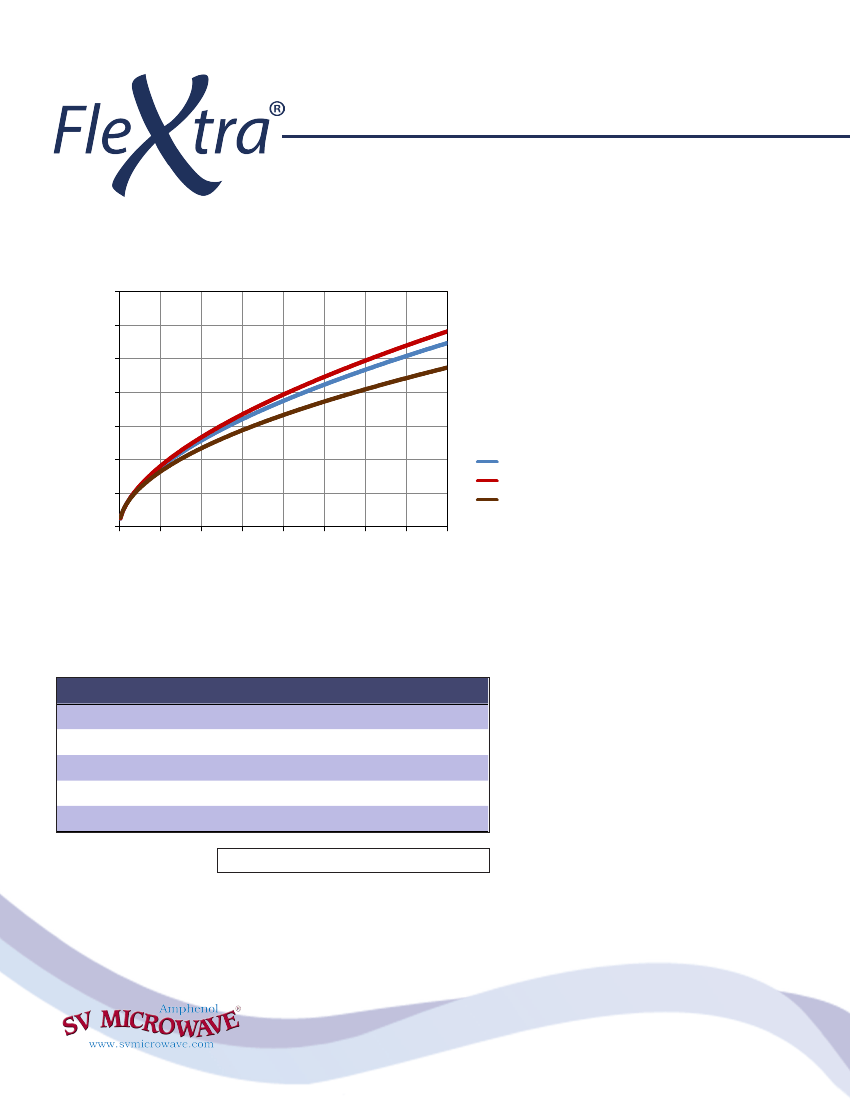

RAW CABLE INSERTION LOSS
3.5
3.0
Insertion Loss (dB/foot)
Insertion Loss vs. Frequency
Standard Flextra
2.5
2.0
1.5
1.0
0.5
0.0
0
Insertion Loss (dB)
•
Phase matching capability up to ± 1 degree at
Rapid Flextra
18 GHz and up to ± 10 degrees at 40 GHz
•
Delay matching capability up to ± 1 ps
Insertion Loss vs. Frequency
3.5
3.0
2.5
2.0
1.5
Standard Flextra
Ultra Flextra
Rapid Flextra
Ultra Flextra
5
10
15
20
25
30
35
40
Frequency (GHz)
Insertion loss is measured in ambient conditions.
1.0
0.5
0.0
CHARACTERISTICS
5
AT
10
A GLANCE
25
0
15
20
30
35
40
PROPERTY
Flexibility
Loss
Durability
Temperature Rating
STANDARD
«
«
«««
«««
Frequency (GHz)
RAPID
««
«««
««
«««
«««
ULTRA
«««
««
«
«
««
•
Three cable options available for the ideal
solution for any small diameter cable
application
•
All cables masked for control of solder
wicking on braid
•
Full environmental testing capabilities
available
Velocity of Propagation
«
«
Good
««
Better
«««
Best
Phone: (561) 840-1800
Email: sales@svmicro.com

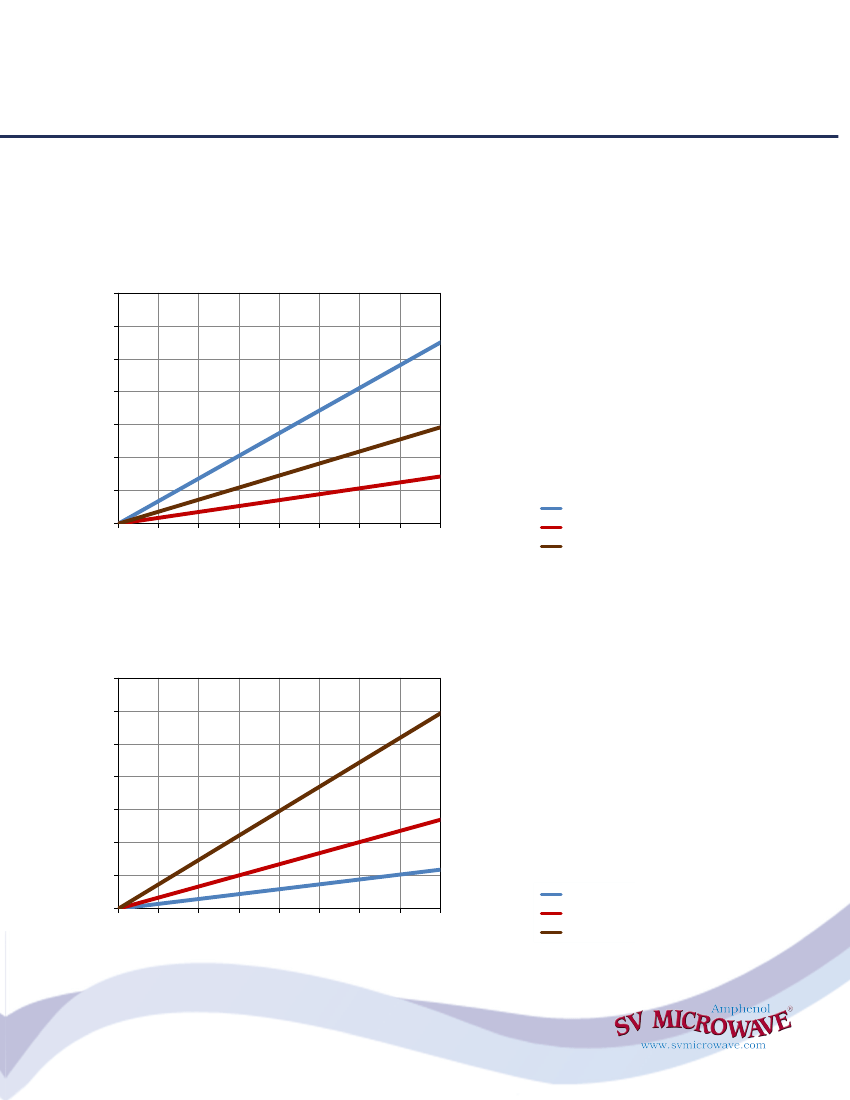

Excellent Electrical Performance under Extreme Flexure
PHASE STABLE
Phase Shift After Repeated Flexure
0.7
0.6
Phase Shift (Degrees)
0.5
0.4
0.3
0.2
0.1
0.0
0
5
10
Insertion Loss (dB)
Standard Flextra
•
Phase Shift measured on a 1 ft cable length
after
Ultra Flextra
cable wrapped ± 90° around a Ø.200”
diameter (.100” inside bend radius) mandrel 30
Rapid Flextra
times
•
Excellent Phase stability through 40 GHz
•
Ideal for high flex environments where cable is
subjected to repeated bending
Insertion Loss vs. Frequency
3.5
Standard Flextra
3.0
2.5
2.0
1.5
1.0
Ultra Flextra
Rapid Flextra
15
20
25
30
35
40
Frequency (GHz)
RELIABLE PERFORMANCE
Insertion Loss Shift After Repeated Flexure
0.5
0.35
0.30
Insertion Loss Shift (dB)
0.25
0.20
0.15
0.10
0.05
3.5
0.0
0
5
10
15
20
25
30
Frequency (GHz)
•
Insertion Loss Shift measured on a 1 ft cable
Standard Flextra
length after cable wrapped ± 90° around a
35
40
Ultra Flextra
Ø.200” diameter (.100” inside bend radius)
mandrel 30 times
Rapid Flextra
•
Repeated bending has a minimal effect on
measured insertion loss
Insertion Loss vs. Frequency
Standard Flextra
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
5
10
15
20
25
30
35
40
Ultra Flextra
Rapid Flextra
0.00
0
5
10
Insertion Loss (dB)
15
20
25
30
35
40
Frequency (GHz)
2400 Centrepark West Drive, Ste 100
West Palm Beach, FL 33409
The Most Flexible Small Diameter RF Cable on the Market
Industry Leading Bend Radius Behind the Ferrule

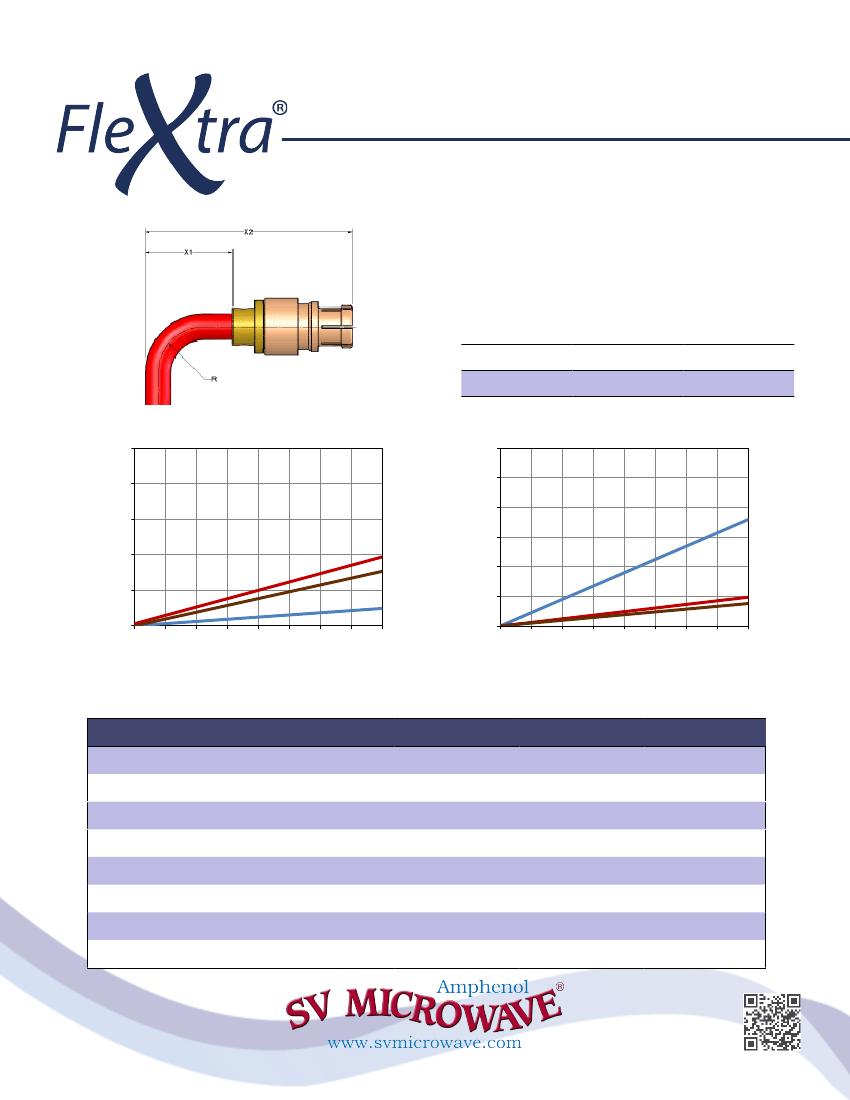

PERFORMANCE UNDER TIGHT BEND CONDITIONS
•
Cable bent directly behind the ferrule (left). Phase and
Insertion Loss Shift (graphs below) are measured
relative to cable performance in the unstressed
condition
•
Values in table below measured for SMPM connector
R
0.128”
Insertion Loss Shift vs. Flexure (Tight Bend)
0.25
0.20
Insertion Loss (dB)
0.15
0.10
0.05
0.00
0
5
10
15
20
25
30
35
40
Frequency (GHz)
0.6
Standard Flextra
Ultra Flextra
0.5
Rapid Flextra
Phase Shift (Degrees)
0.4
0.3
0.2
0.1
0.0
0
5
10
15
X1
0.281”
X2
0.541”
Phase Shift vs. Flexure (Tight Bend)
Standard Fle
Ultra Flextra
Rapid Flextra
20
25
30
35
40
Frequency (GHz)
STANDARD CONNECTOR OPTIONS AND PART NUMBERS
CONNECTOR TYPE
SMP Jack
SMP Right Angle Jack
SMP High Frequency Swept Right Angle Jack
SMPM Jack
SMPM Right Angle Jack
SMPS Jack
SMPS Right Angle Jack
STANDARD
1203-4000
1213-4007
1222-4004
3221-40007
3269-4001
3821-40001
3822-40001
RAPID
1221-40045
1222-40050
1222-40049
3221-40018
3222-40016
3222-40014
3821-40007
3822-40004
ULTRA
1221-40046
1222-40028
1222-40042
3221-40025
3222-40009
3222-40015
3821-40008
3822-40005
SMPM High Frequency Swept Right Angle Jack 3222-40006
