MOS2CT52R243J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MOS2CT52R243J

MOS2CT52R243J: DescriptionMetal Oxide Resistors 2W 24K 5%; CategoryPassive components; File Size160KB，4 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

MOS2CT52R243J Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MOS2CT52R243J	-	-	View	Buy Now

MOS2CT52R243J Overview

Metal Oxide Resistors 2W 24K 5%

MOS2CT52R243J Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	KOA Speer
Product Category	Metal Oxide Resistors
RoHS	Details
Termination Style	Axial
Resistance	24 kOhms
Power Rating	2 W
Tolerance	5 %
Temperature Coefficient	300 PPM / C
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 200 C
Diameter	4 mm
Length	12 mm
Packaging	Cut Tape
Packaging	Reel
Operating Temperature Range	- 55 C to + 200 C
Product	Power Resistors Metal Oxide
Technology	Metal Oxide
Mounting Style	PCB Mount
Factory Pack Quantity	2000

Preview

Download Datasheet

View All

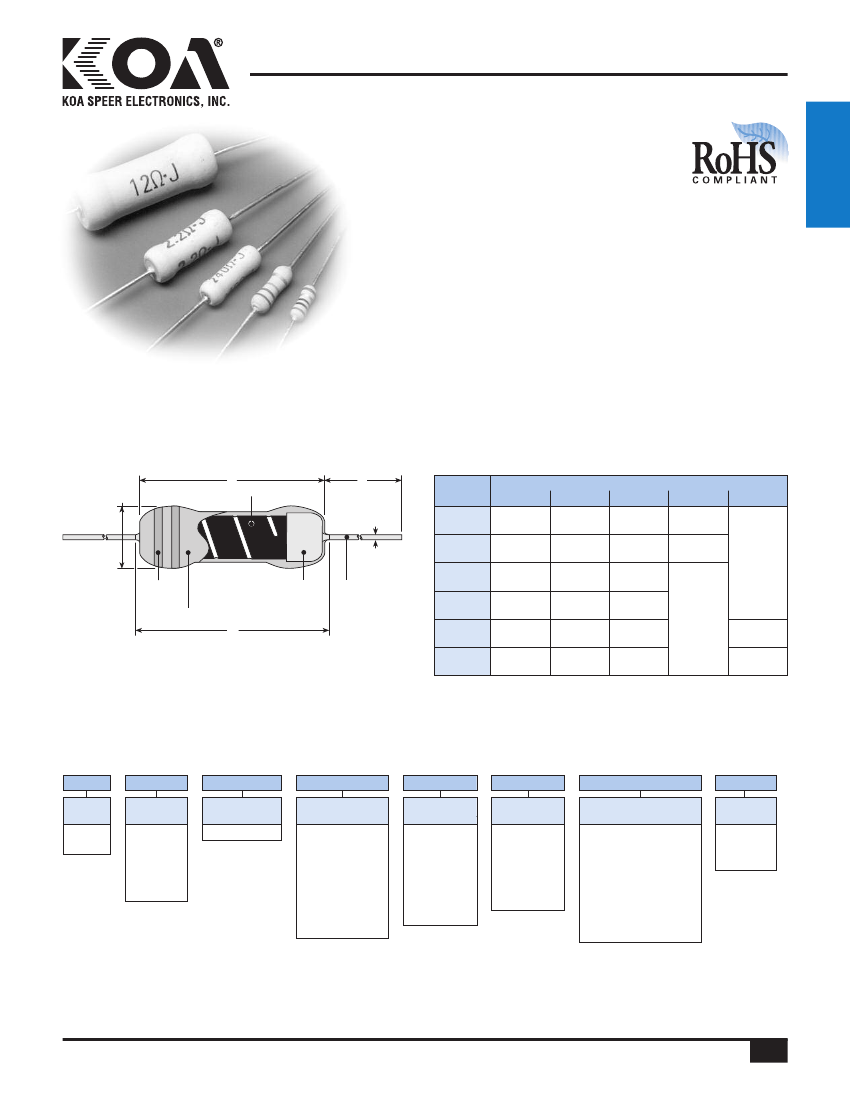

MOS

reduced size metal oxide power type

leaded resistor

features

•

Small size power type resistor

•

Coated with UL94V0 equivalent

flameproof material

•

Suitable for automatic machine insertion

•

Products with lead-free terminations meet EU RoHS

and China RoHS requirements

•

Surface mount style “N” forming is suitable for

automatic mounting

resistors

dimensions and construction

Ceramic Body

Type

MOS1/2

MOSX1/2

MOS1

MOSX1

Marking

Flame Retardant Coating

End

Cap

Lead

Wire

MOS1

MOSX1

MOS2

MOSX2

MOS3

MOSX3

MOS5

MOSX5

.244±.02

(6.2±0.5)

.244±.02

(6.2±0.5)

.354±.039

(9.0±1.0)

.472±.039

(12.0±1.0)

.610±.039

(15.5±1.0)

.965±.039

(24.5±1.0)

Dimensions

inches

(mm)

C (max.)

d (nom.)

.280

(7.1)

.280

(7.1)

.437

(11.1)

.591

(15.0)

.709

(18.0)

1.10

(28.0)

.098±.02

(2.5±0.5)

.098±.02

(2.5±0.5)

.118±.02

(3.0±0.5)

.157±.02

(4.0±0.5)

.236±.039

(6.0±1.0)

.354±.039

(9.0±1.0)

.031

(0.8)

.024

(0.6)

.024

(0.6)

.945 Min.

(24.0 Min.)

1.18±.118

(30.0±3.0)

1.50±.118

(38.0±3.0)

* Lead length changes depending on taping and forming type.

ordering information

MOS

Type

MOS

MOSX

Power

Rating

1/2: 0.5W

1: 1W

2: 2W

3: 3W

5: 5W

Termination

Material

C: SnCu

T52

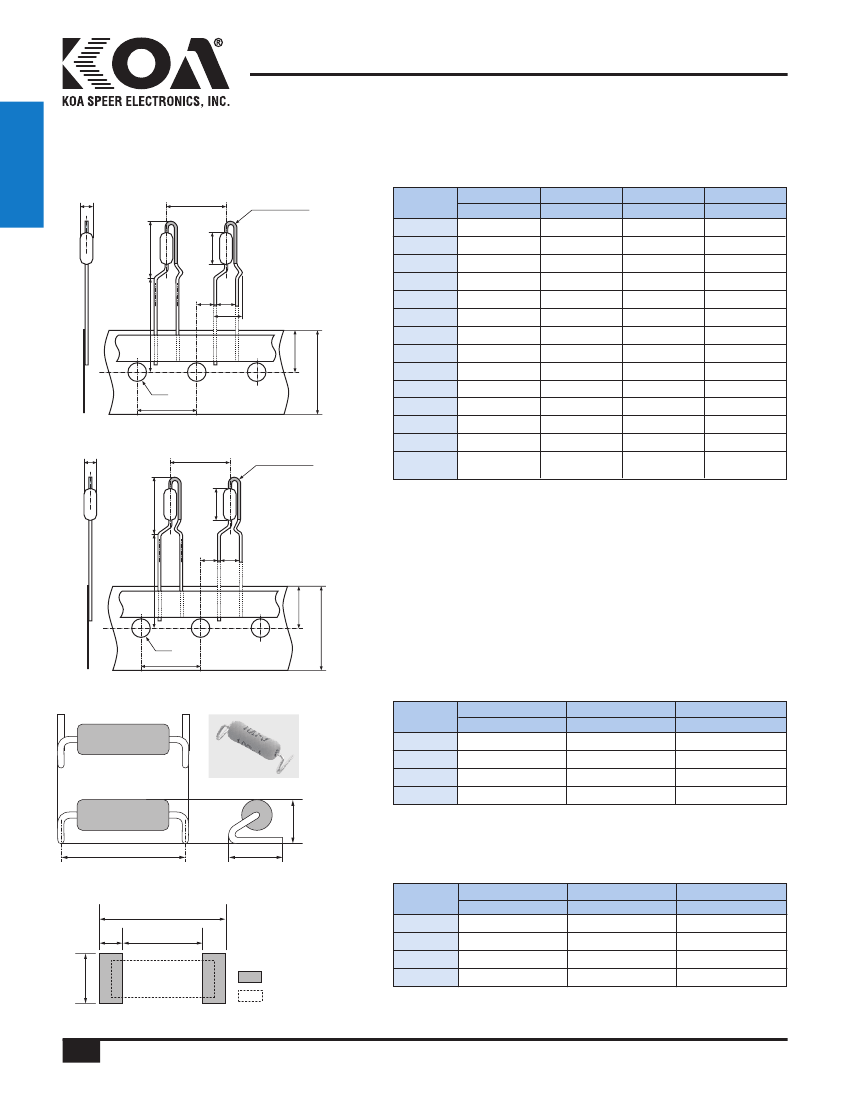

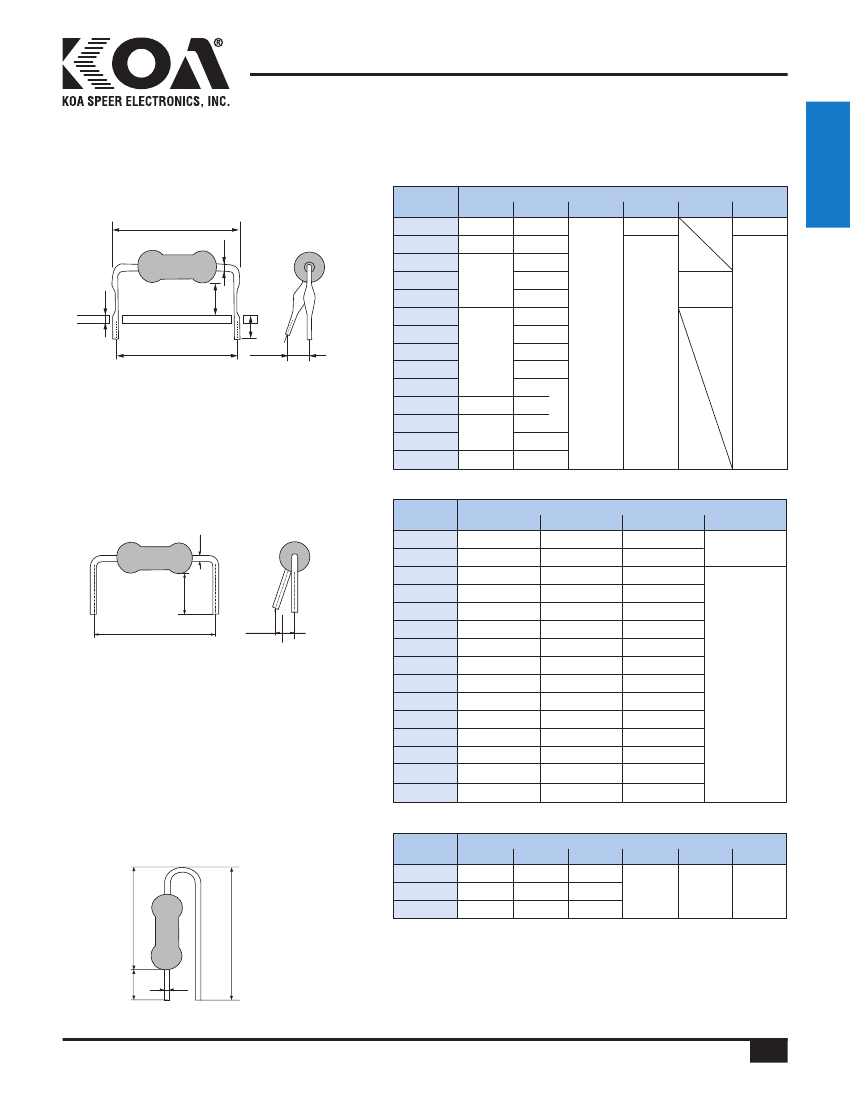

Taping and

Forming

Axial: T26, T52,

T521, T631

Stand-off Axial:

L52, L521, L631

Radial: VTP, VTE,

GT, GT4, VTF

L, U, M, N

Forming

Lead

Diameter

MOS(X)1

only:

Blank:

0.6mm

8: 0.8mm

Blank: All

others

Packaging

A: Ammo

R: Reel

TEB, TEG:

Plastic

embossed

(N forming)

103

Nominal

Resistance

±2%, ±5%:

2 significant figures

+ 1 multiplier “R”

indicates decimal

on value <10Ω

±1%: 3 significant

figures + 1 multiplier

“R” indicates decimal

on value <100Ω

Tolerance

F: ±1%

G: ±2%

J: ±5%

For further information

on packaging, please

refer to Appendix C.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/21/17

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

197
