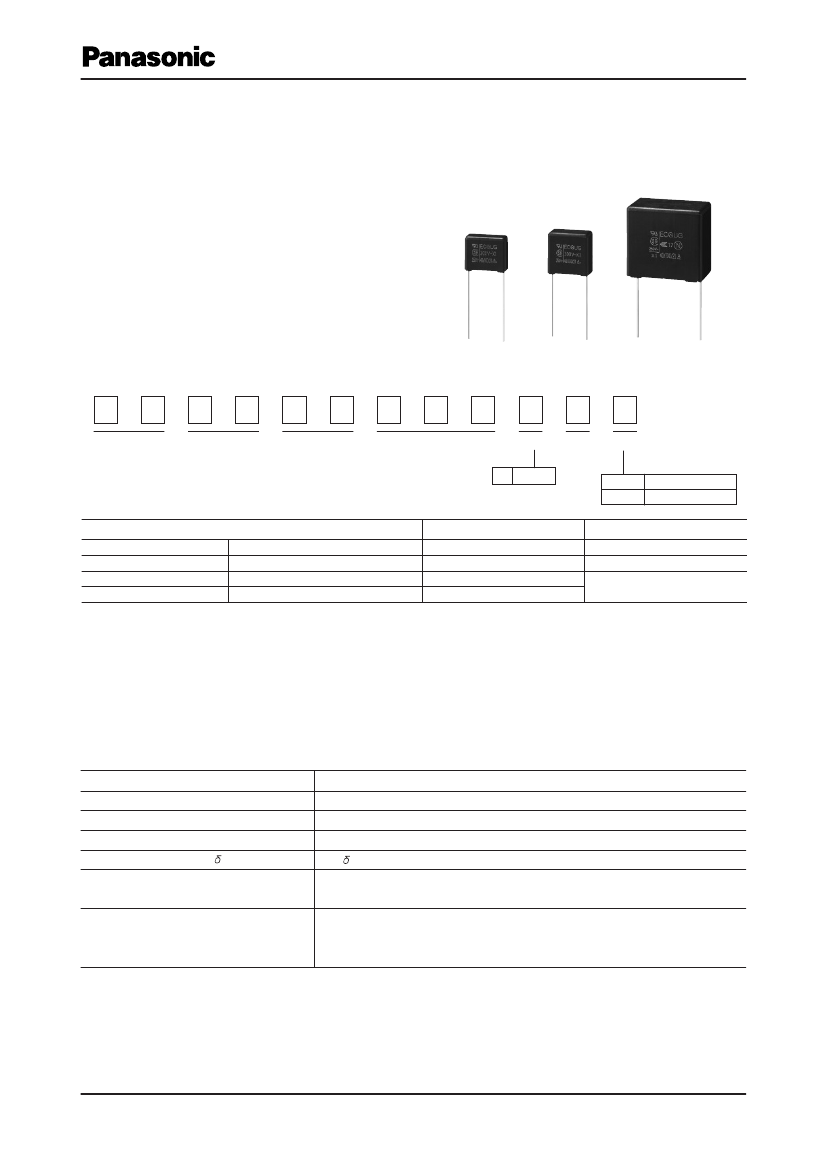

Plastic Film Capacitors
Metallized Polyester Film Capacitor
Type:
ECQUG[Class X1]
In accordance with UL/CSA and European safety
regulation class X1
Features
•
Equipped with a safety mechanism
•
Flame-retardant plastic case and non combustible resin
•
RoHS directive compliant
Recommended Applications
•
Interference suppressors
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
E
C
Q
U
3
A
Capacitance
M
G
Suffix
Product code
Dielectric &
construction
Rated vol.
Cap. Tol. Suffix
M ±20 %
Applicable Standard
Blank
A
Straight
Cut lead
UL
CSA
Europe
International
Approval
UL60384-14
CAN/CSA E60384-14
EN60384-14
IEC60384-14
Class
Class X1
Class X1
Class X1
Class X1
Certification organization
UL
CSA
NEMKO
❈
When applying this capacitor to European and American safety standards, please use type designation and rating
such as ECQUG, 0.1 µF.
❈
Approval number (File No.) of safety regulations are subject to revision without notice. Ask factory for a copy of the
latest file No..
❈
European standards marking are NEMKO only. But, there are no problem using this capacitor in a device which
will get approvals from certification bodies in Europe, VDE, FIMKO, SEMKO, DEMKO, and SEV etc. except VDE
and FIMKO.
Specifications
Category temp. range
Rated voltage
Capacitance range
Capacitance tolerance
Dissipation factor (tan )
Withstand voltage
-40
˚C to
+100
˚C
300 VAC
0.010 µF to 1.0 µF (E6)
±20 % (M)
tan
<
1.0 % (20 ˚C, 1 kHz)
=
Between terminals : 575 VAC, 1768 VDC, 60 s
Between terminals to enclosure : 2100 VAC, 60 s
>
C
<
0.33 µF : IR
=
15000 M
Ω
(20 ˚C, 100 VDC, 60 s)
=
>
C>0.33 µF : IR
=
5000 M
Ω
· µF (20 ˚C, 100 VDC, 60 s)
>
IR
=
2000 M
Ω
(20 ˚C, 500 VDC, 60 s)
Insulation resistance (IR)
❈
Use of this capacitor is limited to AC voltage (50 Hz or 60 Hz sine wave).
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC80 −
Plastic Film Capacitors
■Dimensions
in mm (not to scale)
A
B
Note
Date Code.
■Rating
& Dimensions
●
Capacitance tolerance : ±20 %(M)
Part No.
Cap.
(µF)
L
15.0
15.0
15.0
15.0
15.0
15.0
15.0
18.0
18.0
26.0
26.0
26.0
27.0
Suffix for lead form
Cap. tol. code
T
5.0
5.0
5.0
6.0
6.0
8.0
8.0
8.0
9.0
9.0
10.5
12.5
16.5
ECQU3A103MG( ) 0.010
ECQU3A153MG( ) 0.015
ECQU3A223MG( ) 0.022
ECQU3A333MG( ) 0.033
ECQU3A473MG( ) 0.047
ECQU3A683MG( ) 0.068
ECQU3A104MG( ) 0.10
ECQU3A154MG( ) 0.15
ECQU3A224MG( ) 0.22
ECQU3A334MG( ) 0.33
ECQU3A474MG( ) 0.47
ECQU3A684MG( ) 0.68
ECQU3A105MG( ) 1.0
↑ ↑
Dimensions (mm)
H
F
φd
0.60
12.5
11.5
11.5
11.5
13.0
13.0
15.0
15.0
16.5
17.5
18.5
20.0
22.0
25.5
12.5
12.5
12.5
12.5
12.5
12.5
15.0
15.0
22.5
22.5
22.5
22.5
0.60
0.60
0.60
0.60
0.60
0.60
0.80
0.80
0.80
0.80
0.80
0.80
P
0±0.5
0±0.5
0±0.5
0±0.5
0±0.5
0±0.5
0±0.5
0±0.5
0±0.5
0±0.5
0±0.75
0±0.75
0±0.75
Q
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.3
1.5
1.5
1.5
2.2
1.3
Min. order Q'ty
500
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
− FC81 −
