Features
n
Recommended for reflow soldering
*R
oH
S
CO
LE
AD
place and automatic adjustment equipment
n
3 mm size meets EIA/EIAJ standard
trimmer footprint
n
RoHS compliant* - see processing
information on RoHS compliant surface
mount trimmers
n
Rotor design compatible with pick and
guidelines, click here
M
n
For trimmer applications/processing
F
RE
E

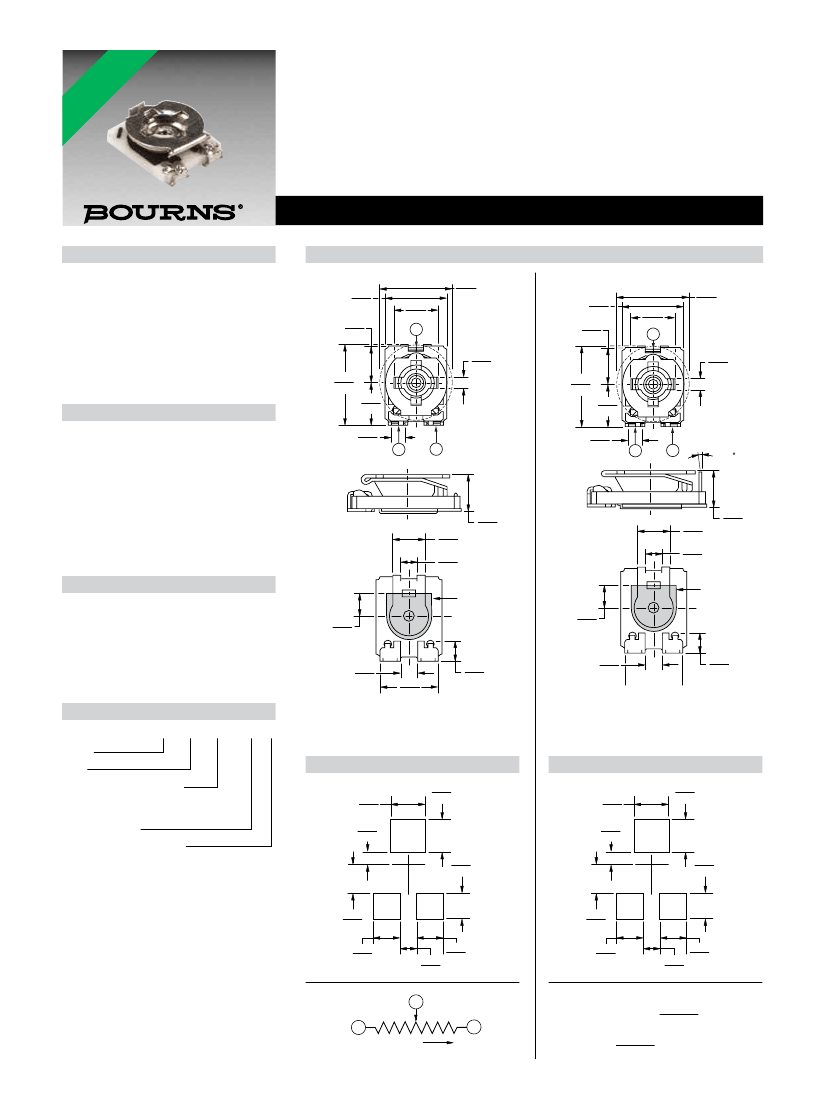

TC33 - 3 mm SMD Trimpot
®
Trimming Potentiometer
Product Dimensions
TC33X-1
3.0
(.118)
1.75
(.069)
2.1
(.083)
2
0.5
(.020)
3.8
(.150)
2.0
(.079)
0.65
(.026)
3.8
(.150)
2.0
(.079)
0.65
(.026)
3.6
(.142)
Electrical Characteristics
Standard Resistance Range
...................... 100 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ............ ±25 % std.
Absolute Minimum Resistance
≤ 1 K Ohms .................. 20 ohms max.
>1 K Ohms ................. 2 % max. of TR
Contact Resistance Variation .... 5 % max.
Resolution.................. Essentially infinite
Adjustment Angle....................200 ° min.
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
TC33X-2
3.0
(.118)
1.75
(.069)
3.6
(.142)
2.1
(.083)
2
0.5
(.020)
Environmental Characteristics
Power Rating (50 VDC max.)
70 °C ...................................... 0.1 watt
Temperature Range ....-40 °C to +100 °C
Temperature Coefficient ....±250 ppm/°C
Humidity....................... +40 °C, 95 %RH
TRS max. .......................................±5 %
Load Life
....... @ 70 °C rated power 1000 hours
TRS ±5 %
Rotational Cycling
.........................20 cycles, TRS ±10 %
Physical Characteristics
Torque................ 0.98-11.76 mN-m max.
Mechanical Angle .................Continuous
Marking ......................Part marking code
Standard Packaging ... 2000 pcs./7 ” reel
Adjustment Tool .............................. H-90
Aqueous cleaning not recommended.
1
3
1
3
0~15
1.5
(.059)
0.75
(.030)
1.2
(.047)
1.5
(.059)
0.75
(.030)
1.2
(.047)
1.0
(.039)
SEE
MOUNTING
NOTE
BELOW
1.0
(.039)
SEE
MOUNTING
NOTE
BELOW
0.8
(.031)
2.7
(.106)
0.9
(.035)
0.8
(.031)
2.7
(.106)
0.9
(.035)
How To Order
Model
Style
TC33 X - 1 - 103 E
Mounting Note:
The gray area can be used to apply cement to hold the unit
in place during board processing, if required.
Mounting Note:
The gray area can be used to apply cement to hold the unit
in place during board processing, if required.
Recommended Land Pattern
1.6
(.063)
0.7
(.028)
1.2
(.047)
1.5
(.059)
Recommended Land Pattern
1.6
(.063)
0.7
(.028)
1.2
(.047)
1.5
(.059)
Standard Product Indicator
-1 = Continuous Rotation
-2 = Rotational Stop
Resistance Code
Embossed Tape Designator
E = 2500 pcs./7 ” Reel
G = 9000 pcs./13 ” Reel
Tape and reel material meets Antistatic ANSI/
ESD 5541-2003 packaging standards.
1.2
(.047)
1.2
(.047)
1.2
(.047)
1.2
(.047)
1.2
(.047)
1.2
(.047)
*RoHS Directive 2002/95/EC Jan. 27, 2003 including
annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data
sheet can and do vary in different applications and
actual device performance may vary over time.
Users should verify actual device performance in their
specific applications.
0.8
(.031)
0.8
(.031)
2
CCW
WIPER
1
CLOCKWISE
3
CW
DIMENSIONS:
TOLERANCES: ±
MM
(INCHES)
0.3
EXCEPT WHERE NOTED
(.010)
