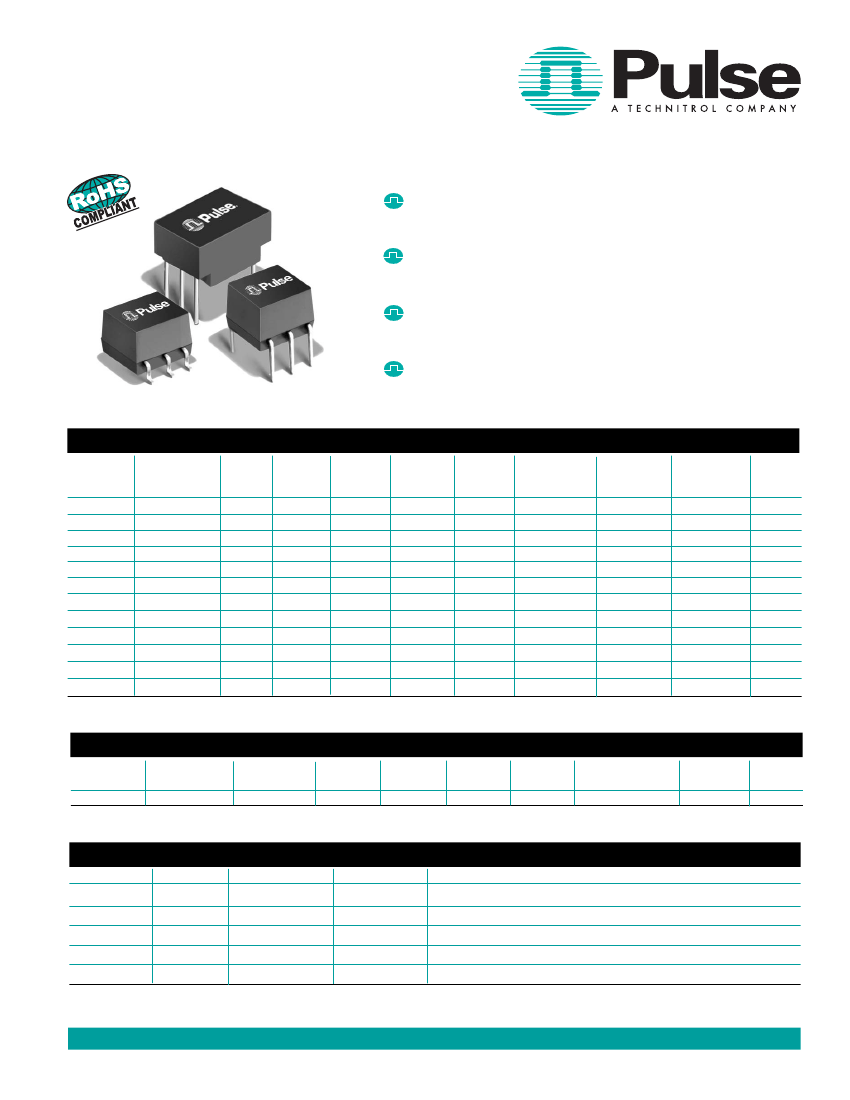

T3/DS3/E3/STS-1
TRANSFORMERS
Designed for T3, DS3, E3 and
STS-1 Interfaces
Return loss meets requirements
of G.703
Fast rise time compatible with
standards
Through hole and surface mount
packages available
UL recognized
Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C
RoHS-5
Compliant
Part No.
PE-65661
PE-65662
PE-65663
PE-65664
PE-65779
PE-65856
PE-65966
PE-65967
PE-65968
PE-65969
PE-68629
PE-68630
RoHS-6
Compliant
Part No.
PE-65661NL
PE-65662NL
PE-65663NL
PE-65664NL
PE-65779NL
PE-65856NL
PE-65966NL
PE-65967NL
PE-65968NL
PE-65969NL
PE-68629NL
PE-68630NL
Turns
Ratio
(±2%)
1:2CT
1:1
1:1
1:2CT
1:4CT
1:1.73CT
1:1
1:1
1:2CT
1:2CT
1:1
1:2CT
OCL
Primary
(µH MIN)
35
45
40
35
150
50
40
40
19
19
40
19
OCL
at -40°C
(µH MIN)
20
30
30
20
–
–
–
–
–
–
–
–
L
L
(µH MAX)
.12
.12
.12
.12
.30
.10
.10
.10
.06
.06
.10
.06
C
W/W
(pF MAX)
10
13
13
10
15
12
10
10
10
10
5
10
Bandwidth
75Ω System
(MHz TYP)
–
–
–
–
–
.060-300
.200-340
.200-340
.250-500
.250-500
–
–
Isolation
Voltage
(Vrms MIN)
1500
1500
1500
1500
1500
1500
1500
1500
1500
1500
3000
4
Package/
Schematic
TR-2/B SMT
TR-2/A SMT
QC-1/A THT
QC-1/B THT
QC-1/B THT
LC-1/C THT
LC-1/E THT
LS-1/E SMT
LS-1/C SMT
LC-1/C THT
HC-1/A THT
HC-1/D THT
Primary
Pins
2-6
2-6
2-6
2-6
2-6
4-6
4-6
4-6
4-6
4-6
1-5
1-5
3000
4
Electrical Specifications @ 25°C
Part Number
PE-64934
Turns Ratio
(Pri:Sec ±5%)
1:1
OCL @ 25°C
(mH MIN)
1.20
C
W
/
W
(pF MAX)
25
L
L
(µH MAX)
0.50
DCR Pri
(Ω MAX)
0.70
DCR Sec
(Ω MAX)
0.70
Isolation Voltage
(Vrms MIN)
1500
Package/
Schematic
HC-1/1S
Primary
Pins
1-2
Packaging Information
Package
LS-1
TR-2
LC-1
HC-1
QC-1
Type
SMT
SMT
THT
THT
THT
Part Weight
0.6 grams
0.6 grams
0.6 grams
1.2 grams
0.8 grams
Parts/Tube
70
65
65
60
60
Parts/Reel
600
500
–
–
–
Reel Diameter
13 inches
13 inches
–
–
–
Tape Width
24 mm
24 mm
–
–
–
Pitch
16 mm
16 mm
–
–
–
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
1
T606.C (11/07)
T3/DS3/E3/STS-1
TRANSFORMERS
Designed for T3, DS3, E3 and
STS-1 Interfaces

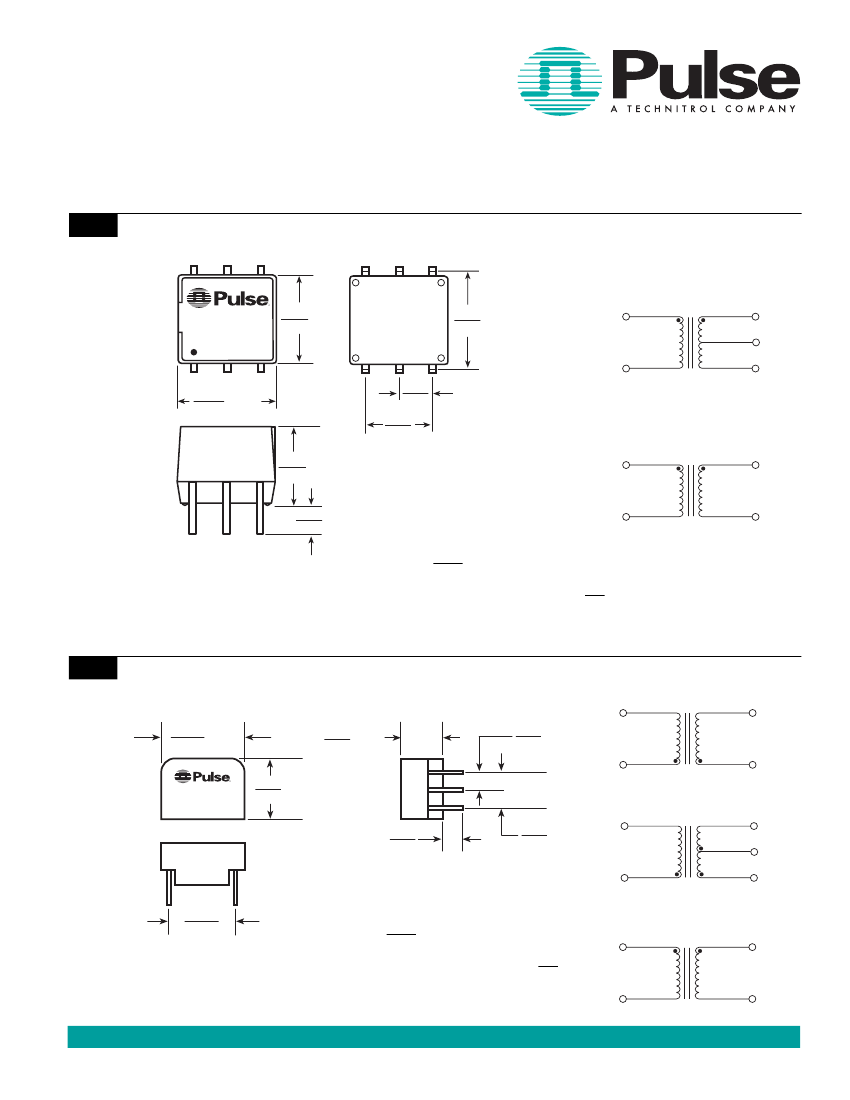

Mechanical
LC-1
1
2
3
Schematics
C
PE-XXXXX
DATE CODE
.275 MAX
7,00
.300
7,62
4
3
2
6
5
4
.300 MAX
7,62
6
1
.100
2,54
.200
5,08
.245 MAX
6,23
.130
3,30
Leads are:
.010 (0,25) X .020 (0,51)
solderable.
4
E
3
6
1
Dimensions:
Inches
mm
Unless otherwise specified all tolerances are ± .010
0,25
HC-1
A
5
6
.500
MAX
12,70
5
6
3
PE-6XXXX
4
1
Date Code
2
.350 MAX
8,89
.250 MAX
6,35
.100
2,54
1
2
D
.130
3,30
Notes:
Leads are 24 AWG solderable.
Unused pins not provided.
.200
5,08
5
6
4
1
2
.400
10,16
Dimensions:
Inches
mm
Unless otherwise specified all tolerances are ± .010
0,25
1S
1
5
2
6
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4641811
www.pulseeng.com
3
T606.C (11/07)
T3/DS3/E3/STS-1 TRANSFORMERS
Designed for T3, DS3, E3 and
STS-1 Interfaces

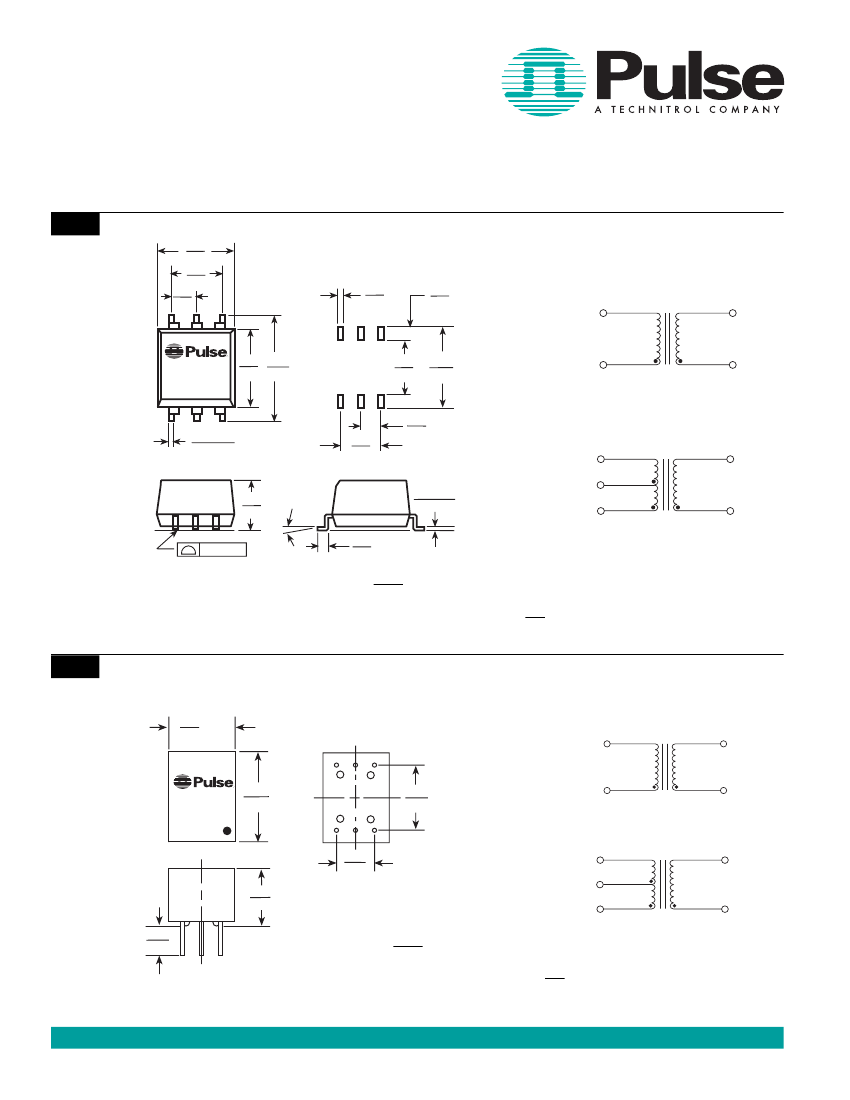

Mechanical
LS-1
1
2
3
.258
6,55
.390
9,91
PE-XXXX
DATE CODE
Schematics
C
4
3
2
.275 MAX
7,00
.040
1,02
.240
6,10
0.75
1,91
6
1
6
5
4
.300 MAX
7,62
SUGGESTED PAD LAYOUT
E
4
3
.250 MAX
6,35
.100
2,54
.200
5,08
6
1
Dimensions:
Inches
mm
Unless otherwise specified all tolerances are ± .010
0,25
Transformer Selection Guide
Chip Manufacturer
Lucent
T7296
Exar
XR-T7296
Silicon Systems
SSI 78P236, DS3
SSI 78P7200, DS3
SSI 78P7200, E3
SSI 78P2361, STS-1
SSI 78P2362, E3
Transwitch
MRT TXC-02050
5
,E3
ART 02020 DS3, STS-1
Surface Mount
Transmit
Receive
PE-65967
PE-65967
PE-65968
PE-65968
PE-65968
PE-65968
PE-65968
PE-65968
PE-65967
–
–
PE-65967
PE-65967
PE-65968
PE-65967
PE-65967
PE-65967
PE-65967
Through Hole (1500Vrms)
Transmit
Receive
PE-65966
PE-65966
PE-65969
PE-65969
PE-65969
PE-65969
PE-65969
PE-65969
PE-65966
–
–
PE-65966
PE-65966
PE-65969
PE-65966
PE-65966
PE-65966
PE-65966
Through Hole (3000Vrms)
Transmit
Receive
PE-68629
PE-68629
PE-68630
PE-68630
PE-68630
PE-68630
PE-68630
PE-68630
PE-68629
–
–
PE-68629
PE-68629
PE-68630
PE-68629
PE-68629
PE-68629
PE-68629
Application Notes
1. The transformers have been developed for use as transmit
and receive transformers in T3 or DS3 links, using bit rates
of 44.736Mbps and B3ZS coding on coaxial cable. The
characteristics allow compliance with the pulse templates of
CCITT G.703 as well as ATT T.A.34. The transformers are
also suitable for the E3 interface at 34.368 Mbps with HDB3
coding or STS-1 applications, at 51.84 Mbps according to
Bellcore TA-NWT-000253. The LC-1 and QC-1 packages are
pin compatible with T1-1 and T4-1 6-pin DIP packages.
2. Bandwidth specifications are typical in a 75Ω system.
Return loss meets the requirements of G.703. Materials used
in the products are UL94-V0 recognized. Products meet the
requirements of IEC 695-2-2 (Needle Flame Test).
3. The surface mount LS-1 and TR-2 packages are available with
optional tape and reel packaging. To order, add a “T” suffix to
the part number (i.e.: PE-65967NLT).
4. The Transwitch MRT TXC-02050 chip is also designed to
operate in 6.312 and 8.448 Mbps interfaces. A 1:1 transformer
(PE-64934) is recommended.
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
Tel: 858 674 8100
Fax: 858 674 8262
Pulse
Europe
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China Headquarters
B402, Shenzhen
Tech-Innovation International
Tenth Kejinan Rd.
High-Tech Industrial Park
Nanshan District, Shenzhen
China
Tel: 86 755 33966678
Fax: 86 755 33966700
Pulse North China
Room 1503
XinYin Building
No. 888 YiShan Rd.
Shanghai 200233
China
Tel: 86 21 54643211/2
Fax: 86 21 54643210
Pulse South Asia
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
Pulse North Asia
No. 26
Kao Ching Rd.
Yang Mei Chen
Tao Yuan Hsien
Taiwan, R. O. C.
Tel: 886 3 4641811
Fax: 886 3 4641911
Tel: 49 7032 7806 0
Fax: 49 7032 7806 12
Tel: 65 6287 8998
Fax: 65 6280 0080
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2007. Pulse Engineering, Inc. All rights reserved.
www.pulseeng.com
T606.C (11/07)
