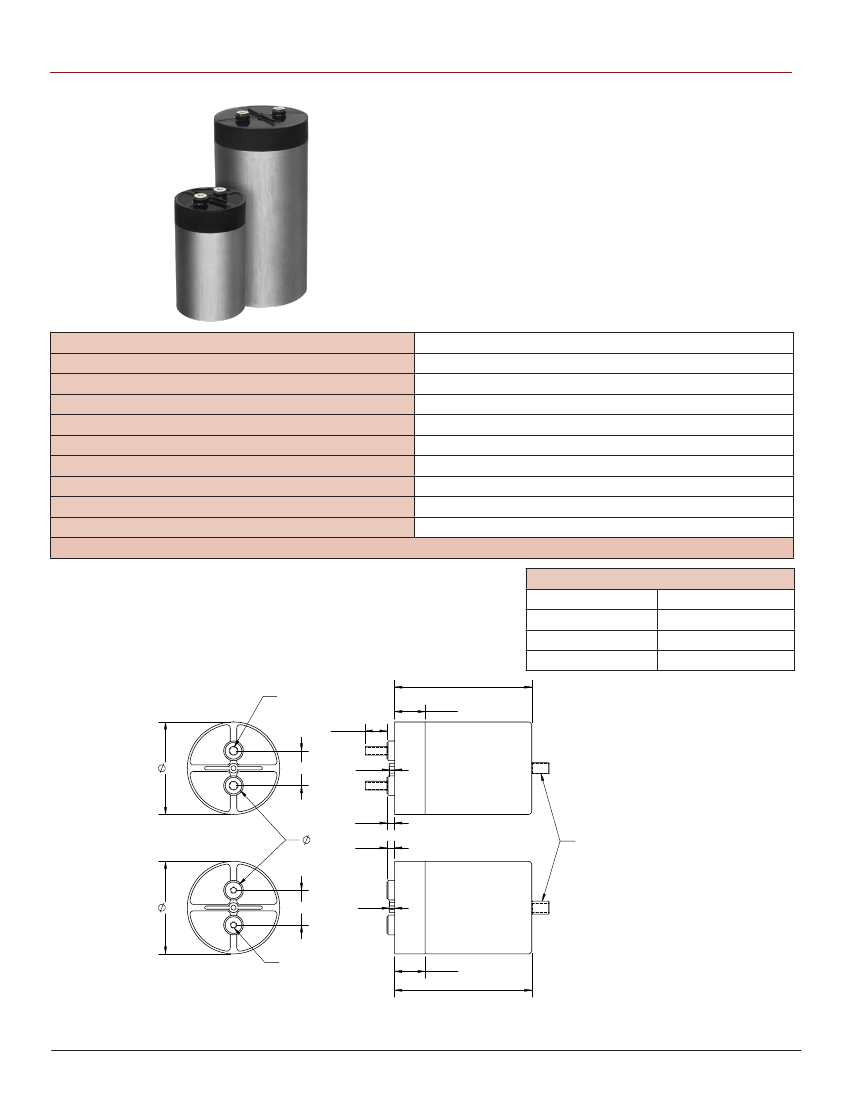

Type 947D Polypropylene, High Energy Density, DC Link Capacitors
High Current, High Capacitance for Inverter Applications
Type 947D series uses the most advanced metallized film
technology for long life and high reliability in DC Link
applications. This series combines high capacitance and
very high ripple current capability needed for today’s in-
verter designs for wind, solar, fuel cells, UPS systems and
more.
Specifications
Capacitance Range
Capacitance Tolerance
Rated Voltage
Operating Temperature Range
Maximum rms Current
Maximum rms Voltage
Test Voltage between Terminals @ 25 °C
Test Voltage between Terminals and Case @ 25°C
Life Test
Life Expectancy
130 to 1500 µF
±10% standard
900 to 1300 Vdc
-45 °C to 85 °C (ambient)
see data tables
230 Vac
150% rated DC voltage for 10 s
4 kVac @ 50/60 Hz for 10 s
7000 h @ 85 °C, rated voltage
350,000 h @ 60 °C Core, rated voltage
RoHS Compliant
Dimensions
Construction Details
Case Material
Resin Material
Terminal Material
H
M8 x 20mm
Max Torque 8.5Nm
20.0
28.0
Aluminum Can
Dry Resin UL94V-0
Tin Plated Brass
Insulator Cap Material Polypropylene UL94V-0
M8 Stud
Terminal
D
S
5.0
6.0
15.0
6.0
Optional
M12 x 16mm Stud
Max Torque 10Nm
M6 Insert
Terminal
D
S
5.0
M6 x 10mm
Max Torque 4.5Nm
28.0
H
All dimensions have a ±1 mm tolerance
Consult factory for mounting options
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830
Type 947D Polypropylene, High Energy Density, DC Link Capacitors
High Current, High Capacitance for Inverter Applications
Part Numbering System
947D
Type
947D
391
Capacitance
391
= 390 µF
152
= 1500 µF
K
Tolerance
K
= ±10%
901
102
112
122
132
112
Voltage
= 900 Vdc
=1000 Vdc
= 1100 Vdc
= 1200 Vdc
= 1300 Vdc
C
E
Height ±1mm
C
= 75 mm
D
= 87 mm
E
= 100 mm
F
= 112 mm
G
= 126 mm
H
= 136 mm
J
= 150 mm
L
= 162 mm
G
N
J
M
P
R
Diameter ±1mm
A
= 85 mm
B
= 90 mm
C
= 100 mm
D
= 116 mm
R
Terminal
= M6 Insert (32 mm)
= M8 Stud (32 mm)
= M8 Stud (45 mm)
= M6 Insert (45 mm)
= M8 Stud (50 mm)
= M6 Insert (50 mm)
S
Mounting
F
= Flat Base
S
= Stud Base
N
Sleeve
N
= No Sleeve
S
= Black PVC
Ratings
Rated
Cap
C
PartNumber
947D311K901ACGSN
947D351K901BCMSN
947D371K901ADGSN
947D421K901BDMSN
947D441K901AEGSN
947D441K901CCRSN
947D501K901BEMSN
947D511K901AFGSN
947D541K901CDRSN
947D571K901AGGSN
947D581K901BFMSN
947D601K901DCRSN
947D631K901CERSN
947D641K901AHGSN
947D651K901BGMSN
947D711K901AJGSN
947D731K901BHMSN
947D731K901CFRSN
947D731K901DDRSN
947D781K901ALGSN
947D811K901BJMSN
947D821K901CGRSN
947D861K901DERSN
947D881K901BLMSN
947D921K901CHRSN
947D991K901DFRSN
947D102K901CJRSN
947D112K901CLRSN
947D112K901DGRSN
947D122K901DHRSN
947D132K901DJRSN
947D152K901DLRSN
947D241K102ACGSN
(µF)
310
350
370
420
440
440
500
510
540
570
580
600
630
640
650
710
730
730
730
780
810
820
860
880
920
990
1000
1100
1100
1200
1300
1500
240
V
R
(V
DC
)
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
900
1000
Can
D
(mm)
85
90
85
90
85
100
90
85
100
85
90
116
100
85
90
85
90
100
116
85
90
100
116
90
100
116
100
100
116
116
116
116
85
Can
H
(mm)
75
75
87
87
100
75
100
112
87
126
112
75
100
136
126
150
136
112
87
162
150
126
100
162
136
112
150
162
126
136
150
162
75
Lead
Spacing
S
(mm)
32
45
32
45
32
50
45
32
50
32
45
50
50
32
45
32
45
50
50
32
45
50
50
45
50
50
50
50
50
50
50
50
32
Voltage Diameter Height
Current
Case
Area
(mm
2
)
31400
33900
34600
37300
38100
39300
41000
41300
43000
45000
44400
48500
47100
47700
48300
51400
51200
50900
52800
54600
55100
55300
57600
58500
58400
62000
62800
66600
67100
70700
75800
80200
31400
T
A
=55 °C
Irms
(A)
67
73
66
75
65
85
74
64
83
63
72
102
82
62
71
62
69
81
101
61
68
80
100
67
79
99
78
77
98
96
95
94
63
Typ
ESR
(mΩ)
1.4
1.2
1.5
1.2
1.7
1.0
1.3
1.9
1.2
2.1
1.5
0.9
1.3
2.3
1.6
2.5
1.8
1.4
1.0
2.7
1.9
1.6
1.1
2.1
1.7
1.2
1.9
2.0
1.3
1.4
1.5
1.6
1.5
Typ
ESL
(nH)
30
30
34
33
38
30
37
42
34
46
41
35
38
50
45
54
49
42
40
59
53
46
45
58
50
50
54
59
55
60
65
70
30
Thermal
Resistance
Θcc
(°C/W)
1.4
1.3
1.3
1.3
1.2
1.1
1.3
1.2
1.1
1.1
1.3
0.8
1.0
1.1
1.2
1.1
1.2
1.0
0.8
1.0
1.2
1.0
0.8
1.2
1.0
0.8
0.9
0.9
0.8
0.8
0.8
0.7
1.4
Θca
(°C/W)
3.8
3.5
3.5
3.2
3.2
3.1
2.9
2.9
2.8
2.7
2.7
2.5
2.5
2.5
2.5
2.3
2.3
2.4
2.3
2.2
2.2
2.2
2.1
2.1
2.1
1.9
1.9
1.8
1.8
1.7
1.6
1.5
3.8
Max
Mass
(kg)
0.5
0.6
0.6
0.6
0.6
0.7
0.7
0.7
0.8
0.8
0.8
0.9
0.9
0.8
0.9
0.9
0.9
1.0
1.1
1.0
1.0
1.1
1.2
1.1
1.2
1.3
1.3
1.4
1.5
1.6
1.7
1.8
0.5
