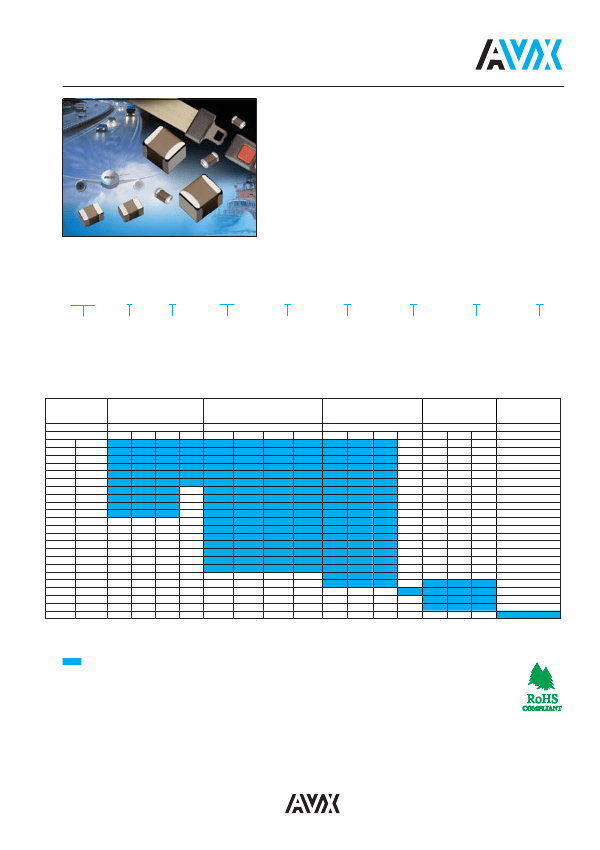

FLEXISAFE MLC Chips
For Ultra Safety Critical Applications
AVX have developed a range of components specifically for safety critical
applications.
Utilizing the award-winning FLEXITERM™ layer in conjunction with the
cascade design previously used for high voltage MLCCs, a range of
ceramic capacitors is now available for customers who require
components designed with an industry leading set of safety features.
The FLEXITERM™ layer protects the component from any damage to the
ceramic resulting from mechanical stress during PCB assembly or use
with end customers. Board flexure type mechanical damage accounts for
the majority of MLCC failures. The addition of the cascade structure
protects the component from low insulation resistance failure resulting
from other common causes for failure; thermal stress damage, repetitive
strike ESD damage and placement damage. With the inclusion of the
cascade design structure to complement the FLEXITERM™ layer, the
FLEXISAFE range of capacitors has unbeatable safety features.
HOW TO ORDER
FS03
Size
FS03 = 0603
FS05 = 0805
FS06 = 1206
FS10 = 1210
5
Voltage
16V = Y
25V = 3
50V = 5
100V = 1
C
Dielectric
X7R = C
104
Capacitance
Code (In pF)
2 Sig. Digits +
Number of
Zeros
e.g. 10µF =106
K
Capacitance
Tolerance
J = ±5%
K = ±10%
M = ±20%
Q
Failure
Rate
A = Commercial
4 = Automotive
Q = APS
Z
Terminations
Z = FLEXITERM
TM
*
X = FLEXITERM
TM
with 5% min lead
*Not RoHS Compliant
2
Packaging
2 = 7" Reel
4 = 13" Reel
A
Special
Code
A = Std. Product
FLEXISAFE X7R RANGE
Capacitance
Code
Soldering
16
102
182
222
332
472
103
123
153
183
223
273
333
473
563
683
823
104
124
154
224
334
474
105
µF 0.001
0.0018
0.0022
0.0033
0.0047
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.047
0.056
0.068
0.082
0.1
0.12
0.15
0.22
0.33
0.47
1
FS03 = 0603
Reflow/Wave
25
50
100
16
FS05 = 0805
Reflow/Wave
25
50
100
16
FS06 = 1206
Reflow/Wave
25
50
100
16
FS10 = 1210
Reflow Only
25
50
FS20 = 2220
Reflow Only
100
Qualified
102017
