C-59U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> C-59U

C-59U: DescriptionFixed Inductors Inductor/Choke, Low Frequency, 12.5A (DC Rating) Current, 0.1ohm DC Resistance, 0.01H Inductance, 13/64 x 3/8 Inch Mounting Hole Size, Case Type = U; CategoryPassive components inductor; File Size32KB，1 Pages; ManufacturerTriad Magnetics; Websitehttps://www.triadmagnetics.com/; Environmental Compliance

Download Datasheet Parametric View All

C-59U Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C-59U	-	-	View	Buy Now

C-59U Overview

Fixed Inductors Inductor/Choke, Low Frequency, 12.5A (DC Rating) Current, 0.1ohm DC Resistance, 0.01H Inductance, 13/64 x 3/8 Inch Mounting Hole Size, Case Type = U

C-59U Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Triad Magnetics
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Choke Coil
DC Resistance	0.1 Ω
Nominal inductance(L)	10000 µH
Inductor Applications	FILTER CHOKE
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Package height	88.9 mm
Package length	104.775 mm
Package form	Chassis Mount
Package width	76.2 mm
Maximum rated current	12.5 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	NO
Terminal location	RADIAL
Terminal shape	LUG
Tolerance	50%

Preview

Download Datasheet

View All

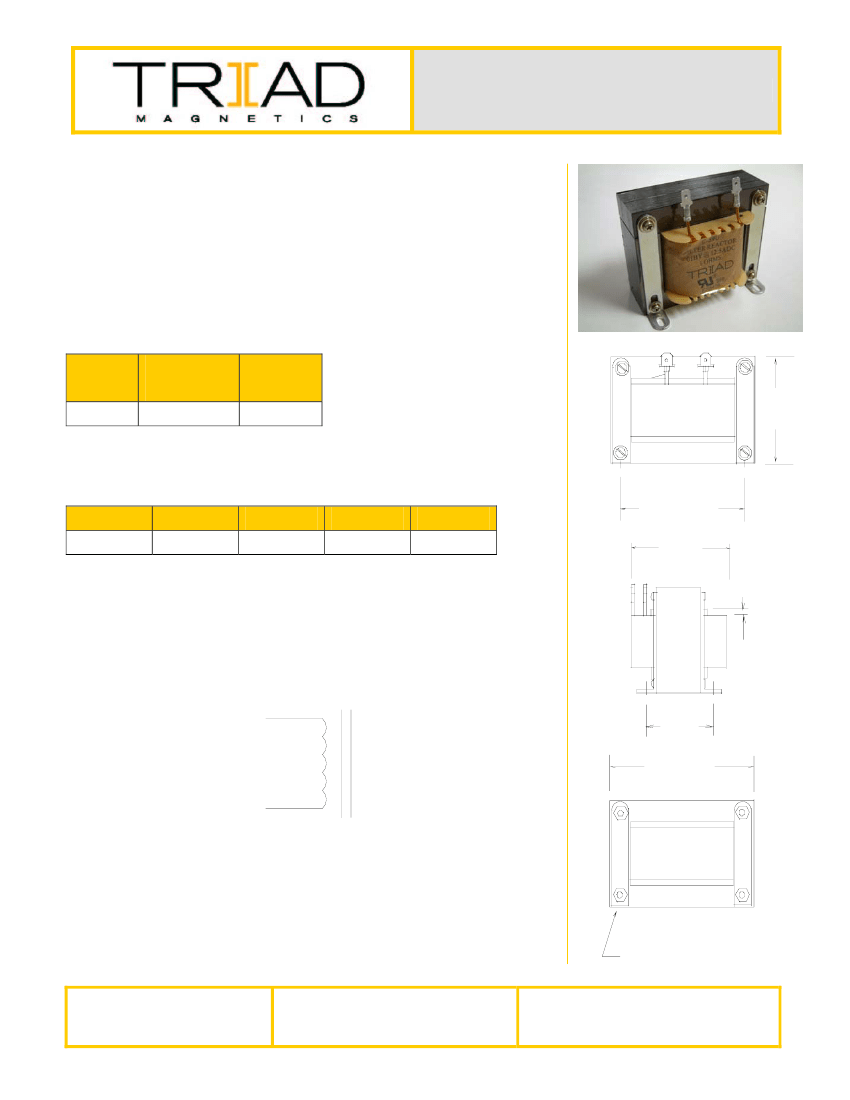

Inductors

C-59U

Description:

Smoothing chokes are power supply filter chokes having a core with an air gap

which prevents saturation at maximum current. Hipot to 1500 VRMS between

winding and core for safety.

Electrical Specifications (@25C):

Current

DC Amps

12.5

Inductance ††

Henries

0.010

Resistance

Ohms

0.10

†† = Inductance tolerance -20%, + 50 %

Dimensions:

3.50

Weight: 6.25 lbs.

4.125

3.00

3.437

Unit: In inches

2.375

Schematic:

RoHS Compliance:

As of manufacturing date February 2005, all standard products meet the

requirements of 2011/65/EU, known as the RoHS initiative.

* Upon printing, this document is considered “uncontrolled”. Please contact Triad

Magnetics’ website for the most current version.

.203 X .375, 4 SLOTS.

Web: www.TriadMagnetics.com

Phone 951-277-0757

Fax 951-277-2757

460 Harley Knox Blvd.

Perris, California 92571

Publish Date: December 4, 2013
