3435S-1-103

Description
Precision Potentiometers 10KOHMS WIREWOUND SINGLE TURN
CategoryPassive components    The resistor
File Size245KB，2 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric Compare View All

3435S-1-103 Online Shopping

Suppliers Part Number Price MOQ In stock
3435S-1-103 - - View Buy Now

3435S-1-103 Overview

Precision Potentiometers 10KOHMS WIREWOUND SINGLE TURN

3435S-1-103 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBourns
Reach Compliance Codenot_compliant
ECCN codeEAR99
Actuator directionHORIZONTAL
Actuator typeSHAFT
structureRound
gang number1
JESD-609 codee4
Manufacturer's serial number3435
Installation featuresPANEL MOUNT
Number of terminals3
number of turns1
Maximum operating temperature125 °C
Minimum operating temperature1 °C
Package diameter26.92 mm
Package length17.3 mm
Package shapeCIRCULAR PACKAGE
Package formScrew Ends
Rated power dissipation(P)1.5 W
Rated temperature70 °C
resistance10000 Ω
resistance lawLINEAR
Resistor typePOTENTIOMETER
rotation angle350 deg
series3435
surface mountNO
technologyWIRE WOUND
Temperature Coefficient-20,20 ppm/°C
Terminal surfaceGold (Au)
Terminal shapeBINDING POST
Tolerance3%

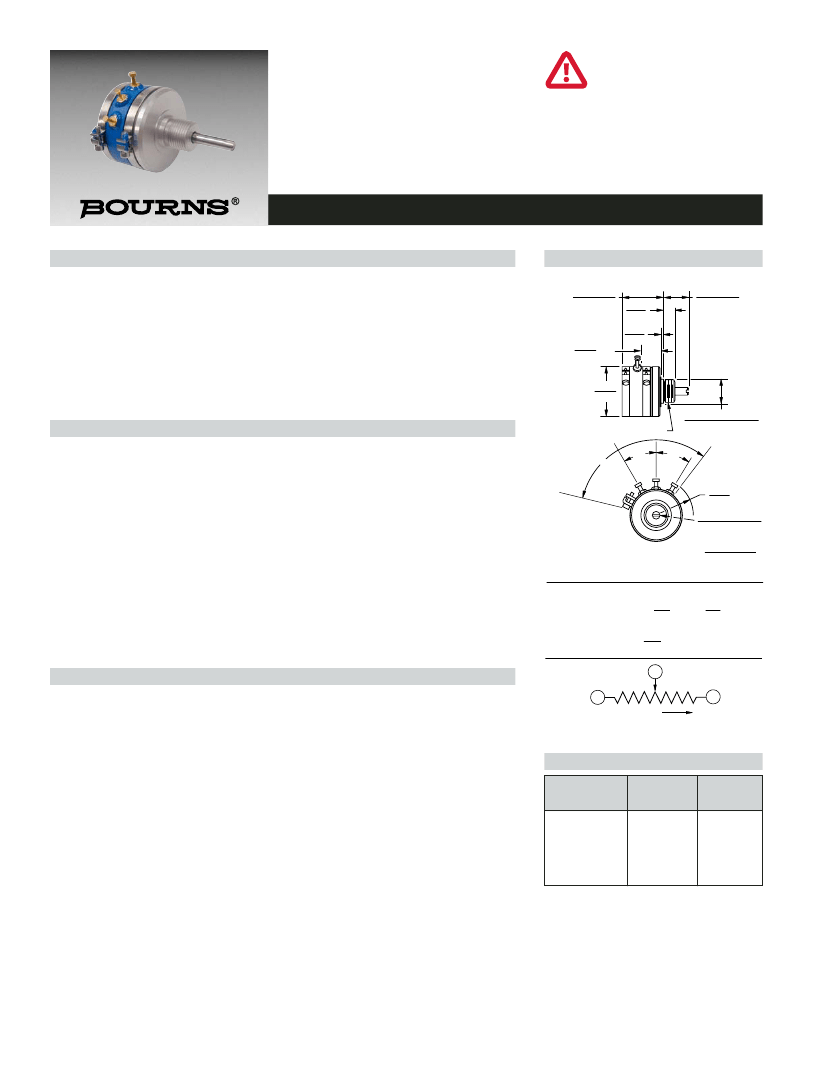

Preview

Download Datasheet
Features
■
■
■
■
■
27 mm (1-1/16 ) diameter,
single-turn wirewound
Bushing mount
Gangable to 8 cups
Outstanding vibration and
shock performance
Shaft supported front and rear by
precision sleeve bearings
Model 3435 is currently available,
although not recommended for new
designs.
Model 6657
is preferred.
■
■
High temperature, moisture resistant,
thermosetting plastic housing
Non-standard features and
specifications available
3435 - Precision Potentiometer
Electrical Characteristics
1
Standard Resistance Range .......................................................................................50 to 20 K ohms
Total Resistance Tolerance ...........................................................................................................±3 %
Independent Linearity ................................................................................................................±0.5 %
Effective Electrical Angle .......................................................................................................350 ° ±2 °
Noise.............................................................................................................100 ohms ENR maximum
Absolute Minimum Resistance .................................................1 ohm or 0.1 % (whichever is greater)
Dielectric Withstanding Voltage
Sea Level ..........................................................................................................1,000 VAC minimum
Power Rating
+70 °C.................................................................................................................................1.5 watts
+125 °C....................................................................................................................................0 watt
Insulation Resistance (500 VDC)..................................................................1,000 megohms minimum
Resolution ......................................................................................................See ordering information
Product Dimensions
3435
17.30
±
.38
(.681
±
.015)
22.22
±
.79
(.825
±
.031)
9.53
(.375)
1.57
(.060)
8.13
MIN.
(.32)
26.92
(1.06)
10.317 +.000/-.051
(.4062 + .000/ - .002)
30
°
±
5
°
Environmental Characteristics
1
Operating Temperature Range.....................................................................................+1 °C to 125 °C
Storage Temperature Range.....................................................................................-65 °C to +125 °C
Temperature Coefficient Over Storage Temperature Range
2
....................................±20 ppm/°C max.
Vibration (MIL-R-12934) .................................................................................................................15 G
Wiper Bounce ...........................................................................................0.1 millisecond maximum
Total Resistance Shift ..............................................................................................±5 % maximum
Voltage Ratio Shift ...................................................................................................±1 % maximum
Shock (MIL-R-12934) .....................................................................................................................50 G
Wiper Bounce ...........................................................................................0.1 millisecond maximum
Total Resistance Shift ..............................................................................................±5 % maximum
Voltage Ratio Shift ...................................................................................................±1 % maximum
Load Life .............................................................................................................................1,000 hours
Total Resistance Shift .............................................................................................2.0 % maximum
Rotational Life (No Load) ...........................................................................1,000,000 shaft revolutions
Total Resistance Shift ..............................................................................................±5 % maximum
Moisture Resistance (MIL-STD-202, Method 106)
Total Resistance Shift ..............................................................................................±5 % maximum
Humidity ................................................................................................MIL-R-12934 humidity cycling
Total Resistance Shift ..............................................................................................±5 % maximum
IP Rating ........................................................................................................................................IP 40
T
3/8 " - 32 UNEF 2A
30
°
±
5
°
CW
CCW
W
18.54
R MAX.
(.73)
3.170 +.000/-.008
(.1248 + .000/ - .0003)
SHAFT
.81 X .81
±.25
(.032 X .032
±
.010)
SLOT
NOTE: LOCKWASHER
AND HEX NUT TO BE
SUPPLIED WITH EACH UNIT.
TOLERANCES: EXCEPT WHERE NOTED
.51
.13
DECIMALS: .XX
±
.XXX
±
(.020),
(.005)
FRACTIONS:
±1/64
MM
DIMENSIONS:
(IN.)
Mechanical Characteristics
1
Mechanical Angle ................................................................................................................Continuous
Torque
Starting .......................................................................................0.18 N-cm (0.25 oz.-in.) maximum
Running ......................................................................................0.18 N-cm (0.25 oz.-in.) maximum
Additional Cups........................................................................................................Add 75 % each
Mounting.............................................................................170-200 N-cm (15-18 lb.-in.) maximum
Shaft Runout................................................................................................0.025 mm (0.001 in.) T.I.R.
Shaft End Play ...............................................................................................0.08 mm (0.003 in.) T.I.R.
Shaft Radial Play ...........................................................................................0.08 mm (0.003 in.) T.I.R.
Backlash ......................................................................................................................0.25 ° maximum
Weight..................................................................................................................Approximately 23 gm
Terminals ...........................................................................................................Gold-plated turret type
Soldering Condition
Manual Soldering................................96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire
370 °C (700 °F) max. for 3 seconds
Wave Soldering ........................................................96.5Sn/3.0Ag/0.5Cu solder with no-clean flux
260 °C (500 °F) max. for 5 seconds
Wash processes ..................................................................................................Not recommended
Marking ................................Manufacturer’s name and part number, resistance value and tolerance,
linearity tolerance, wiring diagram, date code
Ganging (Multiple Section Potentiometers) ...............................................................8 cups maximum
Hardware ....................................................One lockwasher (H-37-2) and one mounting nut (H-38-2)
is shipped with each potentiometer.
1
2
2
CCW
WIPER
1
CLOCKWISE
3
CW
Recommended Part Numbers
Part
Number
3435S-1-102
3435S-1-202
3435S-1-502
3435S-1-103
3435S-1-503
Resistance Resolution
(Ω)
(%)
1,000
2,000
5,000
10,000
50,000
.208
.178
.135
.107
.057
At room ambient: +25 ¡C nominal and 50 % relative humidity nominal, except as noted.
Consult factory for complete specification details.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.

3435S-1-103 Related Products

3435S-1-103 3435S-1-202 3435S-1-502 3435S-1-503
Description Precision Potentiometers 10KOHMS WIREWOUND SINGLE TURN Precision Potentiometers 2KOHMS WIREWOUND SINGLE TURN Precision Potentiometers 5KOHMS WIREWOUND SINGLE TURN Precision Potentiometers 50KOHMS WIREWOUND SINGLE TURN
Tolerance 3% 3% 3% 3 %
Is it Rohs certified? conform to conform to conform to -
Maker Bourns Bourns Bourns -
Reach Compliance Code not_compliant not_compliant not_compliant -
ECCN code EAR99 EAR99 EAR99 -
Actuator direction HORIZONTAL HORIZONTAL HORIZONTAL -
Actuator type SHAFT SHAFT SHAFT -
structure Round Round Round -
gang number 1 1 1 -
JESD-609 code e4 e4 e4 -
Manufacturer's serial number 3435 3435 3435 -
Installation features PANEL MOUNT PANEL MOUNT PANEL MOUNT -
Number of terminals 3 3 3 -
number of turns 1 1 1 -
Maximum operating temperature 125 °C 125 °C 125 °C -
Minimum operating temperature 1 °C 1 °C 1 °C -
Package diameter 26.92 mm 26.92 mm 26.92 mm -
Package length 17.3 mm 17.3 mm 17.3 mm -
Package shape CIRCULAR PACKAGE CIRCULAR PACKAGE CIRCULAR PACKAGE -
Package form Screw Ends Screw Ends Screw Ends -
Rated power dissipation(P) 1.5 W 1.5 W 1.5 W -
Rated temperature 70 °C 70 °C 70 °C -
resistance 10000 Ω 2000 Ω 5000 Ω -
resistance law LINEAR LINEAR LINEAR -
Resistor type POTENTIOMETER POTENTIOMETER POTENTIOMETER -
rotation angle 350 deg 350 deg 350 deg -
series 3435 3435 3435 -
surface mount NO NO NO -
technology WIRE WOUND WIRE WOUND WIRE WOUND -
Temperature Coefficient -20,20 ppm/°C -20,20 ppm/°C -20,20 ppm/°C -
Terminal surface Gold (Au) Gold (Au) Gold (Au) -
Terminal shape BINDING POST BINDING POST BINDING POST -
