202S43W123MV4E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 202S43W123MV4E

202S43W123MV4E: DescriptionMultilayer Ceramic Capacitors MLCC - SMD/SMT 2Kvolts 0.012uF 20% X7R; CategoryPassive components; File Size209KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

202S43W123MV4E Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	202S43W123MV4E	-	-	View	Buy Now

202S43W123MV4E Overview

Multilayer Ceramic Capacitors MLCC - SMD/SMT 2Kvolts 0.012uF 20% X7R

202S43W123MV4E Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Johanson Dielectrics
Product Category	Multilayer Ceramic Capacitors MLCC - SMD/SMT
RoHS	Details
Termination	Standard
Capacitance	0.012 uF
Voltage Rating DC	2 kVDC
Dielectric	X7R
Tolerance	20 %
Case Code - in	1812
Case Code - mm	4532
Height	2.8 mm
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 125 C
Product	General Type MLCCs
Packaging	Reel
Length	4.5 mm
Package / Case	1812 (4532 metric)
Termination Style	SMD/SMT
Type	High Voltage Capacitors
Width	3.18 mm
Capacitance - nF	12 nF
Capacitance - pF	12000 pF
Factory Pack Quantity	500

Preview

Download Datasheet

View All

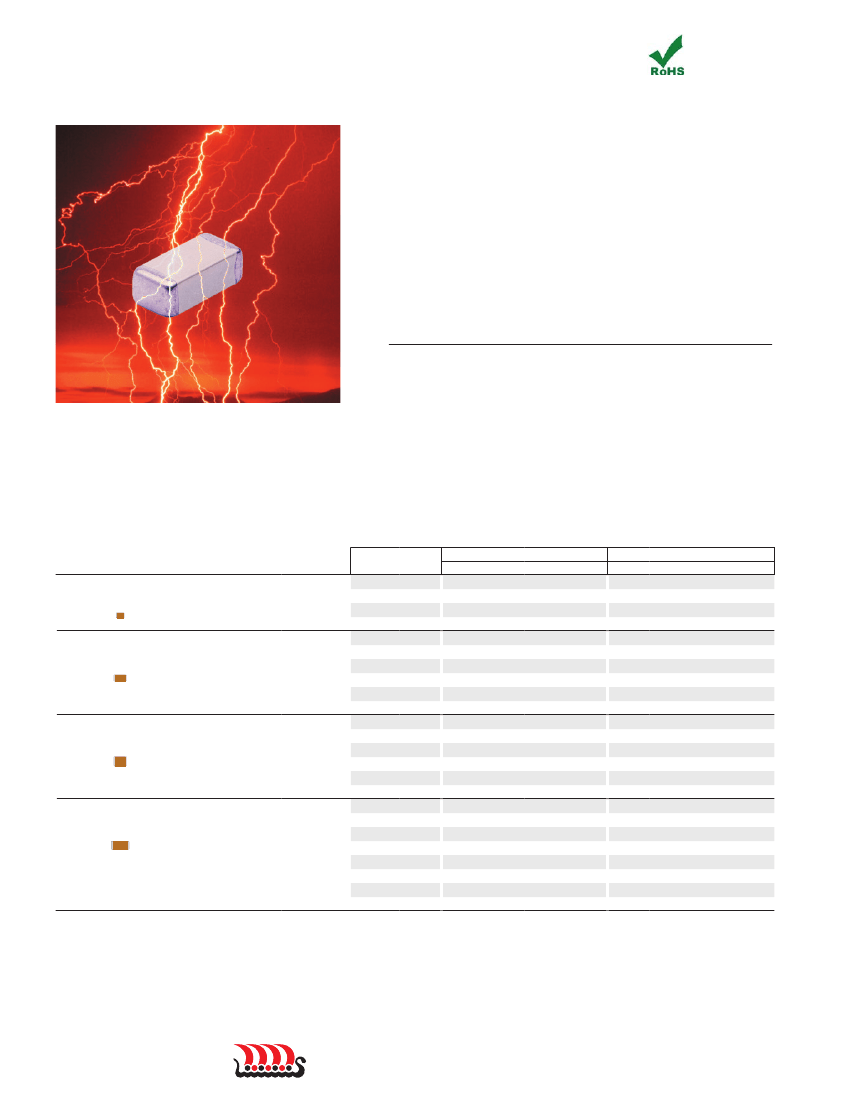

Igh

olTage

urface

ounT

mlcc

250 - 6,000 Vdc

These high voltage capacitors feature a special internal electrode

design which reduces voltage concentrations by distributing

voltage gradients throughout the entire capacitor.

This unique design also affords increased capacitance values in

a given case size and voltage rating. The capacitors are designed

and manufactured to the general requirement of EIA198 and

are subjected to a 100% electrical testing making them well

suited for a wide variety of telecommunication, commercial, and

industrial applications.

pplicationS

• Analog & Digital Modems

• Lighting Ballast Circuits

• DC-DC Converters

• LAN/WAN Interface

• Voltage Multipliers

• Back-lighting Inverters

Polyterm

soft termination option for demanding environments &

processes available on select parts, please contact the factory.

aSe

ize

JDI /EIA

INCHES

E/B

.080 ±.010

.050 ±.010

.055 Max.

.020 ±.010

.125 ±.010

.062 ±.010

.067 Max.

.020 ±.010

(MM)

(2.03 ±.25)

(1.27 ±.25)

(1.40)

(0.51±.25)

(3.18 ±.25)

(1.57 ±.25)

(1.70)

(0.51±.25)

RATED

VOLTAGE

250 VDC

500 VDC

630 VDC

1000 VDC

250 VDC

500 VDC

630 VDC

1000 VDC

2000 VDC

3000 VDC

250 VDC

500 VDC

630 VDC

1000 VDC

2000 VDC

3000 VDC

500 VDC

630 VDC

1000 VDC

2000 VDC

3000 VDC

4000 VDC

5000 VDC

6000 VDC

apacitance

election

NP0 DIELECTRIC

MINIMUM

MAXIMUM

1.0

680

560

390

1500

1200

1000

220

3900

2700

1800

560

220

4700

3300

2200

820

470

180

X7R DIELECTRIC

MINIMUM

MAXIMUM

1000

100

1000

100

1000

100

1000

100

0.022

0.010

6800

2700

0.068

0.033

0.027

0.010

4700

1000

0.150

0.068

0.047

0.015

4700

1000

0.100

0.047

0.022

0.010

3300

1800

390

150

µF

R15/0805

R18/1206

S41/1210

E/B

.125 ±.010

.095 ±.010

.080 Max.

.020 ±.010

(3.18 ±.25)

(2.41 ±.25)

(2.03)

(0.51±.25)

R29/1808

E/B

.185 ±.020

.080 ±.010

.085 Max.

.020 ±.010

(4.70 ±.51)

(2.03 ±.25)

(2.16)

(0.51±.25)

Available cap. values include these significant retma values and their multiples: 1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2

( 1.0 = 1.0, 10, 100, 1000, etc.) Consult factory for non-retma values and sizes or voltages not shown.

www.johanson dielectrics.com
