Suppression Chokes
https://www.schurter.com /PG81_82
DKFP

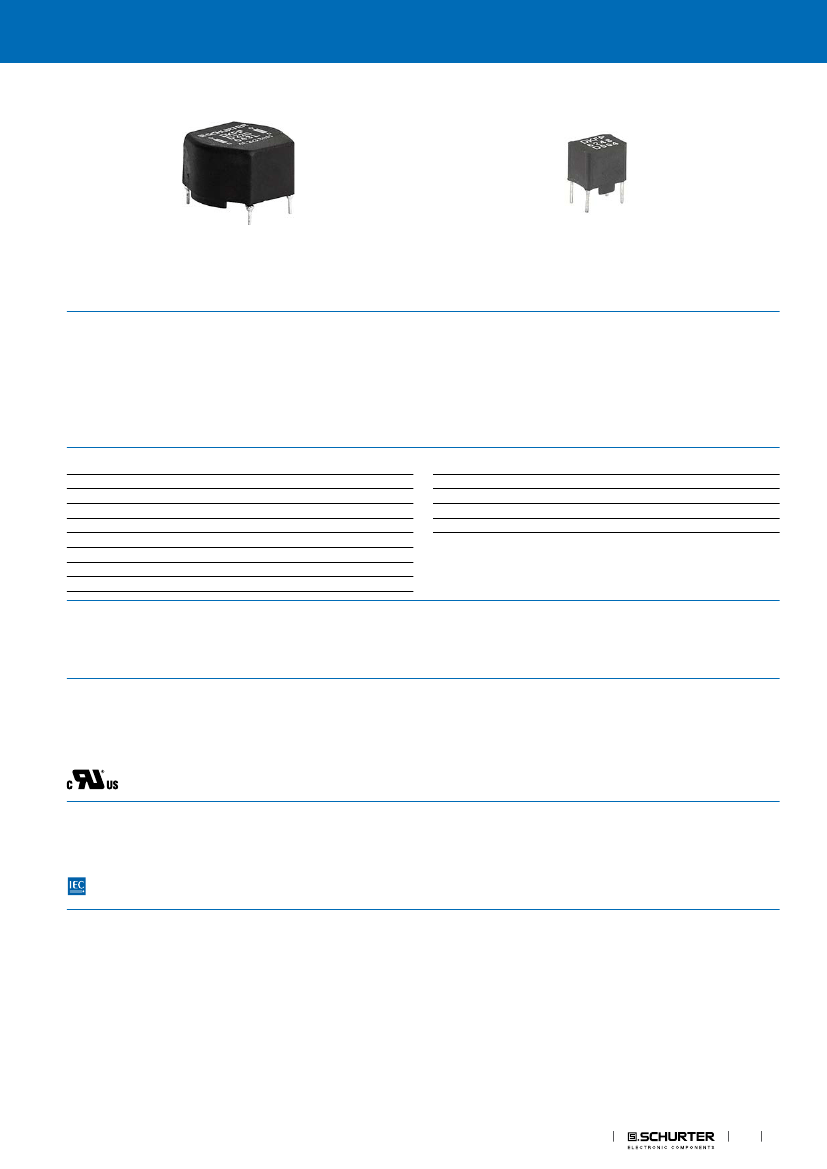

Magnetically Compensated Choke, compact
Approvals and Compliances
Description
-
-
-
-
-
Current compensated choke
THT-terminals
Multiple PCB-mounting options
High inductance and compact dimensions
Multiple pin configurations
Applications
-
-
-
-
-

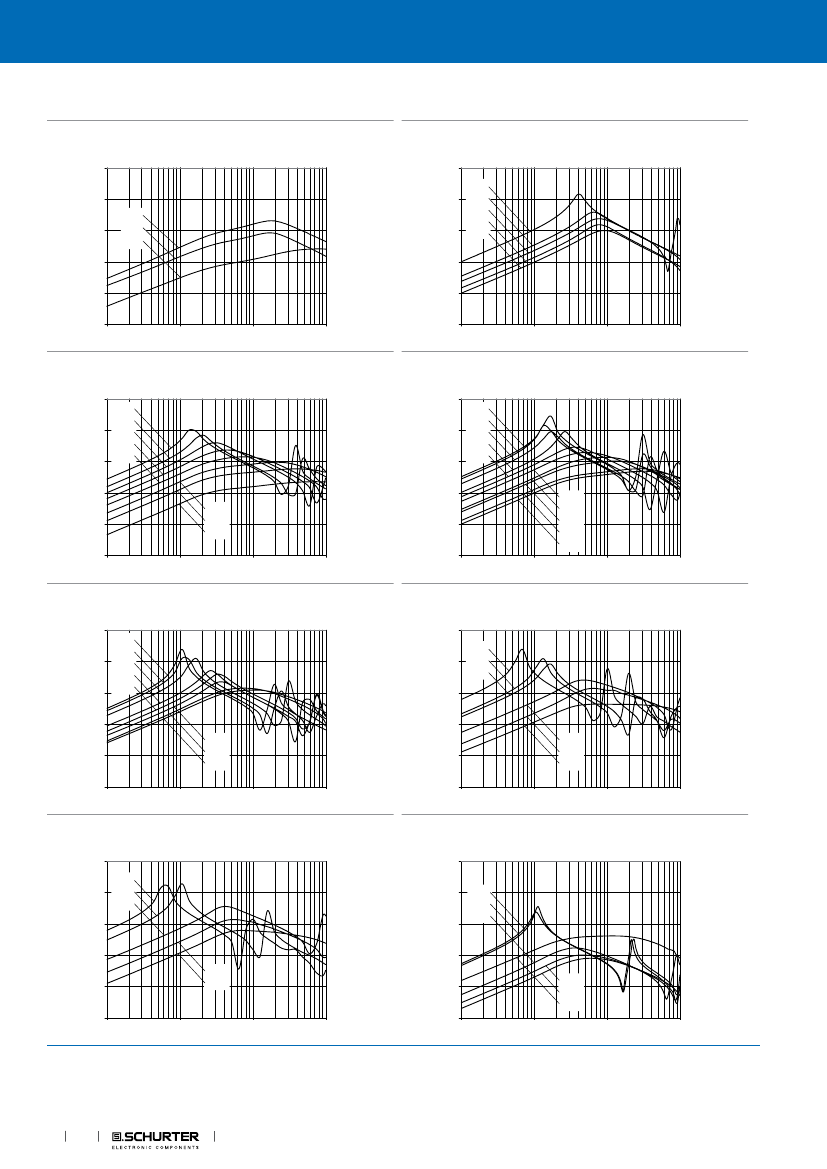

Attenuation of common mode interferences
Designed for 230/400 VAC applications
Chopper amplifiers
DC drives and stepper motor controls
Switching power supplies
Weblinks
pdf datasheet, html-datasheet, General Product Information, Distributor-
Stock-Check, Detailed request for product, SPICE Library
Technical Data
Rated voltage
Rated Current
Rated inductance
Power Operating Frequency
Terminal Type
Weight
Material: Housing
Sealing Compound
up to 250 VAC
0.3 - 10 A @ Ta 40 °C
0.5 - 100 mH, Tol. -30% +50%
DC - 1 kHz
THT
1 - 55 g
UL 94V-0
UL 94V-0
Test Voltage
Isolation Voltage
Climatic Category
Allowable Operation Temp.
1.5 kV, 50 Hz, 1 min, winding to winding
4 kV eff., winding to ambient
40/125/56 acc. to IEC 60068-1
-40 °C to 125 °C
Approvals and Compliances
Detailed information on product approvals, code requirements, usage instructions and detailed test conditions can be looked up in
Details about
Approvals
Approvals
The approval mark is used by the testing authorities to certify compliance with the safety requirements placed on electronic products.
Approval Reference Type: DKFP
Approval Logo
Certificates
UL Approvals
Certification Body
UL
Description
UL File Number:
Application standards
Application standards where the product can be used
Organization
Design
Designed for applications acc.
Standard
IEC/UL 60950
Description
IEC 60950-1 includes the basic requirements for the safety of information
technologyequipment.
EMC Products
1
DKFP
Compliances
The product complies with following Guide Lines
Identification
Details
CE declaration of conformity
Initiator
SCHURTER AG
Description
https://www.schurter.com /PG81_82
Suppression Chokes
The CE marking declares that the product complies with the applicable
requirements laid down in the harmonisation of Community legislation on
its affixing in accordance with EU Regulation 765/2008.
EU Directive RoHS 2011/65/EU
The law SJ / T 11363-2006 (China RoHS) has been in force since 1 March
2007. It is similar to the EU directive RoHS.
On 1 June 2007, Regulation (EC) No 1907/2006 on the Registration,
Evaluation, Authorization and Restriction of Chemicals 1 (abbreviated as
"REACH") entered into force.
RoHS
China RoHS
REACH
SCHURTER AG
SCHURTER AG
SCHURTER AG

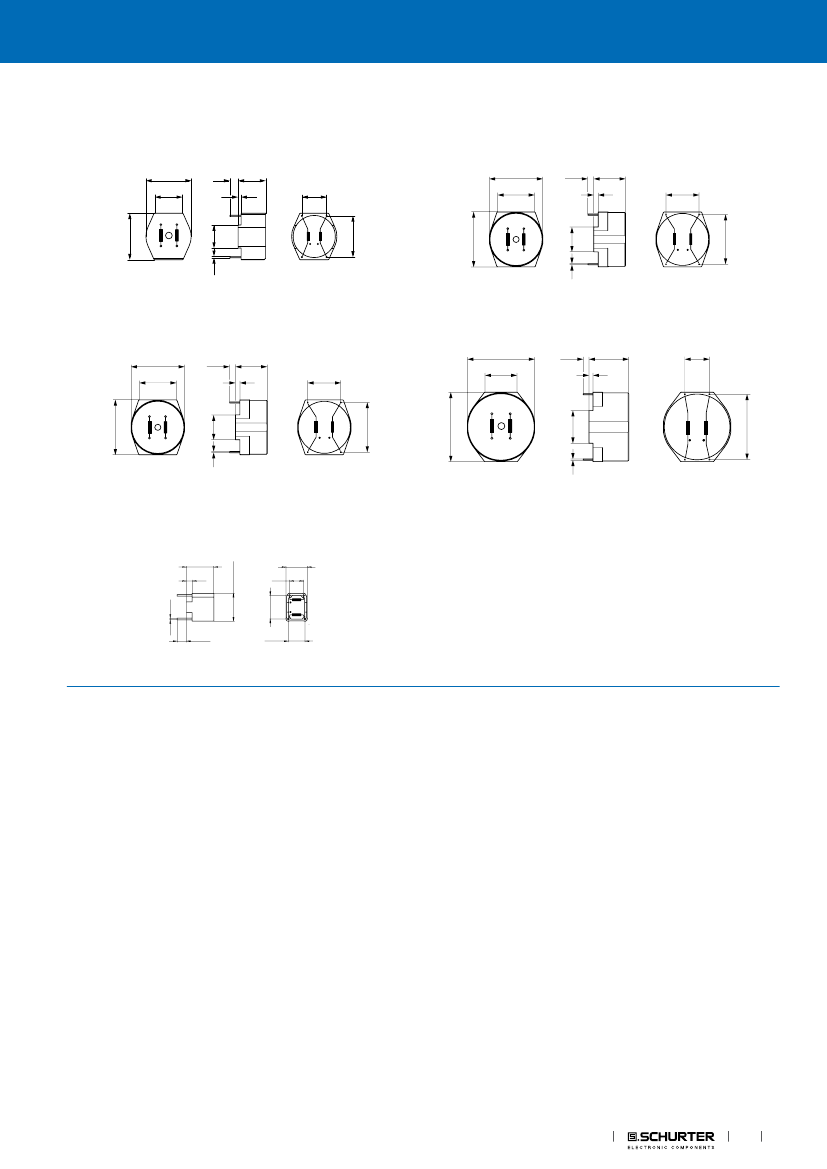

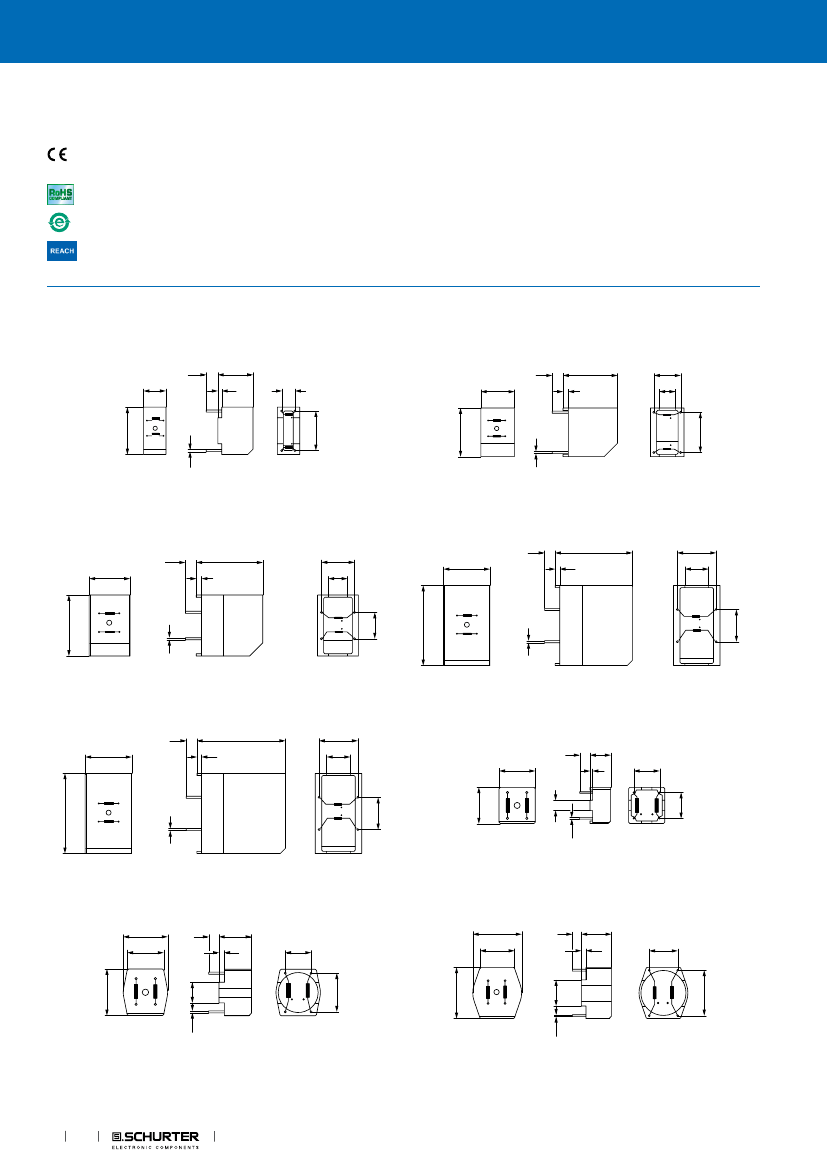

Dimension [mm]
Case 1A
Case 1B
4.5
±0.3
max. 9
max. 14
1.5
5.08
±0.2
max. 13
4
±0.3
2
max. 21
10
±0.2
6
max. 18.5
15.21
±0.2
4
3
4
max. 19
3
ø 0.8 (4x)
2
1
ø 0.8 (4x)
2
1
Case 1C
Case 1D
4.1
±0.3
4.1
±0.3
max. 16
2
max. 26
12.5
±0.2
7.2
max. 18.5
1.8
max. 30
15
±0.2
9.2
max. 23.5
ø 0.8 (4x)
2
1
ø 0.8 (4x)
2
1
Case 1E
4.1
±0.3
max. 18.5
1.8
max. 35
15
±0.2
9.2
Case 2A
4
±0.3
max. 14.5
max. 9.5
1
10
±0.3
max. 14.5
max. 31.5
12.5
±0.2
ø 0.6 (4x)
ø 0.8 (4x)
3
1
2
1
Case 2B
Case 2C
max. 18
max. 14.5
4
±0.3
max. 13
2.1
10
±0.3
max. 22
max. 15.5
4
±0.3
max. 13.5
2
12.5
±0.3
4
2
4
max. 18.5
max. 23
10
±0.3
4
3
4
2
4
2
15
±0.3
ø 0.8 (4x)
3
1
ø 0.8 (4x)
3
1
2
EMC Products
20
±0.3
11.5
8
12.5
±0.2
4
3
max. 31.5
4
15
±0.2
3
10
±0.2
