RNU0J102MDN1KX datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> RNU0J102MDN1KX

RNU0J102MDN1KX: DescriptionAluminum Organic Polymer Capacitors 1000uF 6.3V 20%; CategoryPassive components; File Size118KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp; Environmental Compliance

Download Datasheet Parametric View All

RNU0J102MDN1KX Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	RNU0J102MDN1KX	-	-	View	Buy Now

RNU0J102MDN1KX Overview

Aluminum Organic Polymer Capacitors 1000uF 6.3V 20%

RNU0J102MDN1KX Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Nichicon
Product Category	Aluminum Organic Polymer Capacitors
RoHS	Details
Termination Style	Radial
Package Type	Can
Capacitance	1000 uF
Voltage Rating DC	6.3 VDC
Tolerance	20 %
ESR	7 mOhms
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 105 C
Diameter	8 mm
Length	11.5 mm
Ripple Current	5.7 A
Life	2000 Hour
Packaging	Cut Tape
Packaging	Reel
Product	Aluminum Polymer Capacitors
Leakage Current	1.26 mA
Dissipation Factor DF	0.08
Factory Pack Quantity	1000

Preview

Download Datasheet

View All

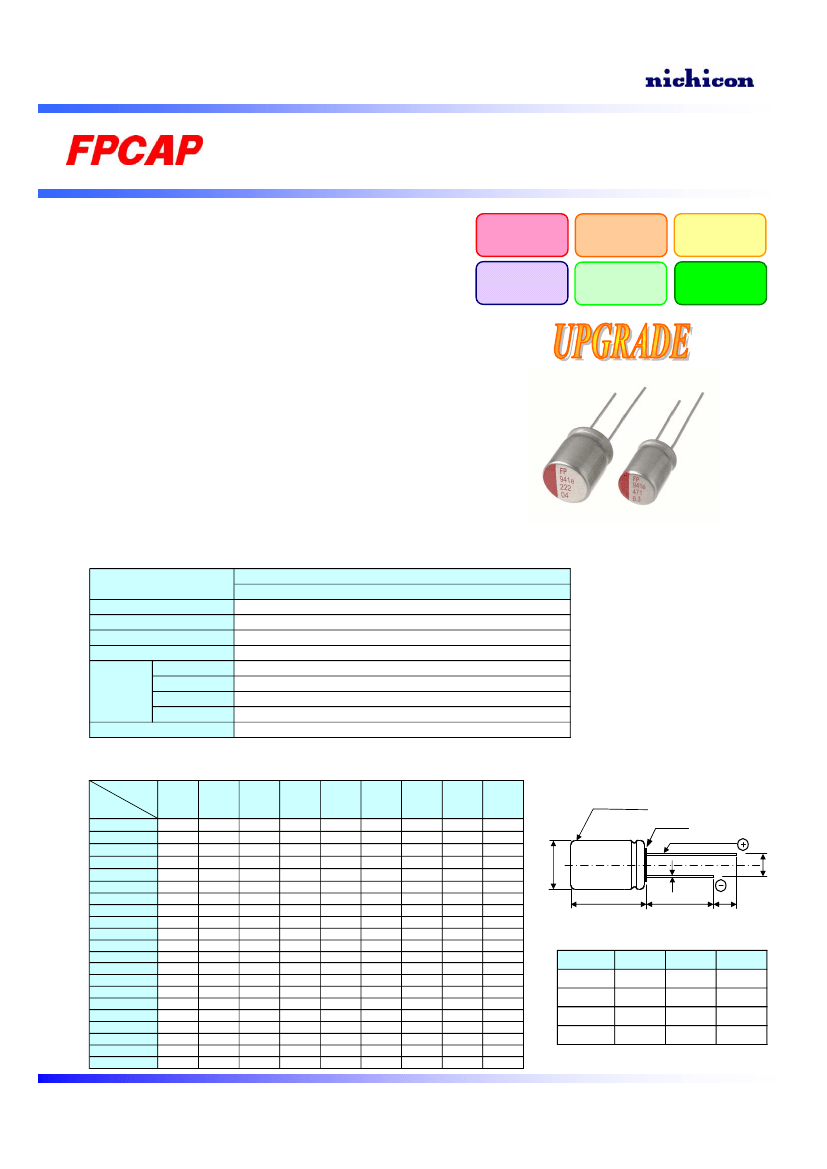

Products / Radial Lead Type

Functional Polymer Aluminum Solid Electrolytic Capacitors

series

Features

By using Functional Polymer cathode, Frequency & Temp.

characteristics are greatly improved.

Low ESR at a high frequency range.

High ripple current capability.

Long life and high reliability.

Ultra

Low ESR

High Voltage

Large

Capacitance

Lead-free

Endurance

2000/5000hrs

RoHS

Compliance

Applications

Switching Power Supply and DC/DC Converter.

Back up Power Supplies of CPU(VRM etc.)

Miniature high Power Supply.

Environmental Correspondence

Any environmental hazardous substances are not used.

The lead free of terminal plating (Sn 100%)

Specifications

Items

Operating Temp. Range

Rated Voltage Range

Capacitance Range

Capacitance Tolerance

Condition

Capacitance

Endurance

Leakage Current

tan

Failure Rate

Characteristics

- 55 to + 105°C

2.5 to 63V·

10 to 2700μF

± 20% (M)

105°C 2000/5000Hrs at rated voltage

Within ± 20% of the value before test

Not to exceed the value specified

Not to exceed 150% of the value specified

0.1% / 1000Hrs. Max (60%CL)

Size List

R.V (S.V.)

[V]

[φD×L]

4.0

(4.6)

6.3

(7.2)

(11.5)

4×5

(18.4)

(28.7)

8×11.5

6.3×10

10×12.5

8×11.5

6.3×10

8×11.5

8×11.5 10×12.5

10×12.5

8×11.5

8×11.5 10×12.5

10×12.5

8×11.5

(40.2)

(57.5)

(72.5)

Dimensions

Aluminum Case

Stand off

Wire (Lead free)

P± 0.5

φd

L+α Max

15Min

4Min

[Unit : mm]

φD+0.5Max

Cap. [μF]

100

150

180

220

270

330

470

680

820

1000

1200

1500

1800

2200

2700

2.5

(2.8)

8×11.5

8×11.5 10×12.5

10×12.5

D×L

4×5

6.3×10

8×11.5

10×12.5

0.45

0.5

0.6

1.5

2.5

3.5

5.0

1.0

1.5

8×11.5

10×12.5

NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
