FLZ2V2 - FLZ39V Zener Diodes
September 2006
FLZ2V2 - FLZ39V
Zener Diodes
tm
Color Band Marking
Tolerance
A
B
C
D
1st Band
Blue
Blue
Blue
Blue
2nd Band
Red
Green
Black
Gray
SOD-80 Glass case
Color Band Denotes Cathode
Absolute Maximum Ratings
Symbol
P
D
T
STG
T
J
I
ZM
Power Dissipation
T
a
= 25°C unless otherwise noted
Parameter
Storage Temperature Range
Maximum Junction Temperature
Maximum Regulator Current
Value
500
-65 to +175
175
P
D
/V
Z
Units
mW
°C
°C
mA
* These ratings are limiting values above which the serviceability of the diode may be impaired.
Thermal Characteristics
Symbol
R
θJA
Parameter
Thermal Resistance, Junction to Ambient
Value
300
Unit
°C/W
* Device mounted on FR-4 PCB with 3’’
×
4.5” X 0.06 with only signal trace
Electrical Characteritics
Symbol
V
F
T
amb
= 25°C unless otherwise specified
Parameter/ Test condition
Forward Voltage / I
F
=200mA
Min.
--
Typ.
--
Max.
1.2
Unit
V
Package Marking and Ordering Information
Device Marking
Color Band Marking
Per Tolerance
Device
Refer to
Product table list
Package
SOD-80
Reel Size
7”
Tape Width
8mm
Quantity
2,500
©2006 Fairchild Semiconductor Corporation
1
www.fairchildsemi.com
FLZ2V2 - FLZ39V Rev. B
FLZ2V2 - FLZ39V Zener Diodes
Electrical Characteristics
Product
Group
FLZ2V2
T
A
=25°C unless otherwise noted
Product
Name
FLZ2V2A
FLZ2V2B
V
Z
(V) @ I
ZT
Min.
2.13
2.23
2.34
2.45
2.55
2.70
2.86
3.02
3.17
3.33
3.48
3.64
3.78
3.93
4.07
4.22
4.35
4.48
4.60
4.73
4.86
4.99
5.13
5.31
5.48
5.66
5.83
6.01
6.18
6.33
6.54
6.72
6.90
7.13
7.35
7.58
7.84
8.09
8.34
8.63
8.91
Z
ZT
(Ω)
@ I
ZT
Max.
2.29
2.40
2.50
2.61
2.73
2.90
3.05
3.21
3.36
3.52
3.66
3.81
3.97
4.12
4.23
4.38
4.52
4.64
4.75
4.89
5.02
5.16
5.33
5.50
5.68
5.86
6.04
6.22
6.38
6.57
6.77
6.93
7.17
7.39
7.62
7.88
8.13
8.39
8.68
8.97
9.27
I
ZT
(mA)
-
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Z
ZK
(Ω)
@ I
ZK
Max.
400
400
400
400
450
450
450
450
450
450
850
850
850
850
850
850
850
770
770
770
685
685
685
425
425
425
255
255
255
123
123
123
95
95
95
95
95
95
95
95
95
I
ZK
(mA)
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
I
R
(µA)
@ V
R
Max
55
55
84
84
70
70
35
35
14
14
2.8
2.8
1.4
1.4
0.47
0.47
0.47
0.19
0.19
0.19
0.19
0.19
0.19
0.75
0.75
0.75
3.3
3.3
3.3
1.1
1.1
1.1
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
0.3
V
R
(V)
-
0.7
0.7
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1.5
1.5
1.5
2.5
2.5
2.5
3
3
3
3.5
3.5
3.5
4.0
4.0
4.0
5
5
5
6
6
6
Typ.
2.21
2.32
2.42
2.53
2.64
2.80
2.96
3.12
3.27
3.43
3.57
3.73
3.88
4.03
4.15
4.30
4.44
4.56
4.68
4.81
4.94
5.08
5.23
5.41
5.58
5.76
5.94
6.12
6.28
6.45
6.66
6.83
7.04
7.26
7.49
7.73
7.99
8.24
8.51
8.80
9.09
Max.
35
35
35
35
35
35
35
35
35
35
48
48
40
40
32
32
32
21
21
21
17
17
17
10.5
10.5
10.5
8.5
8.5
8.5
6.6
6.6
6.6
6.6
6.6
6.6
6.6
6.6
6.6
6.6
6.6
6.6
FLZ2V4
FLZ2V4A
FLZ2V4B
FLZ2V7
FLZ2V7A
FLZ2V7B
FLZ3V0
FLZ3V0A
FLZ3V0B
FLZ3V3
FLZ3V3A
FLZ3V3B
FLZ3V6
FLZ3V6A
FLZ3V6B
FLZ3V9
FLZ3V9A
FLZ3V9B
FLZ4V3
FLZ4V3A
FLZ4V3B
FLZ4V3C
FLZ4V7
FLZ4V7A
FLZ4V7B
FLZ4V7C
FLZ5V1
FLZ5V1A
FLZ5V1B
FLZ5V1C
FLZ5V6
FLZ5V6A
FLZ5V6B
FLZ5V6C
FLZ6V2
FLZ6V2A
FLZ6V2B
FLZ6V2C
FLZ6V8
FLZ6V8A
FLZ6V8B
FLZ6V8C
FLZ7V5
FLZ7V5A
FLZ7V5B
FLZ7V5C
FLZ8V2
FLZ8V2A
FLZ8V2B
FLZ8V2C
FLZ9V1
FLZ9V1A
FLZ9V1B
FLZ9V1C
2
FLZ2V2 - FLZ39V Rev. B
www.fairchildsemi.com
FLZ2V2 - FLZ39V Zener Diodes
Electrical Characteristics
(Continued) T =25°C unless otherwise noted
A
Product
Group
FLZ10V
Product
Name
FLZ10VA
FLZ10VB
FLZ10VC
V
Z
(V) @ I
ZT
Min.
9.21
9.50
9.84
10.2
10.53
10.85
11.16
11.53
11.83
12.21
12.62
13.07
13.52
13.99
14.45
14.90
15.36
15.83
16.38
16.96
17.56
18.17
18.78
19.42
19.93
20.28
20.82
21.29
21.75
22.32
22.81
23.35
23.87
24.33
25.04
25.69
26.36
27.07
27.77
28.44
29.10
Z
ZT
(Ω)
@ I
ZT
Max.
9.57
9.88
10.28
10.61
10.92
11.23
11.60
11.89
12.27
12.68
13.12
15.38
14.05
14.52
14.99
15.47
15.93
16.45
17.02
17.61
18.24
18.86
19.48
20.18
20.67
21.03
21.59
22.02
22.54
23.06
23.67
24.21
24.75
25.45
26.19
26.88
27.57
28.31
29.05
29.74
30.43
I
ZT
(mA)
-
20
20
20
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZK
(Ω)
@ I
ZK
Max.
95
95
95
95
95
95
95
95
95
95
95
95
95
95
95
132
132
132
123
123
123
170
170
170
170
170
170
170
170
170
170
170
170
210
210
210
210
210
210
210
210
I
ZK
(mA)
-
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
I
R
(µA)
@ V
R
Max
0.11
0.11
0.11
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
V
R
(V)
-
7
7
7
8
8
8
9
9
9
10
10
10
11
11
11
12
12
12
13
13
13
15
15
15
15
17
17
17
17
19
19
19
19
21
21
21
21
23
23
23
23
Typ.
9.39
9.69
10.06
10.41
10.73
11.04
11.38
11.71
12.05
12.45
12.87
13.33
13.79
14.26
14.72
15.19
15.65
16.14
16.70
17.29
17.90
18.52
19.13
19.80
20.30
20.66
21.21
21.66
22.15
22.69
23.24
23.78
24.31
24.89
25.62
26.29
26.97
27.69
28.41
29.09
29.77
Max.
6.6
6.6
6.6
8.5
8.5
8.5
9.5
9.5
9.5
11.4
11.4
11.4
13.3
13.3
13.3
15.2
15.2
15.2
19.4
19.4
19.4
23.5
23.5
23.5
23.5
25.6
25.6
25.6
25.6
29.0
29.0
29.0
29.0
38
38
38
38
46
46
46
46
FLZ11V
FLZ11VA
FLZ11VB
FLZ11VC
FLZ12V
FLZ12VA
FLZ12VB
FLZ12VC
FLZ13V
FLZ13VA
FLZ13VB
FLZ13VC
FLZ15V
FLZ15VA
FLZ15VB
FLZ15VC
FLZ16V
FLZ16VA
FLZ16VB
FLZ16VC
FLZ18V
FLZ18VA
FLZ18VB
FLZ18VC
FLZ20V
FLZ20VA
FLZ20VB
FLZ20VC
FLZ20VD
FLZ22V
FLZ22VA
FLZ22VB
FLZ22VC
FLZ22VD
FLZ24V
FLZ24VA
FLZ24VB
FLZ24VC
FLZ24VD
FLZ27V
FLZ27VA
FLZ27VB
FLZ27VC
FLZ27VD
FLZ30V
FLZ30VA
FLZ30VB
FLZ30VC
FLZ30VD
3
FLZ2V2 - FLZ39V Rev. B
www.fairchildsemi.com
FLZ2V2 - FLZ39V Zener Diodes
Product
Group
FLZ33V
Product
Name
FLZ33VA
FLZ33VB
FLZ33VC
FLZ33VD
V
Z
(V) @ I
ZT
Min.
29.76
30.40
30.99
31.57
32.30
32.95
33.58
34.19
34.86
35.53
36.18
36.82
Z
ZT
(Ω)
@ I
ZT
Max.
31.14
31.80
32.41
33.03
33.62
34.30
34.95
35.59
36.28
36.99
37.66
38.33
I
ZT
(mA)
-
5
5
5
5
5
5
5
5
5
5
5
5
Z
ZK
(Ω)
@ I
ZK
Max.
210
210
210
210
210
210
210
210
210
210
210
210
I
ZK
(mA)
-
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
I
R
(µA)
@ V
R
Max
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
0.133
V
R
(V)
-
25
25
25
25
27
27
27
27
30
30
30
30
Typ.
30.45
31.10
31.70
32.30
32.96
33.63
34.27
34.89
35.57
36.26
36.92
37.58
Max.
55
55
55
55
63
63
63
63
72
72
72
72
FLZ36V
FLZ36VA
FLZ36VB
FLZ36VC
FLZ36VD
FLZ39V
FLZ39VA
FLZ39VB
FLZ39VC
FLZ39VD
Note :
1. Zener Voltage(V
z
)
The zener voltage is measured with the device junction in the thermal equilibrium at the lead temperature (TL) at at 30°C ± 1°C and 3/8” lead length.
4
FLZ2V2 - FLZ39V Rev. B
www.fairchildsemi.com
FLZ2V2 - FLZ39V Zener Diodes

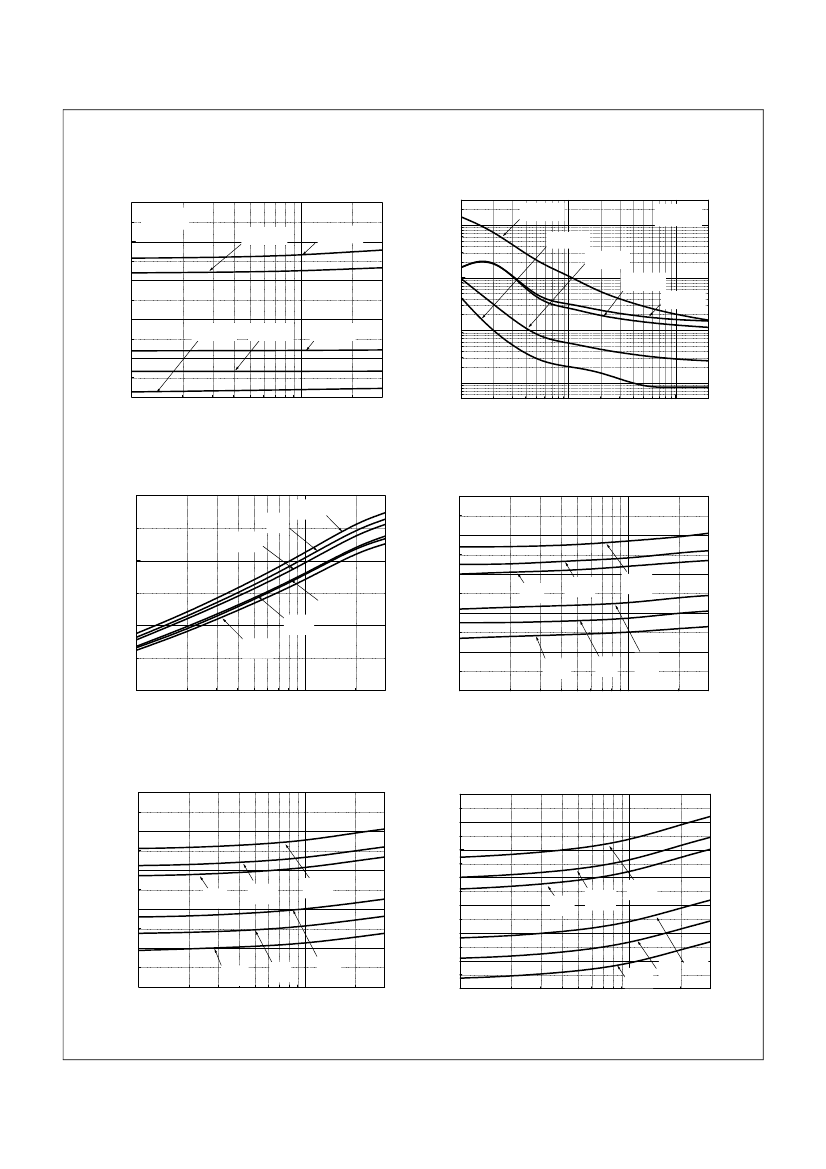

Typical Performance Characteristics
Figure 1. Zener current vs. Zener Voltage
50
Figure 2. Zener current vs. Zener Impedence
FLZ2V2A
1000
T
A
= 25 C
40
O
T
A
= 25 C
O
FLZ33VD
FLZ39VB
FLZ6V8B
Z
Z
- Impedance [ohms]
FLZ12VC
100
VZ - Zener Voltage [V]
30
FLZ33VD
FLZ39VB
20
FLZ2V2A
10
FLZ6V8B
FLZ12VC
10
1
0
1
2
3
4
5
6 7 8 9 10
20
30
0.1
1
10
I
Z
- Zener Current, [mA]
I
Z
- Zener Current, [mA]
Figure 3. FLZ2V2A
Zener current vs. Zener Voltage
2.5
Figure 4. FLZ6V8B
Zener current vs. Zener Voltage
7.2
-25 C
-0 C
25 C
VZ - Zener Voltage [V]
2.0
O
O
O
7.0
VZ - Zener Voltage [V]
6.8
85 C
6.6
O
100 C
O
125 C
O
85 C
1.5
O
100 C
125 C
O
O
6.4
-25 C
1.0
1
2
3
4
5
6 7 8 9
20
30
6.2
1
2
3
4
5
O
-0 C
6 7 8 9
O
25 C
O
20
30
I
Z
- Zener Current, [mA]
I
Z
- Zener Current, [mA]
Figure 5. FLZ12VC
Zener current vs. Zener Voltage
13.5
Figure 6. FLZ33VD
Zener current vs. Zener Voltage
37
36
13.0
VZ - Zener Voltage [V]
12.5
O
VZ - Zener Voltage [V]
35
34
O
85 C
12.0
100 C
O
125 C
O
33
85 C
100 C
O
125 C
O
32
11.5
O
-25 C
11.0
1
2
3
4
5
-0 C
6 7 8 9
O
25 C
20
30
30
1
2
3
4
5
6 7 8 9
O
31
-25 C
I
Z
- Zener Current, [mA]
O
-0 C
20
O
25 C
O
30
I
Z
- Zener Current, [mA]
5
FLZ2V2 - FLZ39V Rev. B
www.fairchildsemi.com
京公网安备 11010802033920号
EEWORLD
