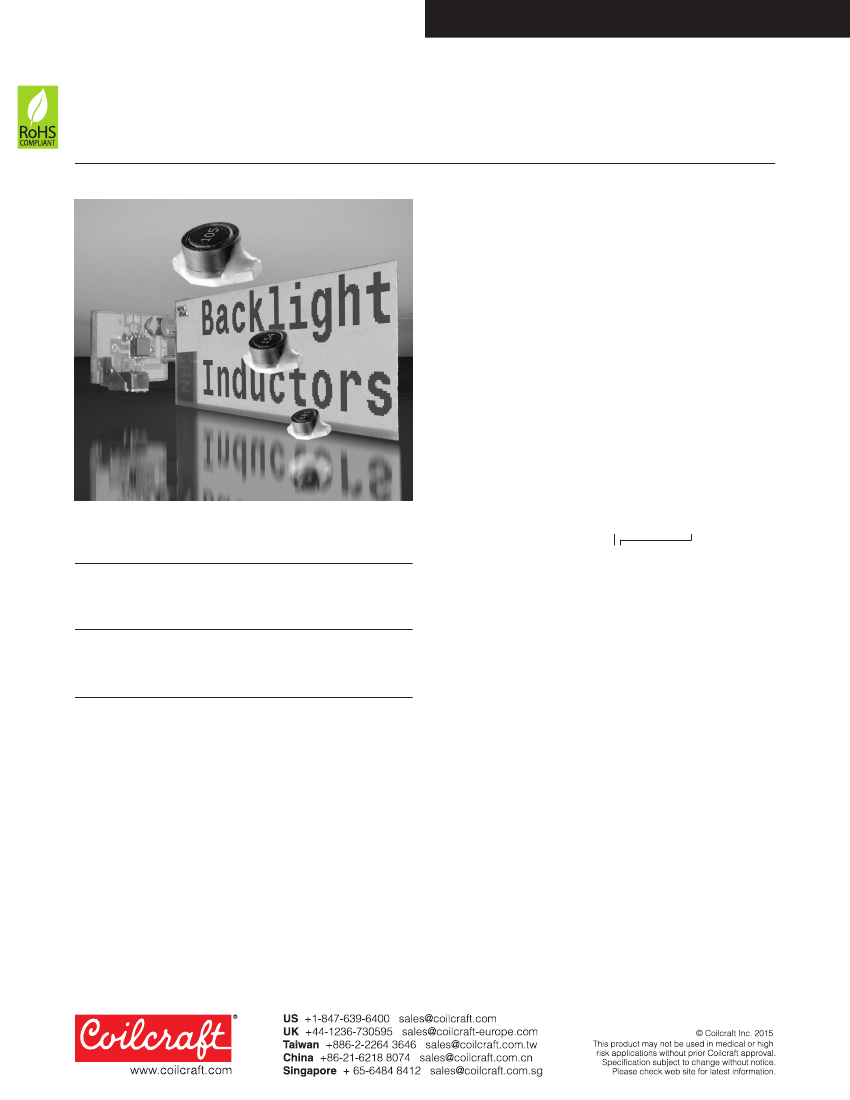

Document 205-1

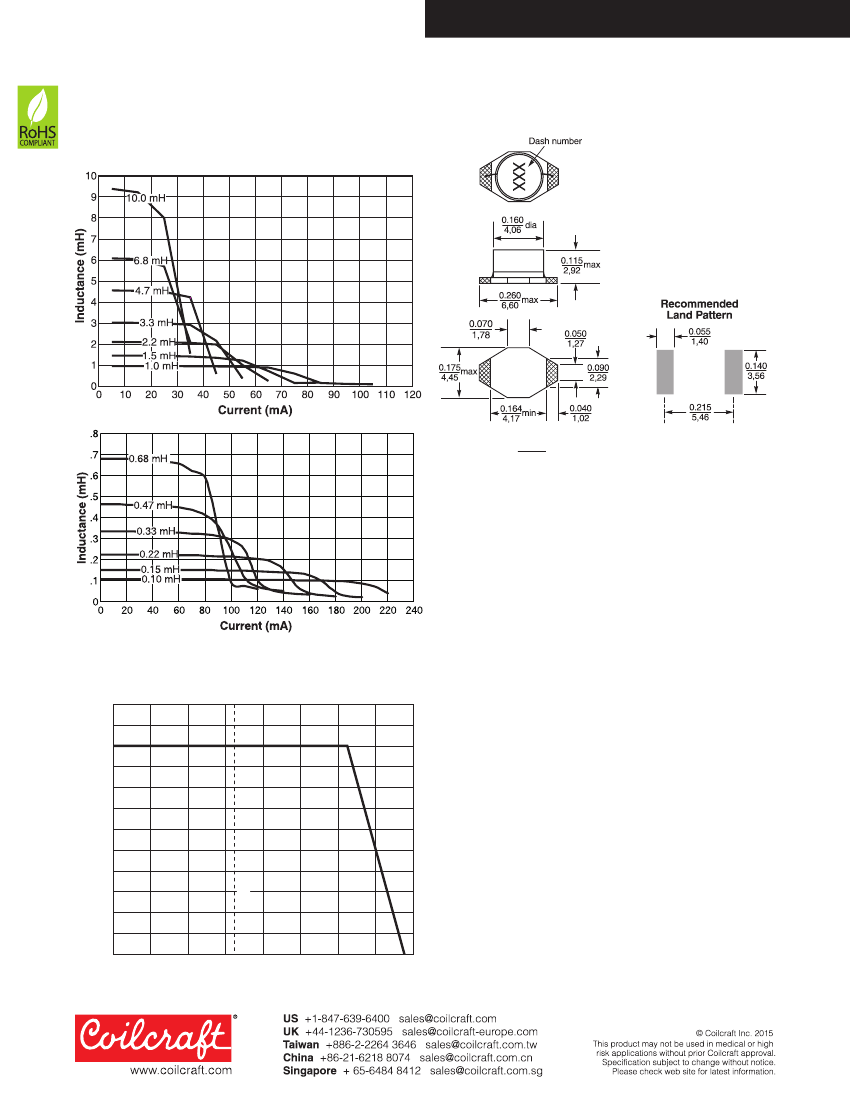

Backlight Inductors – DS1608B Series
• Specially designed for demanding backlighting applications
• High breakdown voltage and very low DCR
Designer’s Kit C334
contains 3 of each value
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant electroplated gold (<50 µin) over nickel
over moly-manganese. Other terminations available at additional cost.
Weight
0.14 – 0.16 g
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+115°C with derated current
Storage temperature
Component: –40°C to +115°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth
PCB washing
Tested to MIL-STD-202 Method 215 plus an additional
aqueous wash. See
Doc787_PCB_Washing.pdf.
Part number
1
DS1608B-104ML_
DS1608B-154ML_
DS1608B-224ML_
DS1608B-334ML_
DS1608B-474ML_
DS1608B-684ML_
DS1608B-105ML_
DS1608B-155ML_
DS1608B-225ML_
DS1608B-335ML_
DS1608B-475ML_
DS1608B-685ML_
DS1608B-106ML_
L
DCR
Insulation
±20%
2
max core-winding
(mH) (Ohms) (MOhms)
0.10
0.95
>10
0.15
1.4
>10
0.22
1.7
>10
0.33
2.2
>10
0.47
3.8
>10
0.68
4.9
>10
1.0
9
>10
1.5
11
>10
2.2
19
>10
3.3
24
>10
4.7
30
>10
6.8
56
>10
10.0
74
>10
SRF
typ
Irms
3
(MHz) (mA)
12
220
10
200
8
180
6
160
5
140
4
120
2
100
1
80
1
50
1
40
1
30
0.9
20
0.8
10
1. When ordering, please specify
termination
and
packaging
codes:
DS1608B-106MLC
Termination: L
= RoHS compliant gold over nickel over moly-manganese
Special order: T
= RoHS tin-silver-copper
(95.5/4/0.5) or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (2500 parts per full reel).
2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc using an Agilent/HP
4263B LCR meter or equivalent.
3. Current that causes a 30°C temperature rise from 25°C ambient.
4. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 205-1 Revised 10/06/08
