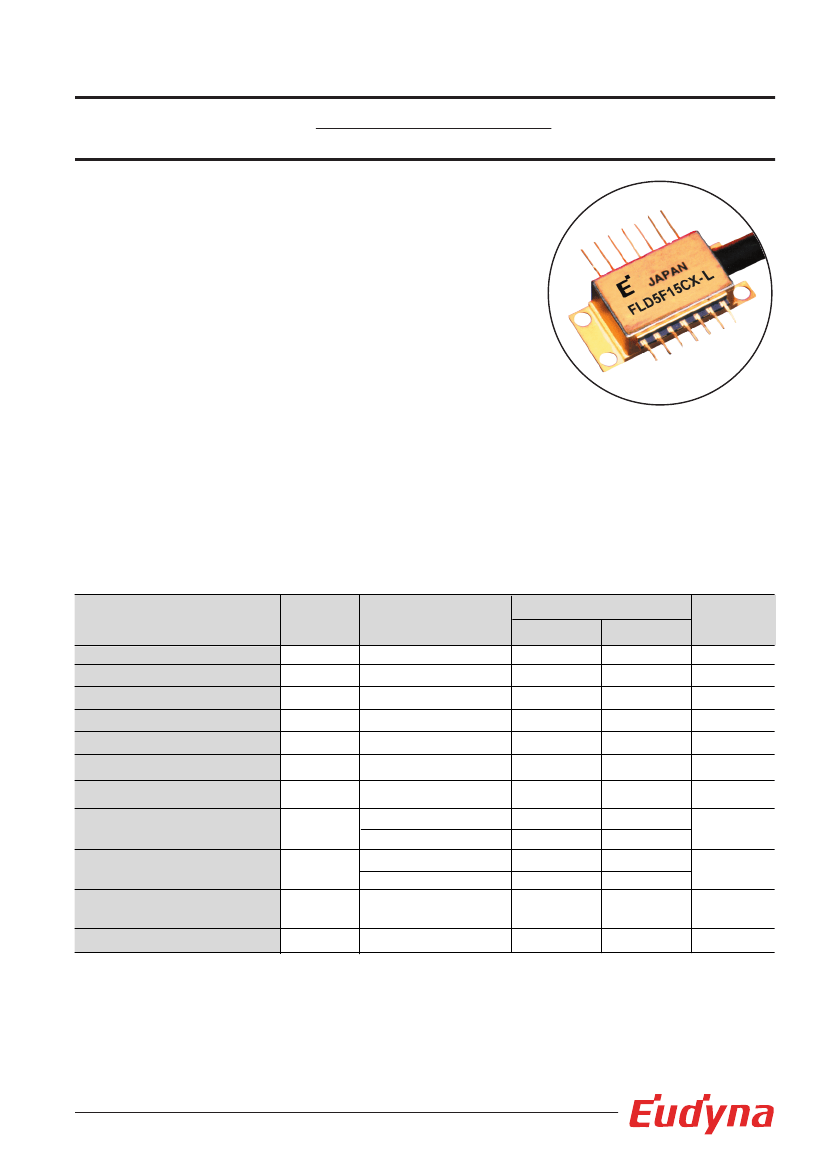

1,550nm Continuous
Wave DFB Laser
FEATURES
• Continuous Wave (CW) Light Source for DWDM system
• Output Power: 16dBm
• Available at L-band ITU-T Wavelengths between
1570.416 to 1608.329nm
• Built-in TEC, Thermistor, Monitor PIN PD and Optical Isolator
• Polarization maintaining (PANDA) fiber
FLD5F15CX-L
APPLICATIONS
10 and 40 Gb/s long haul DWDM Transmission systems.
DESCRIPTION
The laser is for a high power (16dBm) CW operation, at selected L-band ITU-T
grid wavelengths. The module includes an optical isolator monitor photodiode, thermistor and a
thermo-electric cooler. This laser is designed for use with external modulation components (such as
LiNbO3 modulators). The device comes in “butterfly” type, 14-pin package, and operates
between 0 to 70°C.
ABSOLUTE MAXIMUM RATINGS (Tc=25°C, unless otherwise specified)
Rating
Parameter
Storage Temperature
Operating Case Temperature
Optical Output Power
LD Forward Current
LD Reverse Voltage
PD Reverse Voltage
PD Forward Current
Cooler Voltage
Cooler Current
Thermistor Temperature
Lead Soldering Time
Symbol
Tstg
Top
Pf
IF
VR
VDR
IPF
Vc
Ic
Tth
-
Condition
-
-
CW
CW
CW
-
-
Cooling
Heating
Cooling
Heating
ATC Operation
260°C
Min.
-40
0
-
-
-
-
-
-
-2.50
-
-0.60
-
-
Max.
+85
+70
50
420
2
20
10
+5.00
-
+1.85
-
+70
10
Unit
°
C
°
C
mW
mA
V
V
mA
V
A
°C
sec
Edition 1.1
July 2004
1
FLD5F15CX-L
Parameter
Laser Set Temperature (BOL)
Optical Output Power
Threshold Current
Forward Voltage
Slope Efficiency
Operating Forward Current
Peak Wavelength
Wavelength Drift
Wavelength Stability with
Case Temperature
Spectral Width (-3dB)
Side Mode Suppression
Monitor Current
Monitor Dark Current
Monitor Capacitance
Tracking Error (Note 1)
Optical Isolation
Polarization Extinction Ratio
Relative Intensity Noise
Cooler Current
Cooler Voltage
Cooler Power
Thermistor Resistance
Thermistor B Constant (Note 2)
Symbol
Tset
Pf
Ith
VF
η
Iop
λ
p
∆λ
-
∆λ
ORL>40dB
Sr
Im
Idm
Ct
TE
IS
PER
RIN
Ic
Vc
Pc
Rth
Tc, TL=25°C
B
TL=Tset,
Tc=+70°C,
CW, ORL>40dB
average of f=DC to 7.5GHz
Pf=40mW
VPD=5V
VPD=5V, f=1 MHz
Im=constant,
Tc=0 to +70°C
Tc=0 to +70°C
Test Conditions
-
-
-
-
-
-
ORL>40dB
20 years
Tc=0 to +70°C
1,550nm Continuous
Wave DFB Laser
Min.
15
40
3
-
-
-
Limits
Typ.
-
-
-
-
0.14
-
Note (3)
-
-1
-
-
200
1
Max.
35
-
45
3.0
-
350
Unit
°C
mW
mA
V
mW/mA
mA
nm
pm
pm/°C
OPTICAL AND ELECTRICAL CHARACTERISTICS (TL=Tset, Tc=25°C, BOL, unless otherwise specified)
-
35
0.1
-
-
-0.5
22
20
-
-
-
-
9.5
3,270
5
-
-
-
-
-
-
-
-
-
-
-
10.0
3,450
10
-
2.0
100
10
+1.0
-
-
-140
1.4
4.2
5.9
10.5
3,630
MHz
dB
mA
nA
pF
dB
dB
dB
dB/Hz
A
V
W
kΩ
K
Note 1. TE=10*log[Pf(Tc)/Pf(25)]
Note 2. Relation between resistance and temperature (°K) is: Rth (T) = Rth (25)*exp[B(1/T-1/298)]
Note 3. The selected wavelength is available in accordance with Table 1.
2
1,550nm Continuous
Wave DFB Laser
“CX” PACKAGE
17.24±0.25
15.24±0.25
14-0.5
2.54
5.4±0.5
Ø5.2±0.25
8.89±0.15
12.7±0.25
15.2±0.3
FLD5F15CX-L
UNIT: mm
PIN 7
8.25±0.5
PIN 1
14-0.1±0.05
5.41±0.25
5.08±0.15
Ø0.9±0.1
Floating Type
PIN #
FUNCTION
7
6
5
4
3
2
1
4-Ø2.67
PIN 8
20.83±0.25
22.0±0.25
26.04±0.25
29.97±0.25
0.5±0.2
1.70±0.15
8.17±0.25
PIN 14
0.5
1.70
4.15±0.25
5.47±0.2
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
Thermistor
Thermistor
Laser DC Bias (-)
Monitor (Anode)
Monitor (Cathode)
Thermoelectric Cooler (+)
Thermoelectric Cooler (-)
N.C.
N.C.
N.C.
LD Anode
LD Cathode
LD Anode
N.C.
5.25±0.5
TEC
8
9
10
11
12
13
14
* Pigtail length (L) and connector
type are specified in the detail
(individual) specification.
*L
25.0±0.5
CONNECTOR
For further information please contact:
CAUTION
Eudyna Devices Inc. products contain
gallium arsenide
(GaAs)
which can be hazardous to the human body and the environment.
For safety, observe the following procedures:
Eudyna Devices USA Inc.
2355 Zanker Rd.
San Jose, CA 95131-1138, U.S.A.
TEL: (408) 232-9500
FAX: (408) 428-9111
www.us.eudyna.com
• Do not put this product into the mouth.
• Do not alter the form of this product into a gas, powder, or liquid
through burning, crushing, or chemical processing as these by-products
are dangerous to the human body if inhaled, ingested, or swallowed.
• Observe government laws and company regulations when discarding this
product. This product must be discarded in accordance with methods
specified by applicable hazardous waste procedures.
Eudyna Devices Europe Ltd.
Network House
Norreys Drive
Maidenhead, Berkshire SL6 4FJ
United Kingdom
TEL: +44 (0) 1628 504800
FAX: +44 (0) 1628 504888
Eudyna Devices Asia Pte Ltd.
Hong Kong Branch
Rm. 1101, Ocean Centre, 5 Canton Rd.
Tsim Sha Tsui, Kowloon, Hong Kong
TEL: +852-2377-0227
FAX: +852-2377-3921
Eudyna Devices Inc. reserves the right to change products and specifications
without notice. The information does not convey any license under rights of
Eudyna Devices Inc. or others.
© 2004 Eudyna Devices USA Inc.
Printed in U.S.A.
Eudyna Devices Inc.
Sales Division
1, Kanai-cho, Sakae-ku
Yokohama, 244-0845, Japan
TEL: +81-45-853-8156
FAX: +81-45-853-8170
