Dimensions: [mm]
60,0 ±0,5
Electrical Properties:
Properties
Complex Permeability
µ'
@ 1 MHz
µ'
@ 13.56 MHz
µ''
@ 1 MHz
µ''
@ 13.56 MHz
Value
110
120
2
2
0.05
R
S
R
ISO
1
1
6
mm
GΩ
GΩ
Unit
Tol.
typ.
typ.
typ.
typ.
max.
min.
min.
A
Complex Permeability
60,0 ±0,5
Complex Permeability
Complex Permeability
Adhesive Thickness
Surface Resistance
1)
Insulation Resistance
2)
Peel Adhesion over Steel
N/ cm min.
D257-07
detail A
0,05
Adhesive Tape
0,3 ref
Ferrite
0,03
PET-Film
1)
Measured over the PET surface. Method ASTM D257-07
2)
Measured between the top PET layer and the bottom Adhesive later. Method ASTM
General Information:
Release Tape
Test conditions of Electrical Properties: +20 °C, 33 % RH if not specified differently
Scale - 1:2
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-FSFS Flexible Sintered Ferrite
Sheet
REVISION
STATUS
ORDER CODE
364006
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.003
Valid
2016-02-23
eiSos
1/4
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.

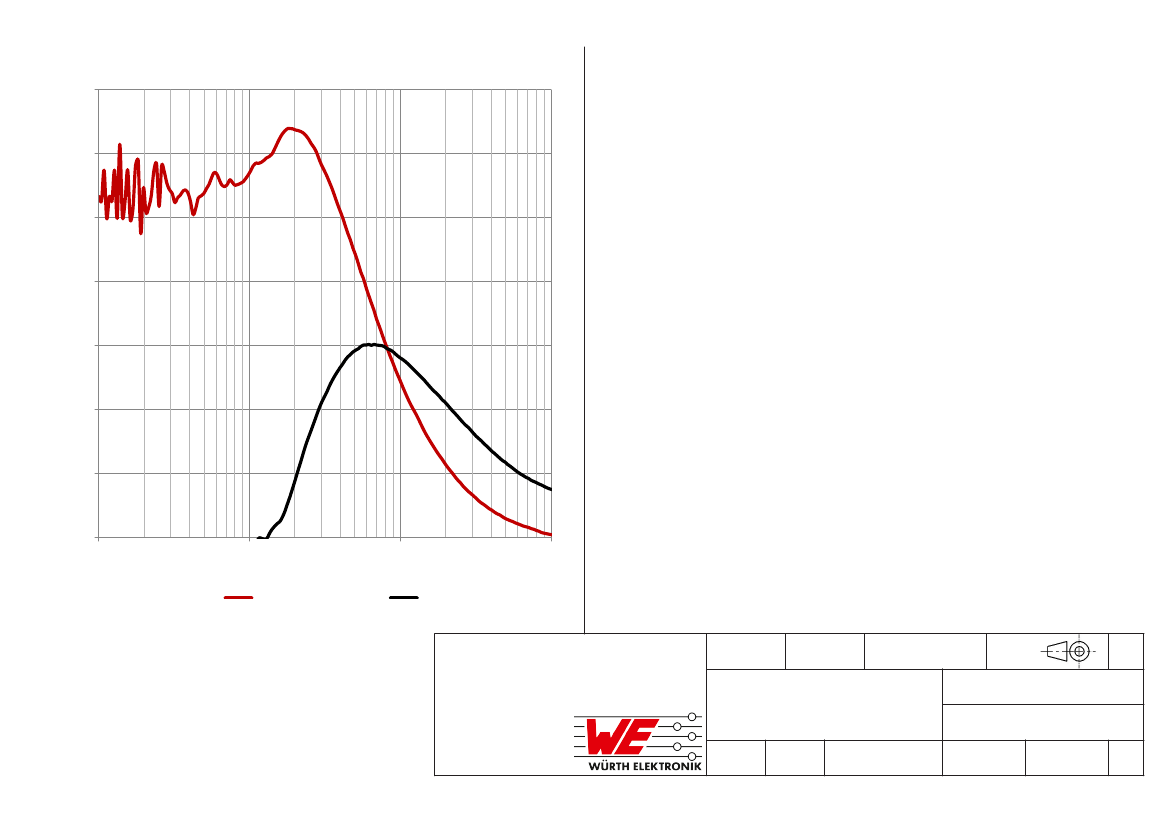

Permeability vs. Frequency:
140
120
100
Permeability
80
60
40
20
0
1
10
Frequency [MHz]
µ'
µ"
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
100
1.000
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
KaS
DESCRIPTION
JoV
DIN ISO 2768-1m
WE-FSFS Flexible Sintered Ferrite
Sheet
REVISION
STATUS
ORDER CODE
364006
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.003
Valid
2016-02-23
eiSos
2/4
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
Cautions and Warnings:
The following conditions apply to all goods within the product series of WE-FSFS of
Würth Elektronik eiSos GmbH & Co. KG:
General:
All recommendations according to the general technical specifications of the data sheet have to be complied with.
The responsibility for the applicability of customer specific products and use in a particular customer design is always within the authority
ofthe customer. All technical specifications for standard products do also apply to customer specific products.
Product specific:
Follow all instructions mentioned in the data sheet, especially:
• Care must be taken when cutting, bending or pulling the products, as small particles might come off and cracks can be created.
• For optimum adhesion properties surface must be clean and dry.
• This product is classified as laminate or compound material. Due to this small non-conductive particles can be released during
mechanical stress or handling. Wherever special cleanness or particle contamination requirements are given, please contact Würth
Elektronik technical department during the design in status. To areas where the danger of subsequent damages due to particle
contamination is given, preventive measures must been implemented by the customer.
