LQH44NN1R5M03L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> LQH44NN1R5M03L

Preview

LQH44NN1R5M03L: DescriptionFixed Inductors 4.0x4.0mm 1.5uH 3.2A+/-20%; CategoryPassive components; File Size488KB，1 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

LQH44NN1R5M03L Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LQH44NN1R5M03L	-	-	View	Buy Now

LQH44NN1R5M03L Overview

Fixed Inductors 4.0x4.0mm 1.5uH 3.2A+/-20%

LQH44NN1R5M03L Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Unshielded
Inductance	1.5 uH
Tolerance	20 %
Maximum DC Current	3.2 A
Maximum DC Resistance	16 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Test Frequency	1 kHz
Termination	-
Mounting Style	PCB Mount
Package / Case	1515 (4040 metric)
Length	4 mm
Width	4 mm
Height	4.3 mm
Application	Power
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Ferrite
Product	Fixed Inductors
Self Resonant Frequency	70 MHz
Type	Wirewound
Case Code - in	1515
Case Code - mm	4040
Factory Pack Quantity	250
Unit Weight	0.003527 oz

Preview

Download Datasheet

View All

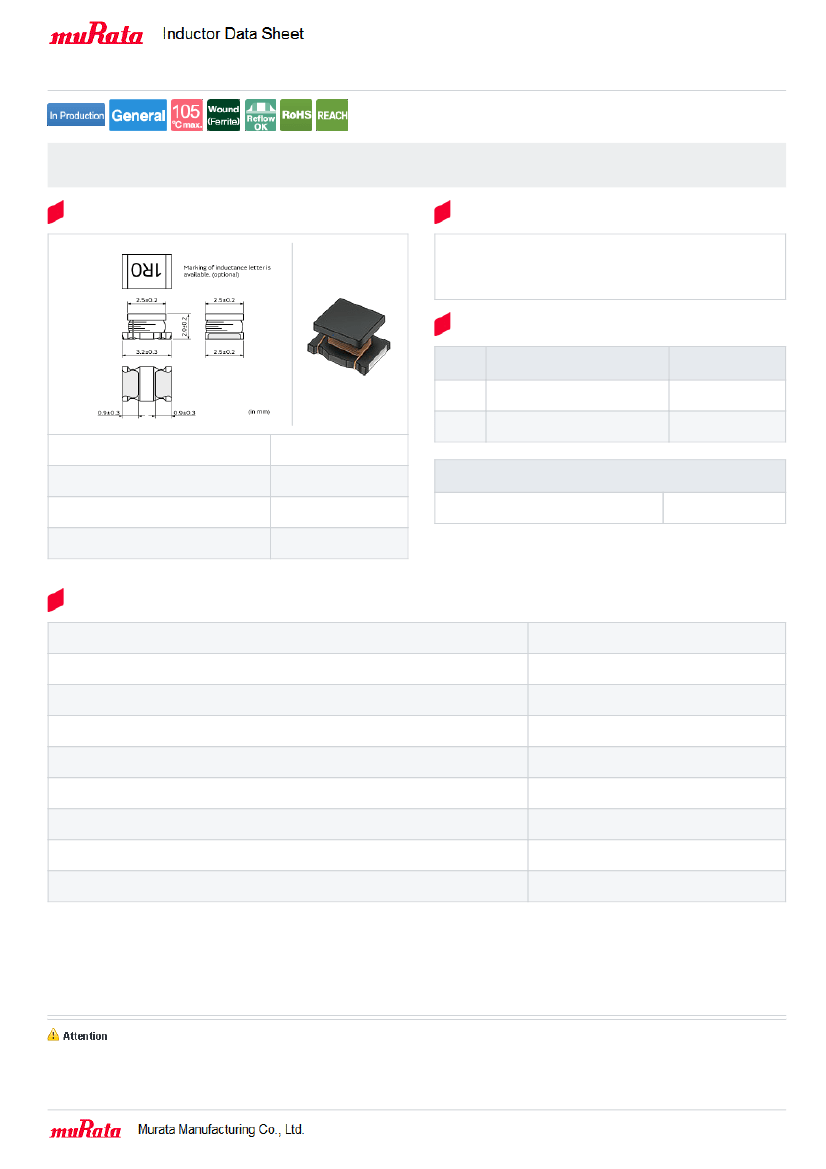

LQH32DN151K23#

< List of part numbers with package codes >

“#” indicates a package specification code.

LQH32DN151K23L , LQH32DN151K23K

Shape

Notes

When rated current is applied to the products, self-temperature rise shall

be limited to 20°C max and inductance will be within ±10% of initial

inductance value.

References

Packaging

code

L

K

L size

W size

T size

Size code in inch (mm)

3.2 ±0.3mm

2.5 ±0.2mm

2.0 ±0.2mm

1210 (3225)

1 piece

Mass (Typ.)

0.060g

Specifications

φ180mm

Embossed taping

φ330mm

Embossed taping

Minimum quantity

2000

7500

Specifications

Inductance

Inductance test frequency

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Avg. of DC resistance

Self resonance frequency (min.)

Operating temperature range

Class of magnetic shield

Series

150µH ±10%

1MHz

80mA

6.63Ω

5.1Ω ±30%

8.0MHz

-40〜105℃

No Shield

LQH32DN_23

1 of 1

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/10/03
