Features
Open Frame
n
Cross slot rotor designs suitable
for automatic adjustment equipment
n
Supplied in 12 mm embossed tape,
compatible with automatic pick-and-place
assembly equipment
n
SMD Single-Turn / Cermet / Industrial
T
This series is currently available but
not recommended for new designs.
*R
oH
S
C
LE
AD
F
RE
E

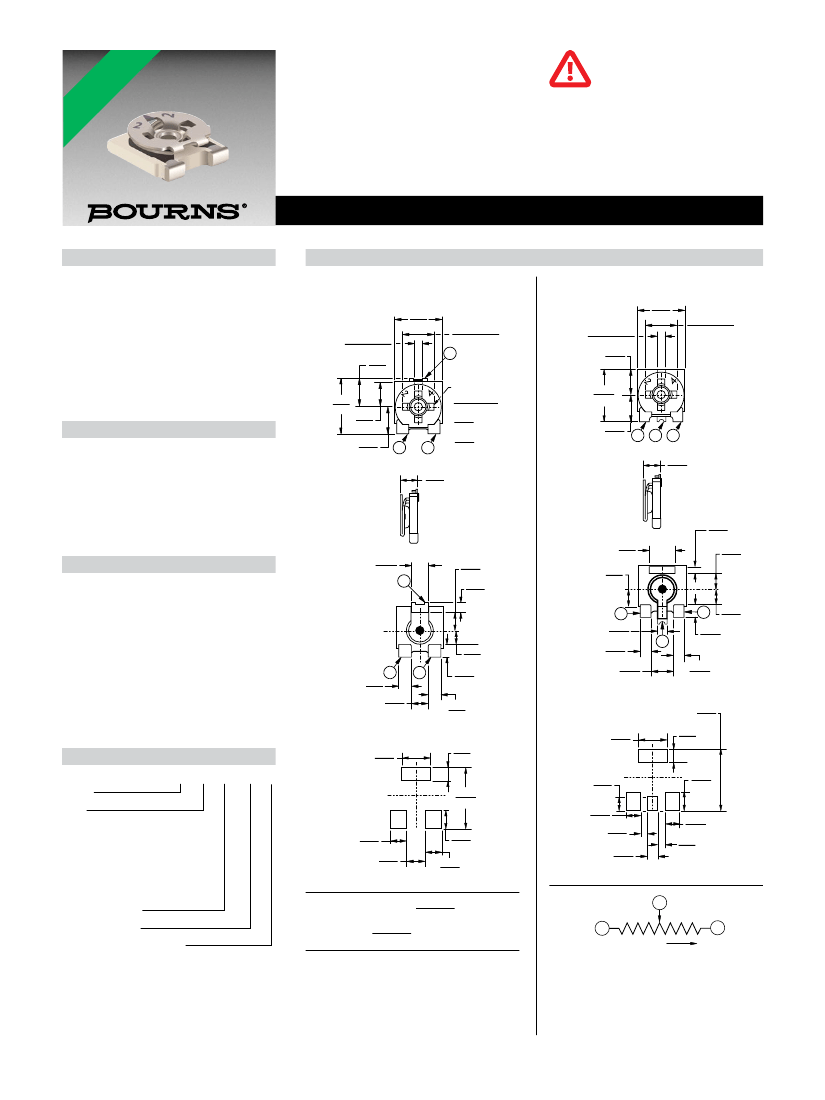

3364 - 4 mm Square Trimpot
®
Trimming Potentiometer
Product Dimensions
Common Dimensions
3364W, X
3-Terminal
3.80
(.150)
0.55 ± 0.15
(.022 ± .006)
2.50 ± 0.15
(.098 ± .006)
Electrical Characteristics
Standard Resistance Range
......................100 ohms to 1 megohm
(see standard resistance table)
Resistance Tolerance ........... ±25 % std.
End Resistance
<1K............................... 20 ohms max.
>1K............................................... 2 %
Contact Resistance Variation
(Voltage Divider) .................. 5 % max.
Resolution ................................... Infinite
Adjustment Angle ..................260 °±20 °
Environmental Characteristics
Power Rating (50 volts max.)
70 °C ...................................... 0.2 watt
Temperature Range ... -40 °C to +100 °C
Temperature Coefficient ... ±250 ppm/°C
Humidity ................500 hours (5 %
ΔTR)
Load Life.................................500 hours
0.2 watt @ 70 °C (5 %
ΔTR)
Rotational Life ..... 20 cycles (15%
ΔTR)
Physical Characteristics
Torque............................ 20 to 200 g-cm
Mechanical Angle ................ Continuous
Marking....................... Resistance code,
manufacturer’s full part number
and date code on packaging
Terminals ......................... Solder coated
Standard Packaging ... 1000 pcs./7 ˝ reel
Adjustment Tool..............................H-90
Ro VE LEA
HS RS D
C ION FRE
OM S E
PL AR
IA E
NT
*
3364A, B
3-Terminal
0.55 ± 0.15
(.022 ± .006)
2.00
(.079)
4.20
(.165)
2.20
(.087)
3.80
(.150)
2.50 ± 0.15
(.098 ± .006)
2.30
(.091)
4.50
(.177)
2
2.00
(.079)
2.20
(.087)
1
3
ADJ. CROSS SLOT
0.55 ± .15
(.022 ± .006) WIDE
0.35
X
DEEP
(.014)
2.50
X
LONG
(.098)
1
2
3
1.50
MAX.
(.059)
1.50
MAX.
(.059)
1.40
(.055)
2
1.50
(.059)
0.80
(.031)
2.00
(.079)
1.40
(.055)
0.50
(.020)
1.35
(.053)
3
0.80
(.031)
0.80
(.031)
1.90
(.075)
1
2
0.99
(.039)
0.80
(.031)
1.20
(.047)
Aqueous cleaning not recommended.
Reflow solder processing recommended
How To Order
Model
Style
Orientation of parts in tape:
Styles W,A
Terminals toward sprocket holes
Styles X,B
Terminals away from sprocket
holes
Standard Product
Resistance Code
Embossed Tape Designator
E = 1000 pcs./7 ” reel (-1 standard)
Consult factory for other available options.
Tape and reel material meets Antistatic ANSI/
ESD 5541-2003 packaging standards.
0.95
(.037)
3
1
0.12
(.047)
1.00
(.039)
1.60
(.063)
0.95
(.037)
SUGGESTED PWB LAYOUT
2.40
(.094)
5.08
(.200)
1.10
(.043)
SUGGESTED PWB LAYOUT
2.40
(.094)
1.10
(.043)
3364 X - 1 - 103 E
5.10
(.201)
1.20
(.047)
1.20
(.047)
0.60
(.024)
0.80
(.031)
1.50
(.059)
1.30
(.051)
1.60
(.063)
1.50
(.059)
1.20
(.047)
0.60
(.024)
1.30
(.051)
MM
DIMENSIONS:
(INCHES)
0.25
TOLERANCES: ±
EXCEPT WHERE NOTED
(.010)
2
CCW
WIPER
1
CLOCKWISE
3
CW
*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
Features (Continued)
n
Recommended for reflow solder processing only
n
RoHS compliant* - see processing information on lead free surface mount trimmers
n
For trimmer applications/processing guidelines, click here
3364 - 4 mm Square Trimpot
®
Trimming Potentiometer
Packaging Specifications
2.20 ± 0.20
(.087 ± .008)
Standard Resistance Table
Resistance
(Ohms)
100
200
500
1,000
2,000
5,000
10,000
20,000
50,000
100,000
200,000
500,000
1,000,000
Resistance
Code
101
201
501
102
202
502
103
203
503
104
204
504
105
Part
Marking
12
22
52
13
23
53
14
24
54
15
25
55
16
0.60
(.024)
5.51 ± 0.05
(.217 ± .002)
4.00 ± 0.10
(.157 ± .004)
W, A
ORIENTATION
8.00 ± 0.10
(.315 ± .004)
X, B
ORIENTATION
4.30 ± 0.20
(.169 ± .008)
5.00 ± 0.20
(.197 ± .008)
1.75 ± 0.10
(.069 ± .004)
12.00 ± 0.30
(.472 ± .012)
TAPE
2.00 ± 0.10
(.079 ± .004)
1.50 ± 0.10 DIA.
(.059 ± .004)
Popular distribution resistance values listed in
boldface.
178 ± .20
DIA.
(7.008 ± .008)
1.20 ± .05
(.047 ± .002)
EQUAL
SPACED
3 PLCS.
1.50
MIN.
(.059)
13.00 ± 0.51
DIA.
(.512 ± .020)
50.00
(1.969)
REF.
21.01 ± 0.76 DIA.
13.00 ± 1.50
(.827 ± .030)
(512 ± .060)
REEL
Conforms with EIA specification RS-481.
DIMENSIONS:
MM
(INCHES)
REV. 12/16
“Trimpot” is a registered trademark of Bourns, Inc.
Specifications are subject to change without notice.
The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time.
Users should verify actual device performance in their specific applications.
