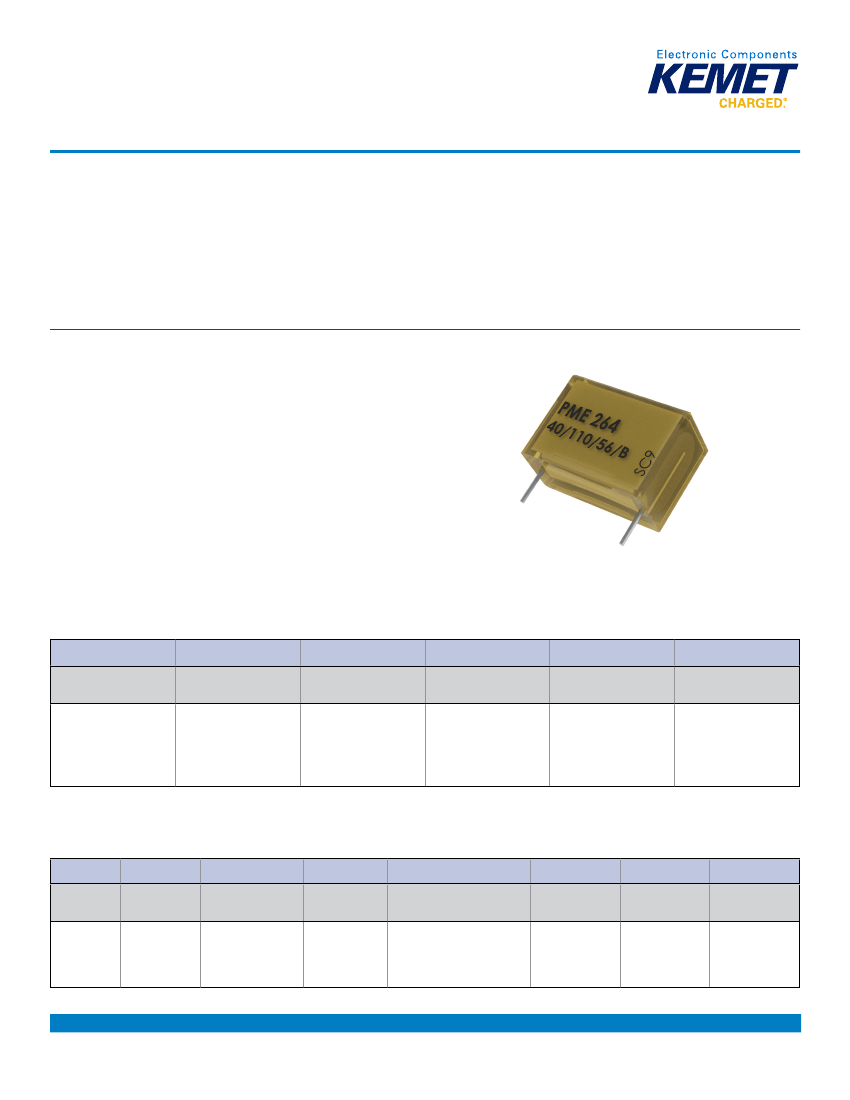

AC Line EMI Suppression and RC Networks
PME264 Series Metallized Impregnated Paper,
Class X2, 660 VAC
Overview
The PME264 Series is constructed of multilayer metallized paper
encapsulated and impregnated in self-extinguishing material
meeting the requirements of UL 94 V–0.
Applications
Typical applications include worldwide use in electromagnetic
interference suppression in all X2 and across-the-line
applications. These capacitors are also for use in high AC
and DC voltage applications such as commutator capacitor in
converters and ignition circuits.
Benefits
•
•
•
•
•
•
•
•
Approvals: ENEC, UL, cUL
Rated voltage: 660 VAC 50/60 Hz
Capacitance range: 0.001 – 0.1 µF
Lead spacing: 15.2 – 25.4 mm
Capacitance tolerance: ±20%
Climatic category: 40/85/56, IEC 60068–1
Tape and reel in accordance with IEC 60286–2
RoHS Compliant and lead-free terminations
Click image above for interactive 3D content
Legacy Part Number System
PME264
Series
X2, Metallized Paper
Open PDF in Adobe Reader for full functionality
N
Rated Voltage (VAC)
N = 660
B
Lead Spacing (mm)
B = 15.2
C = 20.3
E = 25.4
5100
Capacitance Code (pF)
The last three digits
represent significant
figures. The first digit
specifies the total
number of digits.
M
Capacitance
Tolerance
M = ±20%
R30
Packaging
See Ordering
Options Table
New KEMET Part Number System
P
Capacitor
Class
P = Paper
264
Series
X2, Metallized
Paper
Q
Lead Spacing (mm)
Q = 15.2
C = 20.3
E = 25.4
E
Size Code
See Dimension
Table
103
Capacitance Code (pF)
First two digits represent
significant figures. Third
digit specifies number of
zeros.
M
Capacitance
Tolerance
M = ±20%
660
Rated Voltage
(VAC)
660 = 660
A
Packaging
See Ordering
Options Table
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3012_PME264_X2_660 • 5/19/2016
One world. One KEMET
1
Film Capacitors
AC Line EMI Suppression and RC Networks – PME264 Series Metallized Impregnated Paper, Class X2, 660 VAC
Ordering Options Table
Lead
Spacing
Nominal
(mm)
Type of Leads and Packaging
Standard Lead and Packaging Options
Lead Length
(mm)
KEMET
Lead and
Packaging
Code
C
A
L
P
Legacy
Lead and
Packaging
Code
R06
R30
R19T0
R19T1
15.2
Bulk (Bag) – Short Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Standard Reel)
Standard Lead and Packaging Options
6 +0/−1
30 +5/−0
H
0
= 18.5 +/−0.5
H
0
= 18.5 +/−0.5
20.3
Bulk (Tray) – Short Leads
Bulk (Bag) – Max Length Leads
Tape & Reel (Standard Reel)
Other Lead and Packaging Options
Tape & Reel (Large Reel)
Standard Lead and Packaging Options
Bulk (Tray) – Short Leads
Bulk (Bag) – Max Length Leads
6 +0/−1
30 +5/−0
H
0
= 18.5 +/−0.5
H
0
= 18.5 +/−0.5
C
A
L
P
R06
R30
R19T0
R19T1
25.4
6 +0/−1
30 +5/−0
C
A
R06
R30
Benefits cont'd
• Operating temperature range of
−40˚C to +85˚C
• 100% screening factory test at 3,000 VDC
• The highest possible safety regarding active and passive
flammability
• Excellent self-healing properties ensure long life even when
subjected to frequent over-voltages
• Good resistance to ionization due to impregnated dielectric
• High dV/dt capability
• The impregnated paper ensures excellent stability and
outstanding reliability properties, especially in applications with
continuous operation
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3012_PME264_X2_660 • 5/19/2016
2
Film Capacitors
AC Line EMI Suppression and RC Networks – PME264 Series Metallized Impregnated Paper, Class X2, 660 VAC
Dimensions – Millimeters
FRONT VIEW
L
SIDE VIEW
B
H
d
p
LL
Size Code
QE
QM
CE
CJ
CP
EF
EJ
EL
p
Nominal
15.2
15.2
20.3
20.3
20.3
25.4
25.4
25.4
Tolerance
+/−0.4
+/−0.4
+/−0.4
+/−0.4
+/−0.4
+/−0.4
+/−0.4
+/−0.4
Nominal
5.2
7.3
7.6
9
11.3
10.5
12.1
15.3
B
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
10.5
13
14
15
16.5
17
19
22
H
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
18.5
18.5
24
24
24
30.5
30.5
30.5
L
Tolerance
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Maximum
Nominal
0.8
0.8
0.8
0.8
0.8
1
1
1
d
Tolerance
+/−0.05
+/−0.05
+/−0.05
+/−0.05
+/−0.05
+/−0.05
+/−0.05
+/−0.05
Note: See Ordering Options Table for lead length (LL) options.
Performance Characteristics
Rated Voltage
Capacitance Range
Capacitance Tolerance
Temperature Range
Climatic Category
Approvals
Dissipation Factor
660 VAC 50/60 Hz
0.001 – 0.1 µF
±20%
−40ºC
to +85°C
40/85/56
ENEC, UL, CUL
Maximum Values at +23°C
1 kHz
1.3%
The 100% screening factory test is carried out at 3,000 VDC. The
voltage level is selected to meet the requirements in applicable
equipment standards. All electrical characteristics are checked
after the test. It is not permitted to repeat this test as there is a risk
to damage the capacitor. KEMET is not liable in such case for any
failures.
Minimum Value Between Terminals
≥ 12,000 MΩ
Recommended voltage ≤ 1,500 VDC
F3012_PME264_X2_660 • 5/19/2016
3
Test Voltage Between Terminals
Insulation Resistance
In DC Applications
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Film Capacitors
AC Line EMI Suppression and RC Networks – PME264 Series Metallized Impregnated Paper, Class X2, 660 VAC
Environmental Test Data
Test
Vibration
Bump
Change of Temperature
Active Flammability
Passive Flammability
Damp Heat Steady State
IEC Publication
IEC 60068–2–6 Test Fc
IEC 60068–2–29 Test Eb
IEC 60068–2–14 Test Na
IEC 60384–14
IEC 60384–14
IEC 60068–2–78 Test Cab
4,000 bumps at 390 m/s
2
Procedure
3 directions at 2 hours each 10 – 55 Hz at 0.75 mm or 98 m/s
2
Upper and lower rated temperature 5 cycles
V
R
+ 20 surge pulses at 2.5 kV (pulse every 5 seconds)
IEC 60384–1, IEC 60695–11–5 Needle-flame test
+40°C and 93% RH, 56 days
Approvals
Mark
Specification
EN/IEC 60384-14
File Number
SE/0140–25D
UL 60384-14
CAN/CSA-E60384-14-09
E73869
Environmental Compliance
All KEMET EMI capacitors are RoHS Compliant.
Table 1 – Ratings & Part Number Reference
Capacitance
Value (µF)
0.001
0.0015
0.0022
0.0033
0.0047
0.0068
0.010
0.015
0.022
0.033
0.047
0.068
0.1
Maximum Dimensions in mm
B
5.2
5.2
5.2
5.2
5.2
7.3
7.3
7.6
9
11.3
10.5
12.1
15.3
H
10.5
10.5
10.5
10.5
10.5
13
13
14
15
16.5
17
19
22
L
18.5
18.5
18.5
18.5
18.5
18.5
18.5
24
24
24
30.5
30.5
30.5
Lead
Spacing (p)
15.2
15.2
15.2
15.2
15.2
15.2
15.2
20.3
20.3
20.3
25.4
25.4
25.4
dV/dt
(V/µs)
2000
2000
2000
2000
2000
1400
1400
1400
1400
1000
1000
1000
600
New KEMET
Part Number
P264QE102M660(1)
P264QE152M660(1)
P264QE222M660(1)
P264QE332M660(1)
P264QE472M660(1)
P264QM682M660(1)
P264QM103M660(1)
P264CE153M660(1)
P264CJ223M660(1)
P264CP333M660(1)
P264EF473M660(1)
P264EJ683M660(1)
P264EL104M660(1)
Legacy Part Number
PME264NB4100M(1)
PME264NB4150M(1)
PME264NB4220M(1)
PME264NB4330M(1)
PME264NB4470M(1)
PME264NB4680M(1)
PME264NB5100M(1)
PME264NC5150M(1)
PME264NC5220M(1)
PME264NC5330M(1)
PME264NE5470M(1)
PME264NE5680M(1)
PME264NE6100M(1)
Capacitance
Value (µF)
B (mm)
H (mm)
L (mm)
Lead Spacing (p)
dV/dt
(V/µs)
New KEMET
Part Number
Legacy Part Number
(1) Insert ordering code for lead type and packaging. See Ordering Options Table for available options.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3012_PME264_X2_660 • 5/19/2016
4
Film Capacitors
AC Line EMI Suppression and RC Networks – PME264 Series Metallized Impregnated Paper, Class X2, 660 VAC
Soldering Process
The implementation of the RoHS directive has resulted in the selection of SnAgCu (SAC) alloys or SnCu alloys as primary solder. This has
increased the liquidus temperature from that of 183ºC for SnPb eutectic alloy to 217 – 221ºC for the new alloys. As a result, the heat stress
to the components, even in wave soldering, has increased considerably due to higher pre-heat and wave temperatures. Polypropylene
capacitors are especially sensitive to heat (the melting point of polypropylene is 160 – 170ºC). Wave soldering can be destructive, especially
for mechanically small polypropylene capacitors (with lead spacing of 5 mm to 15 mm), and great care has to be taken during soldering. The
recommended solder profiles from KEMET should be used. Please consult KEMET with any questions. In general, the wave soldering curve
from IEC Publication 61760-1 Edition 2 serves as a solid guideline for successful soldering. Please see Figure 1.
Reflow soldering is not recommended for through-hole film capacitors. Exposing capacitors to a soldering profile in excess of the above the
recommended limits may result to degradation or permanent damage to the capacitors.
Do not place the polypropylene capacitor through an adhesive curing oven to cure resin for surface mount components. Insert through-
hole parts after the curing of surface mount parts. Consult KEMET to discuss the actual temperature profile in the oven, if through-hole
components must pass through the adhesive curing process. A maximum two soldering cycles is recommended. Please allow time for the
capacitor surface temperature to return to a normal temperature before the second soldering cycle.
Manual Soldering Recommendations
Following is the recommendation for manual
soldering with a soldering iron.
Temperature (°C)
Recommended Soldering Temperature
400
Wave Soldering Recommendations
300
260°C
2+3s max
250
First wave
Second wave
200
ΔT
<150°C
Cooling
ca 2°C/s
ca 3.5°C/s typical
Soldering iron bit temperature (deg C)
350
150
Preheating
300
250
100
T
preheat
115°C max
ca 5°C/s
100°C
Typical
200
50
150
100
0
0
40
80
120
160
200
240
50
Time (s)
0
1
2
3
4
5
6
7
8
0
Soldering time (sec)
The soldering iron tip temperature should be set
at 350°C (+10°C maximum) with the soldering
duration not to exceed more than 3 seconds.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3012_PME264_X2_660 • 5/19/2016
5
