CEP12D38NP-2R8MC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CEP12D38NP-2R8MC

CEP12D38NP-2R8MC: DescriptionFixed Inductors 2.8uH 8.8A 20% SMD H C INDUCTOR; CategoryPassive components inductor; File Size215KB，4 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CEP12D38NP-2R8MC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CEP12D38NP-2R8MC	-	-	View	Buy Now

CEP12D38NP-2R8MC Overview

Fixed Inductors 2.8uH 8.8A 20% SMD H C INDUCTOR

CEP12D38NP-2R8MC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	4949
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	13 weeks
uppercase and lowercase codes	4949
structure	Shielded
core material	MANGANESE-ZINC
DC Resistance	0.0086 Ω
Nominal inductance(L)	2.8 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Package height	4 mm
Package length	12.5 mm
Package form	SMT
Package width	12.5 mm
method of packing	Tape
Maximum rated current	9.5 A
series	CEP12D38
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

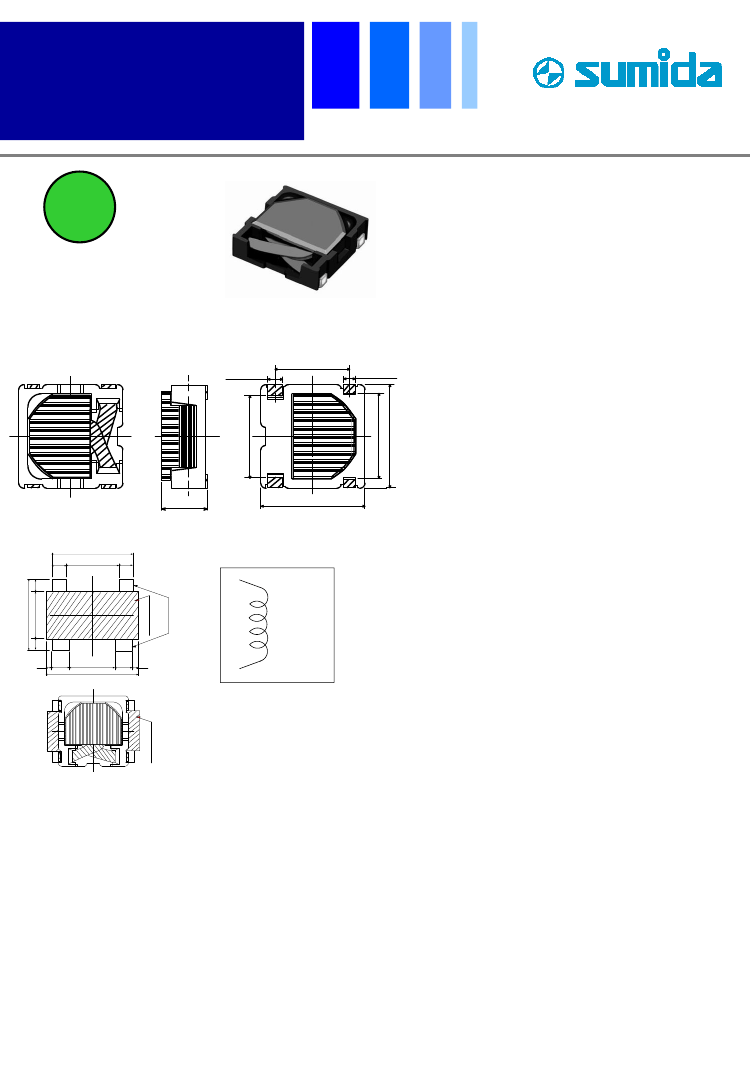

SMD Power Inductor

CEP12D38

Description

• Ferrite core construction.

• Magnetically shielded.

• L×W×H: 12.8×12.8×4.0 mm Max.

• Product weight:1.83g(Ref.)

• Moisture Sensitivity Level: 1

• RoHS compliance.

Environmental Data

• Operating temperature range: -40℃~+125℃

(including coil’s self temperature rise)

• Storage temperature range: -40℃½+125℃

• Solder reflow temperature: 260

℃

peak.

Packaging

• Carrier tape and reel packaging

• 13.0”diameter reel

• 1000pcs per reel

Applications

• Ideally used in Notebook PC,CPU power

supply.

③

RoHS

Dimension - [mm]

1.70±0.2

②

8.9±0.3

9.2±0.3

.60±0.2

③

10.6±0.3

12.5±0.3

①

MAX.4.0

12.5±0.3

④

Land pattern and Schematics - [mm]

2.15

④

③

SOLDER RESIST

②

LAND

2.15

11.4

7.1

①

②

①

④

③

①

②

SOLDER RESIST

Page 1 of 4

Revised: 10-Jan-17

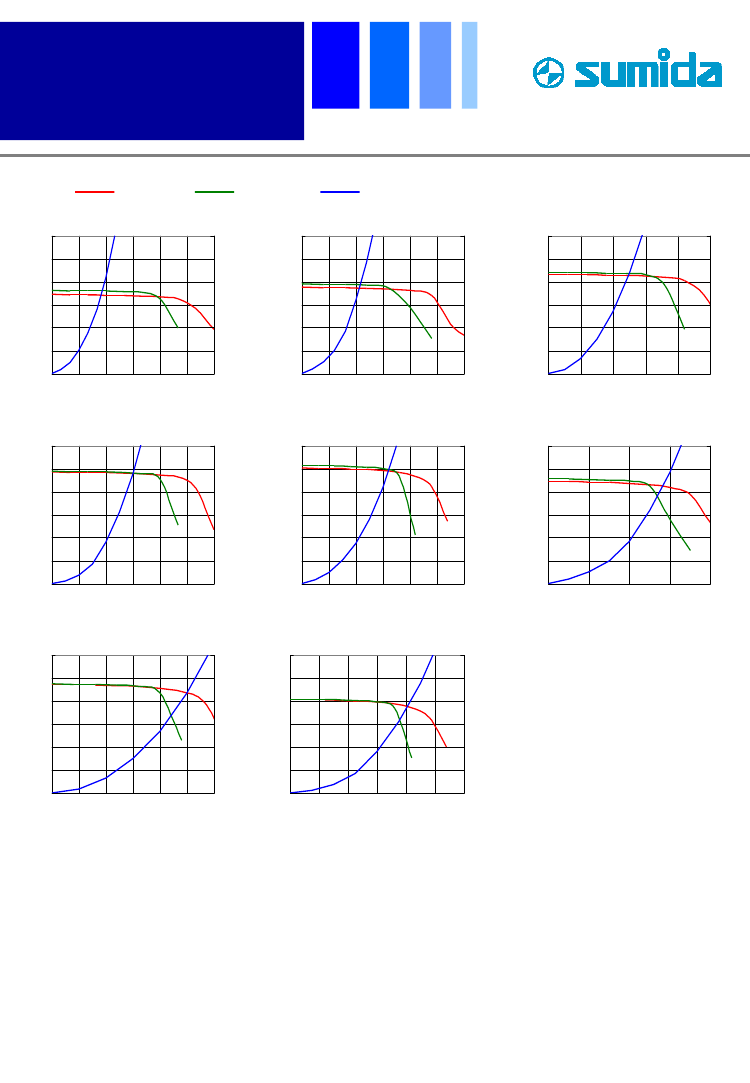

CEP12D38NP-2R8MC Related Products

	CEP12D38NP-2R8MC	CEP12D38NP-1R1MC-H	CEP12D38NP-1R8MC	CEP12D38NP-1R8MC-H	CEP12D38NP-2R6MC-H	CEP12D38NP-4R0MC
Description	Fixed Inductors 2.8uH 8.8A 20% SMD H C INDUCTOR	Fixed Inductors 1.1uH 10A 20% SMD H C INDUCTOR	Fixed Inductors 1.8uH 10A 20% SMD H C INDUCTOR	Fixed Inductors 1.8uH 9.5A 20% SMD H C INDUCTOR	Fixed Inductors 2.6uH 8A 20% SMD H C INDUCTOR	Fixed Inductors SMD High Current Inductor
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA	SUMIDA
package instruction	4949	4949	4949	4949	4949	4949
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	4949	4949	4949	4949	4949	4949
structure	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
core material	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC	MANGANESE-ZINC
DC Resistance	0.0086 Ω	0.0072 Ω	0.0072 Ω	0.0086 Ω	0.0121 Ω	0.0121 Ω
Nominal inductance(L)	2.8 µH	1.1 µH	1.8 µH	1.8 µH	2.6 µH	4 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Package height	4 mm	4 mm	4 mm	4 mm	4 mm	4 mm
Package length	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT
Package width	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm	12.5 mm
method of packing	Tape	Tape	Tape	Tape	Tape	Tape
Maximum rated current	9.5 A	10 A	10 A	9.5 A	8 A	8 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	NO	NO	NO	NO	NO	NO
surface mount	YES	YES	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	20%	20%	20%	20%	20%	20%
Factory Lead Time	13 weeks	13 weeks	-	13 weeks	-	13 weeks
series	CEP12D38	-	CEP12D38	-	CEP12D38	CEP12D38
