C2220C474MCRACTU datasheet, PDF

Datasheet> All Categories > C2220C474MCRACTU

C2220C474MCRACTU: DescriptionCeramic Capacitor, Multilayer, Ceramic, 500V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 2220, CHIP; File Size1MB，22 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

C2220C474MCRACTU Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	C2220C474MCRACTU	-	-	View	Buy Now

C2220C474MCRACTU Overview

Ceramic Capacitor, Multilayer, Ceramic, 500V, 20% +Tol, 20% -Tol, X7R, 15% TC, 0.47uF, Surface Mount, 2220, CHIP

C2220C474MCRACTU Parametric

Parameter Name	Attribute value
Objectid	7032380833
package instruction	, 2220
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7.45
capacitance	0.47 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	2.5 mm
JESD-609 code	e3
length	5.7 mm
Installation features	SURFACE MOUNT
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	500 V
size code	2220
surface mount	YES
Temperature characteristic code	X7R
Temperature Coefficient	15% ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	WRAPAROUND
width	5 mm

Preview

Download Datasheet

View All

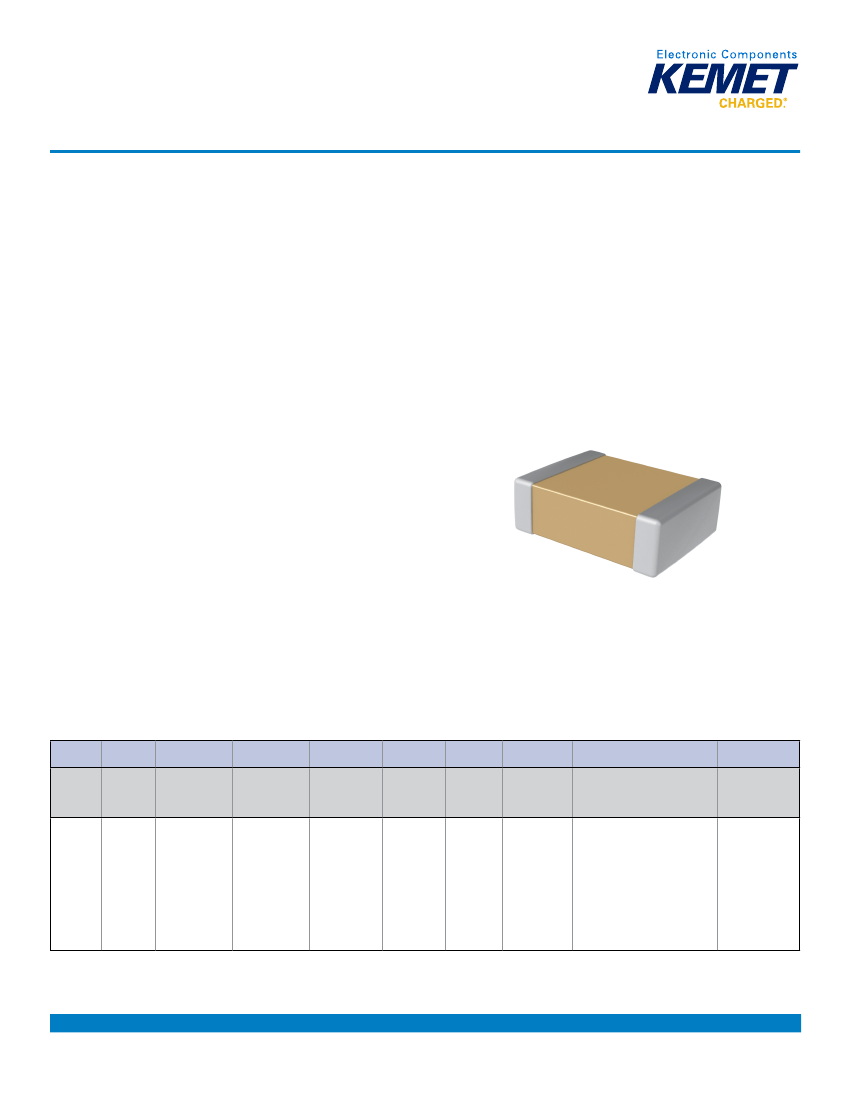

Surface Mount Multilayer Ceramic Chip Capacitors (SMD MLCCs)

High Voltage X7R Dielectric, 500 – 3,000 VDC

(Commercial Grade)

Overview

KEMET’s High Voltage surface mount MLCCs in X7R

Dielectric feature a 125°C maximum operating temperature

and are considered “temperature stable.” The Electronics

Industries Alliance (EIA) characterizes X7R dielectric as

a Class II material. Components of this classification

are fixed, ceramic dielectric capacitors suited for

bypass and decoupling applications or for frequency

discriminating circuits where Q and stability of capacitance

characteristics are not critical. X7R exhibits a predictable

change in capacitance with respect to time and voltage

and boasts a minimal change in capacitance with reference

to ambient temperature. Capacitance change is limited to

±15% from −55°C to +125°C.

Available in a variety of case sizes and industry leading

CV values (capacitance/voltage), these devices exhibit

low leakage current and low ESR at high frequencies.

Conventional uses include both snubbers and filters

in applications such as switching power supplies and

lighting ballasts. Their exceptional performance at

high frequencies has made high voltage MLCC's the

preferred dielectric choice of design engineers worldwide.

In addition to their use in power supplies, these capacitors

are widely used in industries related to automotive

(hybrid), telecommunications, medical, military, aerospace,

semiconductors and test/diagnostic equipment.

In addition to Commercial Grade, Automotive Grade devices

are available which meet the demanding Automotive

Electronics Council's AEC-Q200 qualification requirements.

Click image above for interactive 3D content

Open PDF in Adobe Reader for full functionality

Ordering Information

1210

154

Rated

Voltage

(VDC)

C = 500

B = 630

D = 1,000

F = 1,500

G = 2,000

Z = 2,500

H = 3,000

Dielectric

R = X7R

Failure

Rate/Design

A = N/A

Termination Finish

C = 100% Matte Sn

L = SnPb (5% Pb minimum)

Packaging/

Grade (C-Spec)

See

"Packaging

C-Spec

Ordering

Options

Table"below

Case Size

Specification/

Capacitance Capacitance

Ceramic

(L" x W")

Series

Code (pF)

Tolerance

0603

0805

1206

1210

1808

1812

1825

2220

2225

C = Standard

Two

significant

digits +

number of

zeros.

J = ±5%

K = ±10%

M = ±20%

Additional termination finish options may be available. Contact KEMET for details.

One world. One KEMET

C1010_X7R_HV_SMD • 2/23/2018
