HV LDF 0.5%
Vishay BCcomponents
Ceramic Disc Capacitors
Class 2, low loss 500V, 1kV, 2kV and 3kV
FEATURES
•
High reliability
•
Low losses
•
High capacitance in small size
•
Kinked (preferred) or straight leads.
•
Lead (Pb)-free available.
tangent
line
D
D
APPLICATIONS
In electronic circuits where low losses and high capacitance
per volume are essential, for example:
•
SMPS
•
HF ballast
•
Snubber and high voltage circuits.
SH
DESIGN
The capacitors consist of a ceramic disc both sides of which
are silver-plated. Connection leads are made of tinned
copper having a diameter of 0.6 mm or 0.8 mm.
The capacitors may be supplied with kinked or straight leads
with a lead spacing of 5 mm (0.200"), 7.5 mm (0.300") or
10 mm (0.400") and a lead length from 4 to 30 mm. The
standard tolerance on capacitance is
±10%.
Encapsulation is
made of gold coloured epoxy-resin, flammable resistant in
accordance with
“UL94V-0”.
F
F
Capacitors with 5 mm (0.20"), 7.5 mm (0.30”)
and 10 mm (0.40”) lead spacing.
D
tangent
line
SH
CAPACITANCE RANGE:
100 to 4700pF
RATED DC VOLTAGE:
500V; 1kV; 2kV; 3kV
DIELECTRIC STRENGTH:
200% of rated voltage
INSULATION RESISTANCE AT 500V (DC):
≥
10,000 MΩ
F
Capacitors with 5 mm (0.20") and
7.5 mm (0.30”) lead spacing.
TOLERANCE ON CAPACITANCE:
± 10%, other tolerances available on request
DISSIPATION FACTOR:
0.5% Max
MARKING
Marking indicates capacitance value and tolerance in accordance
with
“EIA 198”
and voltage marks.
Examples of marking code
Disc size (D
max
)
≥7.5
mm:
Disc size (D
max
) ð6.5 mm:
RP
101 k
2 kV
BC
RP
102 k
3 kV
TEMPERATURE COEFFICIENT:
Y5P
OPERATING TEMPERATURE RANGE:
- 30 to + 85°C
SECTIONAL SPECIFICATIONS:
Class 2 IEC 60384-9, EIA 198
CLIMATIC CATEGORY:
30/85/21
The capacitors meet the essential requirements of “IEC 60384-9 and EIA 198”. Unless stated otherwise all electrical values apply at an ambient
temperature of 25 ± 3°C, at normal atmospheric conditions
Document Number: 28516
Revision: 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
53
HV LDF 0.5%
Ceramic Disc Capacitors
Vishay BCcomponents
Class 2, low loss 500V, 1kV, 2kV and 3kV
ORDERING INFORMATION
CLEAR TEXT CODE
C
(pF)
TOL.
(%)
D
max
(mm)
LEAD
SPACING
F
(mm)
SH
(2)
(mm)
13
th
DIGIT:
T = REEL; U = AMMO;
3 = BULK
16
th
DIGIT:
R = RoHS COMPLIANT
F101K25Y5PP6.K5.
F121K25Y5PP6.K5.
6.5
F151K25Y5PP6.K5.
F181K25Y5PP6.K5.
F221K25Y5PP6.K5.
F271K29Y5PP6.K5.
7.5
5.0
F331K29Y5PP6.K5.
4.0
F391K29Y5PP6.K5.
F471K29Y5PP6.K5.
±10
8.5
F561K33Y5PP6.K5.
F681K33Y5PP6.K5.
F821K43Y5PP6.K5.
11.0
12.0
15.0
7.5
17.5
19.0
10.0
4.8
F102K43Y5PP6.K5.
F122K43Y5PP6.K5.
F152K47Y5PP63K7.
F182K59Y5PP63K7.
F222K59Y5PP63K7.
F272K69Y5PP63K7.
F332K69Y5PP63K7.
F392K75Y5PP83K0.
F472K75Y5PP83K0.
F101K33Y5PR6.K7.
F121K33Y5PR6.K7.
F151K33Y5PR6.K7.
F181K33Y5PR6.K7.
8.5
4.0
7.5
11.0
12.0
13.5
15.0
17.5
4.8
F221K33Y5PR6.K7.
F271K33Y5PR6.K7.
F331K33Y5PR6.K7.
F391K33Y5PR6.K7.
±10
F471K33Y5PR6.K7.
F561K33Y5PR6.K7.
F681K43Y5PR6.K7.
F821K43Y5PR6.K7.
F102K47Y5PR63K7.
F122K53Y5PR63K7.
F152K59Y5PR63K7.
F182K59Y5PR63K7.
F222K69Y5PR63K7.
−
−
37
35
36
48
−
−
37
13
14
15
PACKAGING CODE
8
th
AND 9
th
DIGIT
(4)
CATALOG
NUMBER
(4)
3
rd
DIGIT:
5 = STANDARD,
8 = RoHS
COMPLIANT
REEL
AMMO
BULK
2 KV
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
2700
3300
3900
4700
3 KV
100
120
150
180
220
270
330
390
470
560
680
820
1000
1200
1500
1800
2200
22.2 703 ..016
22.2 703 ..066
22.2 703 ..116
22.2 703 ..166
22.2 703 ..216
22.2 703 ..266
22.2 703 ..316
22.2 703 ..366
22.2 703 ..416
22.2 703 ..516
22.2 703 ..616
22.2 703 ..816
22.2 703 ..026
22.2 703 ..076
22.2 703 ..126
22.2 703 ..176
22.2 703 ..226
22.2 702 ..016
22.2 702 ..066
22.2 702 ..116
22.2 702 ..166
22.2 702 ..216
22.2 702 ..266
22.2 702 ..316
22.2 702 ..366
22.2 702 ..416
22.2 702 ..516
22.2 702 ..616
22.2 702 ..816
22.2 702 ..026
22.2 702 ..076
22.2 702 ..126
22.2 702 ..176
22.2 702 ..226
22.2 702 ..276
22.2 702 ..326
22.2 702 ..376
22.2 702 ..426
2700
19.0
10.0
F272K75Y5PR83K0.
48
22.2 703 ..276
Notes
1. Maximum thickness: 500 V = 3.5 mm; 1 kV = 4.5 mm; 2 kV = 5.0 mm; 3 kV = 6.0 mm.
2. SH = seated height.
3. Packaging codes refer to kinked leads. Other styles available on request.
4. 3
rd
digit to complete RoHS catalog number. 8
th
and 9
th
digit of the catalog number to be completed with the packaging code.
Document Number: 28516
Revision: 23-Feb-05
For technical questions contact: CDC@vishay.com
www.vishay.com
55
HV LDF 0.5%
Ceramic Disc Capacitors
Vishay BCcomponents
Class 2, low loss 500V, 1kV, 2kV and 3kV

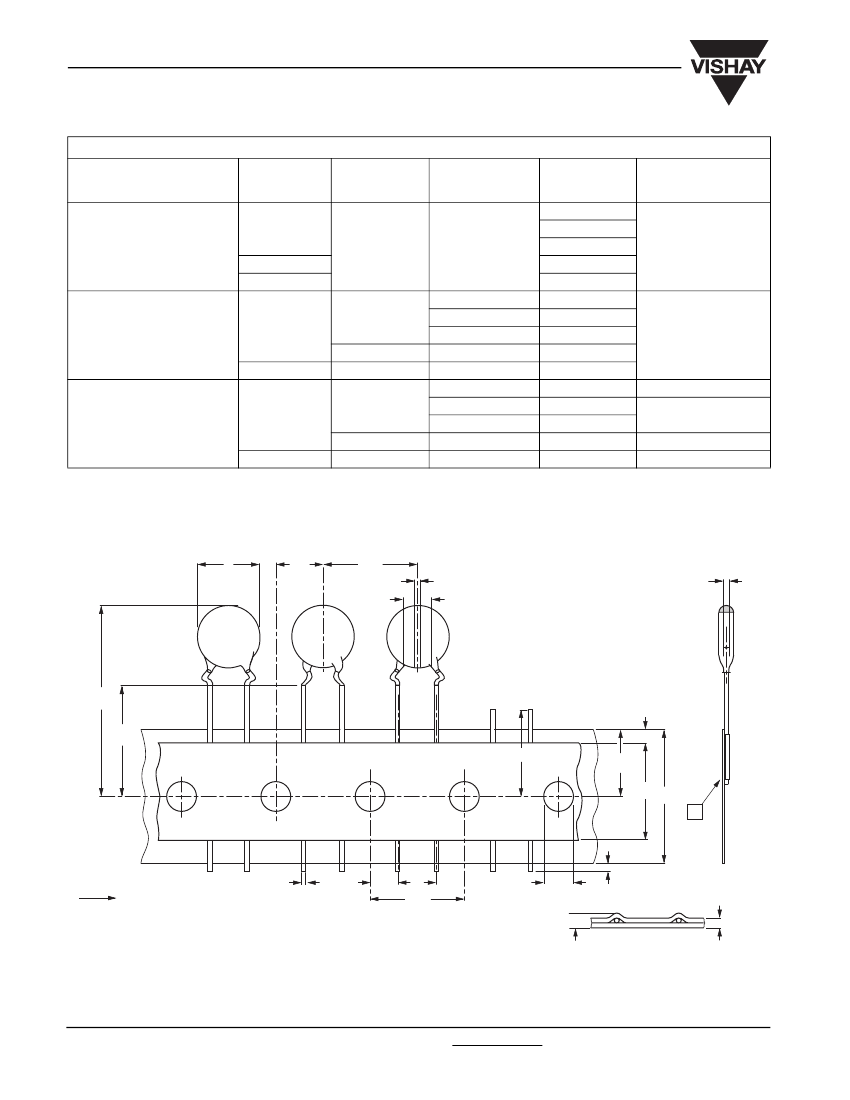

DIMENSIONS OF TAPE
SYMBOL
PARAMETER
DIMENSIONS
(mm)
FEED-HOLE PITCH
FEED-HOLE PITCH
P
0
= 15.0
P
0
= 12.7
11.0 max.
14.0 max.
0.6
±0.05
0.6
±0.05
12.7
±1.0
15.0
±1.0
12.7
±0.3;
note 1
15.0
±0.3;
note 1
1.0 max.
1.0 max.
3.85
±0.7;
note 2
3.75
±1.0;
note 2
6.35
±1.3;
note 2
7.5
±1.5;
note 2
5.0 +0.6/−0.4
7.5
±1.0
0
±1.0
0
±1.0
0
±1.0
0
±1.0
18.0 +1.0/−0.5
18.0 +1.0/−0.5
5.0 min.
5.0 min.
9.0 +0.75/−0.5
9.0 +0.75/−0.5
3.0 max.
3.0 max.
16.0
±0.5
16.0
±0.5
32.0
40.0
1.0 max.
1.0 max.
11.0
11.0
4.0
±0.2
4.0
±0.2
0.9 max.
0.9 max.
1.5 max.
1.5 max.
D
d
P
P
0
∆P
P
1
P
2
F
∆h
∆s
W
W
0
W
1
W
2
H
0
H
1
e
L
D
0
t
t
1
body diameter
lead diameter
pitch between capacitors
feed-hole pitch
plane deviation
feed-hole centre to lead centre
feed-hole centre to component centre
lead spacing
component alignment
deviation along tape, left or right
tape width
hold-down tape width
hole position
hold-down tape margin
height to seating plane
maximum component height
lead end protrusion
maximum length of snipped lead
feed-hole diameter
total tape thickness
maximum thickness of tape and wires
Notes
1. Cumulative pitch error:
±≤1
mm/20 pitches.
2. Obliquity maximum 3°.

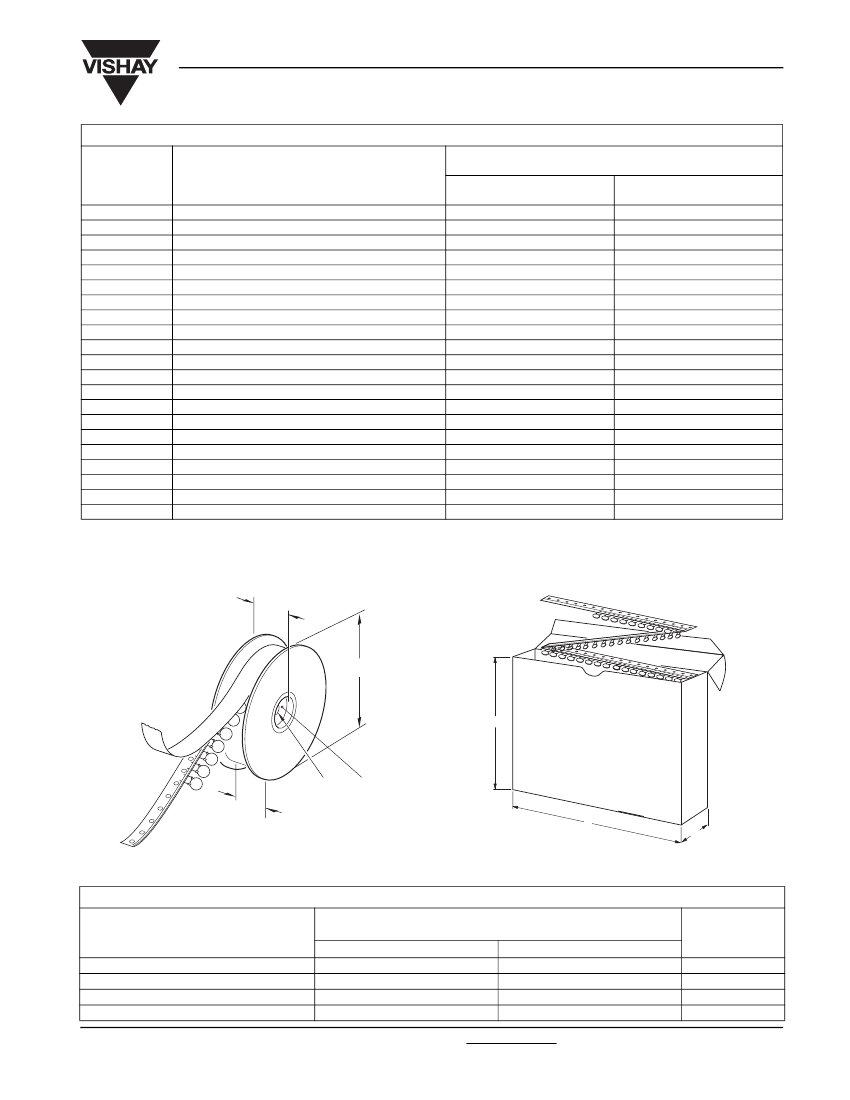

REEL AND TAPE DATA
in millimeters
51 max.
355.6
±2.0
W
28
±1.5
45 max.
8.0
L
H
Reel with capacitors on tape.
Ammopack with capacitors on tape.
DIMENSIONS OF AMMOPACK
PARAMETER
6.5 to 11.0 mm
Taping pitch
L
W
H
Document Number: 28516
Revision: 23-Feb-05
12.7
335
290
50
For technical questions contact: CDC@vishay.com
DISC SIZE
(D
max
)
12.0 to 13.5 mm
15.0
360
330
55
mm
mm
mm
mm
www.vishay.com
57
UNIT
