104319-9 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 104319-9

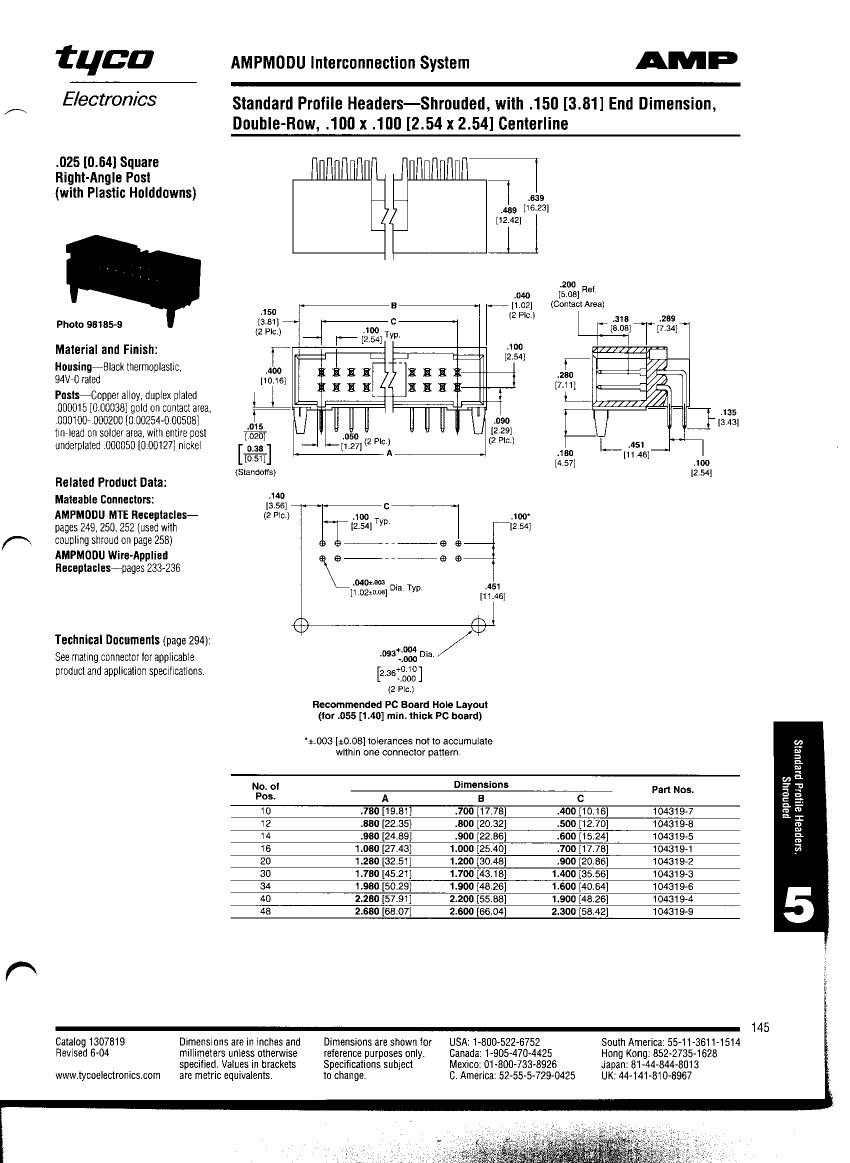

104319-9: Description48 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

104319-9 Overview

48 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER

104319-9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	AMPMODU, SHROUDED
Board mount options	SOLDER HOLDING POSTS
body width	0.415 inch
subject depth	0.639 inch
body length	2.68 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	104319
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	48
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

104319-9 Related Products

	104319-9	104319-7
Description	48 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER	10 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	AMPMODU, SHROUDED	AMPMODU, SHROUDED
Board mount options	SOLDER HOLDING POSTS	SOLDER HOLDING POSTS
body width	0.415 inch	0.415 inch
subject depth	0.639 inch	0.639 inch
body length	2.68 inch	0.78 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT
DIN compliance	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V
Filter function	NO	NO
IEC compliance	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC
MIL compliance	NO	NO
Manufacturer's serial number	104319	104319
Plug contact pitch	0.1 inch	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch
Mixed contacts	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm
Plating thickness	15u inch	15u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	3 A	3 A
Guideline	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.135 inch	0.135 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	48	10
UL Flammability Code	94V-0	94V-0
Base Number Matches	1	1
