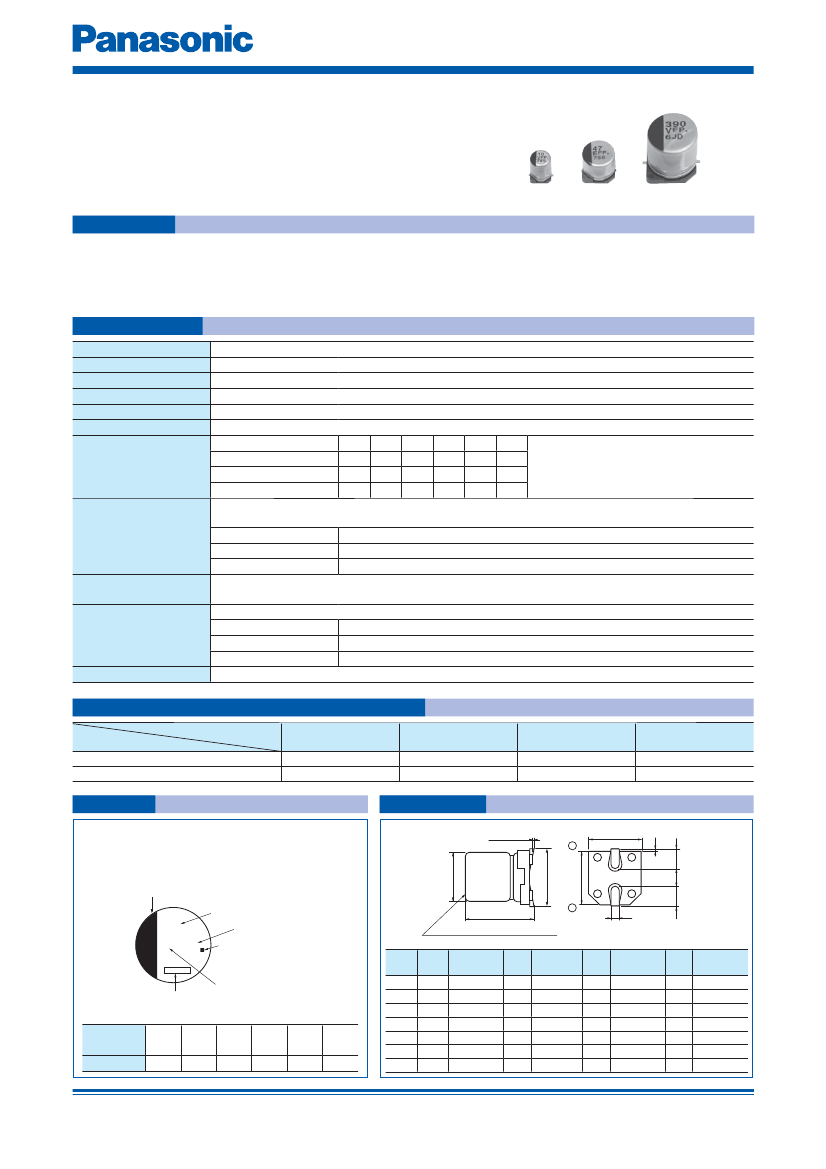

Aluminum Electrolytic Capacitors (SMD Type)
Surface Mount Type
Series :
FP
Type :
V
High temperature
Lead-Free reflow (suffix : A½)
Features
●
Low ESR (30 % to 50 % less than FK series)
●
Endurance : 105 °C 2000 h
●
Vibration-proof product is available upon request.
●
RoHS
(08 mm and larger)
compliant
Specifications
Category temperature range
Rated voltage range
Capacitance range
Capacitance tolerance
Leakage current
Dissipation factor (tan
d)
Characteristics
at low temperature
–55 °C to +105 °C
6.3 V.DC to 50 V.DC
10 μF to 1800 μF
±20 % (120 Hz/+20 °C)
I
<
0.01 CV or 3 (μA) After 2 minutes (whichever is greater)
Please see the attached characteristics list
V.DC
6.3 10 16 25 35 50
Z(–25 °C)/Z(+20 °C)
2
2
2
2
2
2
(Impedance ratio at 120 Hz)
Z(–40°C)/Z(+20 °C)
3
3
3
3
3
3
Z(–55°C)/Z(+20 °C)
4
4
4
3
3
3
After applying rated working voltage at +105 °C ±2 °C for 2000 hours the capacitors shall meet
the limits specified below. Post-test requirement at +20 °C
Capacitance change Within ±30 % of the initial value
<
200 % of the initial limit
tan
d
DC leakege current
Within the initial limit
After storage for 1000 hours at +105 °C±2 °C with no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
After reflow soldering and then being stabilized at +20 °C, capacitors shall meet the following limits.
Capacitance change Within ±10 % of the initial value
tan
d
Within the initial limit
DC leakage current
Within the initial limit
AEC-Q200 compliant
Endurance
Shelf life
Resistance to
soldering heat
AEC-Q200
Frequency correction factor for ripple current
Frequency (Hz)
Capacitance (μF)
10
to
560
to
470
1800
120
0.65
0.75
1k
0.85
0.90
10 k
0.95
0.95
100 k to
1.00
1.00
Marking
Example : 6.3 V.DC 22 μF
Marking color : BLACK
Dimensions
–
B±0.2
H
(I)
(I)
( ) Reference size
(Unit : mm)
(P)
W
K
0.3 max.
0D±0.5
A±0.2
Negative polarity
marking (–)
22
j FP
Lot number
Capacitance (μF)
Series identification
Mark for Lead-Free
products
(Black dot)
Rated voltage code
L
Pressure Relief (010 and larger)
+
R. Voltage
6.3
(V.DC)
Code
j
10
A
16
C
25
E
35
V
50
H
Size
L
A, B
0D
code
B
4.0 5.8±0.30 4.3
C
5.0 5.8±0.30 5.3
D
6.3 5.8±0.30 6.6
D8
6.3 7.7±0.30 6.6
E
8.0 6.2±0.30 8.3
F
8.0 10.2±0.30 8.3
G 10.0 10.2±0.30 10.3
H
5.5 max.
6.5 max.
7.8 max.
7.8 max.
9.5 max.
10.0 max.
12.0 max.
I
1.8
2.2
2.6
2.6
3.4
3.4
3.5
W
0.65±0.1
0.65±0.1
0.65±0.1
0.65±0.1
0.65±0.1
0.90±0.2
0.90±0.2
P
K
1.0 0.35
+- 0.15
0.20
+ 0.15
1.5 0.35
- 0.20
1.8 0.35
+- 0.15
0.20
1.8 0.35
+- 0.15
0.20
2.2 0.35
+- 0.15
0.20
3.1 0.70±0.20
4.6 0.70±0.20
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Mar. 2016
Aluminum Electrolytic Capacitors (SMD Type)
Characteristics list
Endurance : 105 °C 2000 h
Case size (mm)
Rated
Cap.
voltage (±20 %)
(V.DC) (μF)
22
47
100
6.3
220
330
470
1000
1500
1800
22
33
150
10
220
330
470
680
1000
1200
10
22
47
68
16
100
150
220
330
470
680
820
10
22
33
47
68
25
100
150
220
330
470
560
Size
code
½
Specification
Ripple
ESR
tan
d
current
Part No.
(100 kHz)
(120 Hz)
(100 kHz)
(+20 °C)
(+20 °C)
(+105 °C)
(Ω)
(mA r.m.s.)
160
0.85
0.26
EEEFP0J220AR
160
0.85
0.26
EEEFPJ470UAR
240
0.36
0.26
EEEFP0J470AR
240
0.36
0.26
EEEFPJ101UAR
300
0.26
0.26
EEEFP0J101AP
300
0.26
0.26
EEEFP0J221AP
600
0.16
0.26
EEEFPJ331XAP
500
0.18
0.26
EEEFP0J331AP
850
0.08
0.26
EEEFP0J471AP
850
0.08
0.26
EEEFP0J102AP
1190
0.06
0.26
EEEFP0J152AP
850
0.08
0.26
EEEFPJ182UAP
160
0.85
0.19
EEEFP1A220AR
160
0.85
0.19
EEEFPA330UAR
240
0.36
0.19
EEEFP1A330AR
300
0.26
0.19
EEEFP1A151AP
600
0.16
0.19
EEEFPA221XAP
500
0.18
0.19
EEEFP1A221AP
850
0.08
0.19
EEEFP1A331AP
850
0.08
0.19
EEEFP1A471AP
850
0.08
0.19
EEEFP1A681AP
1190
0.06
0.19
EEEFP1A102AP
850
0.08
0.19
EEEFPA122UAP
160
0.85
0.16
EEEFP1C100AR
160
0.85
0.16
EEEFPC220UAR
240
0.36
0.16
EEEFP1C220AR
240
0.36
0.16
EEEFPC470UAR
300
0.26
0.16
EEEFP1C470AP
300
0.26
0.16
EEEFP1C680AP
300
0.26
0.16
EEEFP1C101AP
600
0.16
0.16
EEEFPC101XAP
600
0.16
0.16
EEEFPC151XAP
600
0.16
0.16
EEEFPC221XAP
500
0.18
0.16
EEEFP1C221AP
850
0.08
0.16
EEEFP1C331AP
850
0.08
0.16
EEEFP1C471AP
1190
0.06
0.16
EEEFP1C681AP
850
0.08
0.16
EEEFPC821UAP
160
0.85
0.14
EEEFP1E100AR
240
0.36
0.14
EEEFP1E220AR
240
0.36
0.14
EEEFPE330UAR
300
0.26
0.14
EEEFP1E330AP
300
0.26
0.14
EEEFP1E470AP
300
0.26
0.14
EEEFP1E680AP
600
0.16
0.14
EEEFPE101XAP
500
0.18
0.14
EEEFP1E101AP
850
0.08
0.14
EEEFP1E151AP
850
0.08
0.14
EEEFP1E221AP
850
0.08
0.14
EEEFP1E331AP
1190
0.06
0.14
EEEFP1E471AP
850
0.08
0.14
EEEFPE561UAP
Reflow
Min. Packaging Q'ty
Taping
(pcs)
2000
2000
1000
1000
1000
1000
900
1000
500
500
500
500
2000
2000
1000
1000
900
1000
500
500
500
500
500
2000
2000
1000
1000
1000
1000
1000
900
900
900
1000
500
500
500
500
2000
1000
1000
1000
1000
1000
900
1000
500
500
500
500
500
0D
4
4
5
5
6.3
6.3
6.3
8
8
8
10
10
4
4
5
6.3
6.3
8
8
8
8
10
10
4
4
5
5
6.3
6.3
6.3
6.3
6.3
6.3
8
8
8
10
10
4
5
5
6.3
6.3
6.3
6.3
8
8
8
8
10
10
L
5.8
5.8
5.8
5.8
5.8
5.8
7.7
6.2
10.2
10.2
10.2
10.2
5.8
5.8
5.8
5.8
7.7
6.2
10.2
10.2
10.2
10.2
10.2
5.8
5.8
5.8
5.8
5.8
5.8
5.8
7.7
7.7
7.7
6.2
10.2
10.2
10.2
10.2
5.8
5.8
5.8
5.8
5.8
5.8
7.7
6.2
10.2
10.2
10.2
10.2
10.2
B
(B)
C
(C)
D
D
D8
E
F
F
G
(G)
B
(B)
C
D
D8
E
F
F
F
G
(G)
B
(B)
C
(C)
D
D
D
D8
D8
D8
E
F
F
G
(G)
B
C
(C)
D
D
D
D8
E
F
F
F
G
(G)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(6)
(6)
(5)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(6)
(6)
(6)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(6)
(6)
(5)
(5)
(5)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(6)
(6)
(6)
½
Size code( ) : Miniaturization product
If Part number exceeds 12 digits, voltage code is abbreviated as follows; 0J
→
J, 1A
→
A, 1C
→
C, 1E
→
E, 1V
→
V
· Please refer to the page of “Reflow Profile” and “The Taping Dimensions”.
· When requesting vibration-proof product, please put the last “V” instead to “P”
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Mar. 2016
Aluminum Electrolytic Capacitors (SMD Type)
Characteristics list
Endurance : 105 °C 2000 h
Case size (mm)
Rated
Cap.
voltage (±20 %)
(V.DC) (μF)
10
22
33
47
68
35
100
150
220
330
390
100
220
Size
code
½
Specification
Ripple
ESR
tan
d
current
Part No.
(100 kHz)
(120 Hz)
(100 kHz)
(+20 °C)
(+20 °C)
(+105 °C)
(Ω)
(mA r.m.s.)
160
0.85
0.12
EEEFPV100UAR
240
0.36
0.12
EEEFP1V220AR
300
0.26
0.12
EEEFP1V330AP
300
0.26
0.12
EEEFP1V470AP
600
0.16
0.12
EEEFPV680XAP
600
0.16
0.12
EEEFPV101XAP
850
0.08
0.12
EEEFP1V101AP
850
0.08
0.12
EEEFP1V151AP
850
0.08
0.12
EEEFP1V221AP
1190
0.06
0.12
EEEFP1V331AP
850
0.08
0.12
EEEFPV391UAP
670
0.18
0.10
EEEFP1H101AP
900
0.12
0.10
EEEFP1H221AP
Reflow
Min. Packaging Q'ty
Taping
(pcs)
2000
1000
1000
1000
900
900
500
500
500
500
500
500
500
0D
4
5
6.3
6.3
6.3
6.3
8
8
8
10
10
8
10
L
50
5.8
5.8
5.8
5.8
7.7
7.7
10.2
10.2
10.2
10.2
10.2
10.2
10.2
(B)
C
D
D
D8
D8
F
F
F
G
(G)
F
G
(5)
(5)
(5)
(5)
(5)
(5)
(6)
(6)
(6)
(6)
(6)
(6)
(6)
½
Size code( ) : Miniaturization product
If Part number exceeds 12 digits, voltage code is abbreviated as follows; 0J
→
J, 1A
→
A, 1C
→
C, 1E
→
E, 1V
→
V
· Please refer to the page of “Reflow Profile” and “The Taping Dimensions”.
· When requesting vibration-proof product, please put the last “V” instead to “P”
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
02
Mar. 2016
