787.5 MHz SAW Filter
Applications
General purpose wireless
Wireless infrastructure
3G, 4G, Multistandard
Repeaters
Product Features
Usable bandwidth 21 MHz
High attenuation
Low Loss
Single-ended operation
Matching required for operation at 50Ω
Small Size: 3.00 x 3.00 x 1.22 mm
Ceramic Surface Mount Package (SMP)
Hermetically sealed
RoHS
compliant,
Pb-free

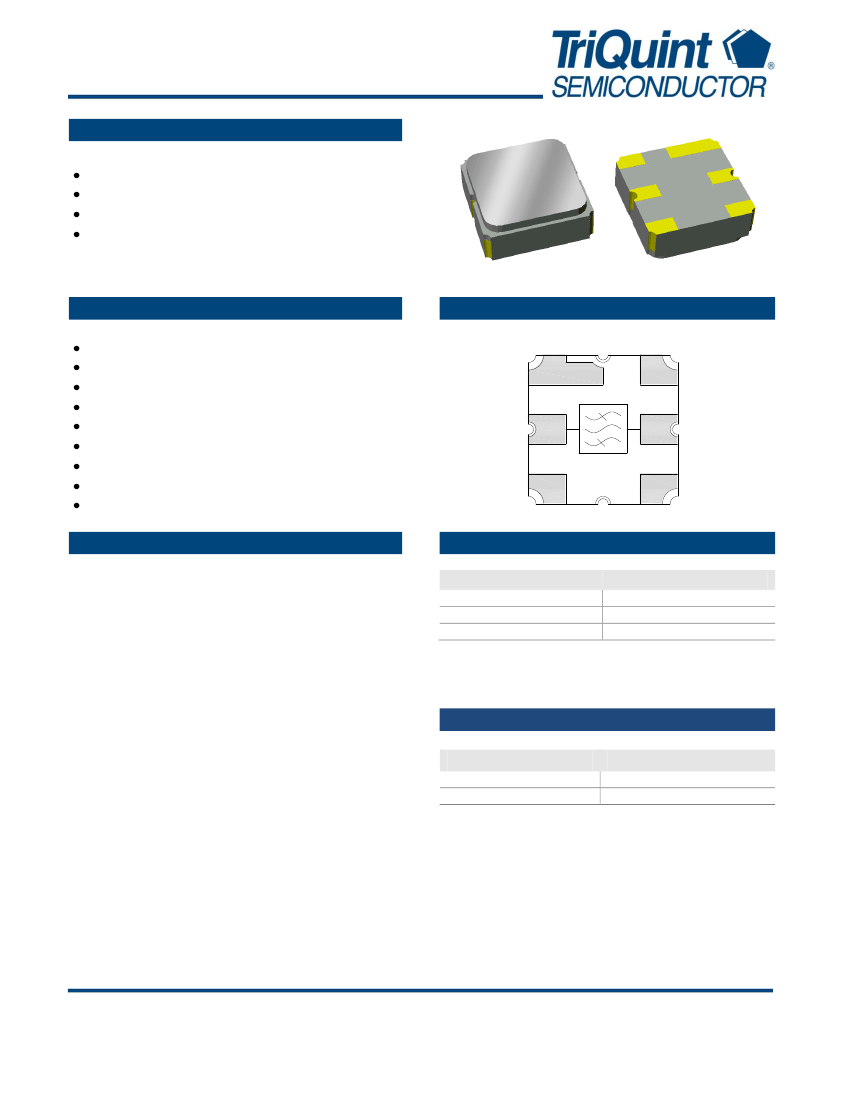

Functional Block Diagram
Top view
Gnd
1
6
Gnd
Input
2
5
Output
Gnd
3
4
Gnd
General Description
Uplink filter combining bands 13 and 14 for general
purpose wireless applications. This filter was specifically
designed in a 3x3mm hermetic package for base station
applications and is part of our wide portfolio of RF filters
in the same package.
Low insertion loss, coupled with high attenuation and good
power handling, makes this filter a natural choice for our
customers uplink RF filtering needs.
Pin Configuration
Pin # SE
2
5
1,3,4,6
Description
Input
Output
Case Ground
Ordering Information
Part No.
856977
856977-EVB
Description
packaged part
evaluation board
Standard T/R size = 5000 units/reel.
Data Sheet: Rev A 5/18/11
© 2011 TriQuint Semiconductor, Inc.
- 1 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856977
787.5 MHz SAW Filter
Specifications
Electrical Specifications
(1)
Specified Temperature Range:
(2)
-30 to +85 ºC
Parameter
(3)
Center Frequency
Maximum Insertion Loss
Amplitude Variation
(5)
Amplitude Ripple (any 5 MHz in
passband)
(6)
Amplitude Ripple
(6)
Phase Ripple
Group Delay Ripple
Absolute Group Delay
Attenuation
(7)
Conditions
777 – 798 MHz
777 – 798 MHz
777 – 798 MHz
777 – 798 MHz
777 – 798 MHz
777 – 798 MHz
777 – 798 MHz
70 – 120 MHz
430 – 470 MHz
591 – 614 MHz
746 – 765 MHz
765 – 768 MHz
818 – 824 MHz
843 – 857 MHz
1005 – 1026 MHz
1688 – 1711 MHz
2010 – 2052 MHz
2922 – 2964 MHz
777 – 798 MHz
Single-ended
Min
-
-
-
-
-
-
-
-
50
40
30
15
5
10
40
30
42
30
20
-
-
Typical
(4)
787.5
2.05
0.5
0.5
0.5
42
39
48
74
66
60
23
23
21
53
55
52
58
42
1.4
50
Max
-
2.75
1.4
1.0
1.2
55
60
55
-
-
-
-
-
-
-
-
-
-
-
2.0
-
Units
MHz
dB
dB
dB p-p
dB p-p
deg p-p
ns p-p
ns
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
dB
-
Input/Output VSWR
Source/Load Impedance
(8)
Notes:
1. All specifications are based on the TriQuint schematic for the main reference design shown on page 3
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Describes the total variation over the defined frequency range
6. This is defined as the worst difference between a peak and adjacent valley within defined frequency points
7. Relative to passband loss at center frequency
8. This is the optimum impedance in order to achieve the performance shown
Absolute Maximum Ratings
Parameter
Operating Temperature
Storage Temperature
Input Power
(
10Khrs @ 55
o
C under CW signal)
(10)
9.
(9)
Rating
-40 to +85
o
C
-40 to +85
o
C
+20 dBm
Device may operate over this range with degraded Electrical Specifications
10. Device can also meet +22dBm power for an applied CW modulated CW signal at 55 deg C for a minimum of 125 hours in the 777.0-
798.0 MHz frequency band”
Operation of this device outside the parameter ranges given above may cause permanent damage.
Data Sheet: Rev A 5/18/11
© 2011 TriQuint Semiconductor, Inc.
- 2 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856977
787.5 MHz SAW Filter

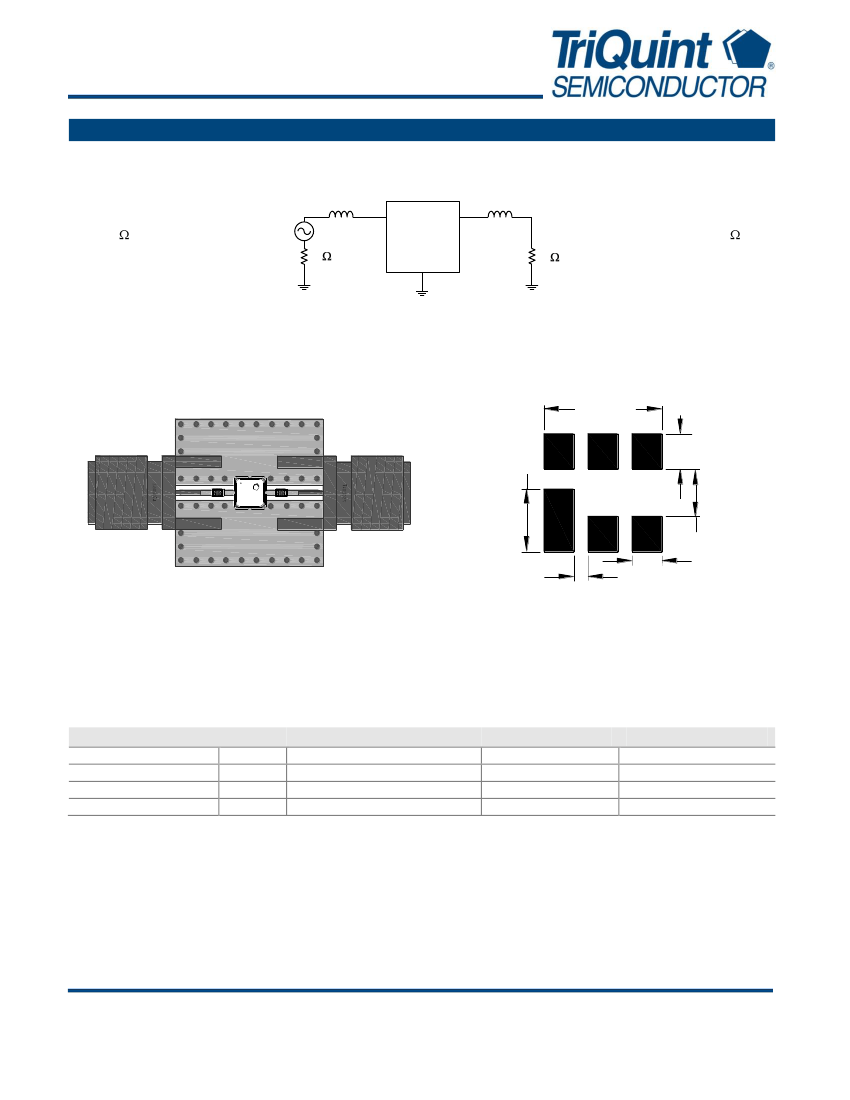

Reference Design
Schematic
8.2nH
2
5
8.7nH
50
Single-ended
Input
50
1,3,4,6,
50
50
Single-ended
Output
PC Board
Mounting Configuration
3.20 SQ
.96
L1
JJJYM
HB
L2
1.70
960700
1.27
.81
.38
Notes:
Top, middle & bottom layers: 1 oz copper
Substrates: FR4 dielectric, .031” thick
Finish plating: Nickel: 3-8µm thick, Gold: .03-.2µm thick
Hole plating: Copper min .0008µm thick
Notes:
1.
All dimensions are in millimeters.
2.
This footprint represents a recommendation only.
Bill of Material
Reference Desg.
L1
L2
SMA
PCB
Value
8.2nH
8.7nH
N/A
N/A
Description
Coil Wire-wound, 0402, 5%
Coil Wire-wound, 0402, 5%
SMA connector
3-layer
Manufacturer
Murata
Murata
Radiall USA Inc.
multiple
Part Number
LQW15AN8N2J00
LQW15AN8N7J00
9602-1111-018
960700
Data Sheet: Rev A 5/18/11
© 2011 TriQuint Semiconductor, Inc.
- 3 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856977
787.5 MHz SAW Filter

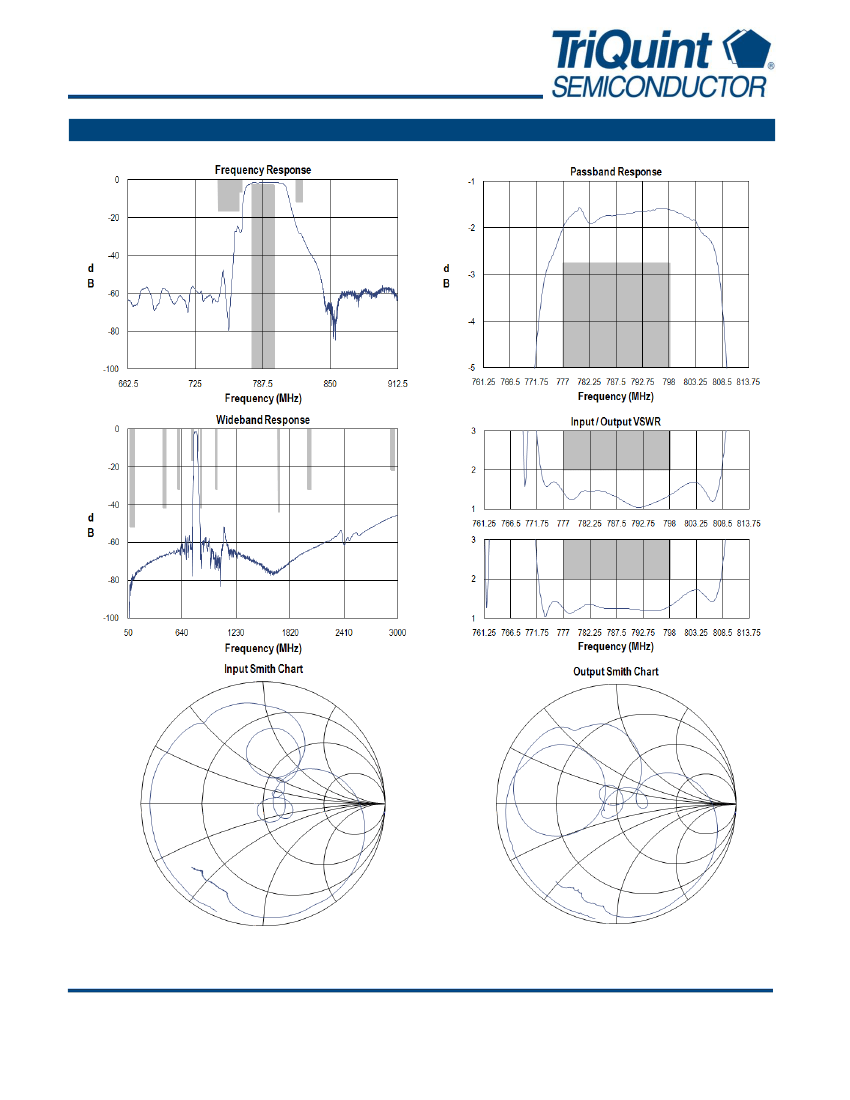

Typical Performance
(at room temperature)
Data Sheet: Rev A 5/18/11
© 2011 TriQuint Semiconductor, Inc.
- 4 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
856977
787.5 MHz SAW Filter

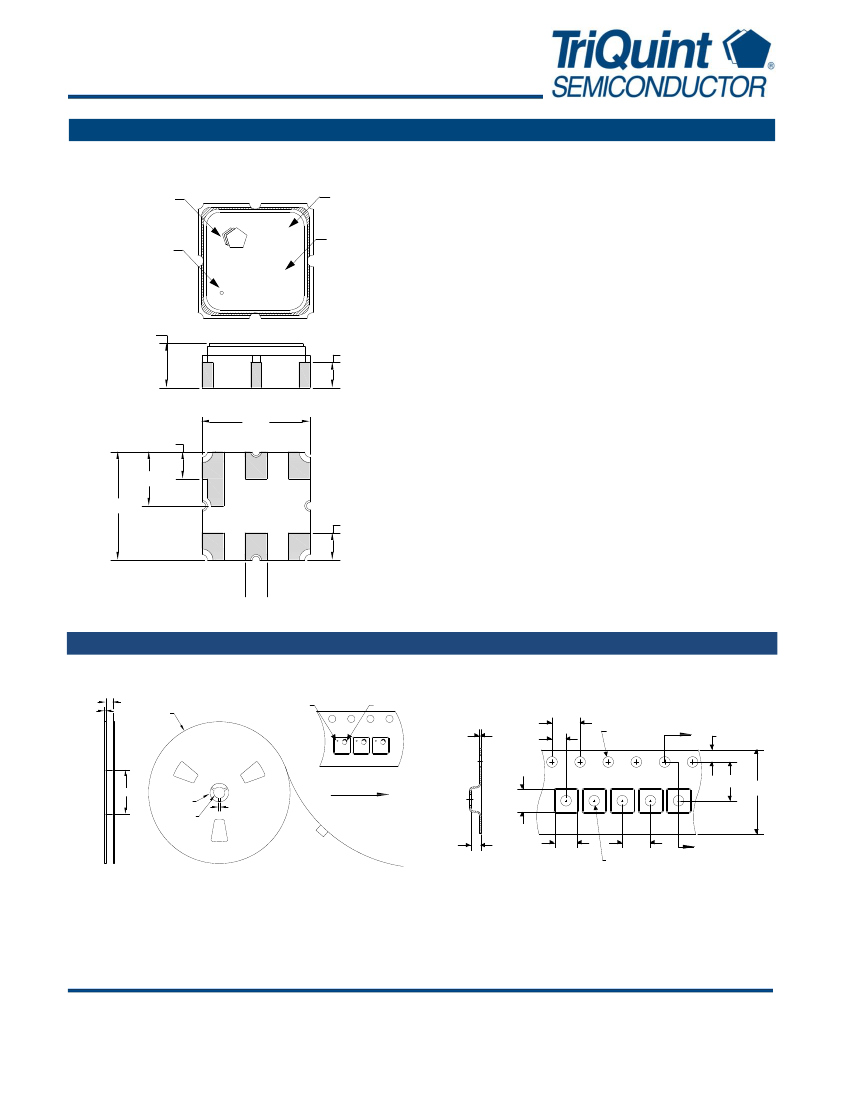

Mechanical Information
Package Information, Dimensions and Marking
TriQuint
logo
Marking
code
Package Style: SMP-12A
Dimensions: 3.00 x 3.00 x 1.22 mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm, over a 2-6μm
Ni
plating
All dimensions shown are nominal in millimeters
All tolerances are ±0.15mm except overall length and width
±0.10mm
The date code consists of day of the current year (Julian,
3 digits), Y = last digit of the year, and M = manufacturing
site code
ID dot
HB
JJJYM
Date code
1.22 NOM.
1.32 MAX.
0.69
3.00
0.75
1.50
3.00
0.75
Tape and Reel Information
Standard T/R size = 5000 units/reel. All dimensions are in millimeters
2.7
12.8
Ø330
ID dot
TriQuint
logo
Section A-A
4.0
0.21
2.0
Ø1.5
A
1.75
5.5
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
3.25
12.0
1.4 3.25
4.0
Ø1.5
A
Data Sheet: Rev A 5/18/11
© 2011 TriQuint Semiconductor, Inc.
- 5 of 6 -
Disclaimer: Subject to change without notice e
Connecting the Digital World to the Global Network
®
