Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch

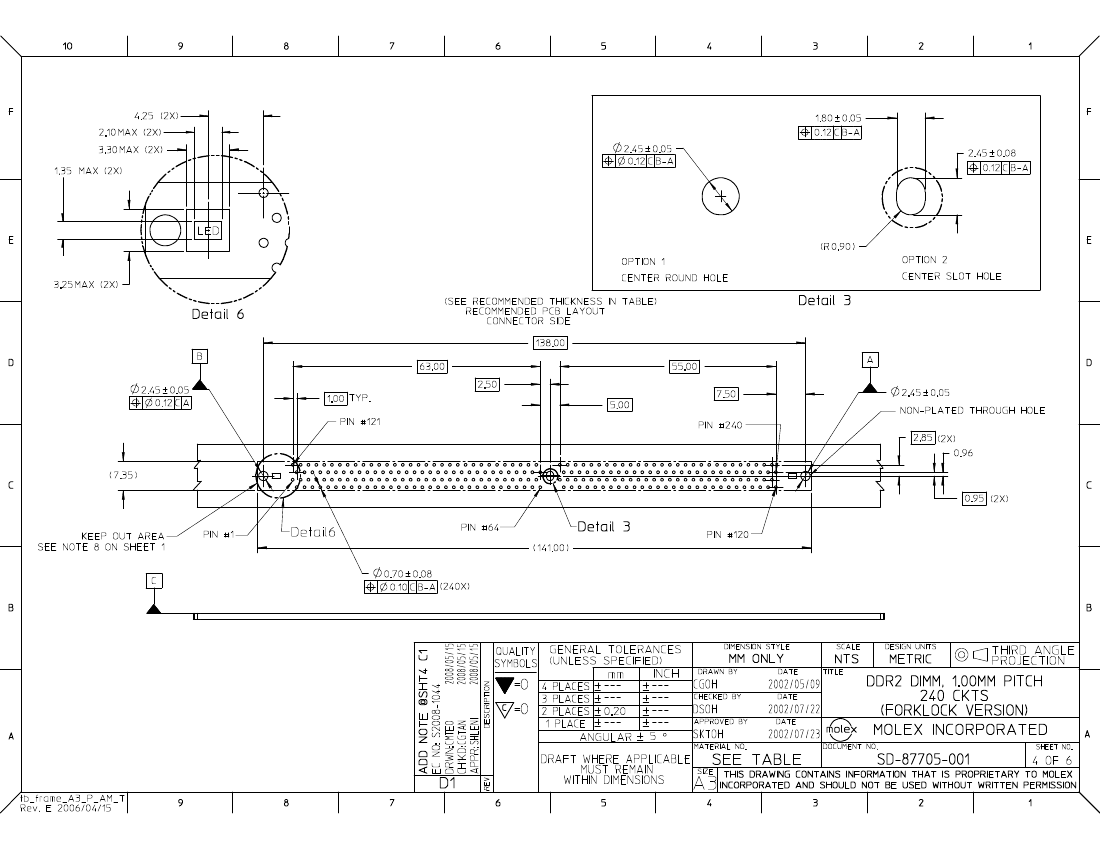

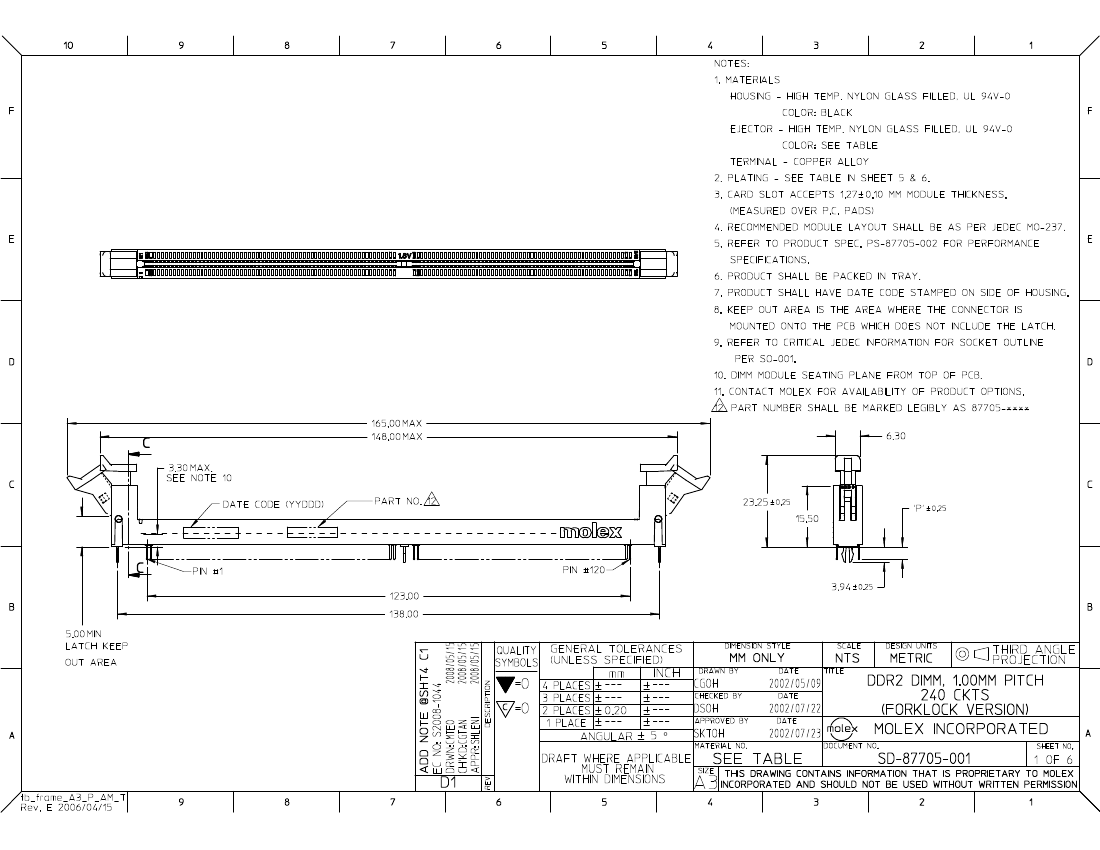

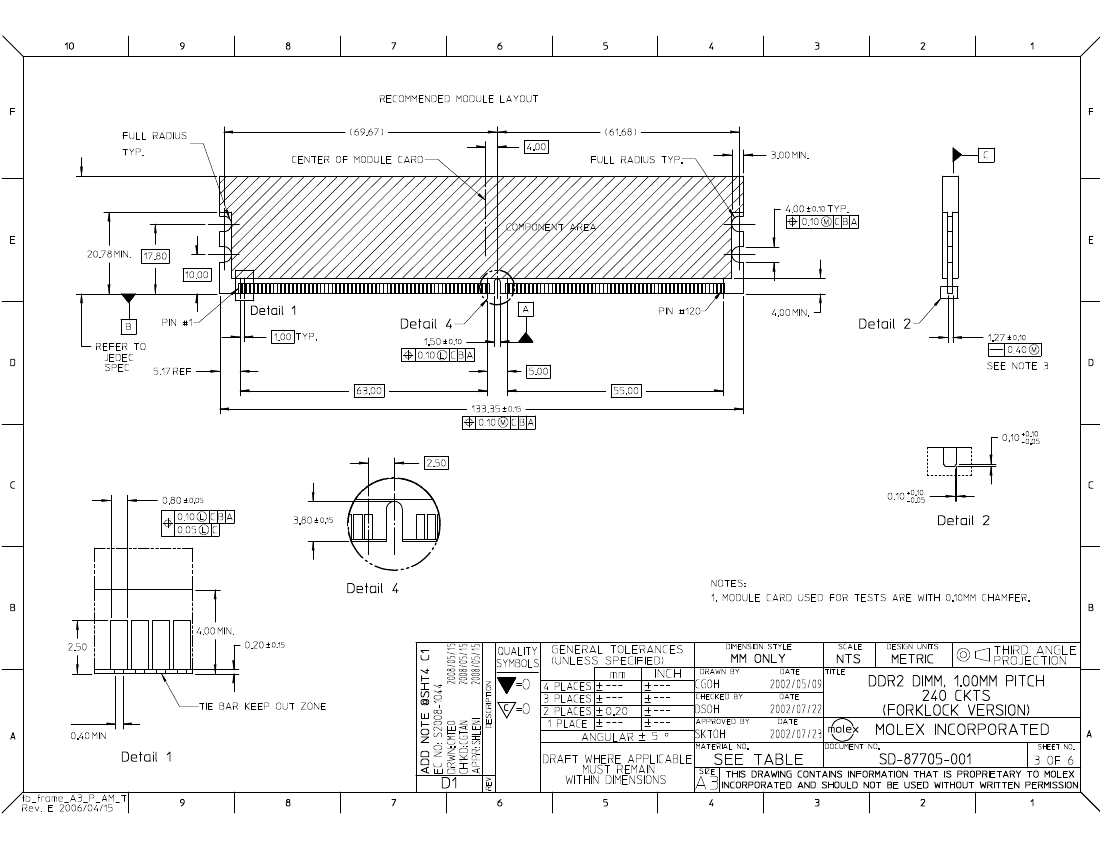

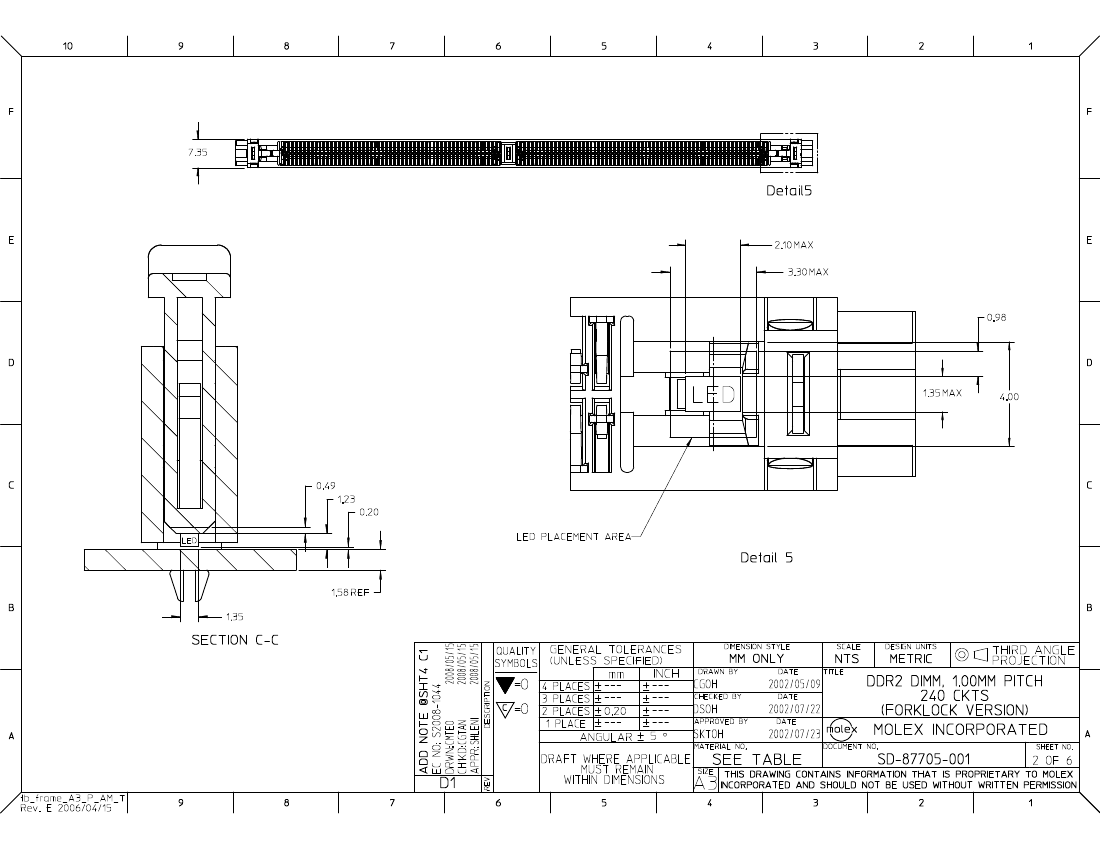

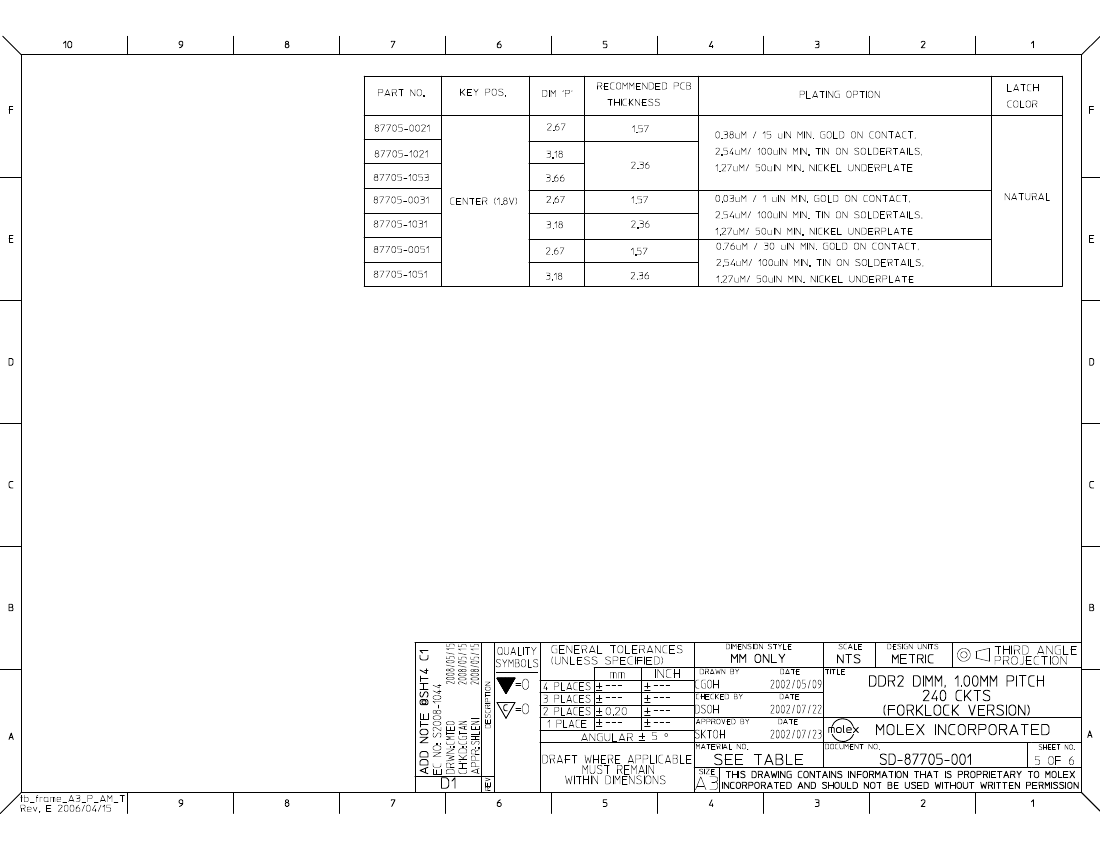

| Parameter Name | Attribute value |
| Maker | Molex |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | LATCHED |
| Board mount options | SPLIT BOARD LOCK |
| subject depth | 0.915 inch |
| body length | 5.827 inch |
| Connector type | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL |
| Contact completed and terminated | TIN (100) OVER NICKEL |
| Contact point gender | FEMALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 30 mΩ |
| Contact style | SQ PIN-SKT |
| DIN compliance | NO |
| Filter function | NO |
| IEC compliance | NO |
| Insulation resistance | 1000000000 Ω |
| insulator material | GLASS FILLED NYLON |
| JESD-609 code | e3 |
| MIL compliance | NO |
| Manufacturer's serial number | 87705 |
| Plug contact pitch | 0.039 inch |
| Mixed contacts | NO |
| Installation option 1 | LATCH |
| Installation option 2 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 4 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -10 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 1.905 mm |
| Plating thickness | 30u inch |
| Rated current (signal) | 0.5 A |
| reliability | COMMERCIAL |
| Terminal length | 0.105 inch |
| Terminal pitch | 1 mm |
| Termination type | SOLDER |
| Total number of contacts | 240 |
| UL Flammability Code | 94V-0 |
| Base Number Matches | 1 |
| 87705-5051 | 87705-6151 | |
|---|---|---|
| Description | Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch | Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Locking, Black Insulator |
| Maker | Molex | Molex |
| Reach Compliance Code | unknown | unknown |
| Other features | LATCHED | LATCHED |
| subject depth | 0.915 inch | 0.61 inch |
| Connector type | CARD EDGE CONNECTOR | CARD EDGE CONNECTOR |
| Contact to complete cooperation | GOLD (30) OVER NICKEL | GOLD (15) OVER NICKEL |
| Contact completed and terminated | TIN (100) OVER NICKEL | TIN (100) OVER NICKEL |
| Contact point gender | FEMALE | FEMALE |
| Contact material | COPPER ALLOY | COPPER ALLOY |
| Contact resistance | 30 mΩ | 30 mΩ |
| Contact style | SQ PIN-SKT | CENTRONIC |
| DIN compliance | NO | NO |
| Filter function | NO | NO |
| IEC compliance | NO | NO |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω |
| insulator material | GLASS FILLED NYLON | GLASS FILLED NYLON |
| JESD-609 code | e3 | e3 |
| MIL compliance | NO | NO |
| Manufacturer's serial number | 87705 | 87705 |
| Plug contact pitch | 0.039 inch | 0.039 inch |
| Mixed contacts | NO | NO |
| Installation option 1 | LATCH | LOCKING |
| Installation method | STRAIGHT | STRAIGHT |
| Installation type | BOARD | BOARD |
| Number of connectors | ONE | ONE |
| Number of rows loaded | 2 | 2 |
| Maximum operating temperature | 85 °C | 85 °C |
| Minimum operating temperature | -10 °C | -10 °C |
| Options | GENERAL PURPOSE | GENERAL PURPOSE |
| Rated current (signal) | 0.5 A | 0.5 A |
| reliability | COMMERCIAL | COMMERCIAL |
| Terminal pitch | 1 mm | 1 mm |
| Termination type | SOLDER | SOLDER |
| Total number of contacts | 240 | 240 |
| UL Flammability Code | 94V-0 | 94V-0 |
| Base Number Matches | 1 | 1 |
