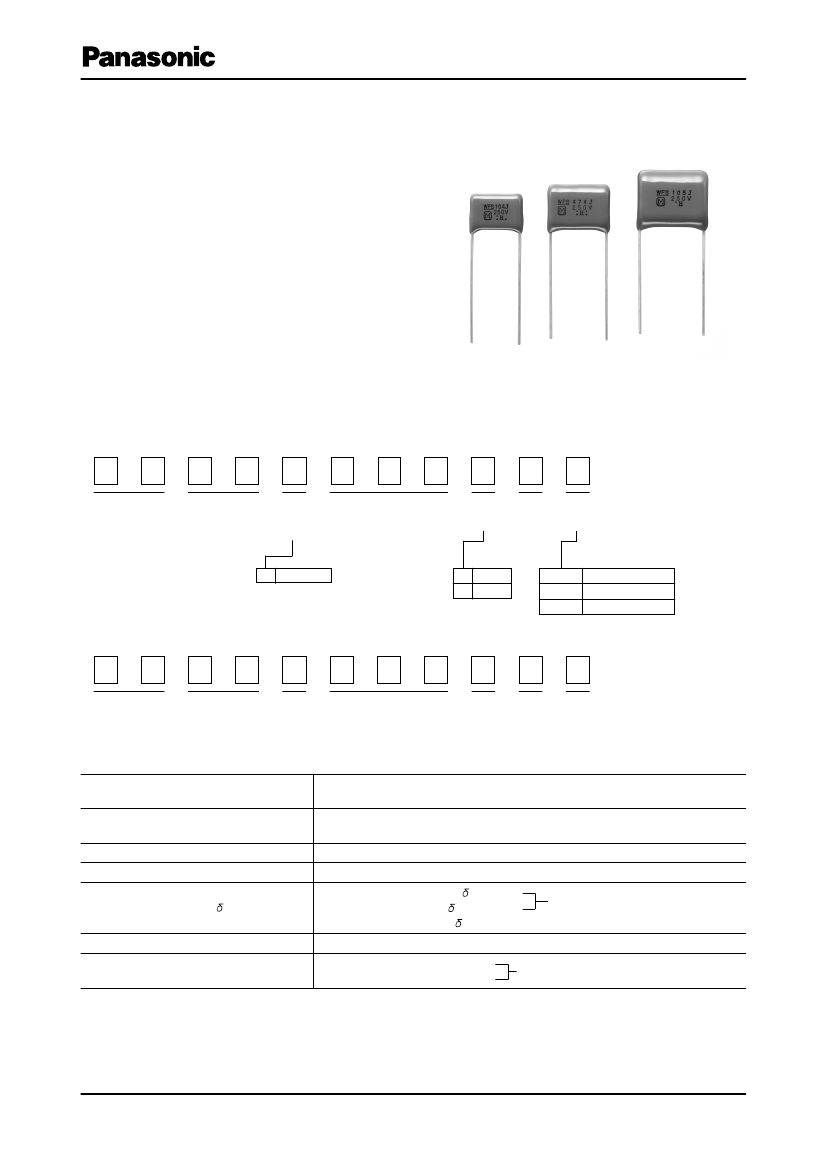

Plastic Film Capacitors
Metallized Polypropylene Film Capacitor
Type:
ECWF(S)
Designed for high current and frequency applications.
IFeatures
•
Low-loss
•
Excellent frequency characteristics
•
Flame reterdant epoxy resin coating
•
RoHS directive compliant
IRecommended
Applications
•
High frequency and high current circuits
(TVs, Monitors, Power Supplies, etc.)
IExplanation
of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
E
C
W
F
2
Rated
voltage
Capacitance
S
Cap. Tol. Suffix
Suffix
Products code
Dielectric &
construction
2 250 VDC
H ±3 %
J ±5 %
Suffix
Blank
B
Lead Form
Straight
Crimped lead
G
Explanation of Part Numbers for Odd Size Taping
E
C
W
F
2
Rated
voltage
Capacitance
R
S
Products code
Dielectric &
construction
7.5 mm Cap. Tol. Suffix
Crimped lead
ISpecifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
Dissipation factor (tan )
Withstand voltage
Insulation resistance (IR)
– 25 ˚C to + 105 ˚C
250 VDC
(Derating of rated voltage by 1.25 %/˚C at more than 85 ˚C)
0.068 µF to 3.3 µF
±3 %(H), ±5 %(J)
0.068 µF to 0.51 µF : tan
<
0.05 %
=
(20˚ C, 1 kHz)
<
0.1 %
0.56 µF to 3.3 µF : tan
=
0.068 µF to 3.3 µF : tan
<
0.2 % (20 ˚C, 10 kHz)
=
Between terminals : Rated volt. (VDC)
✕
150 % 60 s
>
C
<
0.33 µF : IR=9000 MΩ
=
(20 ˚C, 100 VDC, 60 s)
>3000 MΩ . µF
C>0.33 µF : IR=
❈
In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Plastic Film Capacitors
IDimensions
in mm (not to scale)
IPackaging
Specifications for Bulk Package
Packing quantity:100 pcs./bag
GTaping
style
ITaping
Specifications for Automatic lnsertion
..
.
✕
Refer to the page of taping specifications.
.
GPackaging
Specification
Type
ECWF(S)
Rated volt.
250 VDC
Cap. range
(µF)
0.068 to 1.5
Taping style
AD AS
B
C
D
E
○
GLead
Spacing
Packing
Ammo
suffix
R(
)S
Style
E
Lead Spacing
7.5 mm
❈See
the column “Rating, Dimensions & Quantity Box” for packing quantity.
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Plastic Film Capacitors
GRated
voltage : 250 VDC (150 Vrms, 250 Vo-p) Cap. tolerance : ±3 %(H), ±5 %(J)
Part No.
ECWF2683MS(
ECWF2753MS(
ECWF2823MS(
ECWF2913MS(
ECWF2104MS(
ECWF2114MS(
ECWF2124MS(
ECWF2134MS(
ECWF2154MS(
ECWF2164MS(
ECWF2184MS(
ECWF2204MS(
ECWF2224MS(
ECWF2244MS(
ECWF2274MS(
ECWF2304MS(
ECWF2334MS(
ECWF2364MS(
ECWF2394MS(
ECWF2434MS(
ECWF2474MS(
ECWF2514MS(
ECWF2564MS(
ECWF2624MS(
ECWF2684MS(
ECWF2754MS(
ECWF2824MS(
ECWF2914MS(
ECWF2105MS(
ECWF2115MS(
ECWF2125MS(
ECWF2135MS(
ECWF2155MS(
ECWF2165MS(
ECWF2185MS(
ECWF2205MS(
ECWF2225MS(
ECWF2245MS(
ECWF2275MS(
ECWF2305MS(
ECWF2335MS(
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
)
Cap.
(µF)
0.068
0.075
0.082
0.091
0.10
0.11
0.12
0.13
0.15
0.16
0.18
0.20
0.22
0.24
0.27
0.30
0.33
0.36
0.39
0.43
0.47
0.51
0.56
0.62
0.68
0.75
0.82
0.91
1.0
1.1
1.2
1.3
1.5
1.6
1.8
2.0
2.2
2.4
2.7
3.0
3.3
Dimensions (mm)
L
max
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
15.5
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
18.0
20.0
20.0
20.0
20.0
20.0
20.0
23.0
23.0
23.0
23.0
23.0
23.0
23.0
28.0
28.0
28.0
T
max
6.0
6.0
6.5
5.5
6.0
6.0
6.5
6.5
6.0
6.0
6.0
6.5
6.5
7.0
6.5
6.5
7.0
7.0
7.5
7.5
8.0
8.5
8.5
9.0
9.5
9.0
9.5
10.0
10.5
11.0
11.0
10.5
11.0
11.5
12.0
12.5
14.0
14.5
12.5
14.0
14.5
H
max
F
S
Straight Crimped lead Straight Crimped lead
12.5
17.5
12.5
7.5
13.0
18.0
12.5
7.5
13.0
18.0
12.5
7.5
12.5
17.5
12.5
7.5
12.5
17.5
12.5
7.5
13.0
18.0
12.5
7.5
13.0
18.0
12.5
7.5
13.5
18.5
12.5
7.5
12.5
17.5
12.5
7.5
12.5
17.5
12.5
7.5
13.0
18.0
12.5
7.5
13.5
18.5
12.5
7.5
13.5
18.5
12.5
7.5
13.5
18.5
12.5
7.5
13.0
18.0
15.0
10.0
13.5
18.5
15.0
10.0
13.5
18.5
15.0
10.0
14.0
19.0
15.0
10.0
14.0
19.0
15.0
10.0
14.5
19.5
15.0
10.0
15.0
20.0
15.0
10.0
15.0
20.0
15.0
10.0
15.5
20.5
15.0
10.0
16.0
21.0
15.0
10.0
16.0
21.0
15.0
10.0
16.0
21.0
17.0
12.5
16.0
21.0
17.0
12.5
16.5
21.5
17.0
12.5
17.0
22.0
17.0
12.5
17.5
22.5
17.0
12.5
18.0
23.0
17.0
12.5
17.0
22.0
20.0
12.5
18.0
23.0
20.0
12.5
18.0
23.0
20.0
12.5
19.5
24.5
20.0
12.5
20.0
25.0
20.0
12.5
20.5
25.5
20.0
12.5
21.0
26.0
20.0
12.5
20.0
25.0
25.0
15.0
20.5
25.5
25.0
15.0
21.5
26.5
25.0
15.0
ød
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
0.80
Quantity
Ammo
7.5 mm
500
600
IRating
& Dimensions
500
400
300
—
Suffix for lead crimped
Cap. tol. code
Design, Specifications are subject to change without notice.
Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
