DFEH10040D-1R5M=P3

Description
Fixed Inductors 1.5uH 5.0mOhms 14A 10x10.9mm AEC-Q200
CategoryPassive components
File Size3MB,3 Pages
ManufacturerMurata
Websitehttps://www.murata.com
Environmental Compliance
Download Datasheet Parametric View All

DFEH10040D-1R5M=P3 Online Shopping

Suppliers Part Number Price MOQ In stock
DFEH10040D-1R5M=P3 - - View Buy Now

DFEH10040D-1R5M=P3 Overview

Fixed Inductors 1.5uH 5.0mOhms 14A 10x10.9mm AEC-Q200

DFEH10040D-1R5M=P3 Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerMurata
Product CategoryFixed Inductors
RoHSDetails
Termination StyleSMD/SMT
ShieldingShielded
Inductance1.5 uH
Tolerance20 %
Maximum DC Current14 A
Maximum DC Resistance5 mOhms
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 155 C
Test Frequency100 kHz
Termination-
Mounting StylePCB Mount
Length11.2 mm
Width10.3 mm
Height4 mm
ApplicationAutomotive
QualificationAEC-Q200
PackagingCut Tape
PackagingMouseReel
PackagingReel
Core MaterialIron Powder
ProductFixed Inductors
Factory Pack Quantity500

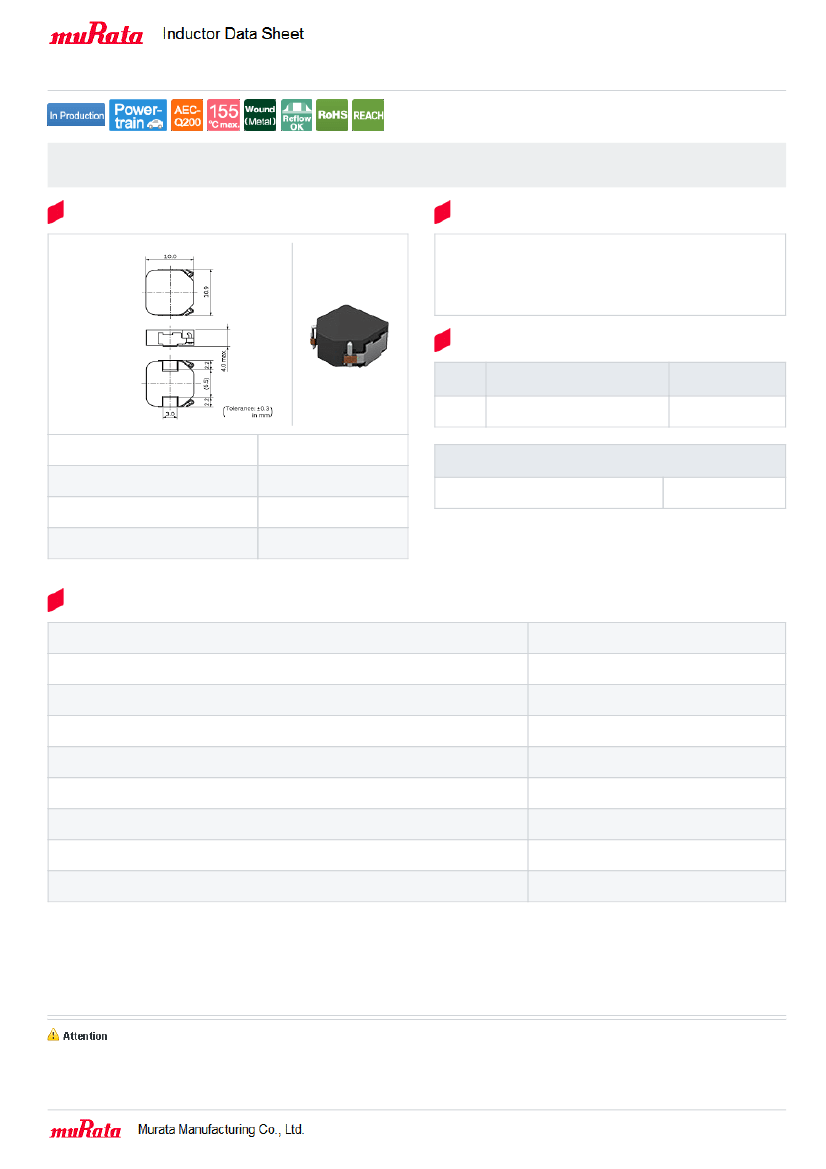

DFEH10040D-1R5M#
< List of part numbers with package codes >
“#” indicates a package specification code.
DFEH10040D-1R5M=P3
Shape
Notes
Rated current (Isat) is specified when the decrease of the initial
inductance value at 20%. (The ambient reference temperature is 25℃.)
Rated current (Itemp) is specified when temperature of inductor the is
raised 40℃ by DC current. (The ambient reference temperature is 25℃.)
References
Packaging
code
=P3
Specifications
φ330mm
Embossed taping
Minimum quantity
500
L size
W size
T size
Size code in inch (mm)
10.9 ±0.3mm
10.0 ±0.3mm
4.0 mm
4339 (109100)
Mass (Typ.)
1 piece
2.1295g
Specifications
Inductance
Inductance test frequency
Rated current (Isat) (Based on Inductance change)
Rated current (Itemp) (Based on Temperature rise)
Max. of DC resistance
Operating temperature range (Self-temperature rise is included)
Class of magnetic shield
Absolute maximum voltage
Series
1.5µH ±20%
0.1MHz
14000mA
14000mA
0.0050Ω
-40〜155℃
Metal Alloy
50V DC
DFEH10040D
1 of 3

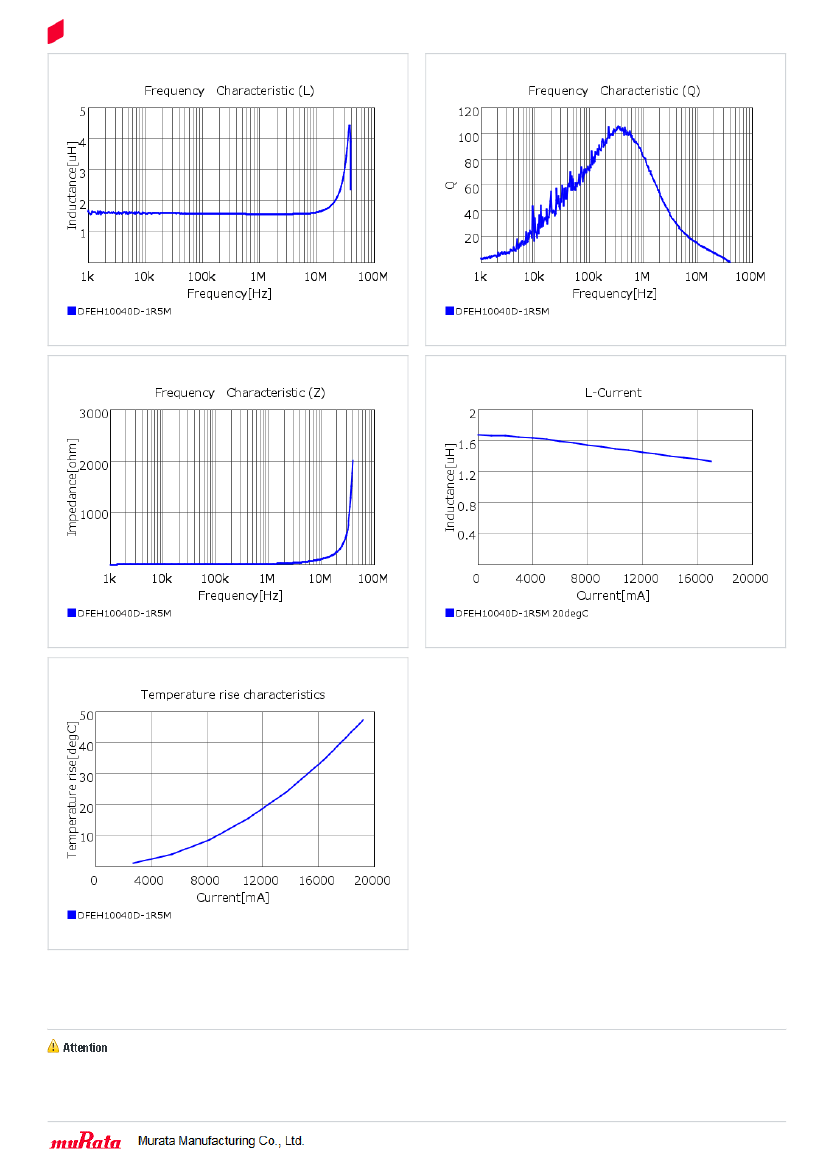

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
URL : https://www.murata.com/
Last updated: 2018/05/20
