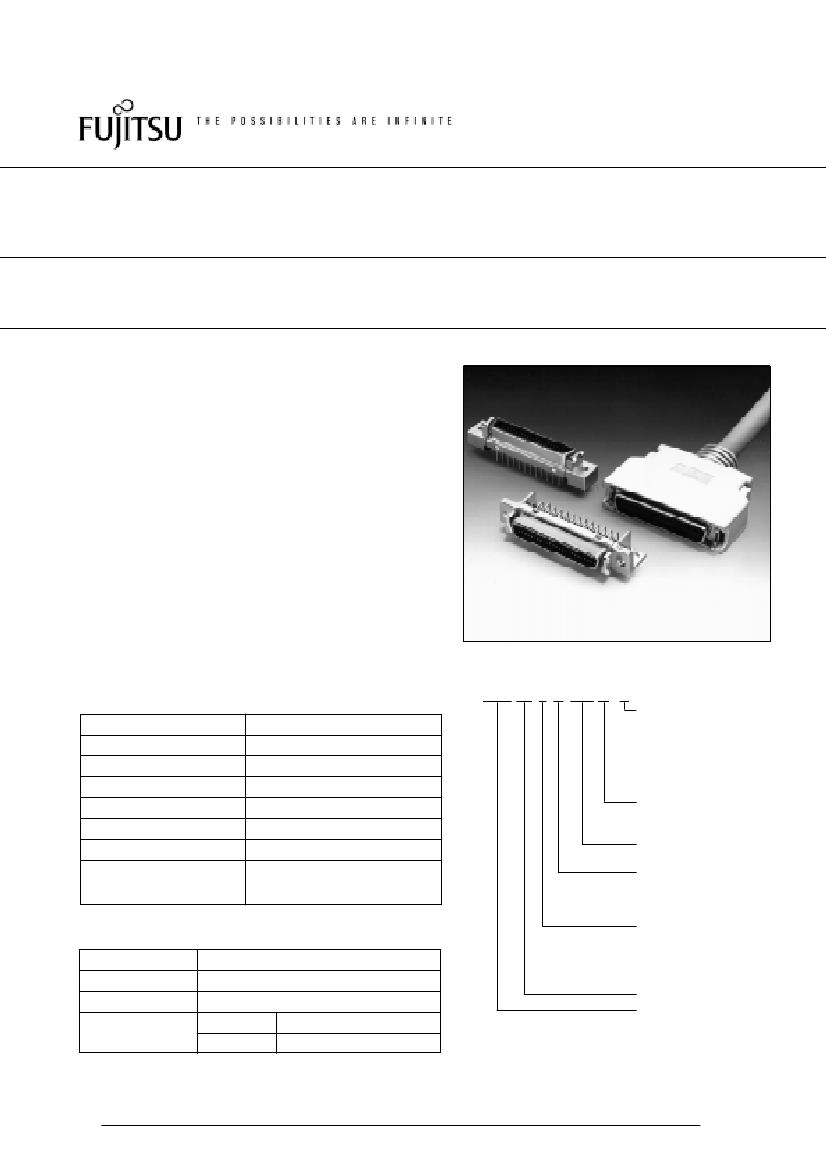

FOR BOARD-TO-CABLE CONNECTION
240R SERIES
s
FEATURES
• 1.27 mm (0.050 in.) pitch contact arrangement
enables high-density mounting.
• Bellows contacts ensure stable contact preventing
pins from bending. The bellows contacts also have
excellent stability with repeated insertion and
extraction.
• Cables and connectors are assembled by discrete
wire IDC.
• Connectors on the cable side provide superb EMI
shielding/ESD protection with an inner-metal and
outer-plastic dual cover.
• Conforms to IEEE 1284.C Interface
• Tails are spaced in a four-row staggered arrangement
(2.54 mm
×
1.905 mm) (0.100 in.
×
0.075 in.) for easy
PC board design.
s
ORDERING CODE
s
SPECIFICATIONS
Item
Operating temperature range
Current rating
Voltage rating
Contact resistance
Insulation resistance
Dielectric withstand voltage
Applicable wire
Specifications
–55°C to +85°C
DC 1 A
AC 240 V
50 mΩ max. (DC 20 mV, 10 mA)
1,000 MΩ min. (DC 500 V)
AC 750 V for 1 minute
AWG #28 and #30 stranded wires
with
φ0.5
to 0.65 mm (0.020 to
0.026 in.) insulation diameter
FCN-24 5 D 050-G / E
E: Metal type (board side) or
metal type for discrete wire
IDC (cable side)
G: Metal type for wire to wire
heat bonded multi cable
IDC
S: Cover
G: Gold plating
A: Cover
B: Wide-hole cover
Number of contacts: 20,
26, 36, 50, 68, or 80
Unit type
D: Socket
R: Plug
C: Cover
Tail type
0: Cover
4: Straight
5: Right-angle
7: IDC
240 series
Fujitsu connector
Gold plating
Palladium plating
s
MATERIALS
Item
Insulator
Conductor
Plating
Materials
Polyester (UL94V-0)
Copper alloy
Contact
Terminal
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
1
240R Series

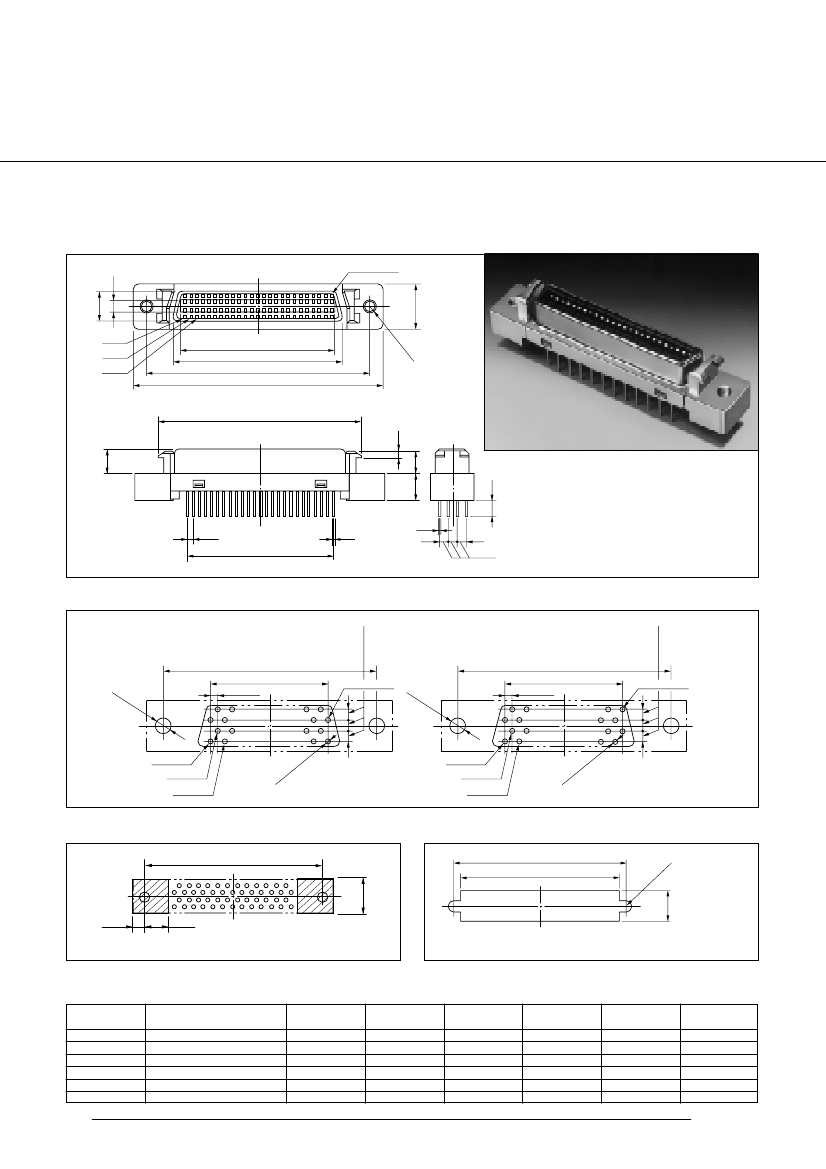

STRAIGHT SOCKET
s
DIMENSIONS
2.7
(0.106)
End terminal
6.3
(0.248)
No. 1
No. 2
No. 3
B
C
D
E
1.3
(0.051)
5.8
(0.228) 4.8
(0.188)
F
5.2
(0.204)
9.2
(0.362)
0.3 (0.011)
1.27 (0.050)
A
0.4
(0.015)
1.905
(0.075)
3.4
(0.134)
s
MOUNTING HOLE LAYOUT (COMPONENT SIDE)
1.905
±0.1
(0.075
±0.004
)
1.905
±0.1
(0.075
±0.004
)
End terminal
26 and 50 contacts
20, 36, 68 and 80 contacts
.6
M2 )
2- .102
(0
Unit: mm (in.)
D
±0.1
(±0.004)
A
±0.1
(±0.004)
D
±0.1
(±0.004)
2-
(0.
φ
2.8
11
0)
1.27
±0.1
(0.050
±0.004
)
End terminal
2-
(0.
φ
2.8
11
0)
A
±0.1
(±0.004)
1.27
±0.1
(0.050
±0.004
)
No. 1
No. 2
No. 3
.8
±
0.
φ
0 31
.0
(0
6
.0
±
0 004
)
No. 1
No. 2
No. 3
.8
±
0.
φ
0 31
.0
(0
±
0
.0
6
00
4
)
Unit: mm (in.)
s
PATTERN INHIBITED AREAS
9.7
–0
(0.381
–0.004
)
D
±0.1
(±0.004)
s
RECOMMENDED PANEL DIMENSIONS
D
±0.1
(
±0.004)
(F + 0.5)
±0.1
((F + 0.020)
±0.004
)
R1.5
±0.1
(R0.059
±0.004
)
8.1
±0.1
(0.318
±0.004
)
3.2
–0
(0.149
–0.004
)
6.6
–0.1
(0.259
–0.004
)
Unit: mm (in.)
Unit: mm (in.)
s
PART NUMBERS AND DIMENSIONS
Number of
contacts
20
26
36
50
68
80
Part number
FCN-244D020-G/E
FCN-244D026-G/E
FCN-244D036-G/E
FCN-244D050-G/E
FCN-244D068-G/E
FCN-244D080-G/E
A
11.43 (0.450)
15.24 (0.600)
21.59 (0.850)
30.48 (1.200)
41.91 (1.650)
49.53 (1.950)
B
13.45 (0.529)
17.26 (0.679)
23.61 (0.929)
32.50 (1.279)
43.93 (1.729)
51.55 (2.029)
C
16.45 (0.647)
20.26 (0.797)
26.61 (1.047)
35.50 (1.397)
46.93 (1.847)
54.55 (2.147)
D
27.45 (1.080)
31.26 (1.231)
37.61 (1.480)
46.50 (1.830)
57.93 (2.280)
65.55 (2.580)
E
Unit: mm (in.)
F
23.30 (0.917)
27.11 (1.067)
33.46 (1.317)
42.35 (1.667)
53.78 (2.117)
61.40 (2.417)
33.35 (1.312)
37.16 (1.462)
43.51 (1.712)
52.40 (2.062)
63.83 (2.512)
71.45 (2.812)
Specifications
subject to change
Dimensions are in millimeters (inches)
www.fcai.fujitsu.com
2
