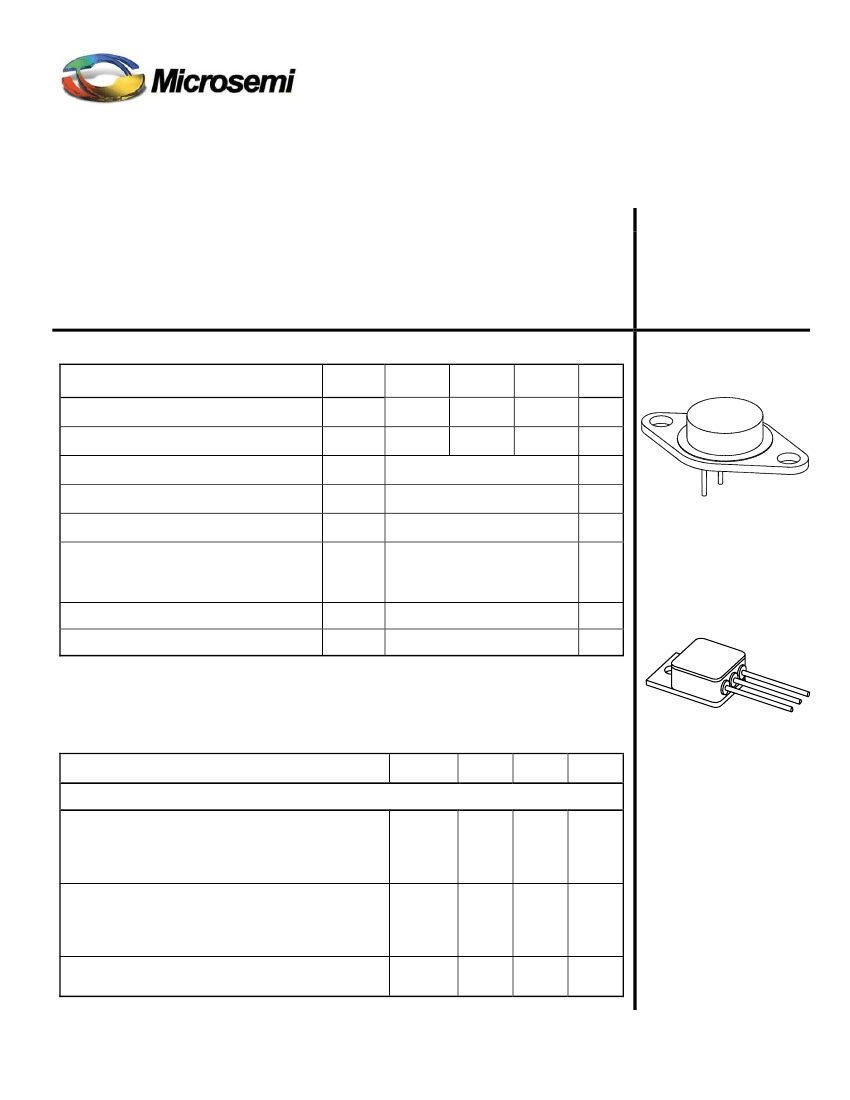

TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
NPN POWER SILICON TRANSISTOR
Qualified per MIL-PRF-19500/510
DEVICES
LEVELS
2N6249
2N6249T1
2N6250
2N6250T1
2N6251
2N6251T1
JAN
JANTX
JANTXV
JANS
ABSOLUTE MAXIMUM RATINGS
(T
C
= +25°C unless otherwise noted)
Parameters / Test Conditions
Collector-Emitter Voltage
Collector-Base Voltage
Emitter-Base Voltage
Collector Current
Base Current
Total Power Dissipation
@ T
A
= +25°C
(1)
@ T
C
= +25°C
(2)
Operating & Storage Junction Temperature
Thermal Resistance, Junction-to-Case
Symbol
V
CEO
V
CBO
V
EBO
I
C
I
B
P
T
T
op
, T
stg
R
θJC
2N6249 2N6250 2N6251
Unit
2N6249T1 2N6250T1 2N6251T1
200
300
275
375
6.0
10
5.0
6.0
175
-65 to +200
1.0
W
°C
°C/W
350
450
Vdc
Vdc
Vdc
Adc
TO-3 (TO-204AA)
NOTES:
(1) Derate linearly at 34.2 mW/°C for T
A
> +25°C
(2) Derate linearly at 1.0 mW/°C for T
C
> +25°C
ELECTRICAL CHARACTERISTICS
(T
A
= +25°C, unless otherwise noted)
Parameters / Test Conditions
OFF CHARACTERTICS
Collector-Emitter Breakdown Voltage
I
C
= 20mAdc; L = 42mH; f = 30 – 60Hz
(See Figure 10 of MIL-PRF-19500/510)
2N6249, T1
2N6250, T1
2N6251, T1
200
275
350
225
300
375
100
Symbol
Min.
Max.
Unit
TO-254
V
(BR)CEO
Vdc
Collector-Emitter Breakdown Voltage
I
C
= 200mAdc; L = 14mH; f = 30 – 60Hz; 2N6249, T1
R
BE
= 50Ω
2N6250, T1
(See Figure 10 of MIL-PRF-19500/510)
2N6251, T1
Emitter-Base Cutoff Current
V
EB
= 6.0Vdc
V
(BR)CER
Vdc
I
EBO
µAdc
T4-LDS-0197 Rev. 1 (110296)
Page 1 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
ELECTRICAL CHARACTERISTICS
(T
A
= +25°C, unless otherwise noted) CONT.
Parameters / Test Conditions
OFF CHARACTERTICS
Collector-Emitter Cutoff Current
V
CE
= 150Vdc
V
CE
= 225Vdc
V
CE
= 300Vdc
Collector- Emitter Cutoff Current
V
CE
= 225Vdc, V
BE
= -1.5Vdc
V
CE
= 300Vdc, V
BE
= -1.5Vdc
V
CE
= 375Vdc, V
BE
= -1.5Vdc
Collector-Base Cutoff Current
V
CB
= 300Vdc
V
CB
= 375Vdc
V
CB
= 450Vdc
ON CHARACTERISTICS
(3)
Forward-Current Transfer Ratio
I
C
= 10Adc, V
CE
= 3Vdc
2N6249, T1
2N6250, T1
2N6251, T1
10
8
6
50
50
50
2N6249, T1
2N6250, T1
2N6251, T1
Symbol
Min.
Max.
Unit
I
CEO
1.0
mAdc
2N6249, T1
2N6250, T1
2N6251, T1
I
CEX
100
μAdc
2N6249, T1
2N6250, T1
2N6251, T1
I
CBO
0.5
mAdc
h
FE
Collector-Emitter Saturation Voltage
I
C
= 10Adc, I
B
= 1.0Adc
I
C
= 10Adc, I
B
= 1.25Adc
I
C
= 10Adc, I
B
= 1.67Adc
Base-Emitter Saturation Voltage
I
C
= 10Adc, I
B
= 1.0Adc
I
C
= 10Adc, I
B
= 1.25Adc
I
C
= 10Adc, I
B
= 1.67Adc
2N6249, T1
2N6250, T1
2N6251, T1
V
CE(sat)
1.5
Vdc
2N6249, T1
2N6250, T1
2N6251, T1
V
BE(sat)
2.25
Vdc
DYNAMIC CHARACTERISTICS
Magnitude of Small-Signal Short-Circuit
Forward Current Transfer Ratio
I
C
= 1.0Adc, V
CE
= 10Vdc, f = 1MHz
Output Capacitance
V
CB
= 10Vdc, I
C
= 0, 100 kHz
≤
f
≤
1.0MHz
|h
fe
|
2.5
15
C
obo
500
pF
(3) Pulse Test: Pulse Width = 300μs, Duty Cycle
≤
2.0%
T4-LDS-0197 Rev. 1 (110296)
Page 2 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
SWITCHING CHARACTERISTICS
Turn-On Time
V
CC
= 200Vdc; I
C
= 10Adc
I
B
= 1.0A
I
B
= 1.25A
I
B
= 1.67A
Turn-Off Time
V
CC
= 200Vdc; I
C
= 10Adc
I
B
= 1.0A
I
B
= 1.25A
I
B
= 1.67A
SAFE OPERATING AREA
DC Tests
T
C
= +25°C, 1 Cycle, t = 1s (See Figure 12 of MIL-PRF-19500/510)
Test 1
V
CE
= 17.5Vdc, I
C
= 10Adc
Test 2
V
CE
= 30Vdc, I
C
= 5.8Adc
Test 3
V
CE
= 100Vdc, I
C
= 0.3Adc
Test 4
V
CE
= 200Vdc, I
C
= 0.13Adc (For 2N6249, 2N6249T1 only)
Test 5
V
CE
= 275Vdc, I
C
= 0.09Adc (For 2N6250, 2N6250T1 only)
Test 6
V
CE
= 350Vdc, I
C
= 0.065Adc (For 2N6251, 2N6251T1 only)
2N6249, T1
2N6250, T1
2N6251, T1
t
on
2.0
µs
2N6249, T1
2N6250, T1
2N6251, T1
t
off
4.5
µs
T4-LDS-0197 Rev. 1 (110296)
Page 3 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
PACKAGE DIMENSIONS
Ltr
CD
CH
HR
HR
1
HT
LD
LL
L
1
MHD
MHS
PS
PS
1
S
1
Dimensions
Inches
Millimeters
Min
Max
Min
Max
.875
22.23
.250
.450
6.35
11.43
.495
.525
12.57
13.34
.131
.188
3.33
4.78
.050
.135
1.27
3.43
.038
.053
0.97
1.35
.312
.500
7.92
12.70
.050
1.27
.151
.161
3.84
4.09
1.177
1.197
29.90
30.40
.420
.440
10.67
11.18
.205
.25
5.21
6.35
.665
.675
16.89
17.15
Notes
3, 5
3
5
2
2, 3
2
NOTES:
1. Dimensions are in inches. Millimeters are given for general information only.
2. These dimensions shall be measured at points .050 inch (1.27 mm) and .055 inch (1.40 mm) below seating plane.
When gauge is not used, measurement will be made at the seating plane.
3. Two leads.
4. Collector shall be electrically connected to the case.
5. LD applies between L
1
and LL maximum. Lead diameter shall not exceed twice LD within L
1
.
6. In accordance with ASME Y14.5M, diameters are equivalent to
φx
symbology.

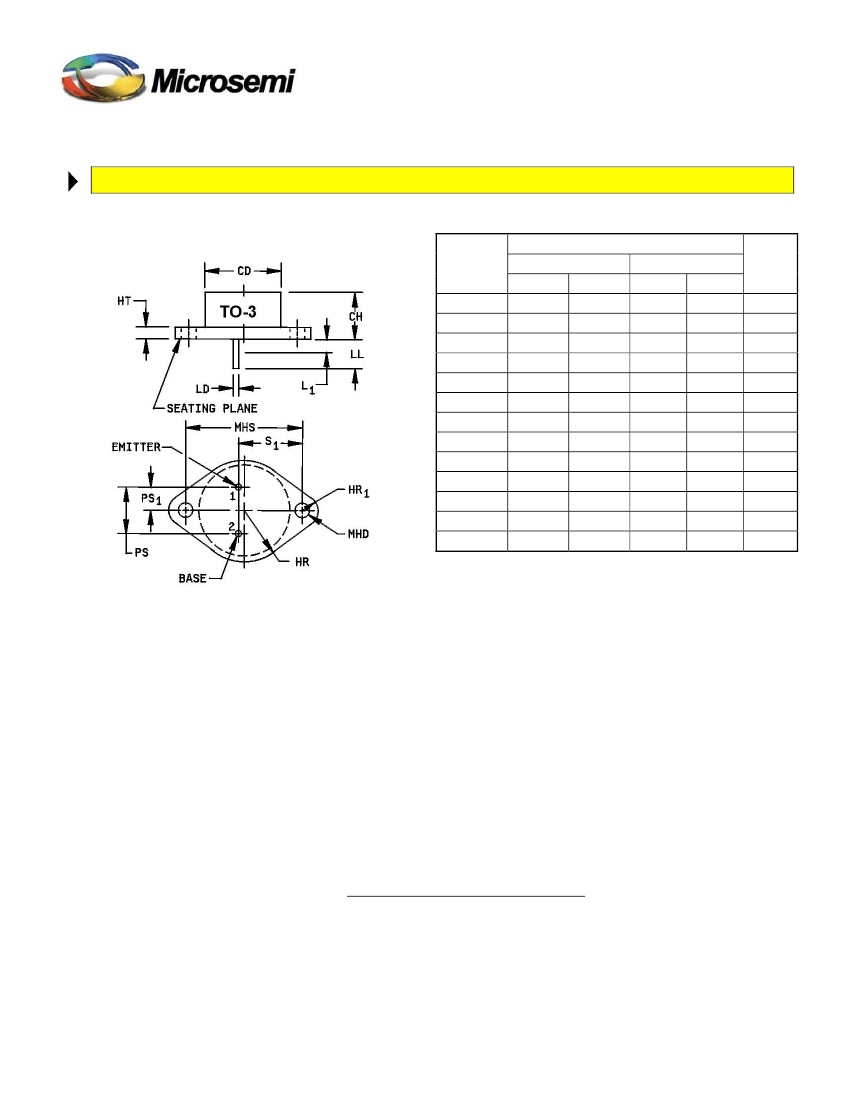

FIGURE 1.
Physical dimensions (similar to TO-3).
T4-LDS-0197 Rev. 1 (110296)
Page 4 of 5
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
Ltr
BL
CH
LD
LL
LO
LS
MHD
MHO
TL
TT
TW
TERM 1
TERM 2
TERM 3
Dimensions
Inches
Millimeters
Min
Max
Min
Max
.535
.545
13.59
13.84
.249
.260
6.32
6.60
.035
.045
0.89
1.14
.530
.550
13.46
13.97
.150 BSC
3.81 BSC
.150 BSC
3.80 BSC
.139
.149
3.53
3.78
.665
.685
16.89
17.40
.790
.800
20.07
20.32
.040
.050
1.02
1.27
.535
.545
13.59
13.84
BASE
COLLECTOR
EMITTER
NOTES:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. Methods used for electrical isolation of terminals feedthroughs shall employ materials that contain a minimum of 90
percent AL203 (ceramic).
4. In accordance with ASME Y14.5M, diameters are equivalent to
φx
symbology.
FIGURE 2.
Dimensions and configuration 2N6249T1, 2N6250T1, and 2N6251T1 (TO-254AA)
T4-LDS-0197 Rev. 1 (110296)
Page 5 of 5
