• Improved mechanical and thermal strength when use with
conductive glue.
• AEC-Q200 compliant.
• Compliance with the RoHS directive.
Applications
•
•
•
•
•
Transmission control
Engine sensor module
Automotive power train
ABS
Application requiring conductive glue mounting
method
Design
Structure
No.
NAME
MATERIAL
Class
1
Class 2
BaTiO
3
Shape &
Dimensions
(1)
Ceramic Dielectric
CaZrO
3
(2)
(3)
(4)
Internal Electrode
Termination
Nickel (Ni)
Copper (Cu)
AgPdCu
L
W
T
B
G
Body length
Body width
Body height
Terminal width
Terminal spacing

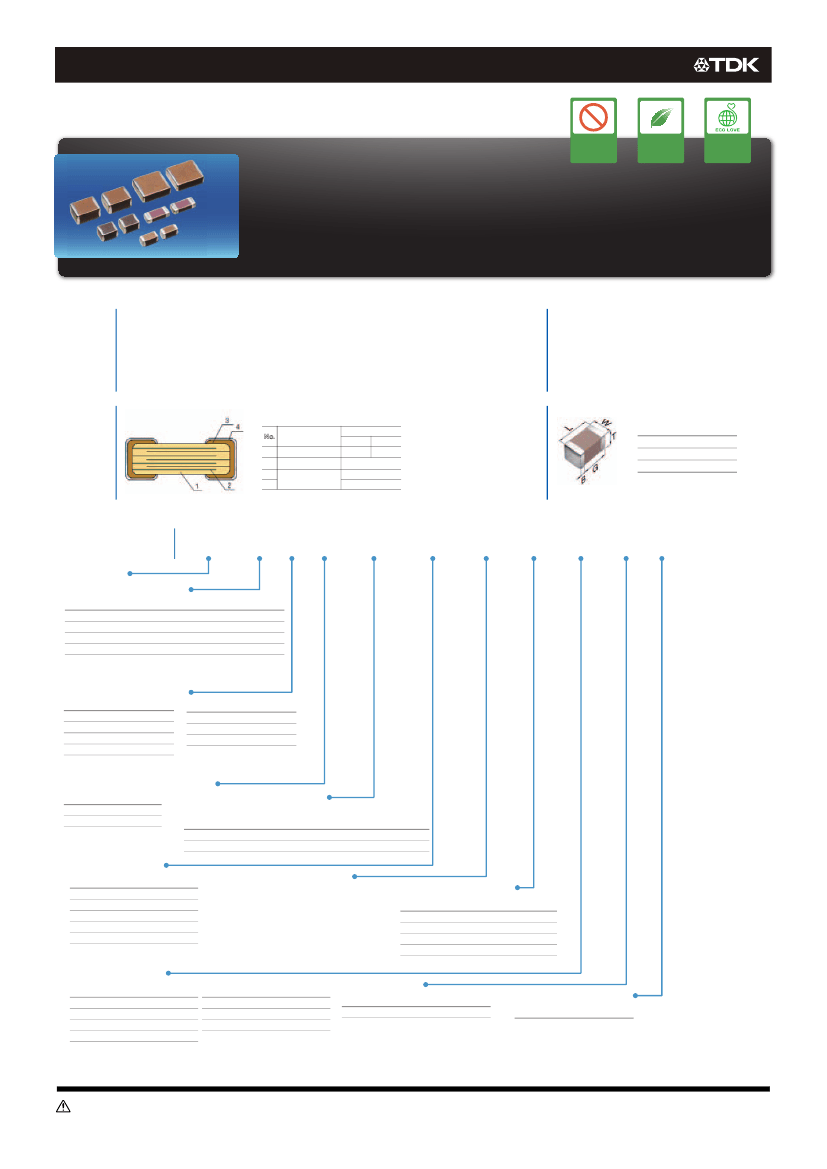

Catalog Number
Construction
Series Name
Dimensions L x W (mm)
Code
2
3
4
5
6
Length
1.00 ± 0.15
1.60 ± 0.15
2.00 ± 0.25
3.20
+ 0.30,-0.10
3.20
± 0.45
CGA • 5 • L • 1 • X7R • 1E • 106 • K • 160 • A • D
Width
0.50 ± 0.10
0.80 ± 0.15
1.25 ± 0.25
1.60 + 0.30,-0.10
2.50 ± 0.30
Terminal
0.10 min.
0.20 min.
0.20 min.
0.20 min.
0.20 min.
* Dimension tolerance are typical values
Thickness T Code (mm)
Code
B
C
E
F
H
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
Code
J
L
M
P
Thickness
1.25 mm
1.60 mm
2.00 mm
2.50 mm
Voltage Condition for Life Test
Temperature Characteristics
Symbol Condition
1
2
3
1× R.V.
2 × R.V.
1.5 × R.V.
Temperature
Temperature Coefficient or
Characteristics
Capacitance Change
0±30ppm/°C
C0G
± 15%
X7R
± 15%
X8R
Temperature
Range
-55 to +125°C
-55 to +125ºC
-55 to +150ºC
Rated Voltage (DC)
Code
0J
1C
1E
1V
1H
2A
6.3V
16V
25V
35V
50V
100V
Voltage (DC)
Nominal Capacitance (pF)
The capacitance is expressed in three digit
codes and in units of pico Farads (pF).
The first and second digits identify the first
and second significant figures of the
capacitance. The third digit identifies the
multiplier. R designates a decimal point.
Ex.
1R5=1.5pF, 103=10,000pF
Capacitance Tolerance
Code
C
D
J
K
M
Tolerance
± 0.25pF
± 0.50pF
± 5%
± 10%
± 20%
Nominal Thickness
Code
050
060
080
085
115
Thickness
0.50 mm
0.60 mm
0.80 mm
0.85 mm
1.15 mm
Code
125
160
200
250
Thickness
1.25 mm
1.60 mm
2.00 mm
2.50 mm
Packaging Style
Code
A
B
Style
178 mm Reel, 4 mm Pitch
178 mm Reel, 2 mm Pitch
Special Reserved Code
Code
D
Description
Conductive Epoxy
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
20161101 / mlcc_automotive_epoxy_en.fm
(3/12)
MULTILAYER CERAMIC CHIP CAPACITORS
Capacitance
Range Chart
Capacitance Range Chart
Temperature Characteristics: C0G (0±30ppm/℃)
Rated voltage: 100V(2A), 50V(1H)
Capacitance
Tolerance
(pF)
1.0
1.5
2.0
2.2
3.0
3.3
4.0
4.7
5.0
6.0
6.8
7.0
8.0
9.0
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
270
330
390
470
560
680
820
1,000
1,200
1,500
1,800
2,200
2,700
3,300
3,900
4,700
5,600
6,800
8,200
10,000
CGA3(1608) [EIA CC0603]
C0G
2A
1H
(100V) (50V)
Code
010
1R5
020
2R2
030
3R3
040
4R7
050
060
6R8
070
080
090
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
221
271
331
391
471
561
681
821
102
122
152
182
222
272
332
392
472
562
682
822
103
C:±0.25pF
D:±0.50pF
J:±5%
Standard thickness
0.80 mm
Please be sure to request delivery specifications that provide further details on the features and specifications of the products for proper and safe use.
Please note that the contents may change without any prior notice due to reasons such as upgrading.
