DFE201610P-R33M=P2 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> DFE201610P-R33M=P2

Preview

DFE201610P-R33M=P2: DescriptionFixed Inductors 0.33uH 34mOhms 4.7A +/-20% 2.0x1.6x1.0mm; CategoryPassive components; File Size3MB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com; Environmental Compliance

Download Datasheet Parametric View All

DFE201610P-R33M=P2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DFE201610P-R33M=P2	-	-	View	Buy Now

DFE201610P-R33M=P2 Overview

Fixed Inductors 0.33uH 34mOhms 4.7A +/-20% 2.0x1.6x1.0mm

DFE201610P-R33M=P2 Parametric

Parameter Name	Attribute value
Product Attribute	Attribute Value
Manufacturer	Murata
Product Category	Fixed Inductors
RoHS	Details
Termination Style	SMD/SMT
Shielding	Shielded
Inductance	330 nH
Tolerance	20 %
Maximum DC Current	4.7 A
Maximum DC Resistance	34 mOhms
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 125 C
Test Frequency	1 MHz
Termination	-
Mounting Style	PCB Mount
Package / Case	2016
Length	2 mm
Width	1.6 mm
Height	1 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Core Material	Iron Powder
Product	Fixed Inductors
Factory Pack Quantity	3000
Unit Weight	0.000529 oz

Preview

Download Datasheet

View All

DFE201610P-R33M#

< List of part numbers with package codes >

“#” indicates a package specification code.

DFE201610P-R33M=P2

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 30%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P2

Specifications

φ180mm

Embossed taping

Minimum quantity

3000

L size

W size

T size

Size code in inch (mm)

2.0 ±0.2mm

1.6 ±0.2mm

1.0 mm

0806 (2016)

Mass (Typ.)

1 piece

0.0151g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Absolute maximum voltage

Series

0.33µH ±20%

1MHz

4700mA

3500mA

0.034Ω

-40〜125℃

Metal Alloy

20V DC

DFE201610P

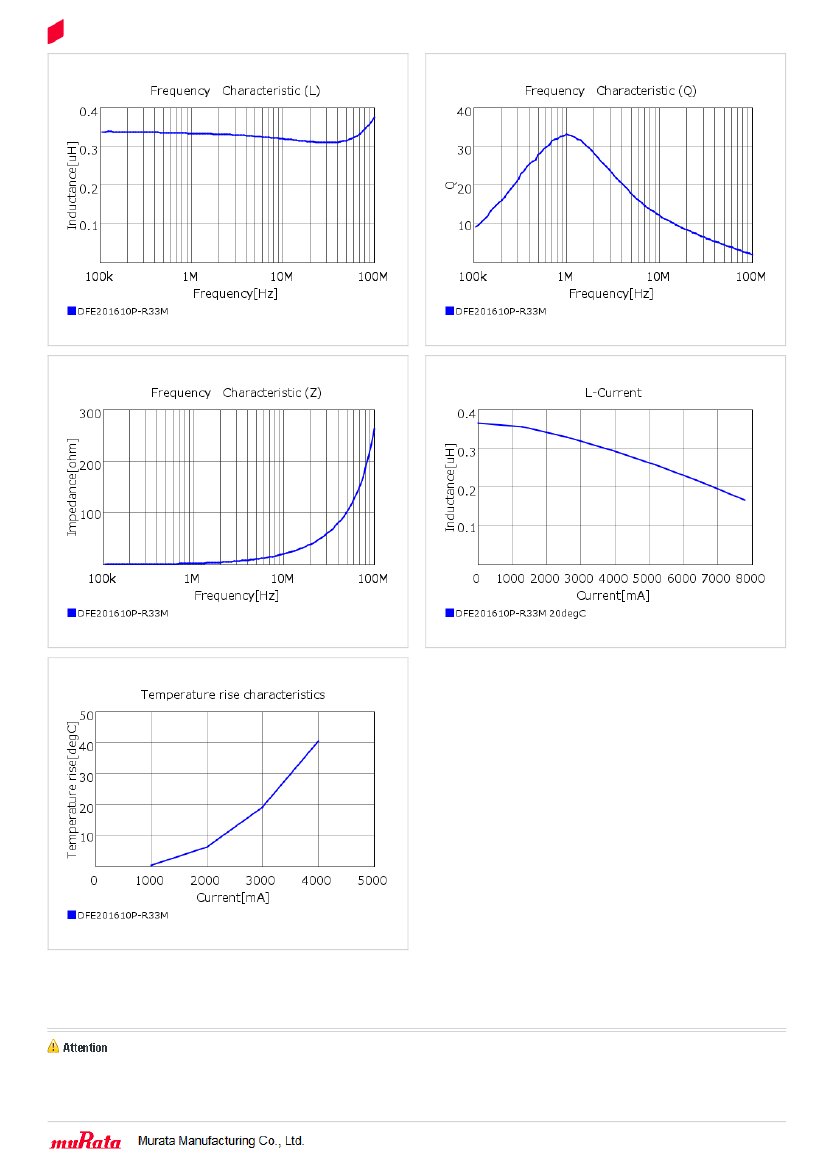

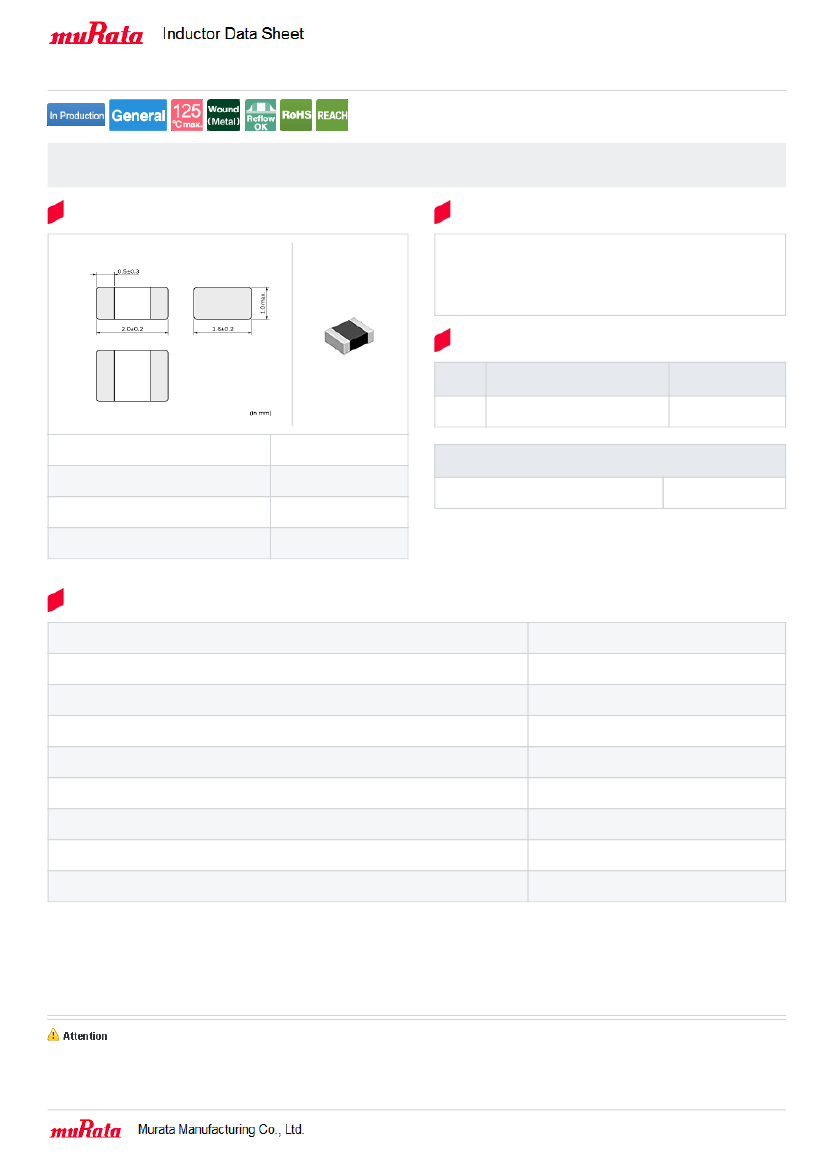

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated: 2018/05/20
