SBD
T y p e :
FSH04A03L
OULINE DRAWING
FEATURES
*Similar to TO-220AC Case
*Fully Molded Isolation
*Extremely Low Forward Voltage Drop
*Low Power Loss,High Efficiency
*High Surge Capability
*Tj=150
°C
operation
Maximum Ratings
Rating
Repetitive Peak Reverse Voltage
Repetitive Peak Surge Reverse Voltage
Average Rectified Output Current
RMS Forward Current
Surge Forward Current
Operating JunctionTemperature Range
Storage Temperature Range
Mounting torque
Approx Net Weight:
1.7g
Symbol
V
RRM
V
RRSM
I
O
I
F(RMS)
I
FSM
T
jw
T
stg
Ftor
FSH04A03L
30
35(pulse width
≤
1µs duty
≤
1/50)
50 Hz half Sine Wave
4
Tc=132°C
Resistive Load
6.28
50Hz Half Sine Wave ,1cycle
100
Non-repetitive
-40 to +150
-40 to +150
recommended torque = 0.5
Unit
V
V
A
A
A
°C
°C
N
•
m
Electrical
•
Thermal Characteristics
Characteristics
Peak Reverse Current
Peak Forward Voltage
Thermal Resistance
Symbol
I
RM
V
FM
Rth(j-c)
Rth(c-f)
Conditions
Tj= 25°C, V
RM
= V
RRM
Tj= 25°C, I
FM
= 4 A
Junction to Case
Cace to Fin
Min.
-
-
-
-
Typ. Max.
-
-
-
-
1
0.56
6
1.5
Unit
mA
V
°C
/W
°C
/W

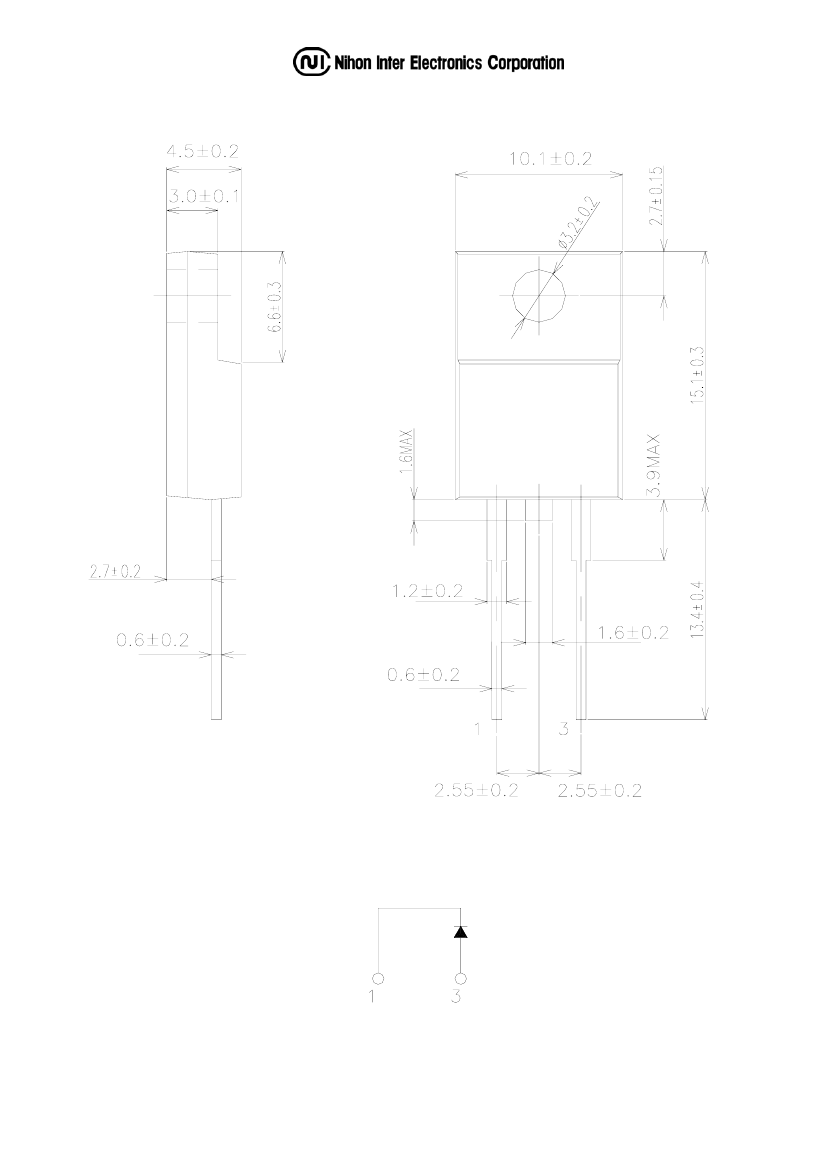

FSH_A_ OUTLINE DRAWING (Dimensions in mm)

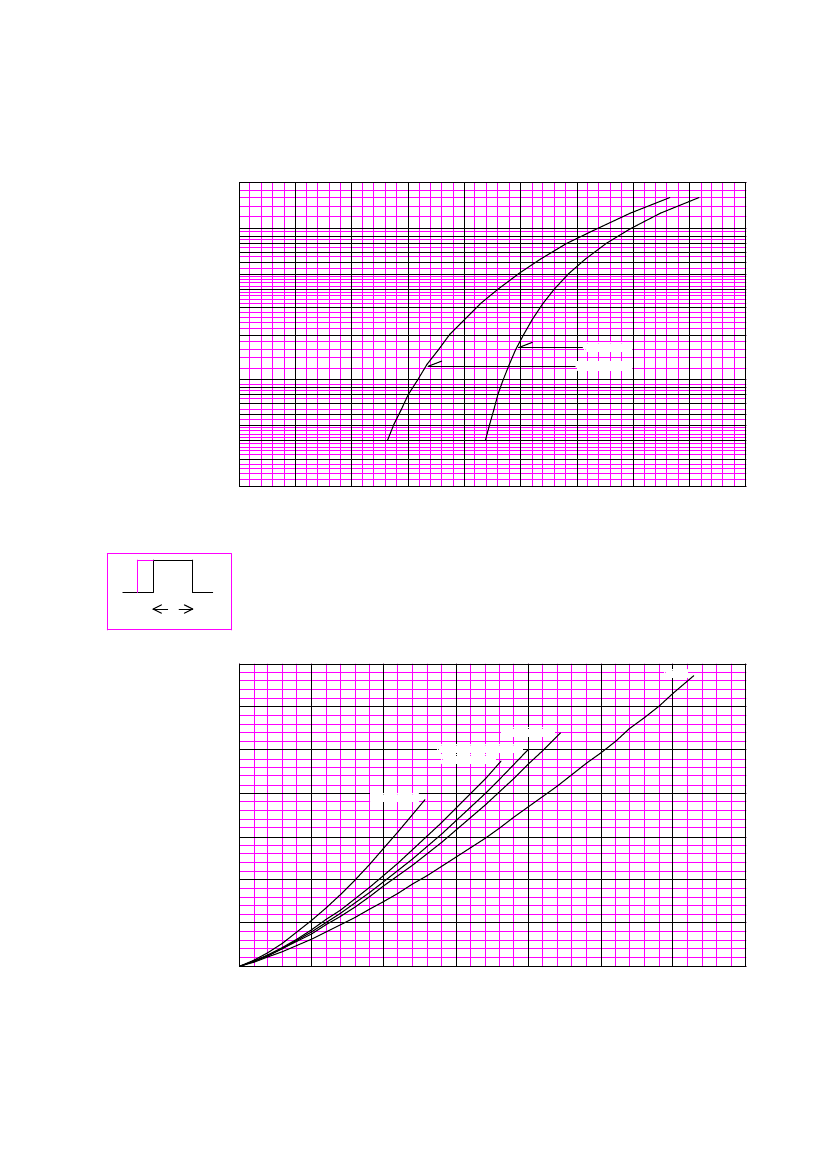

FORWARD CURRENT VS. VOLTAGE
FSH04A03L
20
INSTANTANEOUS FORWARD CURRENT (A)
10
5
2
Tj=25°C
Tj=150°C
1
0.5
0.2
0
0.2
0.4
0.6
0.8
INSTANTANEOUS FORWARD VOLTAGE (V)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD POWER DISSIPATION
FSH04A03L
D.C.
3.5
AVERAGE FORWARD POWER DISSIPATION (W)
3.0
RECT 180°
2.5
HALF SINE WAVE
RECT 120°
2.0
RECT 60°
1.5
1.0
0.5
0
0
1
2
3
4
5
6
7
AVERAGE FORWARD CURRENT (A)
PEAK REVERSE CURRENT VS. PEAK REVERSE VOLTAGE
Tj= 150 °C
50
FSH04A03L
PEAK REVERSE CURRENT (mA)
20
10
5
0
5
10
15
20
25
30
35
PEAK REVERSE VOLTAGE (V)
AVERAGE REVERSE POWER DISSIPATION
FSH04A03L
D.C.
1.0
AVERAGE REVERSE POWER DISSIPATION (W)
0.8
RECT 300°
0.6
RECT 240°
RECT 180°
0.4
HALF SINE WAVE
0.2
0
0
5
10
15
20
25
30
35
REVERSE VOLTAGE (V)
0°
θ
180°
CONDUCTION ANGLE
AVERAGE FORWARD CURRENT VS. CASE TEMPERATURE
V
RM
=30 V
7
D.C.
FSH04A03L
AVERAGE FORWARD CURRENT (A)
6
5
RECT 180°
HALF SINE WAVE
RECT 120°
4
3
RECT 60°
2
1
0
0
25
50
75
100
125
150
CASE TEMPERATURE (°C)
SURGE CURRENT RATINGS
f=50Hz,Sine Wave,Non-Repetitive,No Load
120
FSH04A03L
SURGE FORWARD CURRENT (A)
100
80
60
40
20
0.02s
I FSM
0
0.02
0.05
0.1
0.2
0.5
1
2
TIME (s)
