FSH10A09B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FSH10A09B

FSH10A09B: DescriptionSchottky Barrier Diode; CategoryDiscrete semiconductor diode; File Size56KB，6 Pages; ManufacturerNihon Inter Electronics Corporation; Websitehttp://www.niec.co.jp

Download Datasheet Parametric View All

FSH10A09B Overview

Schottky Barrier Diode

FSH10A09B Parametric

Parameter Name	Attribute value
Maker	Nihon Inter Electronics Corporation
Parts packaging code	TO-220AB
package instruction	R-PSFM-T3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	LOW POWER LOSS
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.88 V
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	180 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	10 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	90 V
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

Preview

Download Datasheet

View All

SBD

T y p e :

FSH10A09B

10A0

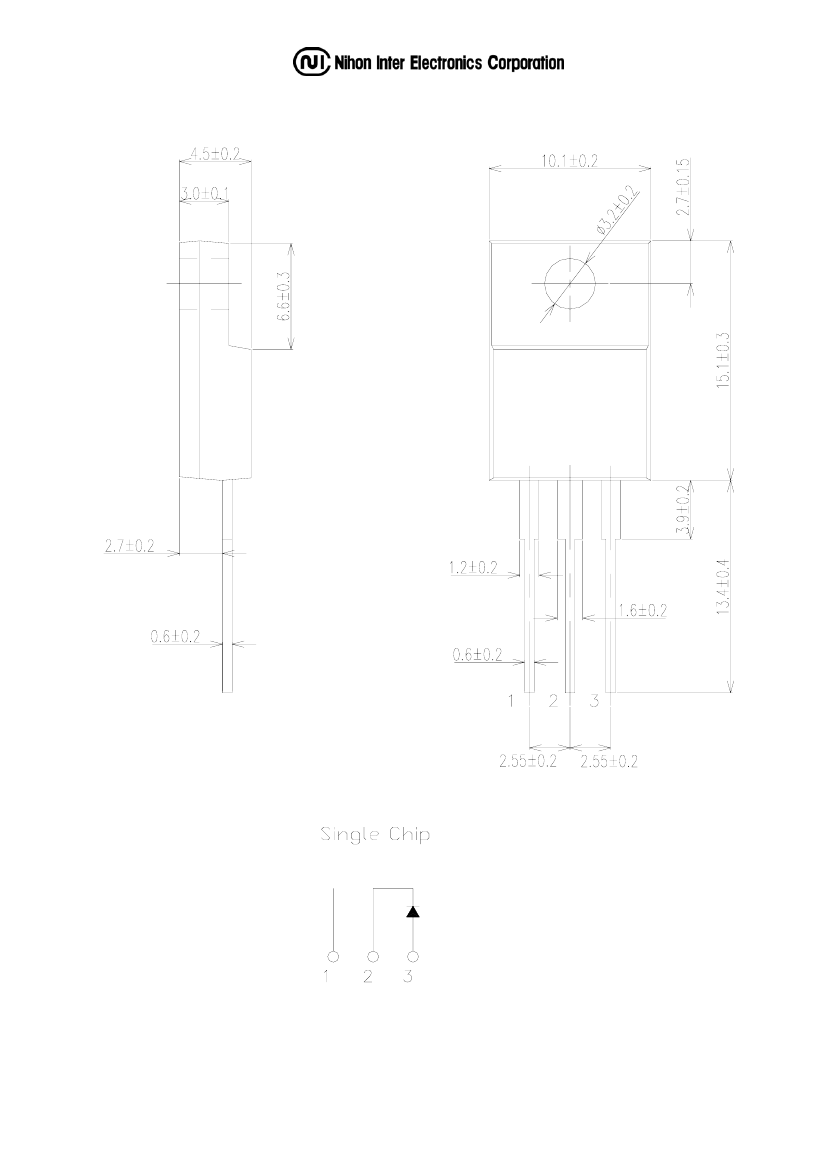

OULINE DRAWING

FEATURES

*Similar to TO-220AB Case

*Fully Molded Isolation

*Low Forward Voltage Drop

*Low Power Loss,High Efficiency

*High Surge Capability

*Tj=150

°C

operation

Maximum Ratings

Rating

Repetitive Peak Reverse Voltage

Average Rectified Output Current

RMS Forward Current

Surge Forward Current

Operating JunctionTemperature Range

Storage Temperature Range

Mounting torque

Approx Net Weight:

1.75g

Symbol

RRM

F(RMS)

FSM

stg

Ftor

180

FSH10A09B

50 Hz half Sine Wave

Tc=121°C

Resistive Load

15.7

50Hz Half Sine Wave ,1cycle

Non-repetitive

-40 to +150

recommended torque = 0.5

Unit

°C

•

Electrical

•

Thermal Characteristics

Characteristics

Peak Reverse Current

Peak Forward Voltage

Thermal Resistance

Symbol

Conditions

Min.

Typ. Max.

0.88

1.5

Unit

°C

Tj= 25°C, V

= V

RRM

Tj= 25°C, I

= 10 A

Rth(j-c) Junction to Case

Rth(c-f) Cace to Fin
