Data Sheet
Features
•
•
•
•
•
•
•
•
For broadband applications
Typical 3dB bandwidth of 33.2 MHz
High attenuation
Single-ended operation
Ceramic Surface Mount Package (SMP)
Replaces Sawtek P/N 851937 (BW 3dB=32 MHz)
Hermetic
RoHS compliant (2002/95/EC), Pb-free
Pb
Part Number 856072
140 MHz SAW Filter
•

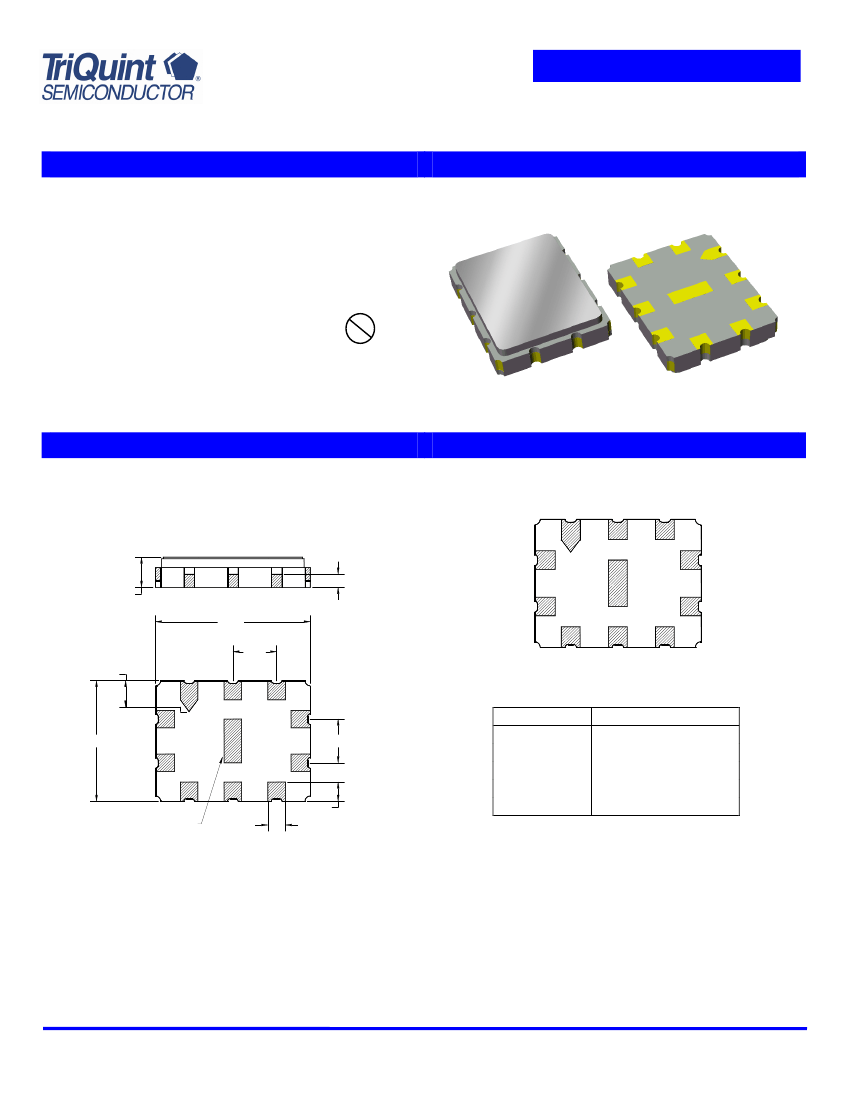

Package
Surface Mount 9.00 x 7.01 x 1.50 mm
SMP-35B
Pin Configuration
Bottom View
1
2
3
10
1.50 NOM.
1.65 MAX.
9.00
2.54
1.80
0.76
4
9
5
8
7
6
7.01
2.54
1.12
1.02 x 2.54
1.02
Single-ended Configuration
Pin No.
Description
4
Output
5
Output return
9
Input
10
Input return
1,2,3,6,7,8 Case ground
Dimensions shown are nominal in millimeters
All tolerances are
±0.15mm
except overall
length and width +0.10mm/-0.15mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar, Ni
plated
Terminations:
Au
plating 0.5 - 1.0µm,
over a 2 – 6µm
Ni
plating
Subject to change or obsolescence without notice
Rev B
11/07
© TriQuint Semiconductor
Page 1 of 6
Data Sheet
Operating Temperature Range:
(2)
0 to +70
°C
Part Number 856072
140 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Lower 1 dB Bandedge
(5)
Upper 1 dB Bandedge
Lower 3 dB Bandedge
(5)
Upper 3 dB Bandedge
Lower 40 dB Bandedge
(5)
Upper 40 dB Bandedge
Amplitude Variation
125.15 - 154.85 MHz
Phase Linearity
125.15 - 154.85 MHz
Group Delay Variation
125.15 - 154.85 MHz
Absolute Delay
Relative Attenuation
(5)
15 - 60 MHz
60 - 115 MHz
165 - 200 MHz
200 - 300 MHz
Terminating Source Impedance:
(6)
Terminating Load Impedance:
(6)
Substrate Material
Temperature Coefficient of Frequency
Notes:
Minimum
-
-
-
154.85
-
155.8
119.65
-
-
-
-
-
45
43
42
47
-
-
-
-
Typical
(4)
140
21.7
124.29
155.88
123.42
156.64
120.31
159.58
0.46
2.75
15.46
0.905
56
54
52
58
50
50
128 LiNbO
3
-74
Maximum
-
22.5
125.15
-
124.2
-
-
160.35
1.10
6.0
30
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
dB p-p
deg p-p
ns p-p
µsec
dB
dB
dB
dB
Ω
Ω
-
ppm/
o
C
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. Relative to minimum insertion loss
6. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
91nH
9
4
8pF
50Ω
Ω
50
Ω
Single-ended
50Ω
Ω
1,2,3,5
6,7,8,10
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev B
11/07
© TriQuint Semiconductor
Page 2 of 6
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 856072
140 MHz SAW Filter
Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Minimum Insertion Loss
Lower 1 dB Bandedge
(5)
Upper 1 dB Bandedge
Lower 3 dB Bandedge
(5)
Upper 3 dB Bandedge
Lower 40 dB Bandedge
(5)
Upper 40 dB Bandedge
Amplitude Variation
125.15 - 154.85 MHz
Phase Linearity
125.15 - 154.85 MHz
Group Delay Variation
125.15 - 154.85 MHz
Absolute Delay
Relative Attenuation
(5)
15 - 60 MHz
60 - 115 MHz
165 - 200 MHz
200 - 300 MHz
Terminating Source Impedance:
(6)
Terminating Load Impedance:
(6)
Substrate Material
Temperature Coefficient of Frequency
Notes:
1.
2.
3.
4.
5.
6.
Minimum
-
-
-
154.75
-
155.7
119.50
-
-
-
-
-
44
43
42
46
-
-
-
-
Typical
(4)
140
21.7
124.29
155.88
123.42
156.64
120.31
159.58
0.46
2.75
15.46
0.905
56
54
52
58
50
50
128 LiNbO
3
-74
Maximum
-
22.5
125.25
-
124.3
-
-
160.55
1.30
6.5
37
-
-
-
-
-
-
-
-
-
Unit
MHz
dB
MHz
MHz
MHz
dB p-p
deg p-p
ns p-p
µsec
dB
dB
dB
dB
Ω
Ω
-
ppm/
o
C
All specifications are based on the TriQuint test circuit shown below
In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
Typical values are based on average measurements at room temperature
Relative to minimum insertion loss
This is the optimum impedance in order to achieve the performance shown
Test Circuit:
Actual matching values may vary due to PCB layout and parasitics
91nH
9
4
8pF
50Ω
Ω
50
Ω
Single-ended
Input
50Ω
Ω
1,2,3,5
6,7,8,10
50
Ω
Single-ended
Output
Subject to change or obsolescence without notice
Rev B
11/07
© TriQuint Semiconductor
Page 3 of 6
Data Sheet
Part Number 856072
140 MHz SAW Filter

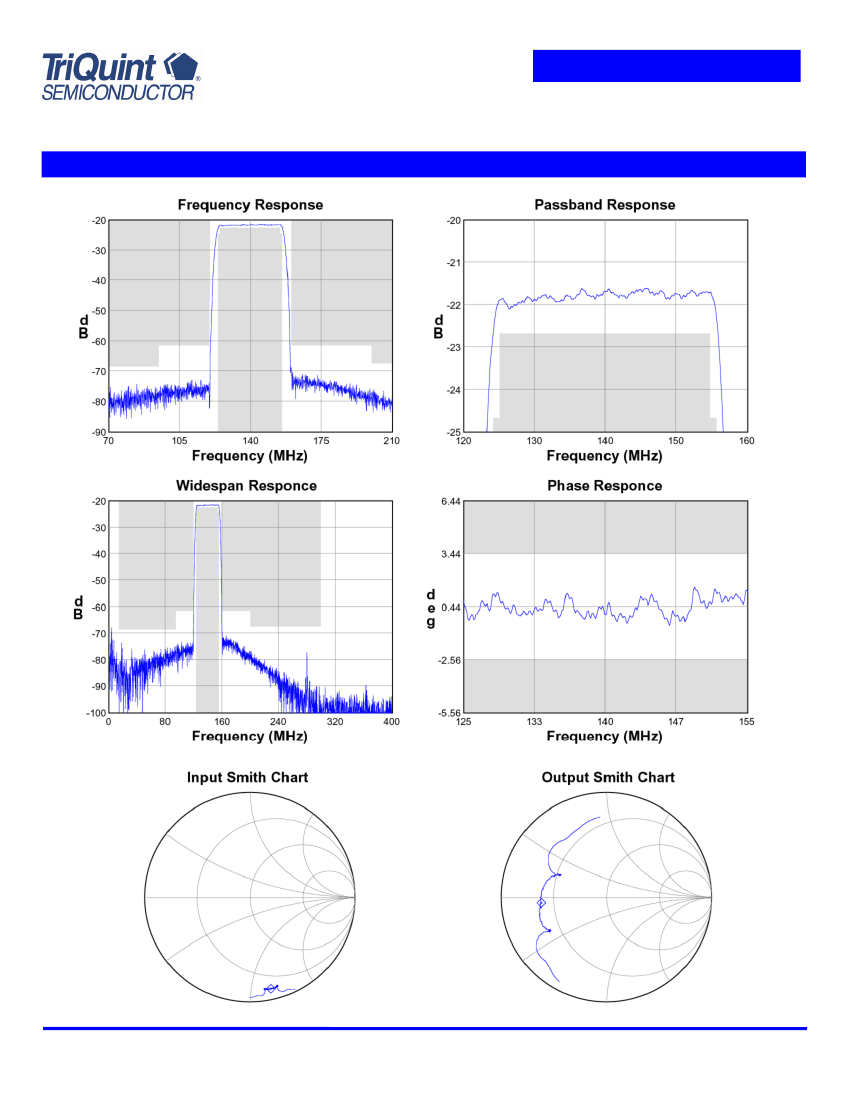

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev B
11/07
© TriQuint Semiconductor
Page 4 of 6
Data Sheet
Actual matching values may vary due to PCB layout and parasitics
91nH
9
4
Part Number 856072
140 MHz SAW Filter
Matching Schematics
50
Ω
Single-ended
Input
50Ω
Ω
1,2,3,5
6,7,8,10
8pF
50Ω
Ω
50
Ω
Single-ended
Output

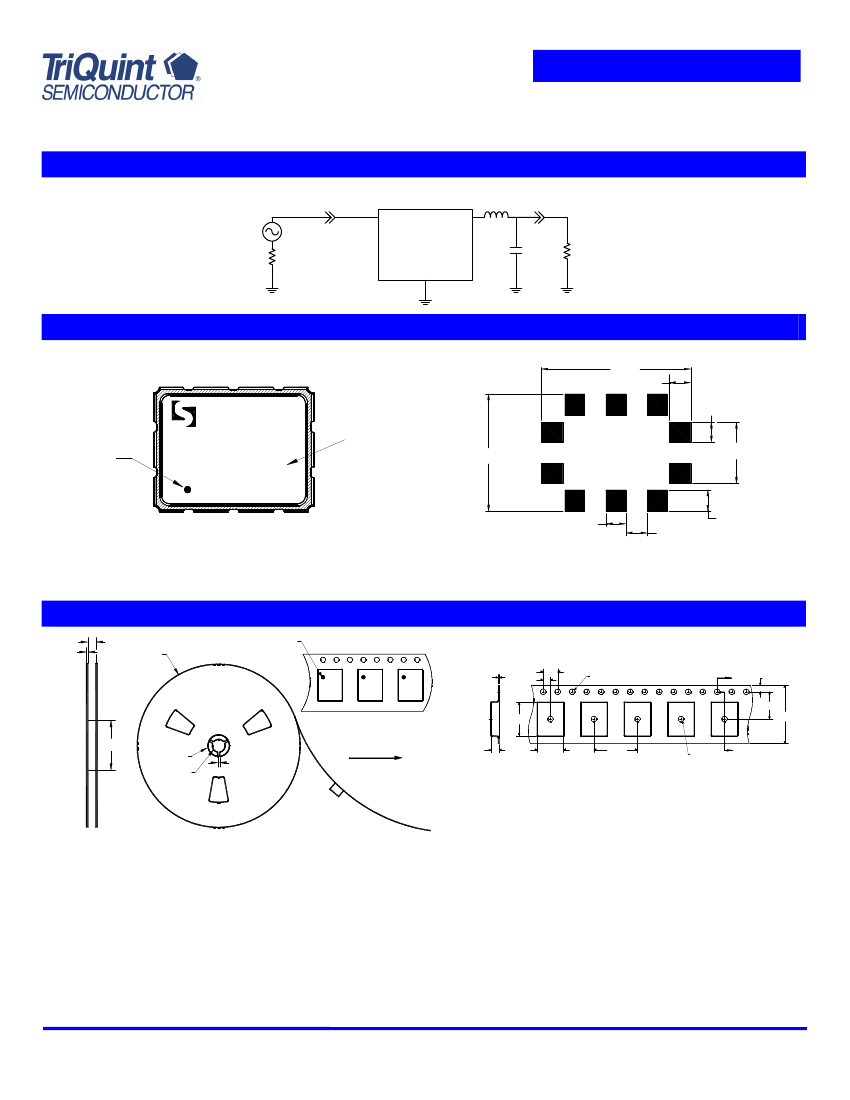

Marking
PCB Footprint
9.19
1.32
ID dot
SAWTEK
856072
XXXXXX
1.22
Date code
7.21
3.76
2.07
1.22
1.32
1.32
The date code consists of: day of the current year (Julian,
3 digits), last digit of the year (1 digit) and hour (2 digits)
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
16.8
2.7
Ø330
0.3
2.0
4.0
Ø1.5
A
1.75
7.5
16.0
7.22
12.0
A
ID dot
9.22
Ø102
Ø20.2
Ø13.0
2.0
Direction of travel
2.2
Section A-A
Ø1.5
Dimensions shown are nominal in millimeters
Packaging quantity: 2000 units/reel
Subject to change or obsolescence without notice
Rev B
11/07
© TriQuint Semiconductor
Page 5 of 6
