Aluminum electrolytic capacitors
Capacitors with 4-pin snap-in terminals and solder
pins
Series/Type:
Date:
B43513, B43523
December 2016
© EPCOS AG 2016. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
EPCOS AG is a TDK Group Company.
Capacitors with 4-pin snap-in terminals and solder pins
Long useful life
85
°C
B43513, B43523
Long-life grade capacitors
Applications
Frequency converters
Solar inverters
Uninterruptible power supplies
Professional power supplies
Medical appliances
Features
Voltage derating (0.95 V
R
) enables 105
°C
operation,
more details available upon request
Long useful life
High ripple current capability
High volumetric efficiency
Many different case sizes
Pinning ensures correct insertion
RoHS-compatible
Construction
Charge/discharge-proof, polar
Aluminum case, fully insulated with PET or PVC
Version with additional PET insulation cap on terminal side
available for insulating the capacitor from the PCB
(B43513 only)
Overload protection by safety vent on the case wall
Terminals
4-pin snap-in terminals (6.3 mm and 4.5 mm length)
Solder pin mounting on printed circuit boards, pins fit
standardized spacings on PCB
B43513
B43523
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 2 of 20
B43513, B43523
Long useful life
85
°C
Specifications and characteristics in brief
Rated voltage V
R
Surge voltage V
S
Rated capacitance C
R
Capacitance tolerance
Dissipation factor tan
δ
(20
°C,
120 Hz)
Leakage current I
leak
(5 min, 20
°C)
Self-inductance ESL
Useful life
1)
85
°C;
V
R
; I
AC,R
Approx. 20 nH
> 10000 h
Requirements:
ΔC/C
≤
20% of initial value
tan
δ
≤
2 times initial specified limit
I
leak
≤
initial specified limit
Post test requirements:
ΔC/C
≤
10% of initial value
tan
δ
≤
1.3 times initial specified limit
I
leak
≤
initial specified limit
350 ... 450 V DC
1.1 V
R
270 ... 2700 μF
±20%
M
V
R
≤
400 V DC: tan
δ ≤
0.15
V
R
> 400 V DC: tan
δ ≤
0.20
Voltage endurance test
85
°C;
V
R
3000 h
Vibration resistance
test
Characteristics at low
temperature
To IEC 60068-2-6, test Fc:
Frequency range 10 ... 55 Hz, displacement amplitude 0.35 mm,
acceleration max. 5
g,
duration 3
×
2 h.
Capacitor mounted by its body which is rigidly clamped to the work
surface.
Max. impedance ratio
V
R
≤
400 V
> 400 V
at 100 Hz
Z
-25
°
C
/ Z
20
°
C
3
5
Z
-40
°
C
/ Z
20
°
C
7
10
To IEC 60068-1:
40/085/56 ( 40
°C/+85 °C/56
days damp heat test)
Similar to CECC 30301-805
IEC 60384-4
IEC climatic category
Detail specification
Sectional specification
1) Refer to chapter "General technical information, 5 Useful life" on how to interpret useful life.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 3 of 20
B43513, B43523
Long useful life
85
°C

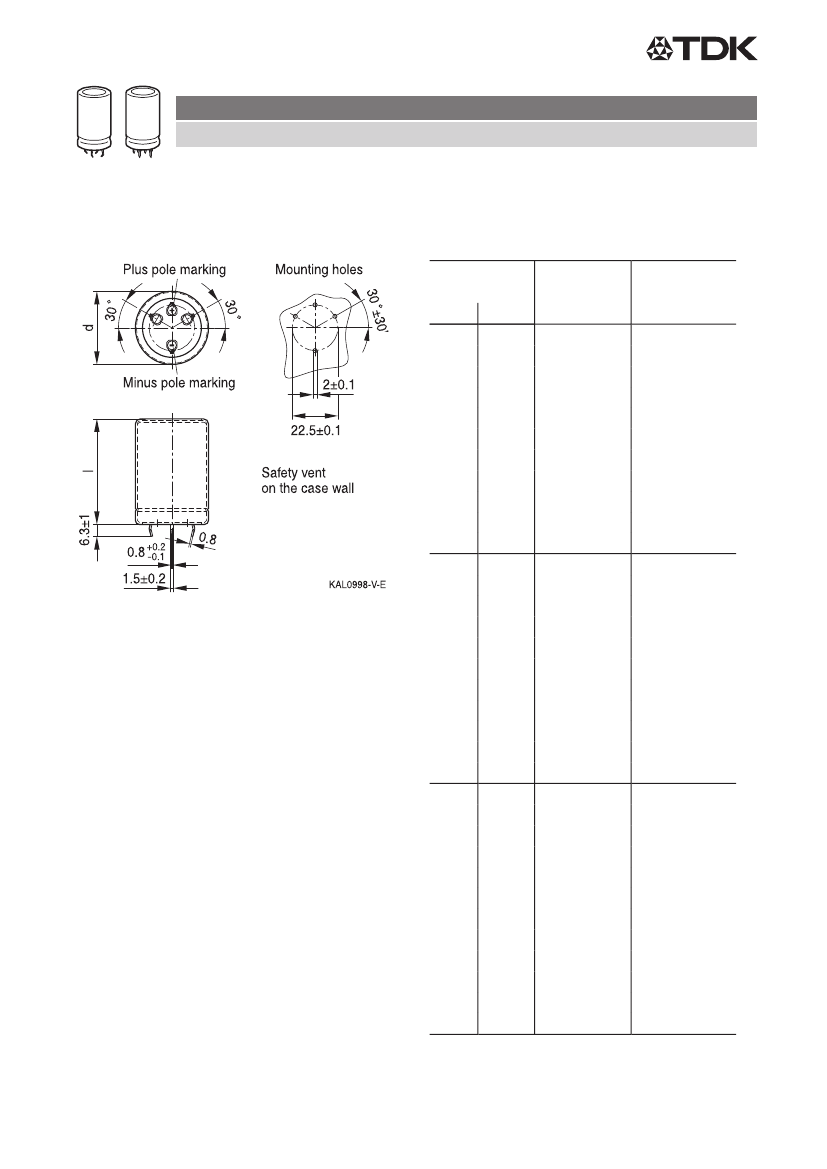

Dimensional drawings
B43513, 4-pin snap-in terminals, standard insulation (PET or PVC)
Dimensions
(mm)
d +1 l
±2
35
40
35
45
35
50
35
55
35
60
35
65
35
70
35
75
35
85
35
90
35
95
40
40
40
45
40
50
40
55
40
60
40
65
40
70
40
75
40
80
40
90
40
95
45
40
45
45
45
50
45
55
45
60
45
65
45
70
45
75
45
80
45
85
45
95
45
100
Approx.
weight (g)
51
57
63
70
76
82
88
95
107
114
120
71
80
89
98
107
116
125
134
143
161
170
95
108
120
132
143
155
166
178
190
202
226
237
Packing
units (pcs.)
60
60
60
36
36
36
36
36
36
36
36
33
33
33
33
33
33
33
33
33
33
33
28
28
28
28
28
28
28
28
28
28
28
28
Standard snap-in terminals:
length (6.3
±1)
mm.
Also available with length of (4.5
1) mm.
All pin holes must be drilled into the
PC-board, since the unconnected pins serve
as mountings. These pins must be soldered
to insulated pads or pads with the same
potential as the negative pole.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 4 of 20
B43513, B43523
Long useful life
85
°C

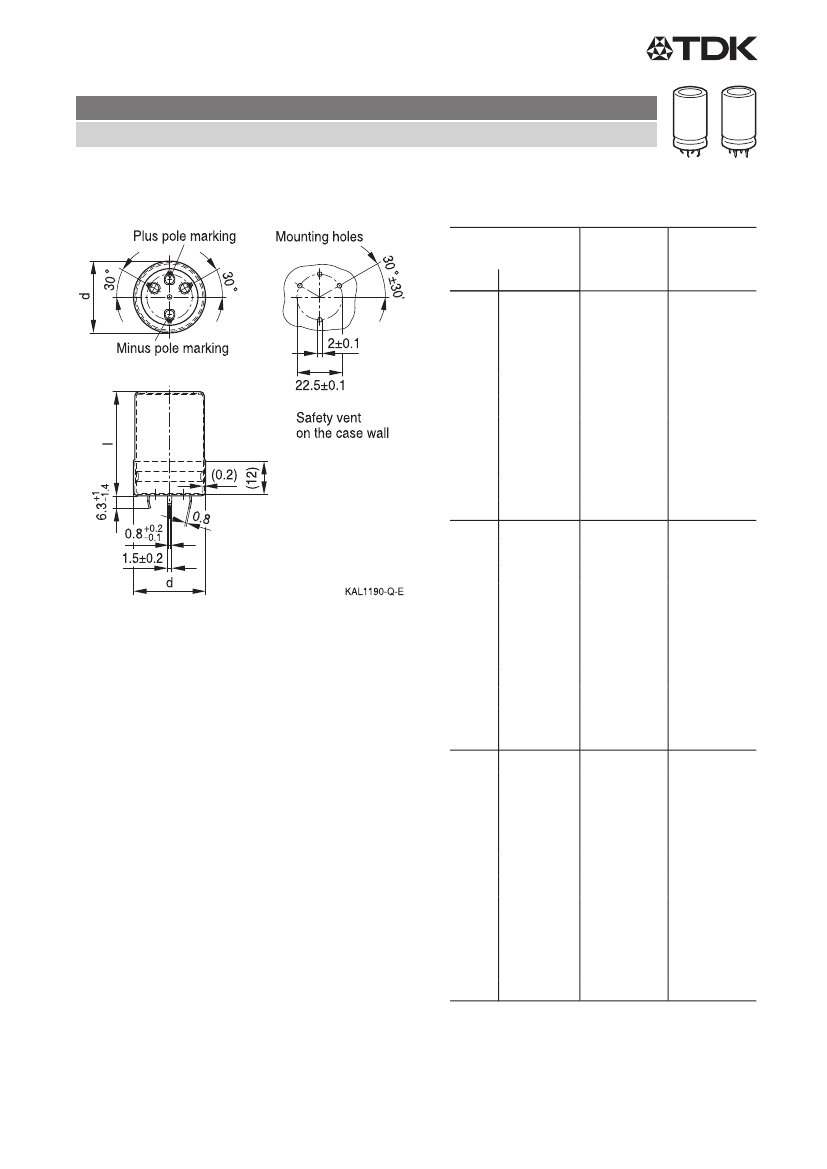

B43513, 4-pin snap-in terminals, PVC insulation and PET insulation cap on terminal side
Dimensions
(mm)
d +1.4 l +2.2/ 2
35
40
35
45
35
50
35
55
35
60
35
65
35
70
35
75
35
85
35
90
35
95
40
40
40
45
40
50
40
55
40
60
40
65
40
70
40
75
40
80
40
90
40
95
45
40
45
45
45
50
45
55
45
60
45
65
45
70
45
75
45
80
45
85
45
95
45
100
Approx.
weight (g)
51
57
63
70
76
82
88
95
107
114
120
71
80
89
98
107
116
125
134
143
161
170
95
108
120
132
143
155
166
178
190
202
226
237
Packing
units (pcs.)
60
60
60
36
36
36
36
36
36
36
36
33
33
33
33
33
33
33
33
33
33
33
28
28
28
28
28
28
28
28
28
28
28
28
Standard snap-in terminals:
length (6.3 +1/ 1.4) mm. Also available with
length of (4.5 1.4) mm. PET insulation cap is
positioned under the insulation sleeve.
All pin holes must be drilled into the PC-board,
since the unconnected pins serve as mountings.
These pins must be soldered to insulated pads or
pads with the same potential as the negative
pole.
Please read
Cautions and warnings
and
Important notes
at the end of this document.
Page 5 of 20
