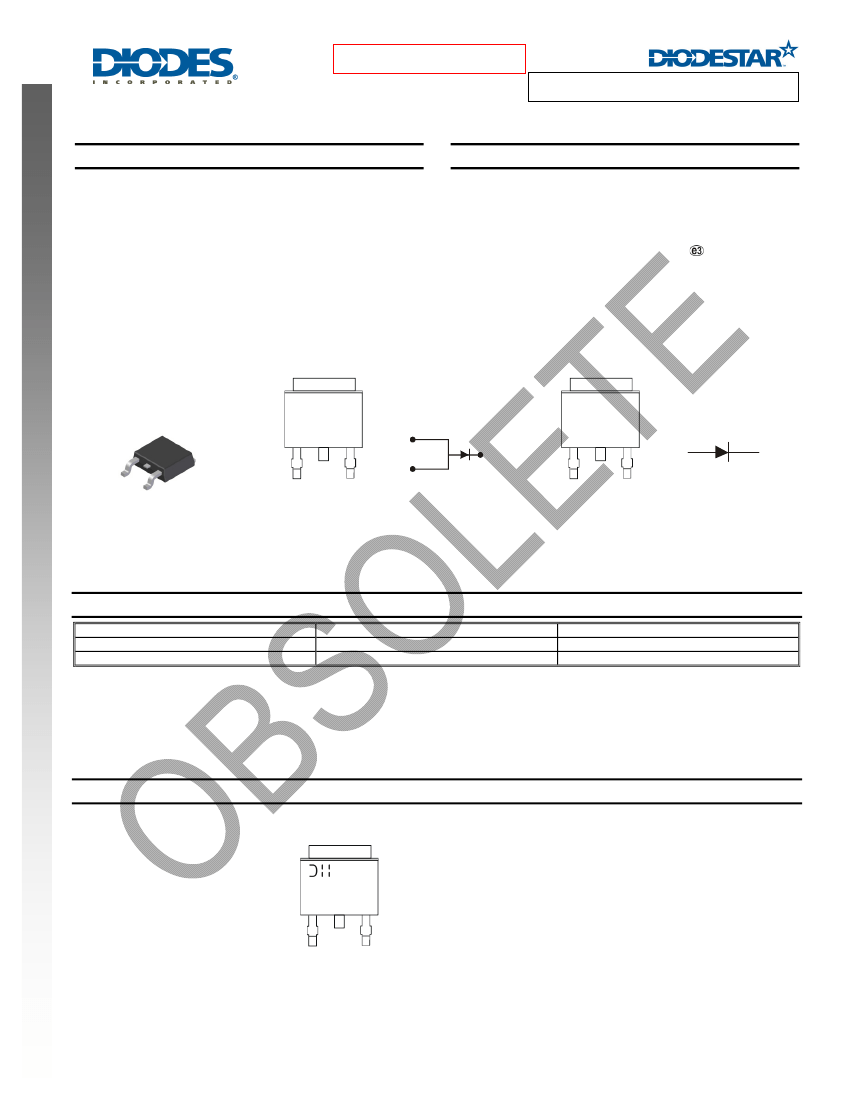

DSR6U600D1 / DSR6U600D1S
6A DIODESTAR RECTIFIER
Features
DIODESTAR is a Proprietary Process for High Voltage
Rectifiers which Delivers:
Ultra-Fast Reverse Recovery (t
rr
< 30ns) Giving a Rapid
Switching Response
Soft Recovery for Low EMI Noise
Excellent High Temperature Stability
High Forward Surge Capability
Enables High Efficiency as the Boost Diode in PFC Circuits
Lead Free Finish, RoHS Compliant (Note 1)
TM
Mechanical Data
Case: TO252 (DPAK)
Case Material: Molded Plastic, UL Flammability Classification
Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminals: Matte Tin Finish annealed over Copper leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.4 grams (approximate)
NEW PRODUCT
OBSOLETE – PART DISCONTINUED
TO252
K
K
A
A
1
4
3
N/C
A
A
K
Top View
Package Pin-Out Configuration
DSR6U600D1
Package Pin-Out Configuration
DSR6U600D1S
Ordering Information
(Note 2)
Part Number
DSR6U600D1-13
DSR6U600D1S-13
Notes:
Case
TO252
TO252
Packaging
2500 pieces/reel
2500 pieces/reel
1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2). All applicable RoHS exemptions applied.
2. For packaging details, go to our website at http://www.diodes.com.
Marking Information
DSR
6U600(S)
YYWW AB
DSR6U600(S) = Product Type Marking Code
AB = Foundry and Assembly Code
YYWW = Date Code Marking
YY = Last two digits of year (ex: 08 = 2008)
WW = Week (01 - 53)
DSR6U600D1 / DSR6U600D1S
Document number: DS33405 Rev. 6 - 4
1 of 5
www.diodes.com
October 2013
© Diodes Incorporated
PART OBSOLETE
DSR6U600D1 / DSR6U600D1S

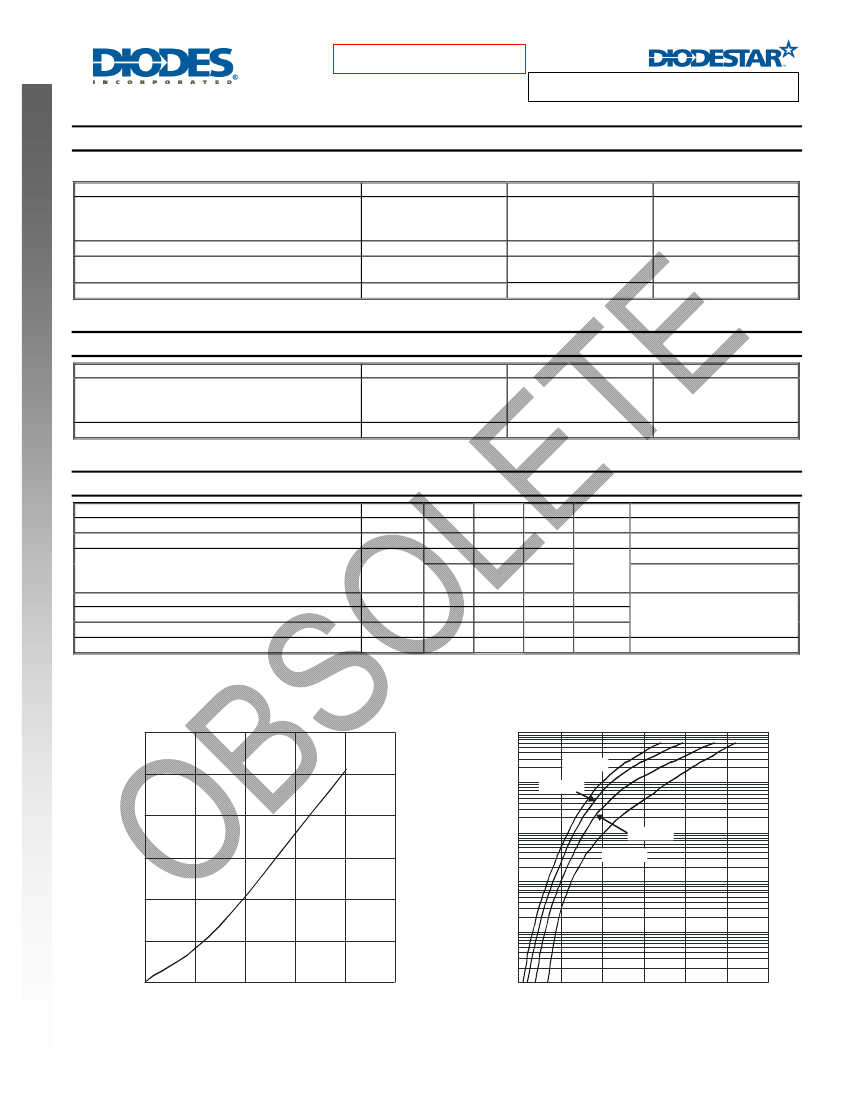

Maximum Ratings
@T
A
= 25°C unless otherwise specified
Single phase, half wave, 60Hz, resistive or inductive load.
For capacitance load, derate current by 20%.
Characteristic
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Non-Repetitive Peak Forward Surge Current 8.3ms
Single Half Sine-Wave Superimposed on Rated Load
Repetitive Peak Avalanche Power (1s, 25°C)
Symbol
V
RRM
V
RWM
V
RM
I
O
I
FSM
P
ARM
Value
600
6
60
4,000
Unit
V
A
A
W
NEW PRODUCT
OBSOLETE – PART DISCONTINUED
Thermal Characteristics
Characteristic
Maximum Thermal Resistance
Thermal Resistance Junction to Soldering (Note 3)
Thermal Resistance Junction to Ambient (Note 3)
Operating and Storage Temperature Range
Symbol
R
JS
R
JA
T
J
, T
STG
Value
10
47
-65 to +175
Unit
ºC/W
ºC
Electrical Characteristics
Characteristic
Forward Voltage Drop
Leakage Current (Note 4)
Reverse Recovery Time
Softness Factor
Reverse Recovery Current
Reverse Recovery Charges
Junction Capacitance
Notes:
@T
A
= 25°C unless otherwise specified
Symbol
V
F
I
R
t
rr
S
I
RM
Q
rr
C
J
Min
-
-
-
-
-
-
-
-
Typ
2.1
-
21
33
0.5
4.3
220
30
Max
2.6
50
25
45
-
-
-
-
Unit
V
A
ns
-
A
nC
pF
Test Condition
I
F
= 6A, T
J
= 25ºC
V
R
= 600V, T
J
= 25ºC
I
F
= 0.5A, I
R
= 1A, I
RR
= 0.25A
I
F
= 1A, V
R
= 30V,
di/dt = 50A/s
I
F
= 6A, dl/dt = 200A/s,
V
R
= 400V, T
J
= 125ºC
V
R
= 4.0V, f = 1MHz
3. Device mounted on Polymide substrate, 1" x 1", 2oz, copper, double-sided, PC boards.
4. Short duration pulse test used to minimize self-heating effect.
I
F
, INSTANTANEOUS FORWARD CURRENT (A)
12
10
P
D
, POWER DISSIPATION (W)
10
T
A
= 150°C
1
T
A
= 125°C
8
0.1
T
A
= 85°C
T
A
= 25°C
6
0.01
4
2
0
0.001
0
2
4
6
8
10
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
Fig. 1 Forward Power Dissipation
0.0001
0
0.4
0.8
1.2
1.6
2.0
2.4
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig.2 Typical Forward Characteristics
DSR6U600D1 / DSR6U600D1S
Document number: DS33405 Rev. 6 - 4
2 of 5
www.diodes.com
October 2013
© Diodes Incorporated
PART OBSOLETE
DSR6U600D1 / DSR6U600D1S
I
R
, INSTANTANEOUS REVERSE CURRENT (µA)
1,000
1,000
T
A
= 150°C
T
A
= 125°C
NEW PRODUCT
OBSOLETE – PART DISCONTINUED
10
C
T
, TOTAL CAPACITANCE (pF)
100
100
1
T
A
= 85°C
T
A
= 25°C
0.1
0.01
0
100
200
300
400
500
600
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)

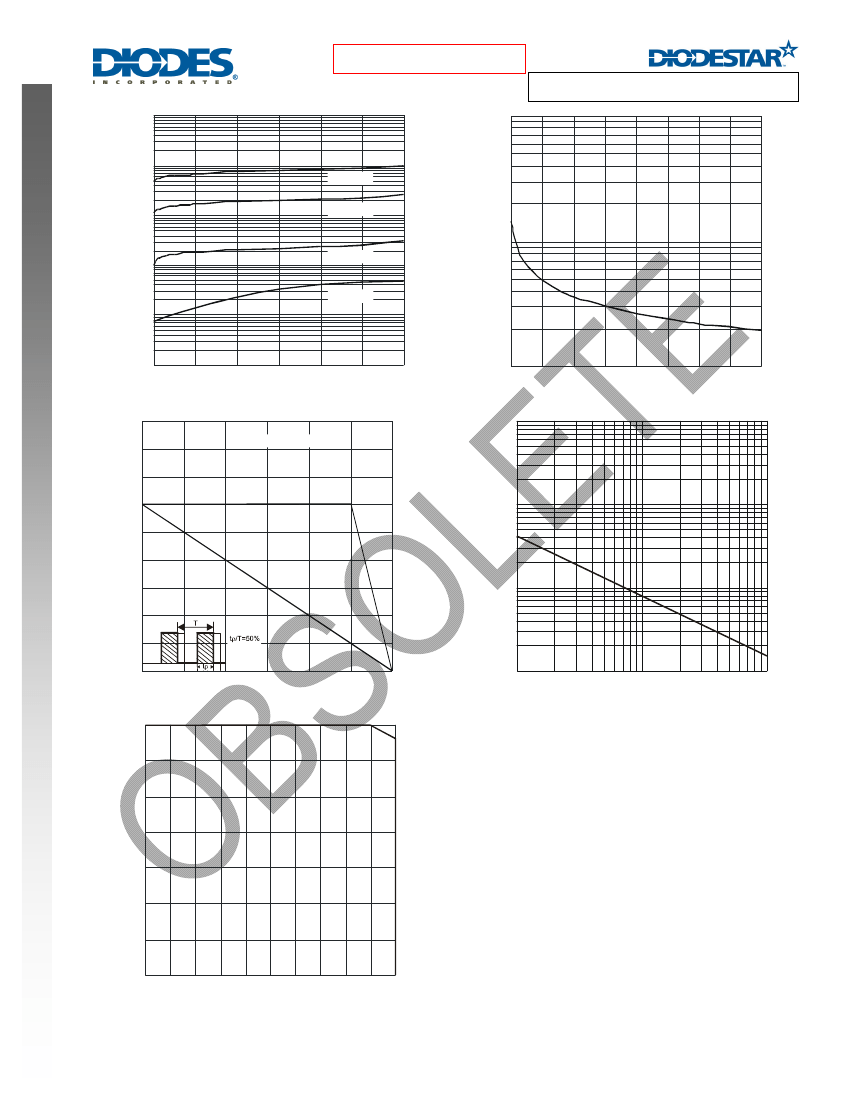

Fig. 3 Typical Reverse Characteristics
10
0
10
15
20
25
30
35 40
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
5
9
I
F(AV)
, AVERAGE FORWARD CURRENT (A)
8
7
6
5
4
3
2
1
0
25
50
Based on Lead Temp (T
L
)
100,000
P
M
, MAXIMUM AVALANCHE POWER (WF)
10,000
1,000
Note 3
75
100
125
150
T
L
, LEAD TEMPERATURE (°C)
Fig. 5 Forward Current Derating Curve
175
100
1
10
T
P
, PULSE DURATION (µS)
Fig. 6 Maximum Avalanche Power
100
175
T
A
, DERATED AMBIENT TEMPERATURE (°C)
150
125
100
75
50
25
0
0
120
240
360
480
600
V
R
, DC REVERSE VOLTAGE (V)
Fig. 7 Operating Temperature Derating
DSR6U600D1 / DSR6U600D1S
Document number: DS33405 Rev. 6 - 4
3 of 5
www.diodes.com
October 2013
© Diodes Incorporated
PART OBSOLETE
DSR6U600D1 / DSR6U600D1S

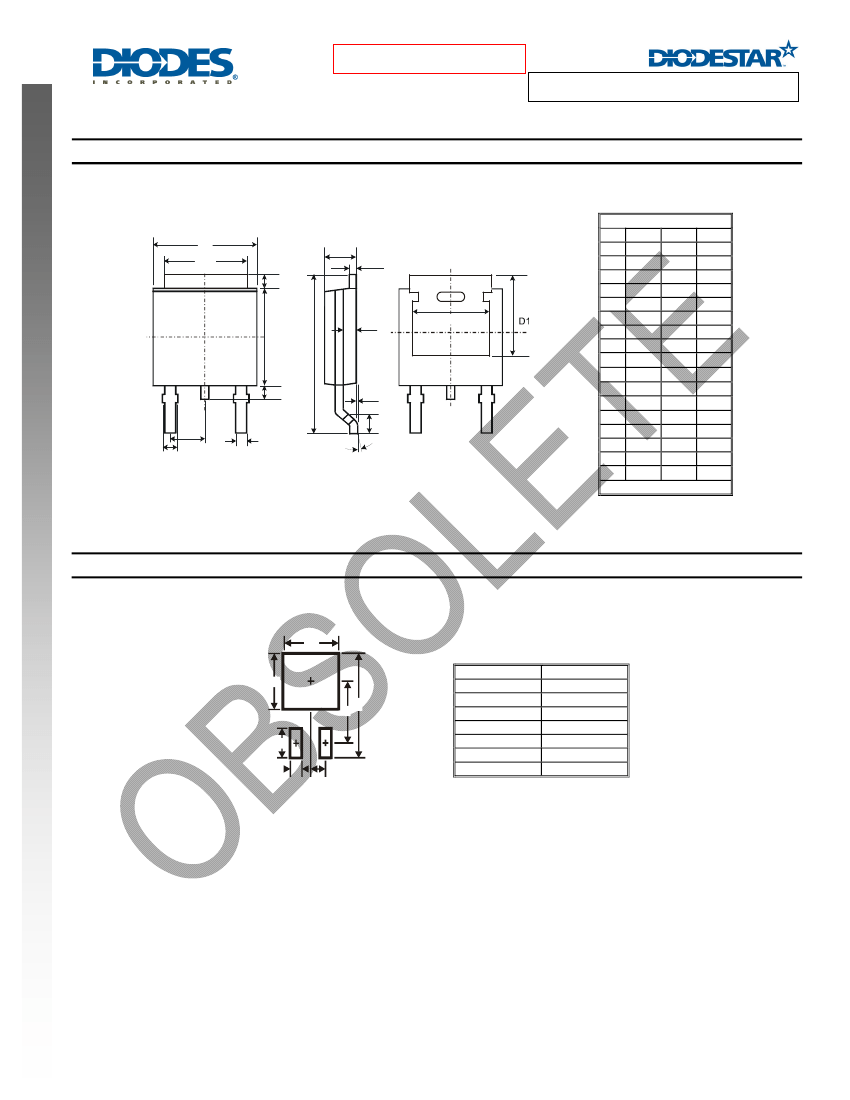

Package Outline Dimensions
NEW PRODUCT
OBSOLETE – PART DISCONTINUED
E
b3
L3
A
c2
D
A2
H
E1
L4
A1
L
e
2X b2
3X b
a
TO252
Dim Min Max Typ
A
2.19 2.39 2.29
A1
0.00 0.13 0.08
A2
0.97 1.17 1.07
b
0.64 0.88 0.783
b2
0.76 1.14 0.95
b3
5.21 5.46 5.33
c2
0.45 0.58 0.531
D
6.00 6.20 6.10
D1
5.21
e
2.286
E
6.45 6.70 6.58
E1
4.32
H
9.40 10.41 9.91
L
1.40 1.78 1.59
L3
0.88 1.27 1.08
L4
0.64 1.02 0.83
a
0°
10°
All Dimensions in mm
Suggested Pad Layout
X2
Y2
C
Y1
Z
Dimensions
Z
X1
X2
Y1
Y2
C
E1
Value (in mm)
11.6
1.5
7.0
2.5
7.0
6.9
2.3
X1
E1
DSR6U600D1 / DSR6U600D1S
Document number: DS33405 Rev. 6 - 4
4 of 5
www.diodes.com
October 2013
© Diodes Incorporated
PART OBSOLETE
DSR6U600D1 / DSR6U600D1S
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDING TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2012, Diodes Incorporated
www.diodes.com
NEW PRODUCT
OBSOLETE – PART DISCONTINUED
DSR6U600D1 / DSR6U600D1S
Document number: DS33405 Rev. 6 - 4
5 of 5
www.diodes.com
October 2013
© Diodes Incorporated
