015AZ5.6-X(TH3,F,T

Description
Zener Diodes 5.6volts 150mW 2Pin
Categorysemiconductor    Discrete semiconductor
File Size486KB,6 Pages
ManufacturerToshiba Semiconductor
Websitehttp://toshiba-semicon-storage.com/
Environmental Compliance
Download Datasheet Parametric View All

015AZ5.6-X(TH3,F,T Overview

Zener Diodes 5.6volts 150mW 2Pin

015AZ5.6-X(TH3,F,T Parametric

Parameter NameAttribute value
Product AttributeAttribute Value
ManufacturerToshiba Semiconductor
Product CategoryZener Diodes
RoHSDetails
Vz - Zener Voltage5.6 V
Mounting StyleSMD/SMT
Package / CaseESC-2
Pd - Power Dissipation150 mW
Voltage Tolerance2.5 %
Zener Current5 mA
Zz - Zener Impedance40 Ohms
Minimum Operating Temperature- 55 C
Maximum Operating Temperature+ 125 C
ConfigurationSingle
Test Current5 mA
Height0.6 mm
Length1.2 mm
TypeVoltage Regulator
Width0.8 mm
Ir - Reverse Current1 uA
Factory Pack Quantity4000
Vf - Forward Voltage1 V
015AZ2.0~015AZ24
TOSHIBA Diode
Silicon Epitaxial Planar Type
015AZ2.0~015AZ24
Constant-Voltage Regulation Applications
Small package
Nominal voltage tolerance of about ±2.5%
(2.0 V~24 V)
Unit: mm
Absolute Maximum Ratings
(Ta = 25
°
C)
Characteristic
Power dissipation
Junction temperature
Storage temperature range
Symbol
P*
T
j
T
stg
Rating
150
125
−55~125
Unit
mW
°C
°C
Note: Using continuously under heavy loads (e.g. the application of high
temperature/current/voltage and the significant change in
temperature, etc.) may cause this product to decrease in the
reliability significantly even if the operating conditions (i.e. operating
temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba
Semiconductor Reliability Handbook (“Handling
Precautions”/“Derating Concept and Methods”) and individual
reliability data (i.e. reliability test report and estimated failure rate,
etc).

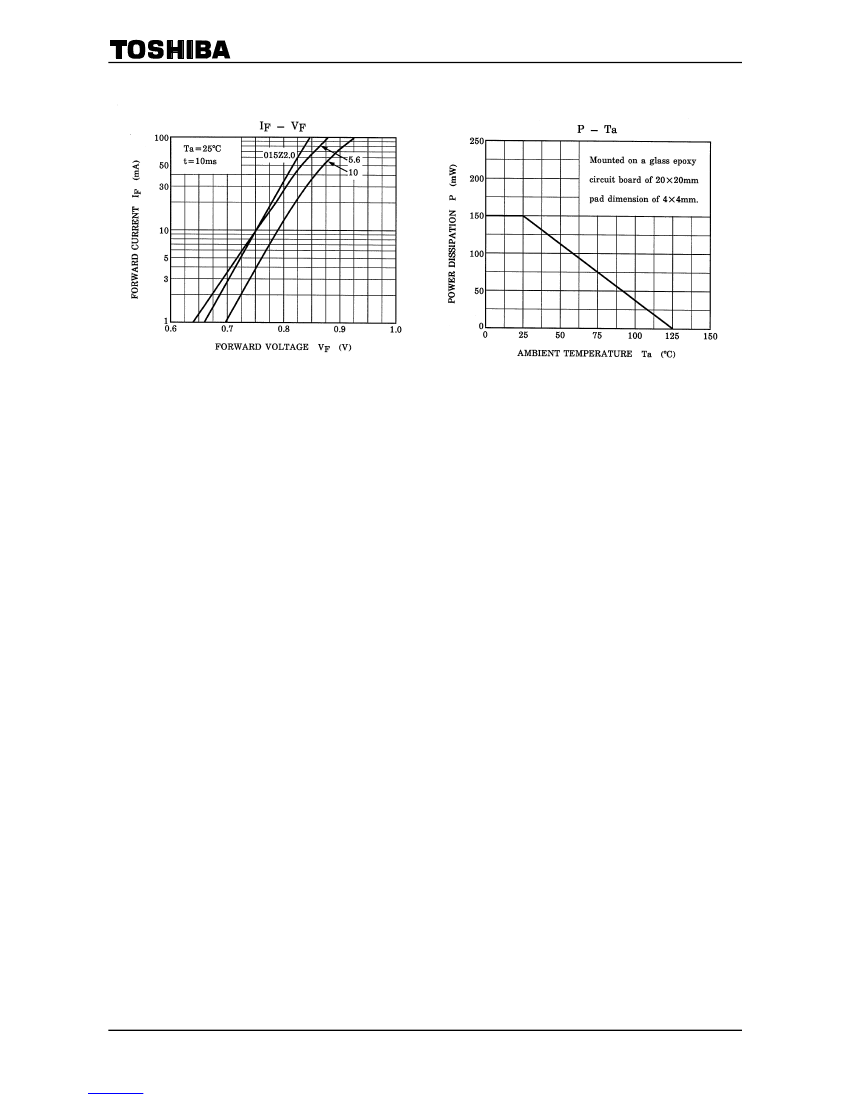

* Mounted on a glass-epoxy circuit board of 20 × 20 mm,
Pad dimensions of 4 × 4 mm.
JEDEC
JEITA
TOSHIBA
1-1G1A
Weight: 1.4 mg (typ.)

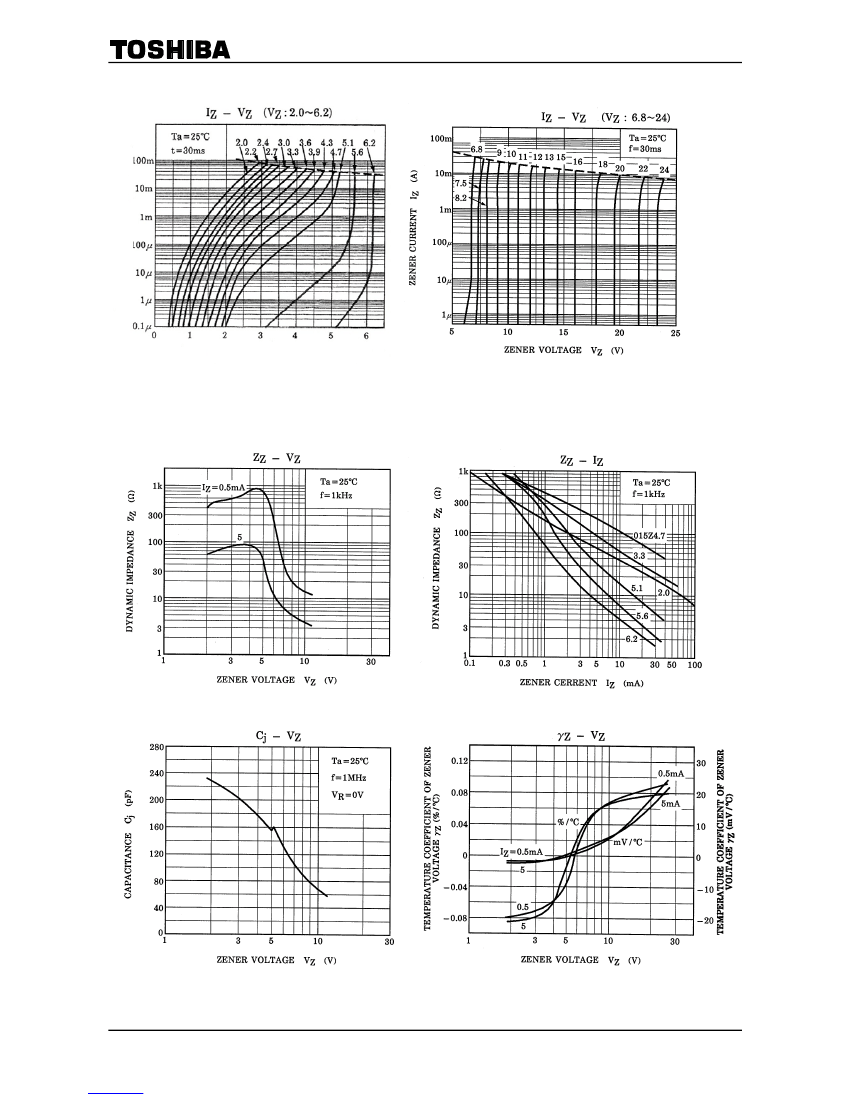

Electrical Characteristics
(See pages 2~3.)
Marking
VZ additional ranking
upper --- X rank , middle --- Y rank , lower --- Z rank
Voltage rank
24
Decimal point
: VZ = (VZ ranking voltage) X 0.1, nil: VZ = VZ ranking
Example 1: 015AZ2.4-X
24
Example 2: 015AZ2.4-Z
24
Example 3: 015AZ12-X
12
Pin Assignment
(Top View)
1
Downloaded from
Elcodis.com
electronic components distributor
2007-11-01
