SBR1F datasheet, PDF - EEWORLD Datasheet

SBR1F: DescriptionBridge Rectifiers A 1PHFW 1A FAST 100V; CategoryDiscrete semiconductor diode; File Size64KB，2 Pages; ManufacturerSEMTECH; Websitehttp://www.semtech.com

Download Datasheet Parametric Compare View All

SBR1F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SBR1F	-	-	View	Buy Now

Bridge Rectifiers A 1PHFW 1A FAST 100V

Parameter Name	Attribute value
Maker	SEMTECH
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	18 weeks
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V
JESD-30 code	R-PDIP-W4
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	1 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse recovery time	0.15 µs
surface mount	NO
Terminal form	WIRE
Terminal location	DUAL

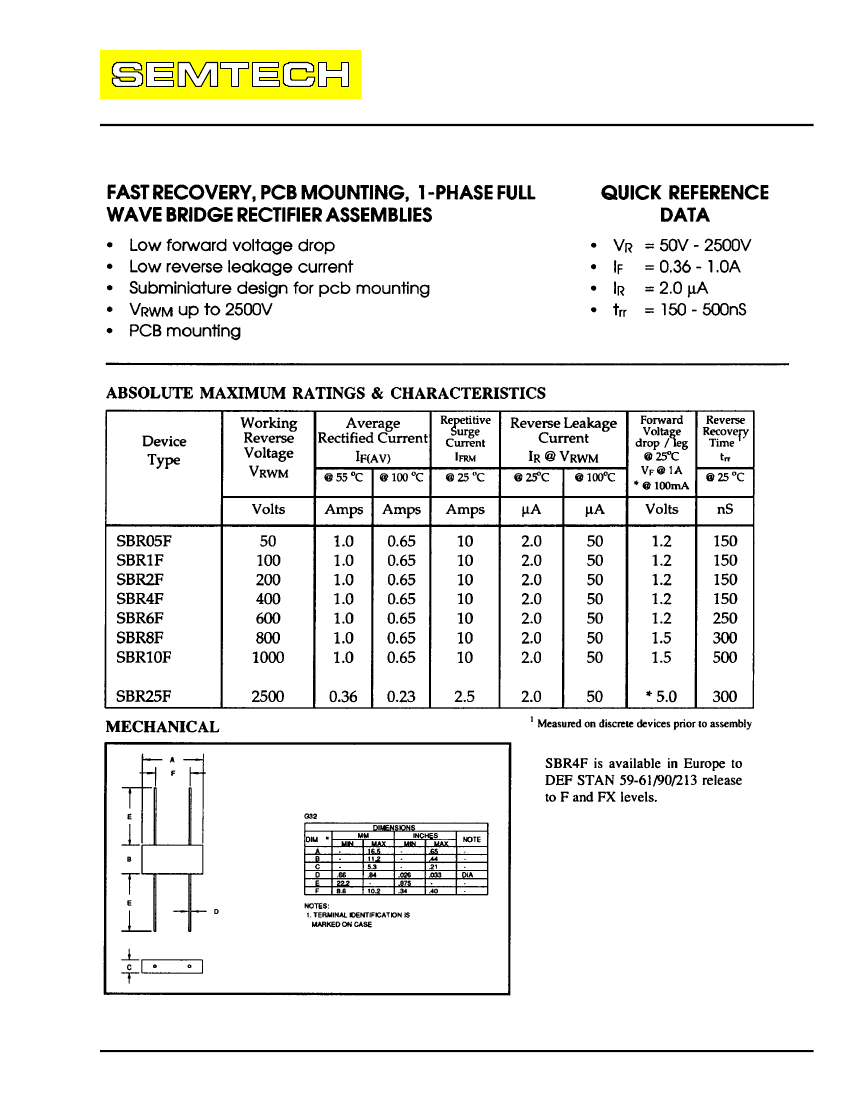

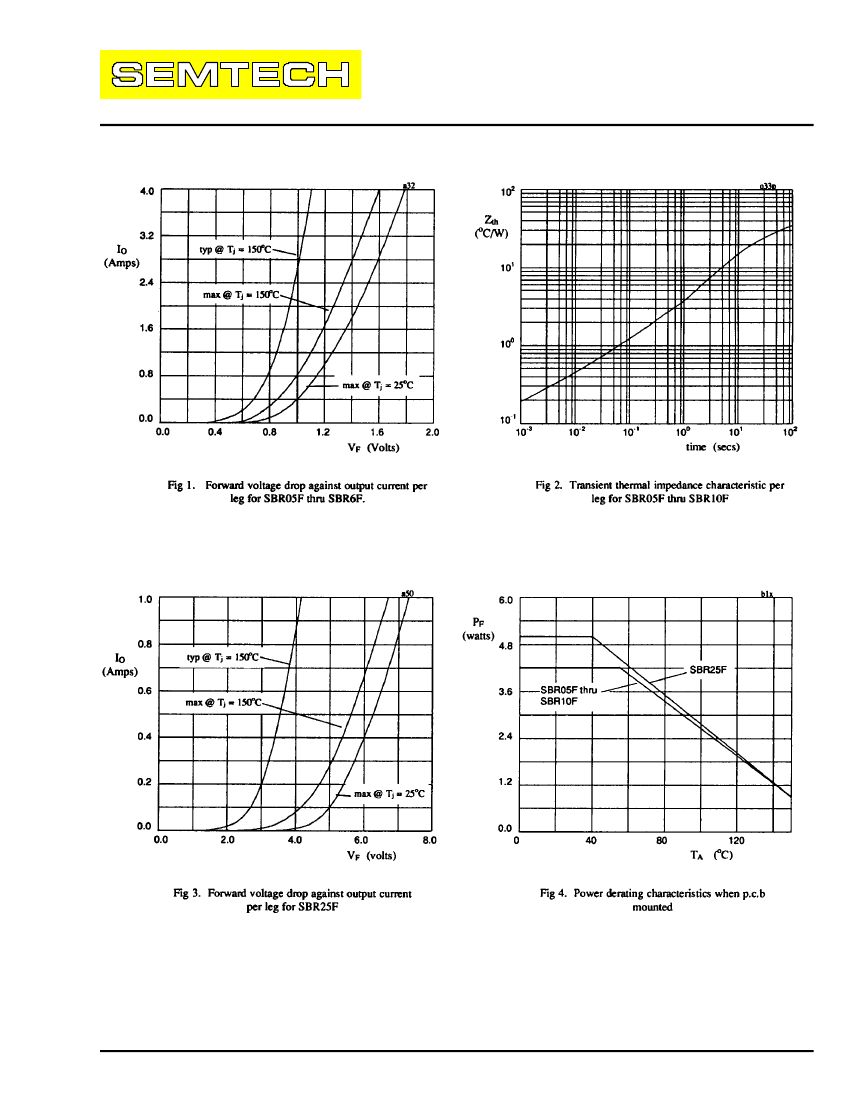

FAST RECOVERY 1-PHASE

SILICON BRIDGE RECTIFIERS

SBR05F

thru

SBR25F

January 16, 1998

TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com

652 MITCHELL ROAD NEWBURY PARK CA 91320

	SBR1F	SBR4F	SBR2F	SBR6F	SBR10F
Description	Bridge Rectifiers A 1PHFW 1A FAST 100V	Bridge Rectifiers A 1PHFW 1A FAST 400V	Bridge Rectifiers A 1PHFW 1A FAST 200V	Bridge Rectifiers A 1PHFW 1.5A FAST 600V	Bridge Rectifiers A 1PHFW 1A FAST 1KV
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.2 V	1.2 V	1.2 V	1.2 V	1.5 V
JESD-30 code	R-PDIP-W4	R-PDIP-W4	R-PDIP-W4	R-PDIP-W4	R-PDIP-W4
Number of components	4	4	4	4	4
Phase	1	1	1	1	1
Number of terminals	4	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	1 A	1 A	1 A	1 A	1 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	400 V	200 V	600 V	1000 V
Maximum reverse recovery time	0.15 µs	0.15 µs	0.15 µs	0.25 µs	0.5 µs
surface mount	NO	NO	NO	NO	NO
Terminal form	WIRE	WIRE	WIRE	WIRE	WIRE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	SEMTECH	SEMTECH	SEMTECH	-	SEMTECH
Factory Lead Time	18 weeks	18 weeks	18 weeks	-	18 weeks
