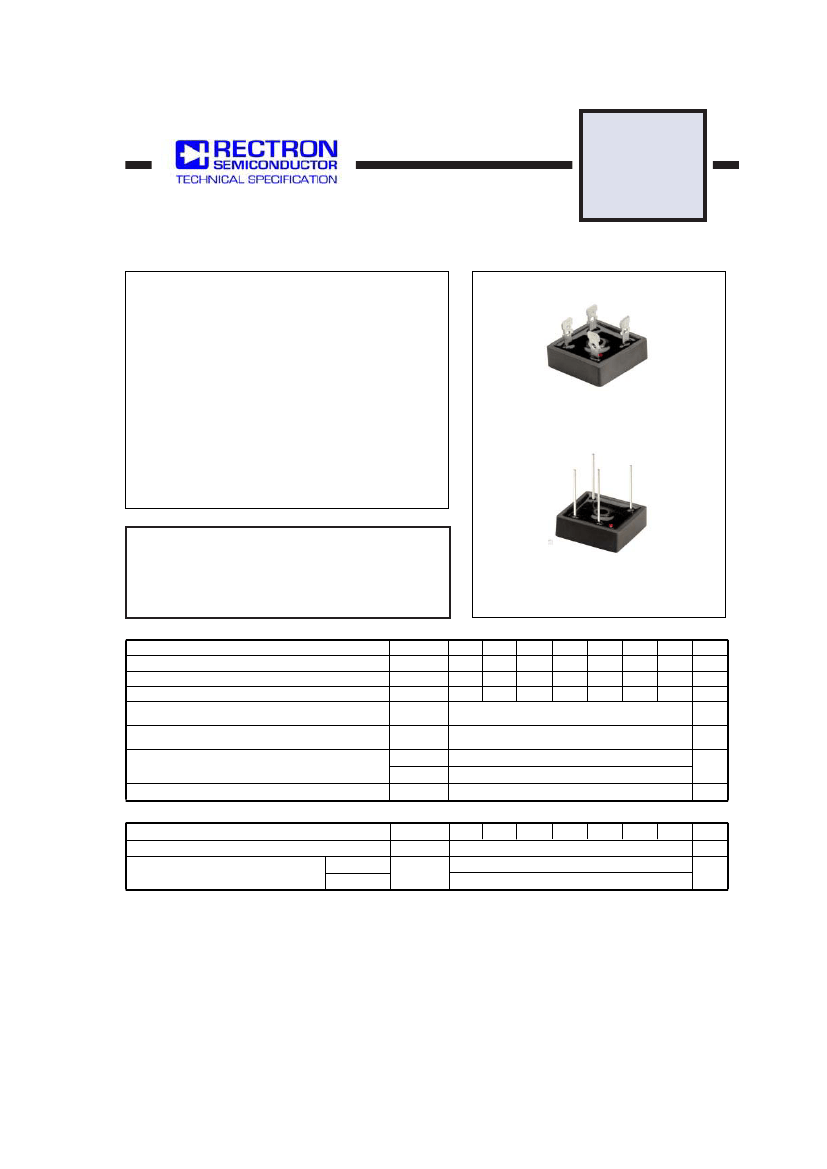

VOLTAGE RANGE 50 to 1000 Volts CURRENT 25 Amperes
SINGLE-PHASE SILICON BRIDGE RECTIFIER
BR2505
THRU
BR2510
FEATURES
*
*
*
*
Superior thermal desing
300 amperes surge rating
1/4" universal faston terminal
Hole thru for #8 screw
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
* UL listed the recongnized component director, file #94233
D
co
is
ed
nu
ti
n
BR-25
DISCONTINUED-
"This series is replaced by the MP25 series that meets to the same
fit and function parameters.
The MP25 series is preferred for PCB assembly.＂
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25
o
C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
BR-25W
MAXIMUM RATINGS
(@ T
A
=25
O
C unless otherwise noted)
RATINGS
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current
at T
C
= 55
o
C
Peak Forward Surge Current 8.3 ms single half sine-wave
superimposed on rated load (JEDEC method)
Typical Thermal Resistance (Note 2)
Operating and Storage Temperature Range
ELECTRICAL CHARACTERISTICS
(@T
A
=25
O
C unless otherwise noted)
CHARACTERISTICS
Maximum Instantaneous Forward Voltage at 12.5A DC
Maximum DC Reverse Current
at Rated DC Blocking Voltage
NOTES :
@T
A
= 25 C
@T
A
= 100 C
o
o
SYMBOL
V
RRM
V
RMS
V
DC
I
O
I
FSM
R
qJC
R
qJA
T
J
, T
STG
BR2505
50
35
50
BR251
100
70
100
BR252
200
140
200
BR254
400
280
400
25.0
300
4
22
-55 to + 150
BR256
600
420
600
BR258
800
560
800
BR2510
1000
700
1000
UNITS
Volts
Volts
Volts
Amps
Amps
O
C/W
0
C
SYMBOL
V
F
I
R
BR2505
BR251
BR252
BR254
1.1
5.0
500
BR256
BR258
BR2510
UNITS
Volts
uAmps
2007-5
1. Suffix "W" for wire type.
2. Typical Thermal Resistance: Heat-sink case mounted.
3. “Fully ROHS compliant”, “100% Sn plating (Pb-free)”.

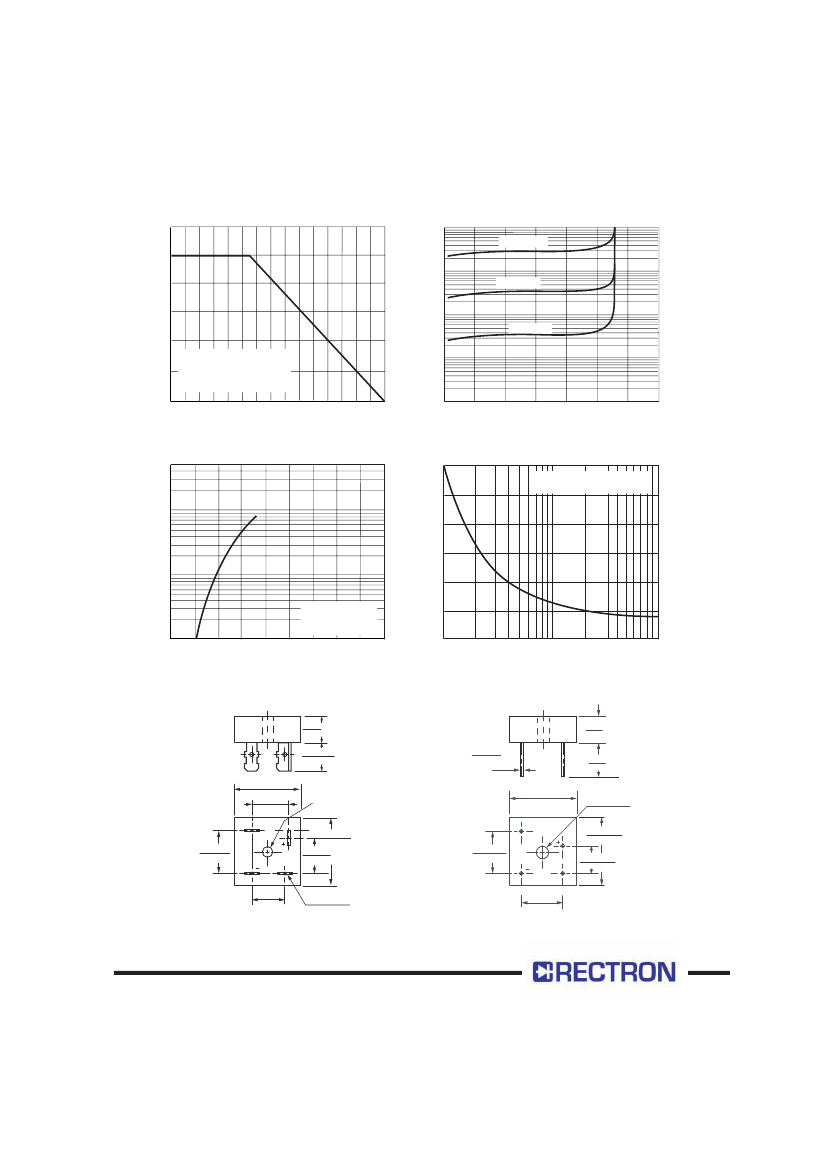

RATING AND CHARACTERISTICS CURVES ( BR2505 THRU BR2510 )
INSTANTANEOUS FORWARD CURRENT, (uA)
30
AVERAGE FORWARD CURRENT, (A)
25
20
15
10
5
0
Single Phase Half Wave
60Hz Inductive or
Resistive Load
0.375" (9.5mm) Lead Length
1000
T
A
= 100
O
C
100
T
A
= 75
O
C
10
T
A
= 25
O
C
1
0
50
100
O
150
0.1
0
20
40
60
80
100
120
140
CASE TEMPERATURE, ( C)
PERCENT OF RATED PEAK REVERSE VOLTAGE, (%)
INSTANTANEOUS REVERSE CURRENT, (A)
PEAK FORWARD SURGE CURRENT, (A)
500
FIG.1 TYPICAL FORWARD CURRENT
DERATING CURVE
300
250
200
150
100
50
0
1
FIG.2 TYPICAL REVERSE
CHARACTERISTICS
8.3mS Single Half Sine-Wave
JEDEC Method
100
10
T
J
= 25
O
C
Pulse width=300mS
1% Duty Cycle
1
0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
2
5
10
20
50
100
INSTANTANEOUS FORWARD VOLTAGE, (V)
NUMBER OF CYCLES AT 60Hz
FIG.3 TYPICAL INSTANTANEOUS FORWARD
CHARACTERISTICS
.452
MAX.
(11.5)
.480 (12.2)
.425 (10.8)
1.181 (30.0)
1.102 (28.0)
.673 (17.1)
.633 (16.1)
FIG.4 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
.452
MAX.
(11.5)
.042 (1.1)
DIA.
.080 (2.0)
TYP.
1.181 (30.0)
1.102 (28.0)
.591
MAX.
(15.0)
HOLE FOR
NO. 8 SCREW
HOLE FOR NO.
8 SCREW
1.181 (30.0)
1.102 (28.0)
.468 (11.9)
.429 (10.9)
AC
.732 (18.6)
.692 (17.6)
AC
1.181 (30.0)
1.102 (28.0)
.673 (17.1)
.633 (16.1)
AC
.732 (18.6)
.692 (17.6)
AC
.582 (14.8)
.543 (13.8)
.033 x .250
(0.8 x 6.4)
.732 (18.6)
.692 (17.6)
BR-25
BR-25W
DISCLAIMER NOTICE
Rectron Inc reserves the right to make changes without notice to any product
specification herein, to make corrections, modifications, enhancements or other
changes. Rectron Inc or anyone on its behalf assumes no responsibility or liabi-
lity for any errors or inaccuracies. Data sheet specifications and its information
contained are intended to provide a product description only. "Typical" paramet-
ers which may be included on RECTRON data sheets and/ or specifications ca-
n and do vary in different applications and actual performance may vary over ti-
me. Rectron Inc does not assume any liability arising out of the application or
use of any product or circuit.
Rectron products are not designed, intended or authorized for use in medical,
life-saving implant or other applications intended for life-sustaining or other rela-
ted applications where a failure or malfunction of component or circuitry may di-
rectly or indirectly cause injury or threaten a life without expressed written appr-
oval of Rectron Inc. Customers using or selling Rectron components for use in
such applications do so at their own risk and shall agree to fully indemnify Rect-
ron Inc and its subsidiaries harmless against all claims, damages and expendit-
ures.
