311-13-101-41-001: DescriptionIC Socket, SIP1, 1 Contact(s); Categorysocket; File Size138KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

311-13-101-41-001 Overview

IC Socket, SIP1, 1 Contact(s)

311-13-101-41-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	SIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL
Contact completed and terminated	GOLD (10) OVER NICKEL
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP1
Shell material	GLASS FILLED POLYETHYLENE POLYESTER
JESD-609 code	e4
Manufacturer's serial number	311
Number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

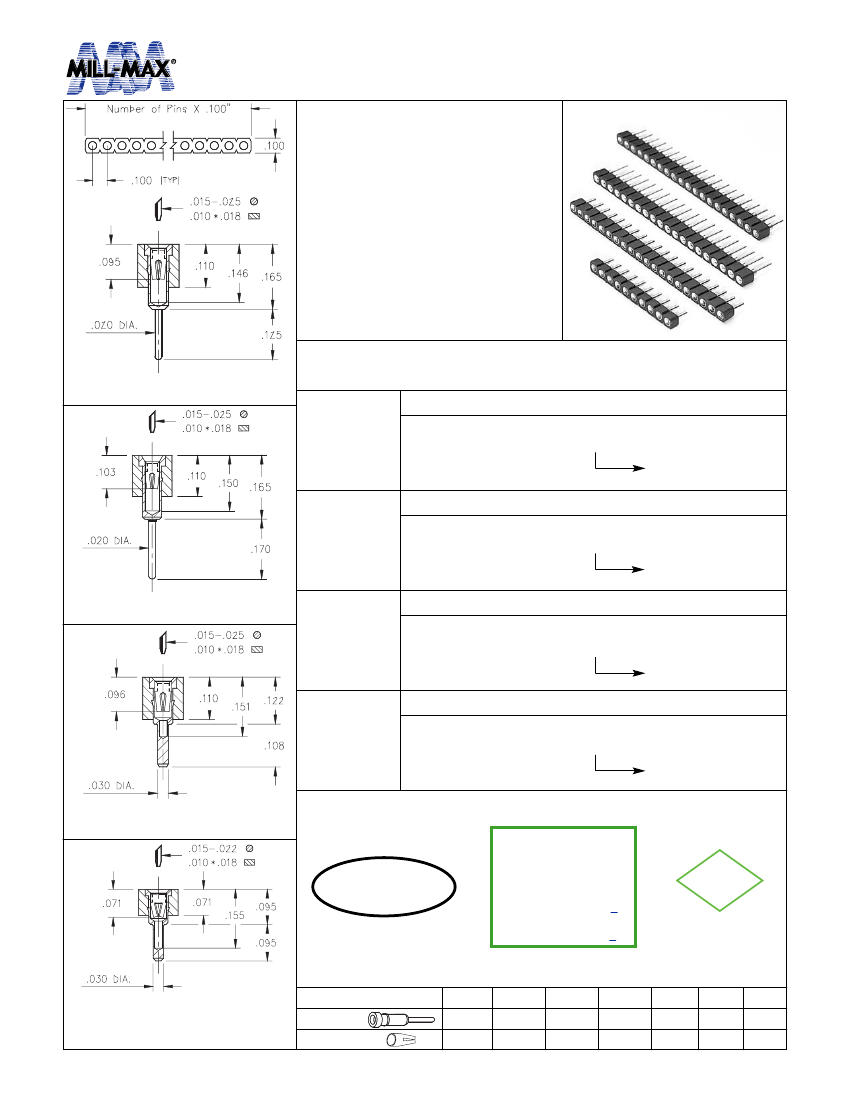

SINGLE-IN-LINE SOCKETS

Solder Tail

Single Row

•

SIP sockets accept .015 - .025”

diameter pins and standard IC leads.

•

Various solder tails available:

standard length, long for multi-

layer boards, very low and ultra

low profile. See Mill-Max #1001,

0134, 0501 or 1534 pins (pages

130, 131, 134) for details.

Hi-Rel, 4-finger BeCu #12 & #30

clips rated at 3 amps. See pages

207 & 208 for details.

Series 310, 311, 315

•

Ordering Information

Fig. 1

Series 310...001

Standard Solder Tail

Fig. 1

310-XX-1_ _-41-001000

Specify # of pins

Series 311...001

01-64

Long Solder Tail

Fig. 2

311-XX-1_ _-41-001000

Specify # of pins

01-64

Very Low Profile

Fig. 2

Series 315...001

Fig. 3

315-XX-1_ _-41-001000

Specify # of pins

Series 315...003

01-64

Ultra Low Profile

Fig. 4

315-XX-1_ _-41-003000

Specify # of pins

01-64

Fig. 3

For RoHS compliance,

select plating code.

For the all gold option

(XX=13) also change

part number from

31X-XX-1XX-41-00X000

to

31X-13-1XX-41-00X100

XX=Plating Code

See Below

SPECIFY PLATING CODE XX=

13

10µ” Au

30µ” Au

91

10µ” Au

93

30µ” Au

99

200µ”Sn/Pb

41

10µ” Au

43

44

Sleeve (Pin)

200µ” Sn/Pb

200µ” Sn/Pb 200µ”Sn/Pb

200µ”Sn

200µ”Sn 200µ”Sn

30µ” Au 200µ”Sn

Fig. 4

Contact (Clip)

w w w. m i l l - m a x . c o m

46

516-922-6000
