DTC143 TM/TE/TUA/TCA/TSA
NPN Small Signal Transistor
Small Signal Product
Features
◇

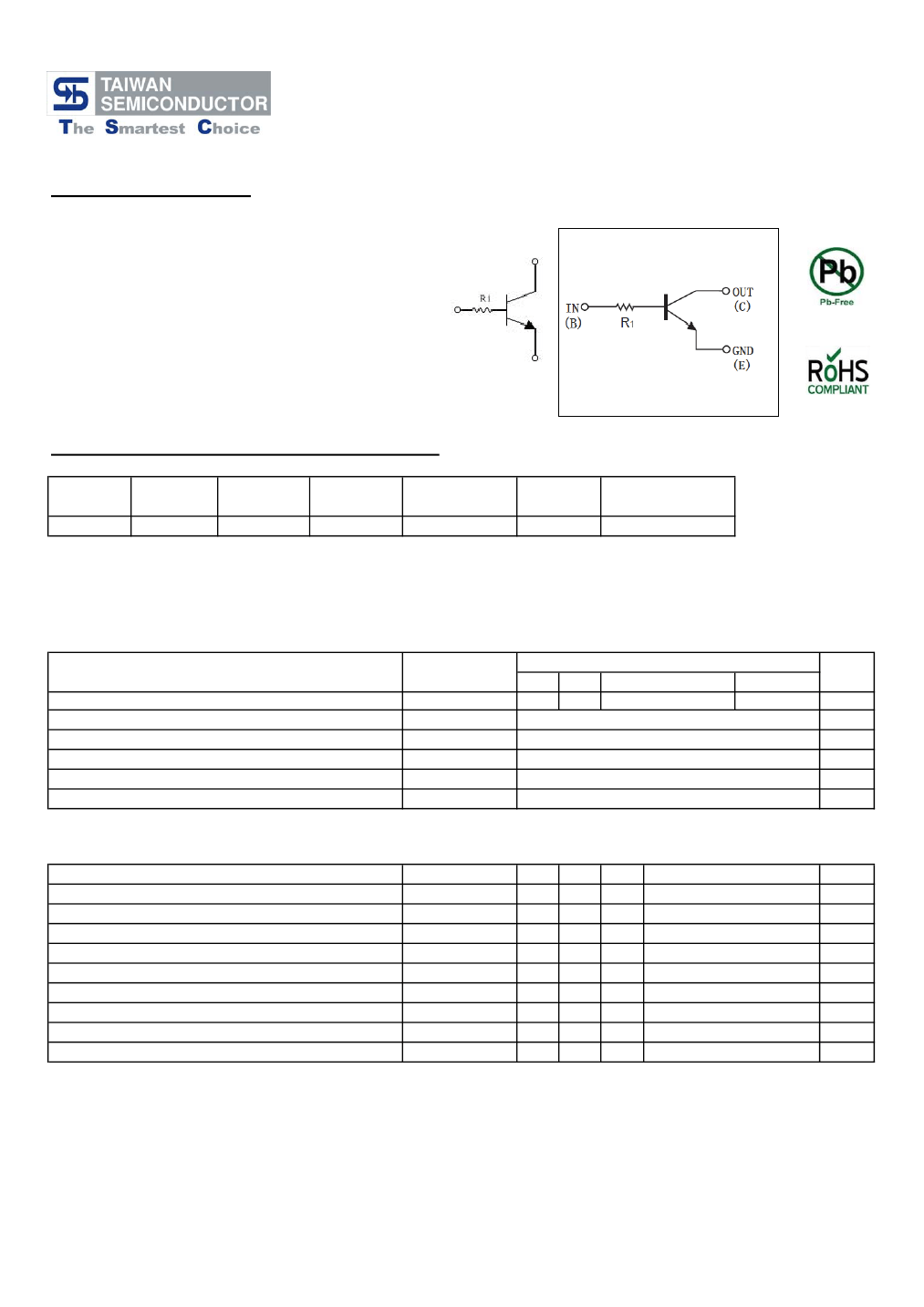

Built-in bias resistors enable the configuration of an inverter
circuit without connecting external input resistor
(see equivalent circuit).
◇
The bias resistors consist of thin-film resistors with
complete isolation to allow negative biasing of the input.
They also have the advantage of almost completely
eliminating parasitic effects.
Equivalent Circuit
◇
Green compound (Halogen free) with suffix "G" on
packing code and prefix "G" on date code.
Ordering Information (example)
Part No.
Package
Packing
Note : Detail please see "Ordering Information(detail, example)" below
Maximum Ratings and Electrical Characteristics
Rating at 25°C ambient temperature unless otherwise specified.
Maximum Ratings
No
DT t
Re
C1 c
43 om
TE m
en
/T
de
UA d
/T
CA
operation, marking device design easy.
Packing code
RM
Packing code
(Green)
RMG
Marking
03
Manufacture code
M0
DTC143 TM
SOT-723
8K / 7" Reel
◇
Only the on/off conditions need to be set for
Parameter
Symbol
PD
Value
Power Dissipation
Collector-Base Voltage
Emitter-Base Voltage
Collector Current
TM
100
TE
150
V
BR(CBO)
V
BR(CEO)
V
BR(EBO)
I
C
TUA / TCA
200
50
50
5
TSA
300
Unit
mW
V
V
V
mA
°C
Collector-Emitter Voltage
100
Junction and Storage Temperature Range
T
J
, T
STG
-55 to + 150
Notes : 1. Valid provided that electrodes are kept at ambient temperature
Electrical Characteristics
Parameter
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cut-Off Current
Emitter Cut-Off Current
DC Current Gain
Input Resistance
Resistance Ratio
Transition Frequency
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE
R
1
f
T
Min
50
50
5
Typ
Max
Condtion
Ic=50μA
Ic=1mA
I
E
=50μA
V
EB
=4V
Unit
V
V
V
μA
μA
V
KΩ
Collector-Emitter Breakdown Voltage
0.5
V
CB
=50V
0.5
0.3
V
CE(sat)
100
3.29
4.7
250
I
C
=5mA , I
B
=0.25mA
V
CE
=5V , I
C
=1mA
V
CE
=10V , I
E
=5mA , f=100MHz
600
6.11
MHz
Version : B13
