precision dual SPST switches that can be operated in a
single supply or in a dual supply configuration power supply
with low power dissipation. The DG2537, DG2538 and
DG2539 can switch both analog and digital signals within the
power supply rail, and conduct well in both directions.
Fabricated with advance submicron CMOS process, these
switches provide high precision low and flat ON resistance,
low leakage current, low parasitic capacitance, and low
charge injection.
The DG2537, DG2538 and DG2539 contain two
independent Single Pole Single Throw (SPST) switches.
Switch-1 and switch-2 are normally open for the DG2537 and
normally closed for the DG2538. For the DG2539, switch-1 is
normally open and switch-2 is normally closed with a
Break-Before-Make switching timing.
The DG2537, DG2538 and DG2539 are the ideal switches
for use in low voltage instruments and healthcare devices,
fitting the circuits of low voltage ADC and DAC, analog front
end gain control, and signal path control.
As a committed partner to the community and the
environment, Vishay Siliconix manufactures this product with
lead (Pb)-free device termination.
As a further sign of Vishay Siliconix's commitment, the
DG2537, DG2538 and D2539 are fully RoHS compliant and
halogen-free.
FEATURES
•
Halogen-free According to IEC 61249-2-21
Definition
• Low and flat switch on resistance, 2.5
/typ
• Low leakage and parasitic capacitance
• 366 MHz, - 3 dB bandwidth
• Latch-up current > 300 mA (JESD78)
• Over voltage tolerant TTL/CMOS compatible
•
Compliant to RoHS Directive 2002/95/EC
APPLICATIONS
•
•
•
•
•
•
•
•
•
Healthcare and medical devices
Test instruments
Portable meters
Data acquisitions
Control and automation
PDAs and modems
Communication systems
Audio, video systems
Mechanical reed relay replacement
FUNCTIONAL BLOCK DIAGRAM AND PIN CONFIGURATION
DG2537, MSOP-10
NO
1
COM
1
IN
2
GND
V-
1
2
3
4
5
10 V+
9
8
7
6
IN
1
COM
2
NO
2
NC
1
COM
1
IN
2
GND
V-
1
2
3
4
5
DG2538, MSOP-10
10 V+
9
8
7
6
Top View
IN
1
COM
2
NC
2
NO
1
COM
1
IN
2
GND
V-
1
2
3
4
5
DG2539, MSOP-10
10 V+
9
8
7
6
IN
1
COM
2
NC
2
Top View
Top View
TRUTH TABLE
(DG2537, DG2538)
DG2537
Logic
0
1
DG2538
1
0
Switches
Off
On
TRUTH TABLE
(DG2539)
Logic
0
1
Switch-1
Off
On
Switch-2
On
Off
ORDERING INFORMATION
Temperature Range
- 40 °C to 85 °C
Package
MSOP-10
MSOP-10
MSOP-10
Document Number: 63370
S11-1551-Rev. A, 01-Aug-11
Part Number
DG2537DQ-T1-GE3
DG2538DQ-T1-GE3
DG2539DQ-T1-GE3
www.vishay.com
1
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG2537, DG2538, DG2539
Vishay Siliconix
ABSOLUTE MAXIMUM RATINGS
Parameter
Referenced V+ to GND
IN, COM, NC, NO
a
Continuous Current (Any Terminal)
Peak Current (Pulsed at 1 ms, 10 % duty cycle)
Storage Temperature (D Suffix)
Power Dissipation (Packages)
b
Limit
- 0.3 to 6
- 0.3 to (V+ + 0.3)
± 50
± 200
- 65 to 150
MSOP-10
c
Unit
V
mA
°C
mW
320
Notes:
a. Signals on NC, NO, or COM or IN exceeding V+ will be clamped by internal diodes. Limit forward diode current to maximum current ratings.
b. All leads welded or soldered to PC board.
c. Derate 4 mW/°C above 70 °C.
SPECIFICATIONS
(V+ = 3 V, V- = 0 V)
Test Conditions
Otherwise Unless Specified
V+ = 3 V, V- = 0 V, ± 10 %, V
IN
= 0.4 V or 1.5 V
e
Limits
- 40 °C to 85 °C
Temp.
a
Min.
b
Typ.
c
Max.
b
Unit
Parameter
Analog Switch
Analog Signal Range
d
On-Resistance
R
ON
Flatness
d
R
ON
Match
d
Symbol
V
NO
, V
NC
V
COM
R
ON
R
ON
Flatness
R
ON
Match
I
NO(off)
I
NC(off)
I
COM(off)
Full
V+ = 2.7 V, V- = 0 V,
V
COM
= 0 V to V+, I
NO
, I
NC
= - 10 mA
V+ = 2.7 V, V- = 0 V,
V
COM
= 1.1 V to 1.6 V, I
NO
, I
NC
= - 10 mA
V+ = 2.7 V, V- = 0 V,
V
D
= 1.1 V to 1.6 V, I
D
= - 10 mA
V+ = 3.3 V, V- = 0 V,
V
NO
, V
NC
= 1 V/3 V, V
COM
= 3 V/1 V
V+ = 3.3 V, V- = 0 V,
V
NO
, V
NC
= V
COM
= 1 V/3 V
Room
Full
Room
Room
Full
Room
Full
Room
Full
Room
Full
Full
Full
f = 1 MHz
V
IN
= 0 or V+
Full
Full
Room
Full
Room
Full
Room
Room
Room
Room
Room
Room
Room
V
IN
= 0 or V+, f = 1 MHz
Room
Room
V
IN
= 0 or V+, V+ = 3.3 V
0
6.5
V+
V
10
0.4
0.3
0.9
- 0.25
- 0.35
- 0.25
- 0.35
- 0.25
- 0.35
2
0.4
2.4
-1
16
55
7
40
1.8
319
- 67
- 92
- 47
- 90
8
9
22
1
µA
pF
dB
pC
MHz
ns
1
0.25
0.35
0.25
0.35
0.25
0.35
nA
Switch Off Leakage Current
Channel-On Leakage Current
Digital Control
Input High Voltage
Input Low Voltage
Input Capacitance
d
Input Current
Dynamic Characteristics
Turn-On Time
Turn-Off Time
Charge Injection
d
Bandwidth
d
Off-Isolation
d
Crosstalk
d
Off-Isolation
d
Crosstalk
d
Source-Off Capacitance
d
Drain-Off Capacitance
d
Channel-On Capacitance
d
Power Supply
Power Supply Current
I
COM(on)
V
INH
V
INL
C
in
I
INL
or I
INH
V
pF
µA
t
ON
t
OFF
Q
INJ
BW
OIRR
X
TALK
OIRR
X
TALK
C
NC/NO(off)
C
COM(off)
C
ON
I+
V
NO
or V
NC
= 2 V, R
L
= 300
,
C
L
= 35 pF,
figures 1 and 2
C
L
= 1 nF, V
GEN
= 0 V, R
GEN
= 0
,
figure 3
V+ = 3 V, R
L
= 50
,
C
L
= 5 pF, - 3dB
R
L
= 50
,
C
L
= 5 pF, f = 1 MHz
R
L
= 50
,
C
L
= 5 pF, f = 10 MHz
www.vishay.com
2
Document Number: 63370
S11-1551-Rev. A, 01-Aug-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG2537, DG2538, DG2539
Vishay Siliconix
SPECIFICATIONS
(V+ = 5 V, V- = 0 V)
Test Conditions
Otherwise Unless Specified
V+ = 5 V, V- = 0 V, ± 10 %, V
IN
= 0.8 V or 2.4 V
e
Limits
- 40 °C to 85 °C
Temp.
a
Min.
b
Typ.
c
Max.
b
Unit
Parameter
Analog Switch
Analog Signal Range
d
On-Resistance
R
ON
Flatness
d
R
ON
Match
d
Symbol
V
NO
, V
NC
V
COM
R
ON
R
ON
Flatness
R
ON
Match
I
NO(off)
I
NC(off)
I
COM(off)
Full
V+ = 4.5 V, V- = 0 V,
V
COM
= 0 V to V+, I
NO
, I
NC
= 10 mA
V+ = 4.5 V, V- = 0 V,’
V
COM
= 1.3 V to 3 V, I
NO
, I
NC
= 10 mA
V+ = 4.5 V, V- = 0 V,
I
D
= 10 mA, V
COM
= 1.3 V to 3 V
V+ = 5.5 V, V- = 0 V,
V
NO
, V
NC
= 1 V/4.5 V, V
COM
= 4.5 V/1 V
V+ = 5.5 V, V- = 0 V,
V
NO
, V
NC
= V
COM
= 1 V/4.5 V
Room
Full
Room
Room
Room
Full
Room
Full
Room
Full
Full
Full
f = 1 MHz
V
IN
= 0 or V+
Full
Full
Room
Full
Room
Full
Room
Room
Room
Room
Room
Room
Room
V
IN
= 0 or V+, f = 1 MHz
Room
Room
0
2.5
V+
4.5
5
1.5
0.9
0.25
0.35
0.25
0.35
0.25
0.35
V
0.75
0.2
- 0.25
- 0.35
- 0.25
- 0.35
- 0.25
- 0.35
2.4
Switch Off Leakage Current
nA
Channel-On Leakage Current
Digital Control
Input High Voltage
Input Low Voltage
Input Capacitance
Input Current
Dynamic Characteristics
Turn-On Time
d
Turn-Off Time
d
I
COM(on)
V
INH
V
INL
C
in
I
INL
or I
INH
0.8
2.2
- 0.1
0.005
17
9
35
2.2
366
- 67
- 90
- 47
- 90
8
9
22
2.6
4.3
2
0.1
30
40
V
pF
µA
t
ON
t
OFF
Q
INJ
BW
OIRR
X
TALK
OIRR
X
TALK
C
NC/NO(off)
C
COM(off)
C
ON
V+
I+
V
NO
or V
NC
= 3 V, R
L
= 300
,
C
L
= 35 pF,
figures 1 and 2
C
L
= 1 nF, V
GEN
= 0 V, R
GEN
= 0
,
figure 3
V+ = 5 V, R
L
= 50
,
C
L
= 5 pF, - 3 dB
R
L
= 50
,
C
L
= 5 pF, f = 1 MHz
R
L
= 50
,
C
L
= 5 pF, f = 10 MHz
ns
Charge Injection
d
Bandwidth
d
Off-Isolation
d
Crosstalk
d
Off-Isolation
d
Crosstalk
d
Source-Off Capacitance
d
Drain-Off Capacitance
d
Channel-On Capacitance
d
Power Supply
Power Supply Range
Power Supply Current
pC
MHz
dB
pF
V
µA
V
IN
= 0 or V+, V+ = 5.5 V
Full
Document Number: 63370
S11-1551-Rev. A, 01-Aug-11
www.vishay.com
3
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG2537, DG2538, DG2539
Vishay Siliconix
SPECIFICATIONS
(V+ = + 2.5 V, V- = - 2.5 V)
Test Conditions
Otherwise Unless Specified
V+ = + 2.5 V, V- = - 2.5 V, ± 10 %,
V
IN
= 0.8 V or 2.4 V
e
Limits
- 40 °C to 85 °C
Temp.
a
Min.
b
Typ.
c
Max.
b
Unit
Parameter
Analog Switch
Analog Signal Range
On-Resistance
R
ON
Flatness
R
ON
Match
Symbol
V
NO
, V
NC
V
COM
R
ON
R
ON
Flatness
R
ON
Match
I
NO(off)
I
NC(off)
I
COM(off)
Full
V+ = + 2.25 V, V- = - 2.25 V,
V
COM
= V- to V+, I
NO
, I
NC
= 10 mA
V+ = + 2.25 V, V- = - 2.25 V,
V
COM
= ± 1.2 V, 0 V, I
NO
, I
NC
= 10 mA
V+ = + 2.25 V, V- = - 2.25 V,
V
COM
= ± 1.4 V, I
NO
, I
NC
= 10 mA
V+ = + 2.75 V, V- = - 2.75 V,
V
S
= ± 2.5 V, V
D
= ± 2.5 V
V+ = + 2.75 V, V- = - 2.25 V,
V
S
= V
D
= ± 2.5 V
Room
Full
Room
Room
Room
Full
Room
Full
Room
Full
Full
Full
f = 1 MHz
V
IN
= 0 or V+
Full
Full
Room
Full
Room
Full
Room
Room
Room
Room
Room
Room
Room
V
IN
= 0 or V+, f = 1 MHz
Room
Room
V-
3.6
0.7
0.2
- 0.25
- 0.35
- 0.25
- 0.35
- 0.25
- 0.35
2.4
V+
4.5
5
1.5
0.9
0.25
0.35
0.25
0.35
0.25
0.35
V
Switch Off Leakage Current
nA
Switch on Leakage
Digital Control
Input High Voltage
Input Low Voltage
Input Capacitance
Input Current
Dynamic Characteristics
Turn-On Time
d
Turn-Off Time
d
I
COM(on)
V
INH
V
INL
C
in
I
INL
or I
INH
0.8
2.2
- 0.1
0.1
35
40
20
25
2.2
366
- 67
- 90
- 47
- 90
6
12
24
1.25
2.75
2
V
pF
µA
t
ON
t
OFF
Q
INJ
BW
OIRR
X
TALK
OIRR
X
TALK
C
NC/NO(off)
C
COM(off)
C
ON
V+
I+
V
NO
or V
NC
= 2 V, R
L
= 300
,
C
L
= 35 pF
C
L
= 1 nF, V
GEN
= 0 V, R
GEN
= 0
V+ = + 2.5 V, V- = - 2.5 V,
R
L
= 50
,
C
L
= 5 pF, - 3dB
V+ = + 2.5 V, V- = - 2.5 V,
R
L
= 50
,
C
L
= 5 pF, - 3dB, f = 1 MHz
V+ = + 2.5 V, V- = - 2.5 V,
R
L
= 50
,
C
L
= 5 pF, - 3dB, f = 10 MHz
ns
Charge Injection
d
Bandwidth
d
Off-Isolation
d
Crosstalk
d
Off-Isolation
d
Crosstalk
d
Source-Off Capacitance
d
Drain-Off Capacitance
d
Channel-On Capacitance
d
Power Supply
Power Supply Range
Power Supply
pC
MHz
dB
pF
V
µA
V
IN
= 0 or V+, V+ = 2.5 V
Notes:
a. Room = 25 °C, Full = as determined by the operating suffix.
b. The algebraic convention whereby the most negative value is a minimum and the most positive a maximum, is used in this data sheet.
c. Typical values are for design aid only, not guaranteed nor subject to production testing.
d. Guarantee by design, nor subjected to production test.
e. V
IN
= input voltage to perform proper function.
f. Not production tested.
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
www.vishay.com
4
Document Number: 63370
S11-1551-Rev. A, 01-Aug-11
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
DG2537, DG2538, DG2539
Vishay Siliconix

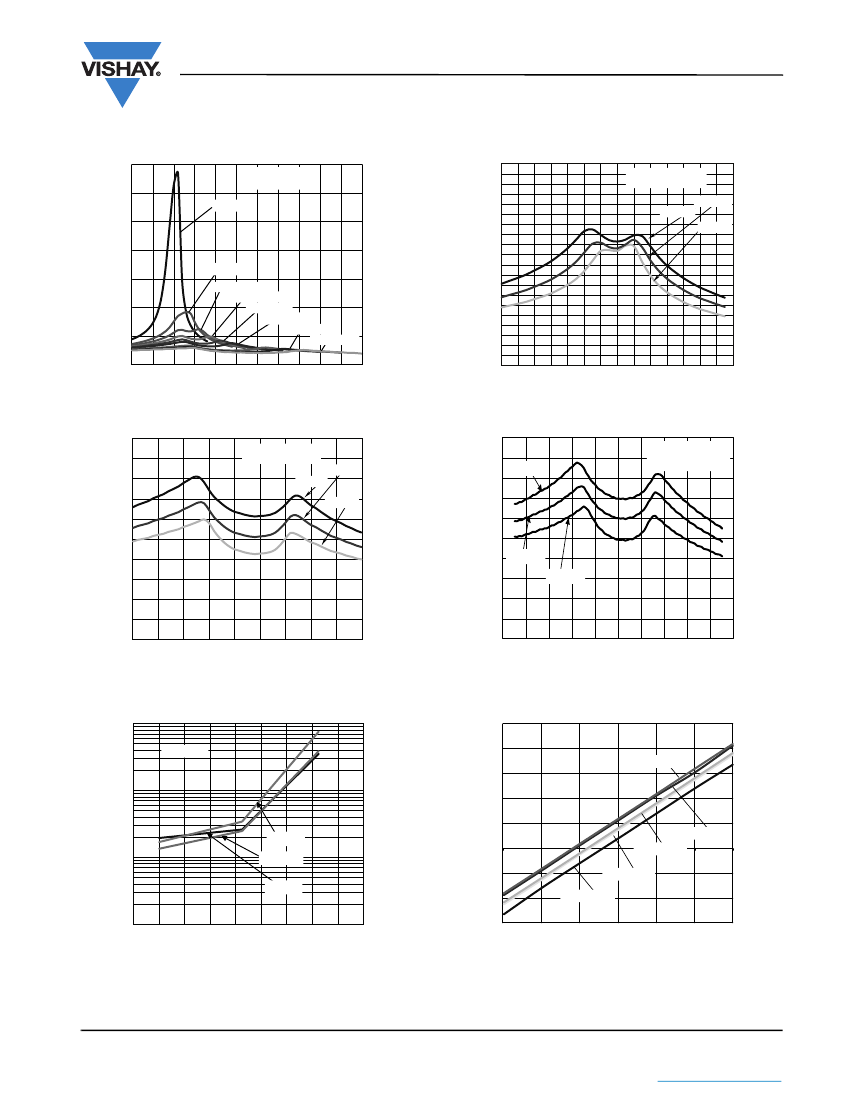

TYPICAL CHARACTERISTICS
(T
A
= 25 °C, unless otherwise noted)
35
30
R
ON
- On-Resistance (Ω)
25
20
V+
= 2.4
V
15
10
5
0
0
0.5
1
1.5
2
2.5
3
3.5
4
4.5
5
5.5
V
D
- Analog
Voltage
(V)
V+
= 2.7
V
V+
= 3.0
V
V+
= 3.3
V
V+
= 4.5
V
V+
= 5.0
V
V+
= 5.5
V
10
T = 25 °C
INO/NC = - 10 mA
V+
= 1.8
V
9
8
V+
= 2.7
V
INO/NC = - 10 mA
+ 25 °C
+
85
°C
- 40 °C
R
ON
- On-Resistance (Ω)
7
6
5
4
3
2
1
0
0
0.4
0.8
1.2
1.6
2.0
V
D
- Analog
Voltage
(V)
2.4
2.8
R
ON
vs. V
D
and Single Supply Voltage
5.0
4.5
4.0
R
ON
- On-Resistance (Ω)
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
V+
= 4.5
V
INO/NC = - 10 mA
+ 25 °C
+
85
°C
- 40 °C
4
5
R
ON
vs. Analog Voltage and Temperature
V = ± 2.25 V
IN
O
/N
C
= - 10 mA
+ 85 °C
R
ON
- On-Resistance (Ω)
3
2
+ 25 °C
- 40 °C
1
0
- 2.5 - 2 - 1.5
- 1 - 0.5
0
0.5
1
1.5
2
2.5
V
D
- Analog
Voltage
(V)
V
COM
- Analog Voltage (V)
R
ON
vs. Analog Voltage and Temperature
100
V+
= 5.5
V
10 mA
1 mA
R
ON
vs. Analog Voltage and Temperature
V+
= 5.5
V
10
I+ - Supply Current (A)
100
µA
10
µA
1
µA
Leakage Current (pA)
I
COM(ON)
1
I
COM(OFF)
I
NO(OFF)
V+
= 5.0
V
100 nA
10 nA
1 nA
V+
= 3.3
V
V+
= 3.0
V
V+
= 1.8
V
0.1
- 60
- 40
- 20
0
20
40
60
Temperature (°C)
80
100
120
100 pA
10
100
1K
10K
100K
1M
Input Switching Frequency (Hz)
10M
Leakage Current vs. Temperature
Supply Current vs. Input Switching Frequency
Document Number: 63370
S11-1551-Rev. A, 01-Aug-11
www.vishay.com
5
This document is subject to change without notice.
THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
[b] Now I want to make a phase-locked loop. The input frequency of the phase-locked loop is the grid frequency, and the output frequency is 256 times the grid frequency. The output frequency is used a...
It introduces the concepts of satellite navigation, coordinate system, GPS components, satellite signals, receivers, interference, etc., and provides a lot of engineering practice knowledge. The field...
[i=s]This post was last edited by jameswangsynnex on 2015-3-3 19:59[/i]Because the charger sockets attached to different models of mobile phones are different, the chargers of different mobile phones ...
When I used the GPRS module today, the module could not register with the network. I typed AT+CREG? and the command returned 0,2. According to the instructions in the manual, the module was always loo...
From being a global leader to losing the market, Korean battery manufacturers have always wanted to regain the lost market and dignity, but facing Chinese battery manufacturers represented by CAT...[Details]
1. Equipment Overview
Shell-and-tube heat exchangers are a common heat exchange device used in chemical evaporation and heating equipment. Currently, the tubesheets of shell-and-tube heat exch...[Details]
"Have you set your calendar reminder?"
On August 24, Nvidia Robotics' official account posted a photo of a black gift box on a social media platform, with an attached greeting card sig...[Details]
On August 25th, TSMC, the world's leading contract chip manufacturer, attracted significant attention for its decision to build a chip manufacturing facility in Arizona. TSMC primarily manufactures...[Details]
Robotics
has become
LiDAR
's "second growth curve."
While LiDAR was still battling with its "pure vision" rivals in the automotive field, another field ignited the demand f...[Details]
On August 22, the National Energy Administration released the latest data, showing that by the end of July 2025, China's total number of electric vehicle charging infrastructure will reach 16.696 m...[Details]
The all-new MG4 was recently officially announced on the Ministry of Industry and Information Technology's (MIIT) new vehicle announcement. The all-new MG4's semi-solid-state battery version addres...[Details]
Since its invention in the mid-1940s, the microwave oven has evolved from a humble beginning to commercial use, entering homes in the 1960s and rapidly gaining popularity. Its basic functionality a...[Details]
Electric vehicles are now widespread, but they've brought with them a host of problems, the most prominent of which is charging. Small electric vehicles (EVs) are a new form of transportation in a ...[Details]
Teletrac Navman has launched the Multi IQ dashcam, a cloud-based solution designed for large commercial vehicle operators. It connects up to five cameras to cover the vehicle's interior, sides, and...[Details]
On August 21st, BYD announced the launch of its next-generation "Little White Pile" product, the "Lingchong"
charging
pile
, which is now available for general sale. This charging pile feat...[Details]
In the field of intelligent driving, regulations are becoming increasingly stringent, and the technical threshold continues to rise. Especially after the traffic accident in March 2025, the Ministr...[Details]
In daily life, when we purchase a transformer, we are faced with the installation and wiring procedures. Generally speaking, large transformers such as power transformers are equipped with speciali...[Details]
MQTT Ethernet I/O modules primarily collect I/O port information and transmit data over the network. In addition to being a TCP server, Ethernet I/O modules can also function as TCP clients. Furthe...[Details]
The driving mode is not unfamiliar to vehicles. According to the driving mode of the vehicle, there are front-wheel drive, rear-wheel drive and even four-wheel drive. Four-wheel drive is a major se...[Details]
Analog electronics
京公网安备 11010802033920号
EEWORLD
