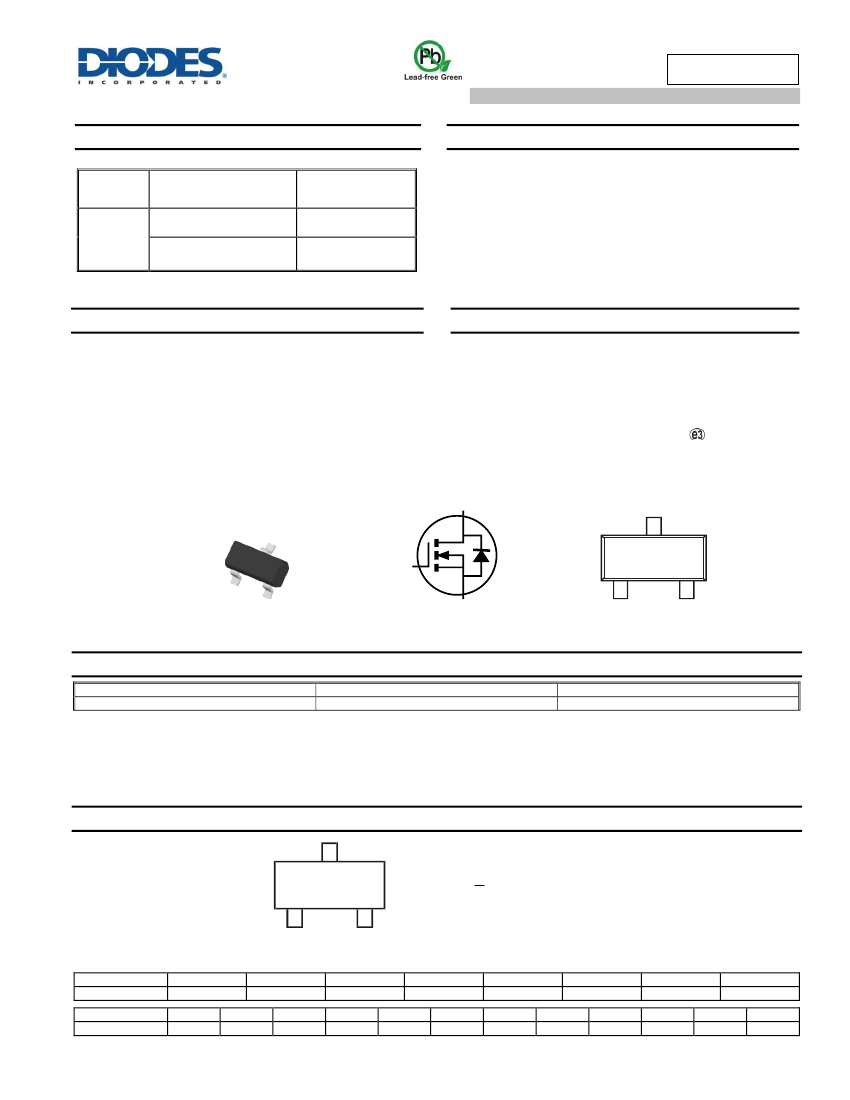

ZXMN2F30FHQ

20V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

V

(BR)DSS

R

DS(ON)

max

45mΩ @ V

GS

= 4.5V

20V

65mΩ @ V

GS

= 2.5V

4.1 A

I

D

max

T

A

= +25°C

4.9 A

Features and Benefits



Low On-Resistance

Low Input Capacitance

Fast Switching Speed

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

NEW PRODUCT

Description and Applications

This MOSFET is designed to meet the stringent requirements of

automotive applications. It is qualified to AEC-Q101, supported by a

PPAP and is ideal for use in:



LED Lighting

Charging applications in portable equipment

DC-DC Converters

Motor Control

Mechanical Data



Case: SOT23

Case Material: Molded Plastic, “Green” Molding Compound.

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish

Matte

Tin Annealed over Copper Leadframe.

Solderable per MIL-STD-202, Method 208

Terminals Connections: See Diagram Below

Weight: 0.009 grams (Approximate)

D

G

S

Top View

Internal Schematic

Top View

Ordering Information

(Note 5)

Part Number

ZXMN2F30FHQTA

Notes:

Case

SOT23

Packaging

3,000/Tape & Reel

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

KNC = Product Type Marking Code

YM = Date Code Marking

Y or Y= Year (ex: D = 2016)

M = Month (ex: 9 = September)

KNC

22K

Date Code Key

Year

Code

Month

Code

2016

D

Jan

1

Feb

2

2017

E

Mar

3

2018

F

Apr

4

May

5

YM

2019

G

Jun

6

2020

H

Jul

7

Aug

8

2021

I

Sep

9

2022

J

Oct

O

Nov

N

2023

K

Dec

D

July 2016

ZXMN2F30FHQ

Document number: DS38981 Rev. 1 - 2

1 of 6

www.diodes.com

ZXMN2F30FHQ

Maximum Ratings

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

Drain-Source Voltage

Gate-Source Voltage

Steady

State

Maximum Continuous Body Diode Forward Current (Note 7)

Pulsed Drain Current (10µs pulse, duty cycle = 1%)

Continuous Drain Current (Note 7) V

GS

= 4.5V

T

A

= +25°C

T

A

= +70°C

Symbol

V

DSS

V

GSS

I

D

I

S

I

DM

Value

20

±12

4.9

4.0

1.6

22.6

Units

V

A

NEW PRODUCT

Thermal Characteristics

Characteristic

Total Power Dissipation (Note 6)

Thermal Resistance, Junction to Ambient (Note 6)

Total Power Dissipation (Note 7)

Thermal Resistance, Junction to Ambient (Note 7)

Operating and Storage Temperature Range

Steady State

Symbol

P

D

R

θJA

P

D

R

θJA

T

J,

T

STG

Value

0.96

131

1.4

89

-55 to +150

Units

W

°C/W

W

°C/W

°C

Electrical Characteristics

(@T

A

= +25°C, unless otherwise specified.)

Characteristic

OFF CHARACTERISTICS (Note 8)

Drain-Source Breakdown Voltage

Zero Gate Voltage Drain Current

Gate-Source Leakage

ON CHARACTERISTICS (Note 8)

Gate Threshold Voltage

Static Drain-Source On-Resistance

Diode Forward Voltage

DYNAMIC CHARACTERISTICS (Note 9)

Input Capacitance

Output Capacitance

Reverse Transfer Capacitance

Total Gate Charge

Gate-Source Charge

Gate-Drain Charge

Turn-On Delay Time

Turn-On Rise Time

Turn-Off Delay Time

Turn-Off Fall Time

Notes:

Symbol

BV

DSS

I

DSS

I

GSS

V

GS(TH)

R

DS(ON)

V

SD

C

iss

C

oss

C

rss

Q

g

Q

gs

Q

gd

t

D(ON)

t

R

t

D(OFF)

t

F

Min

20

-

0.6

-

Typ

-

0.9

-

0.75

452

102

58

4.8

1

1.2

2.9

5.6

19.4

10.2

Max

-

1

±100

1.5

45

65

1.2

-

Unit

V

µA

nA

V

mΩ

V

pF

nC

ns

Test Condition

V

GS

= 0V, I

D

= 250µA

V

DS

= 20V, V

GS

= 0V

V

GS

= ±12V, V

DS

= 0V

V

DS

= V

GS

, I

D

= 250µA

V

GS

= 4.5V, I

D

= 2.5A

V

GS

= 2.5V, I

D

= 2.0A

V

GS

= 0V, I

S

= 1.25A

V

DS

= 10V, V

GS

= 0V

f = 1.0MHz

T

J

= +25C

V

DS

= 10V, V

GS

= 4.5V, I

D

= 3.5A

V

DS

= 10V, V

GS

= 4.5V,

R

G

= 6Ω, I

D

= 1A

6. Device mounted on FR-4 PCB, with minimum recommended pad layout.

7. Device mounted on 1” x 1” FR-4 PCB with high coverage 2oz. Copper, single sided.

8. Short duration pulse test used to minimize self-heating effect.

9. Guaranteed by design. Not subject to product testing.

ZXMN2F30FHQ

Document number: DS38981 Rev. 1 - 2

2 of 6

www.diodes.com

July 2016

ZXMN2F30FHQ

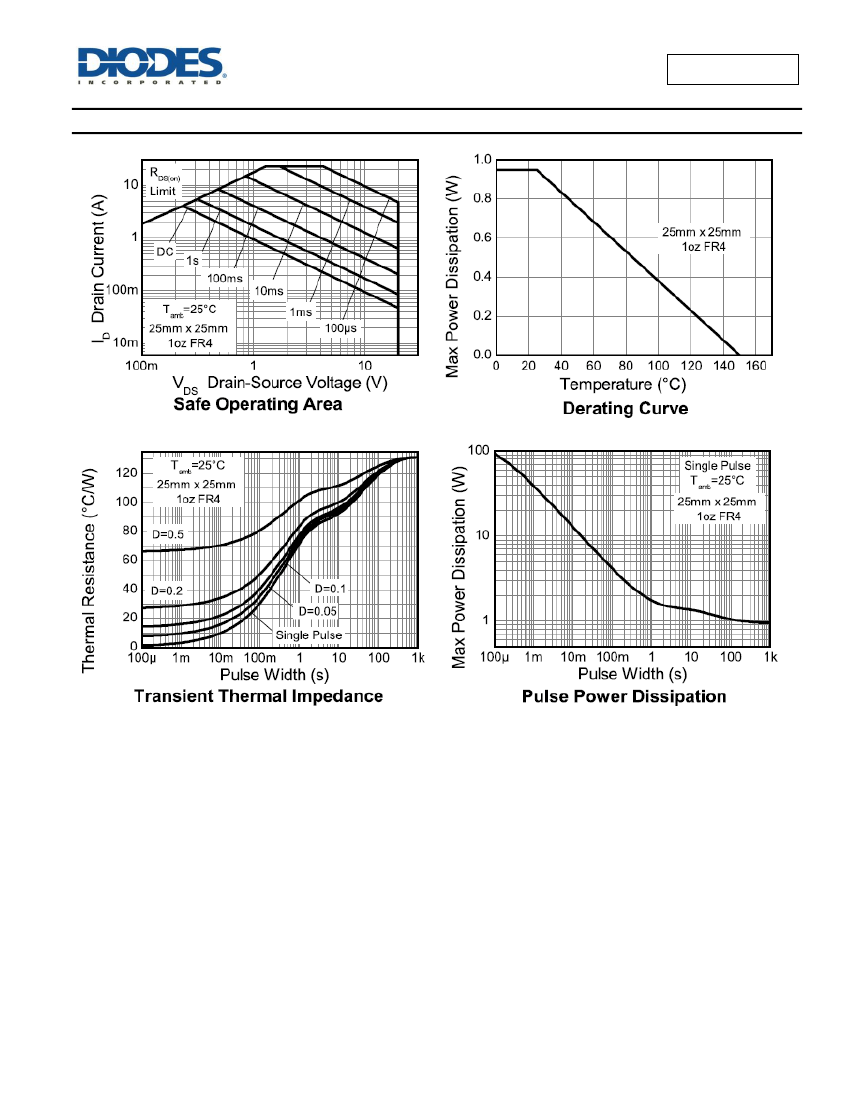

Thermal characteristics

NEW PRODUCT

ZXMN2F30FHQ

Document number: DS38981 Rev. 1 - 2

3 of 6

www.diodes.com

July 2016

ZXMN2F30FHQ

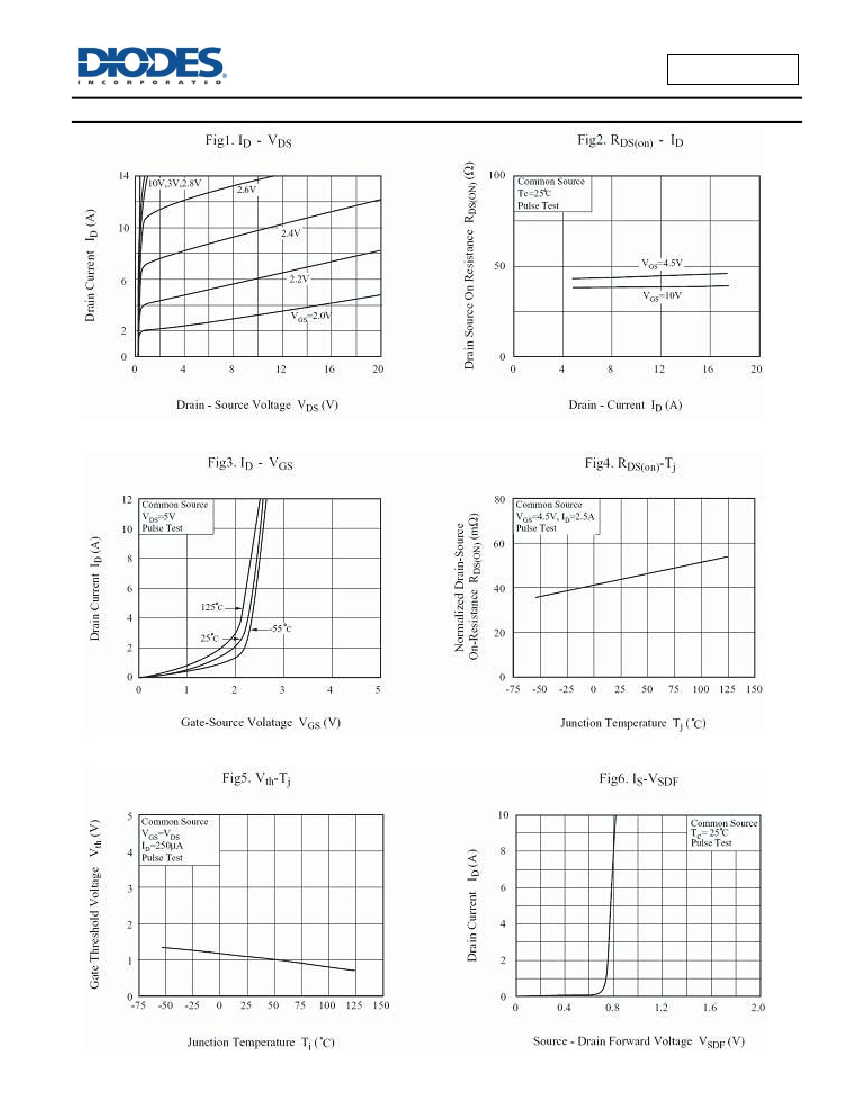

Typical Characteristics

NEW PRODUCT

ZXMN2F30FHQ

Document number: DS38981 Rev. 1 - 2

4 of 6

www.diodes.com

July 2016

ZXMN2F30FHQ

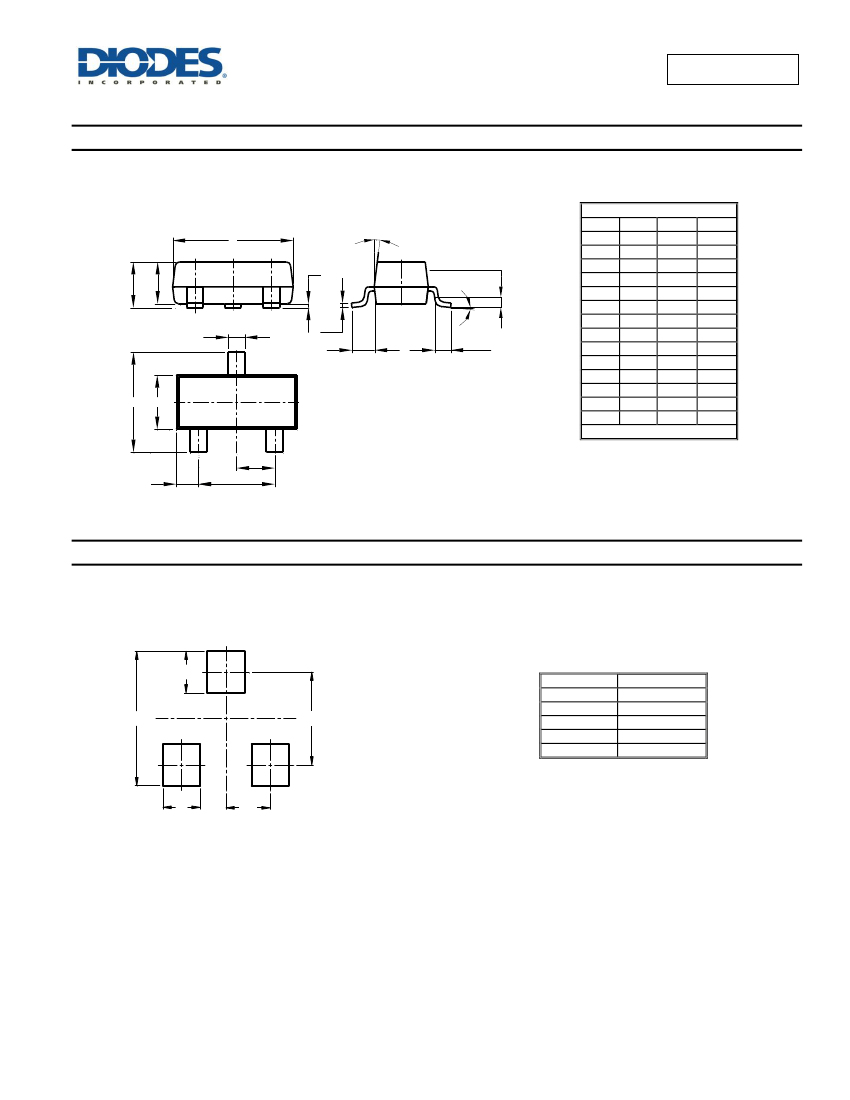

Package Outline Dimensions

Please see http://www.diodes.com/package-outlines.html for the latest version.

SOT23

Dim

Min

Max

Typ

A

0.37

0.51

0.40

B

1.20

1.40

1.30

C

2.30

2.50

2.40

D

0.89

1.03 0.915

F

0.45

0.60 0.535

G

1.78

2.05

1.83

H

2.80

3.00

2.90

J

0.013 0.10

0.05

K

0.890 1.00 0.975

K1

0.903 1.10 1.025

L

0.45

0.61

0.55

L1

0.25

0.55

0.40

M

0.085 0.150 0.110

a

0°

8°

--

All Dimensions in mm

H

J

All 7°

GAUGE PLANE

0.25

NEW PRODUCT

K1

K

a

A

M

L

L1

C

B

D

F

G

Suggested Pad Layout

Please see http://www.diodes.com/package-outlines.html for the latest version.

SOT23

Y

Y1

C

Dimensions

C

X

X1

Y

Y1

Value (in mm)

2.0

0.8

1.35

0.9

2.9

X

X1

ZXMN2F30FHQ

Document number: DS38981 Rev. 1 - 2

5 of 6

www.diodes.com

July 2016
