8100613EX datasheet, PDF - EEWORLD Datasheet

8100613EX: DescriptionDPST, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16; CategoryThe signal circuit; File Size266KB，11 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

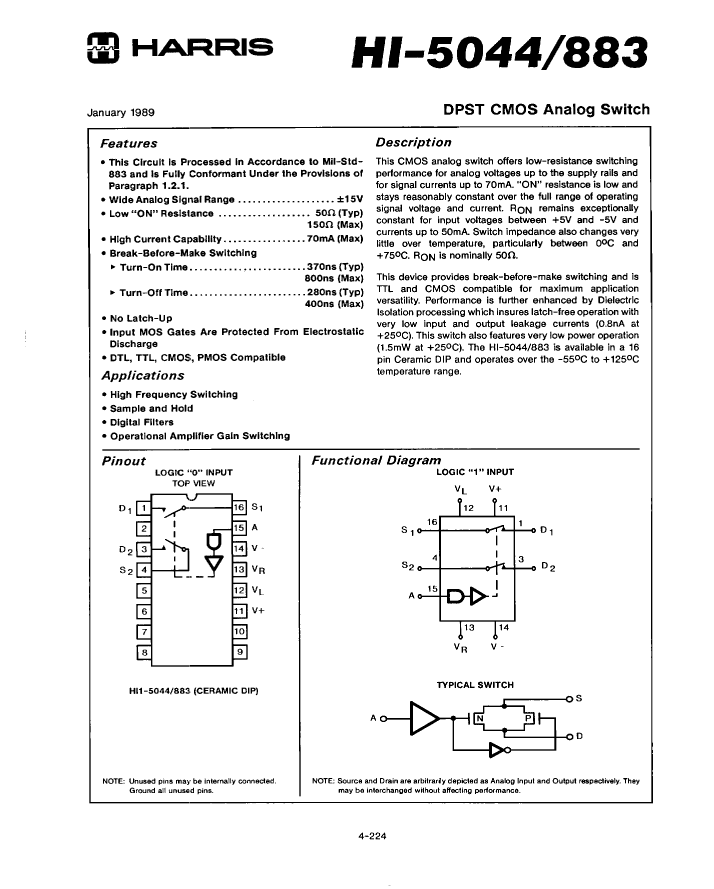

8100613EX Overview

DPST, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16

Parameter Name	Attribute value
Maker	Harris
package instruction	DIP,
Reach Compliance Code	unknown
Is Samacsys	N
Analog Integrated Circuits - Other Types	DPST
JESD-30 code	R-CDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of channels	1
Number of functions	1
Number of terminals	16

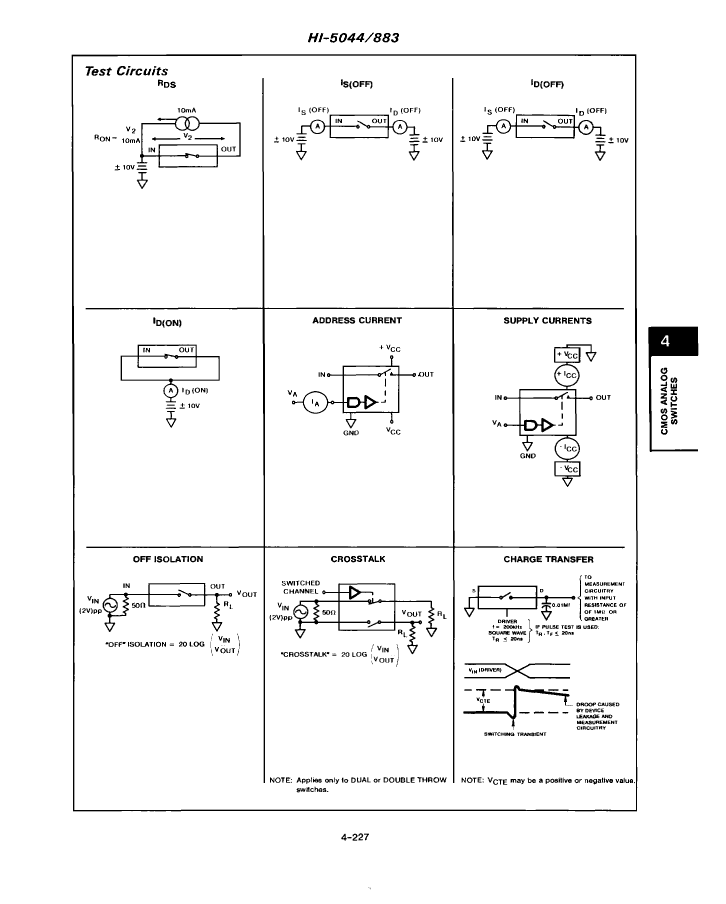

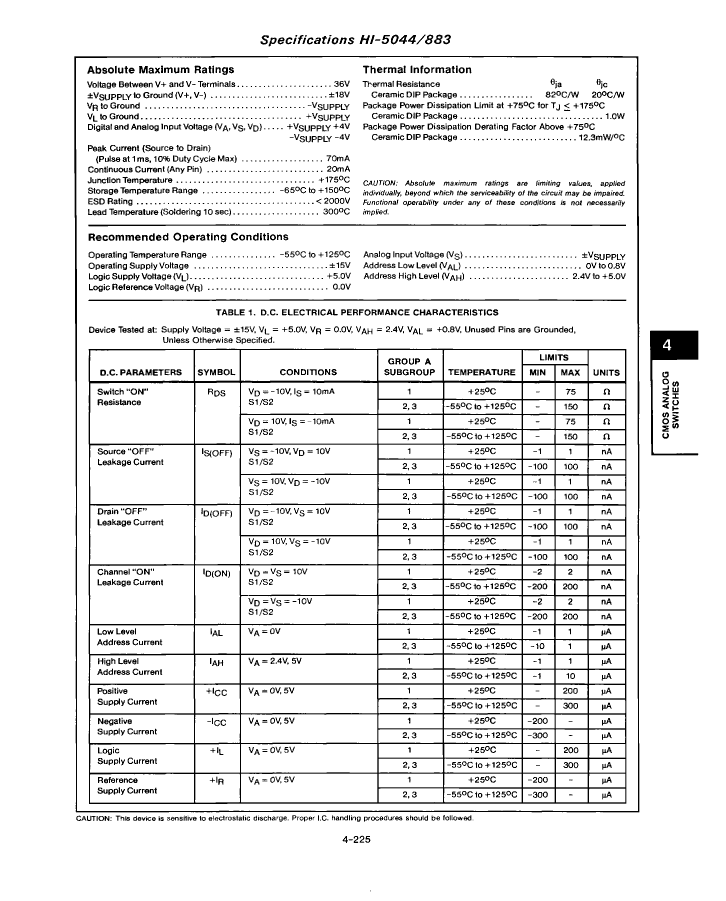

Maximum on-state resistance (Ron)	75 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal supply voltage (Vsup)	15 V
surface mount	NO

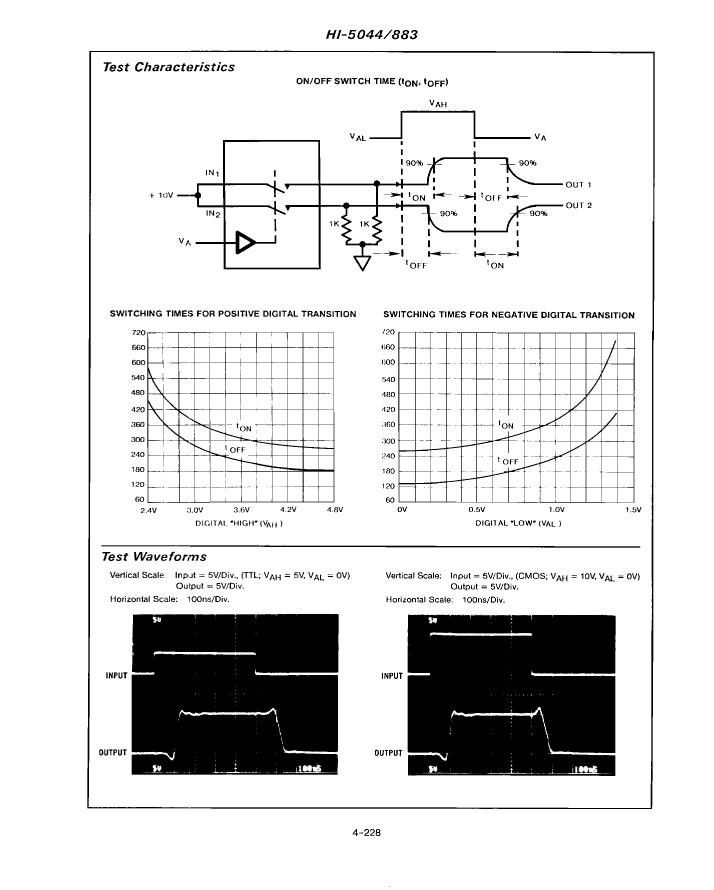

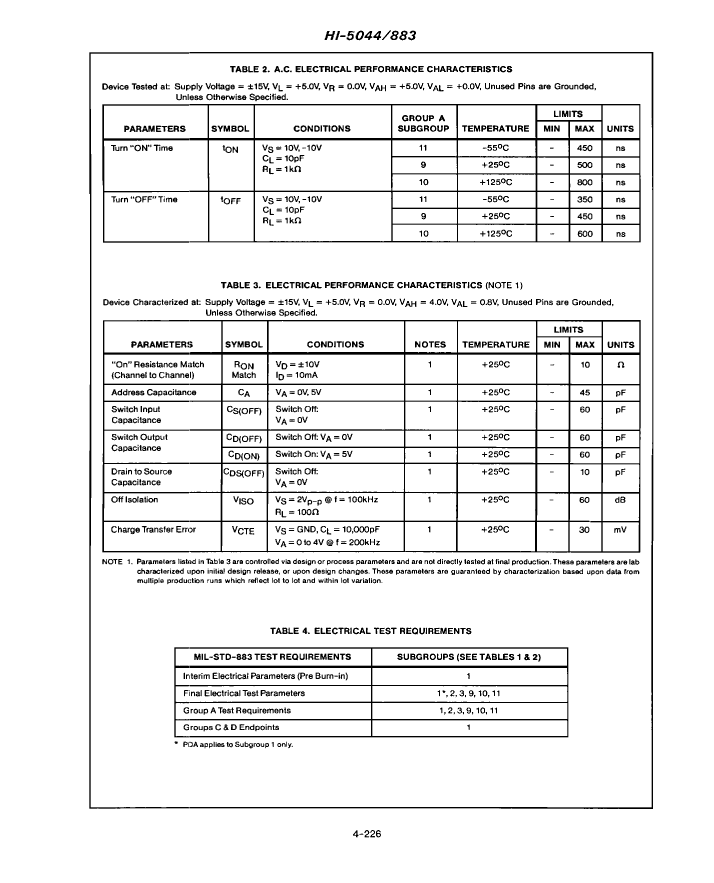

Maximum disconnect time	350 ns
Maximum connection time	450 ns
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	8100613EX	8100613EA
Description	DPST, 1 Func, 1 Channel, CMOS, CDIP16, CERAMIC, DIP-16	DPST, 1 Func, 2 Channel, CMOS, CDIP16
Maker	Harris	Harris
Reach Compliance Code	unknown	unknown
Analog Integrated Circuits - Other Types	DPST	DPST
JESD-30 code	R-CDIP-T16	R-GDIP-T16
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V
Number of channels	1	2
Number of functions	1	1
Number of terminals	16	16
Maximum on-state resistance (Ron)	75 Ω	75 Ω
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified
Nominal supply voltage (Vsup)	15 V	15 V
surface mount	NO	NO
Maximum disconnect time	350 ns	450 ns
Maximum connection time	450 ns	500 ns
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
