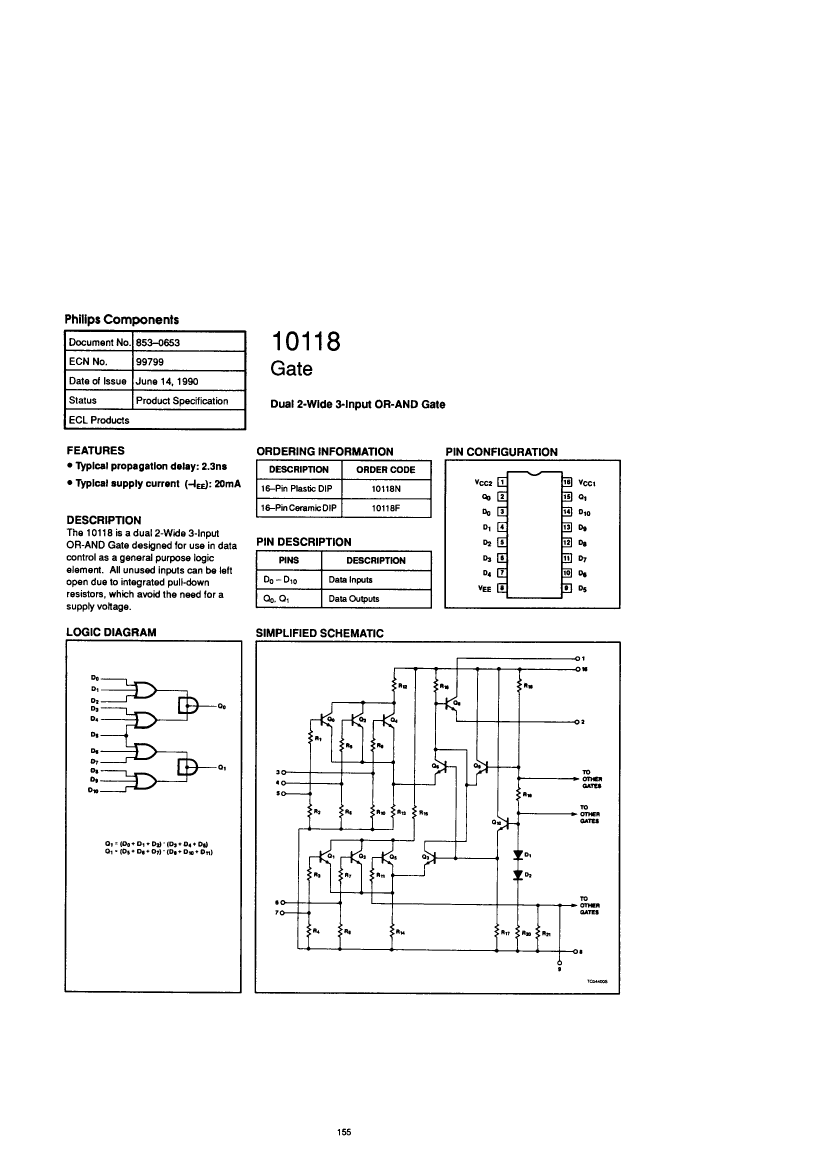

Dual 2-Wide 3-Input OR-AND Gate

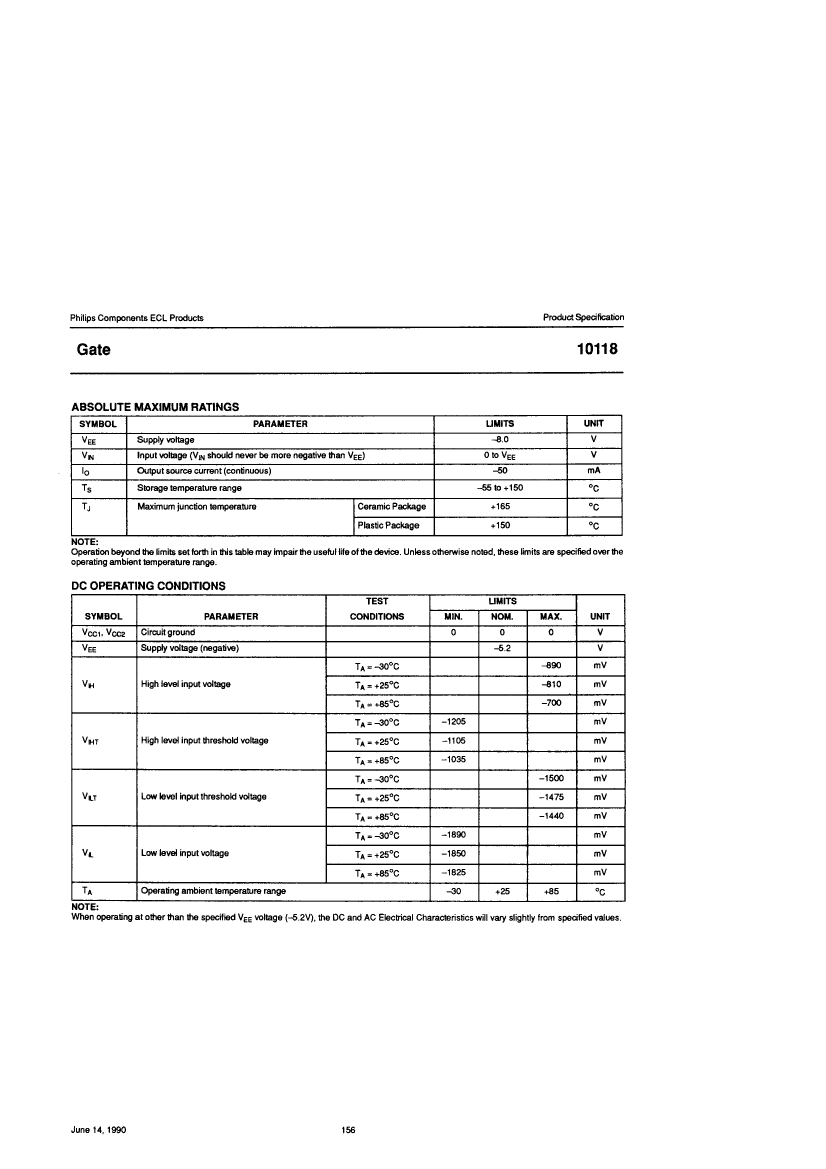

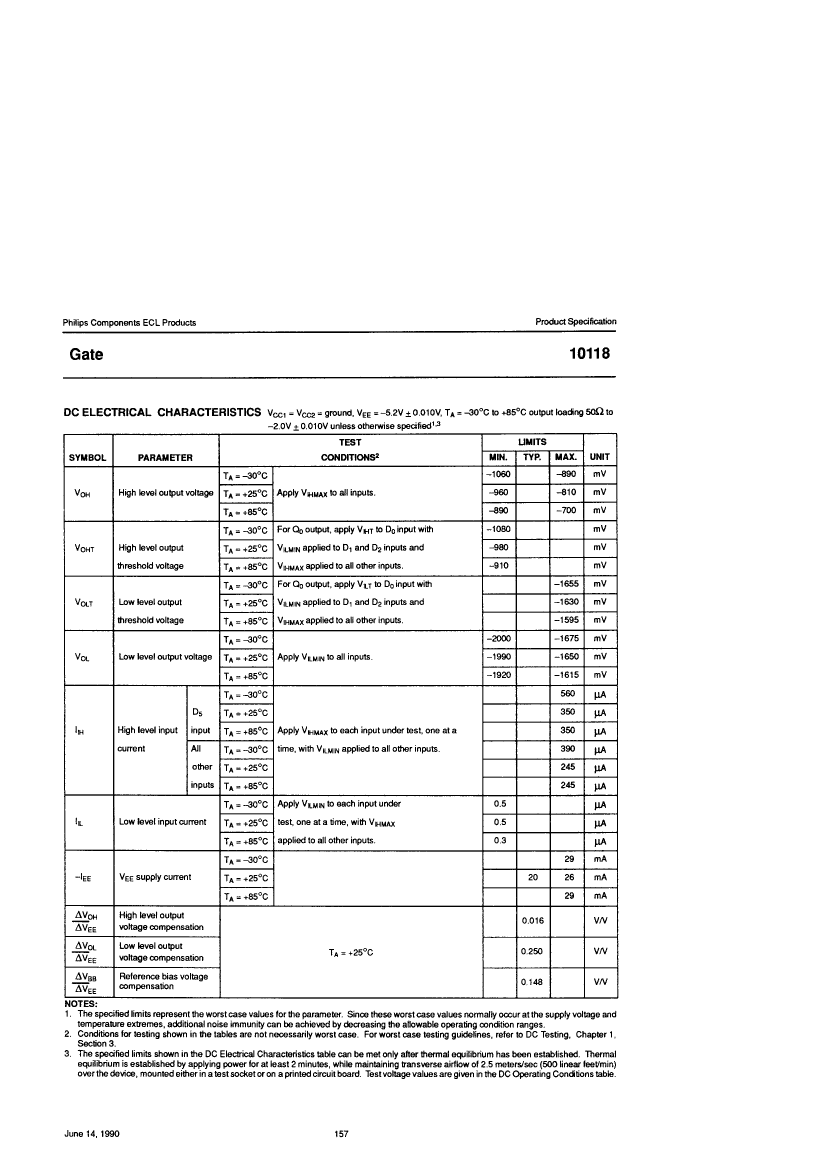

| 10118 | 10118F | 10118N | |
|---|---|---|---|
| Description | Dual 2-Wide 3-Input OR-AND Gate | Dual 2-Wide 3-Input OR-AND Gate | Dual 2-Wide 3-Input OR-AND Gate |
| Is it Rohs certified? | - | incompatible | incompatible |
| Maker | - | Philips Semiconductors (NXP Semiconductors N.V.) | Philips Semiconductors (NXP Semiconductors N.V.) |
| package instruction | - | DIP, DIP16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | - | unknown | unknown |
| JESD-30 code | - | R-XDIP-T16 | R-PDIP-T16 |
| JESD-609 code | - | e0 | e0 |
| Logic integrated circuit type | - | OR-AND GATE | OR-AND GATE |
| Number of terminals | - | 16 | 16 |
| Maximum operating temperature | - | 85 °C | 85 °C |
| Minimum operating temperature | - | -30 °C | -30 °C |
| Package body material | - | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | - | DIP | DIP |
| Encapsulate equivalent code | - | DIP16,.3 | DIP16,.3 |
| Package shape | - | RECTANGULAR | RECTANGULAR |
| Package form | - | IN-LINE | IN-LINE |
| power supply | - | -5.2 V | -5.2 V |
| Maximum supply current (ICC) | - | 29 mA | 29 mA |
| Prop。Delay @ Nom-Sup | - | 3.9 ns | 3.9 ns |
| Certification status | - | Not Qualified | Not Qualified |
| Schmitt trigger | - | NO | NO |
| surface mount | - | NO | NO |
| technology | - | ECL10K | ECL10K |
| Temperature level | - | OTHER | OTHER |
| Terminal surface | - | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | - | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | - | 2.54 mm | 2.54 mm |
| Terminal location | - | DUAL | DUAL |
