DF1501M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DF1501M

DF1501M: DescriptionBridge Rectifiers 1.5A 100V; CategoryDiscrete semiconductor diode; File Size91KB，3 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric Compare View All

DF1501M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DF1501M	-	-	View	Buy Now

DF1501M Overview

Bridge Rectifiers 1.5A 100V

DF1501M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
package instruction	ROHS COMPLIANT, PLASTIC, DF-M, 4 PIN
Contacts	4
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	UL RECOGNIZED
Minimum breakdown voltage	100 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V
JESD-30 code	R-PDIP-T4
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	40

Preview

Download Datasheet

View All

NOT RECOMMENDED

FOR NEW DESIGN

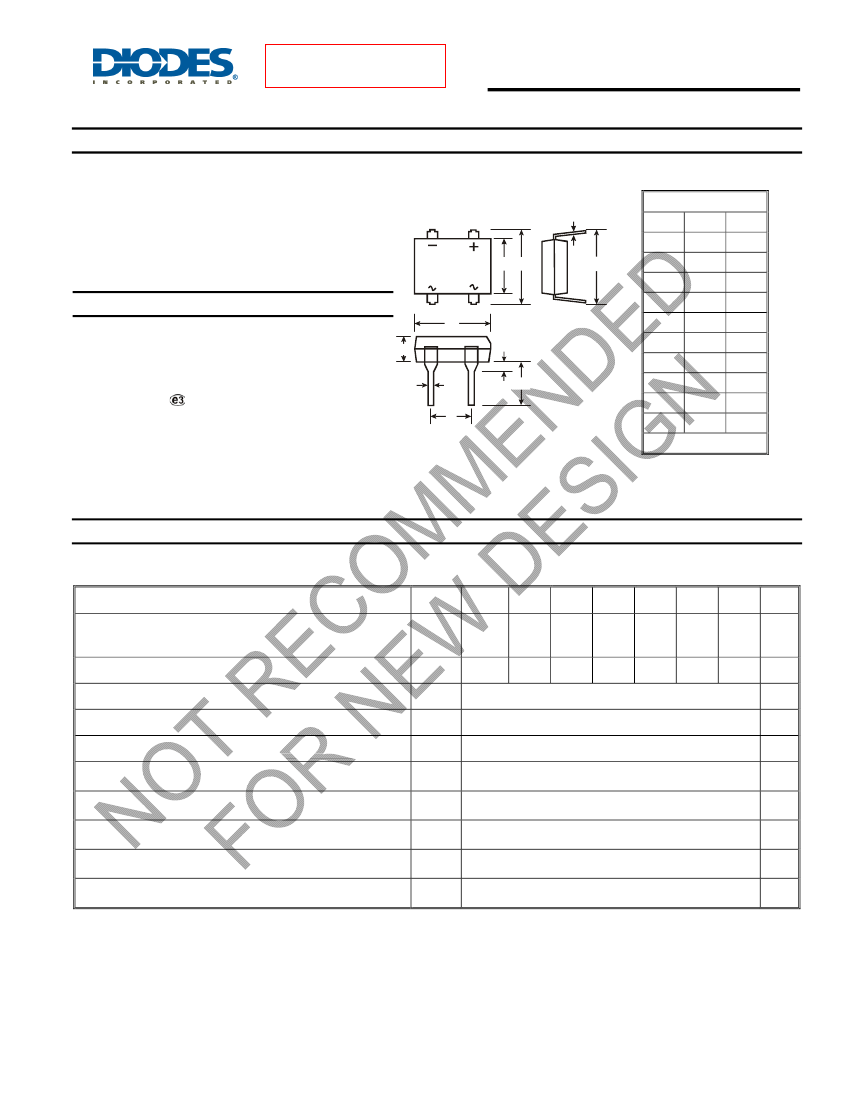

DF15005M - DF1510M

1.5A GLASS PASSIVATED BRIDGE RECTIFIERS

Features

•

Glass Passivated Die Construction

Low Forward Voltage Drop, High Current Capability

Surge Overload Rating to 50A Peak

Designed for Printed Circuit Board Applications

UL Listed Under Recognized Component Index, File

Number E94661

Lead Free Finish, RoHS Compliant (Date Code 0532+)

(Note 3)

DF-M

Dim

Min

7.40

6.20

0.22

1.27

7.60

3.81

8.13

2.40

5.00

0.46

Max

7.90

6.50

0.30

2.03

8.90

4.69

8.51

3.40

5.20

0.58

B A

Mechanical Data

•

Case: DF-M

Case Material: Molded Plastic. UL Flammability

Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020C

Terminals: Finish

―

Tin. Solderable per MIL-STD-202,

Method 208

Polarity: As Marked on Case

Marking: Type Number

Weight: 0.38 grams (approximate)

All Dimensions in mm

Maximum Ratings and Electrical Characteristics

Single phase, half wave, 60Hz, resistive or inductive load.

For capacitive load, derate current by 20%.

Characteristic

Peak Repetitive Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Average Rectified Output Current

Non-Repetitive Peak Forward Surge Current 8.3ms

Single Half Sine-Wave Superimposed on Rated Load

Forward Voltage (per element)

Peak Reverse Current

at Rated DC Blocking Voltage

I t Rating for Fusing (t<8.3ms)

Typical Total Capacitance (Note 2)

Typical Thermal Resistance Junction to Ambient

Operating and Storage Temperature Range

Notes:

= 25°C unless otherwise specified

Symbol

RRM

RWM

R(RMS)

@ T

= 40°C

FSM

@ I

= 1.5A

@ T

= 25°C

@ T

= 125°C

STG

15005M 1501M 1502M 1504M 1506M 1508M 1510M

100

200

140

400

280

1.5

1.1

500

10.4

-65 to +150

600

420

800

560

1000

700

Unit

µA

°C/W

°C

1. Thermal resistance from junction to ambient mounted on PC board with 13 x 13mm (0.03mm thick) land areas.

2. Measured at 1.0 MHz and applied reverse voltage of 4.0V DC.

3. RoHS revision 13.2.2003. Glass and high temperature solder exemptions applied, see

EU Directive Annex Notes 5 and 7.

DS21214 Rev. 10 - 3

1 of 3

www.diodes.com

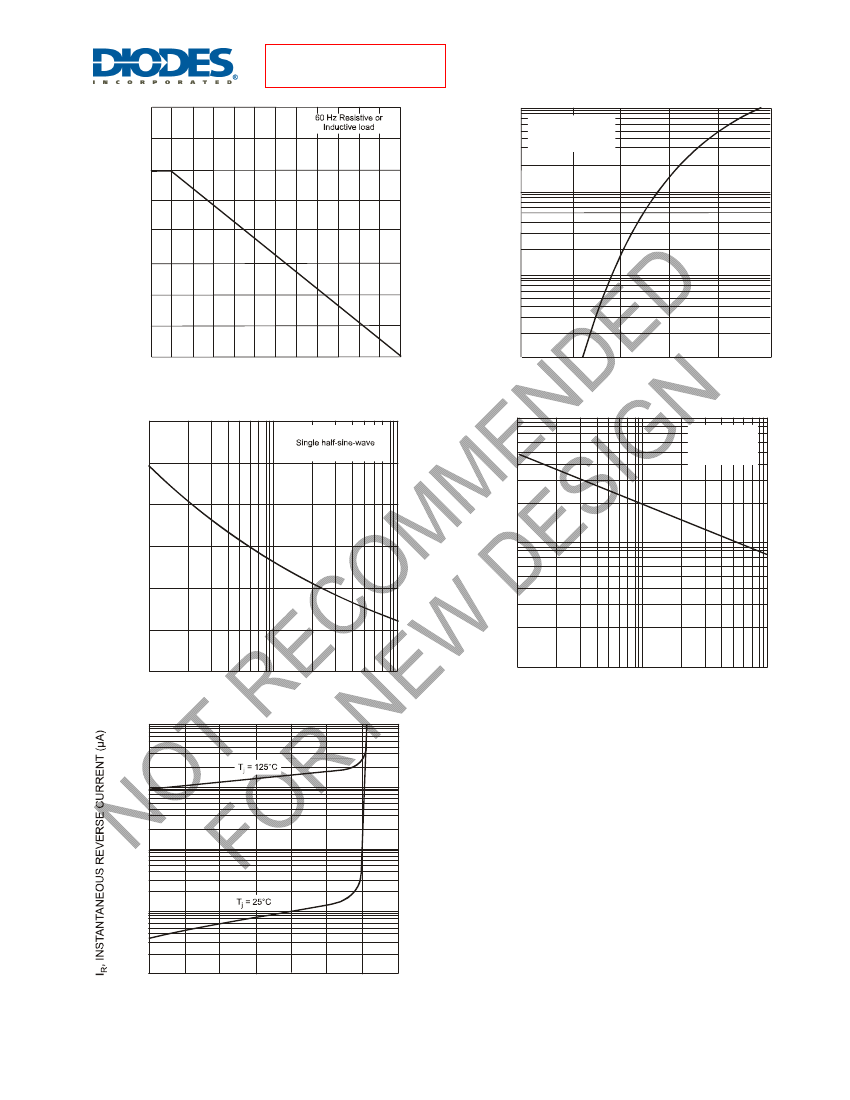

DF15005M-DF1510M

NOT RECOMMENDED

FOR NEW DESIGN

Ordering Information

(Note 4)

Device

DF15xxM

Notes:

Packaging

DF-M

Shipping

50 per Tube

4. For packaging details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,

INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE

(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes

without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the

application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or

trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume

all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated

website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and

hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or

indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings

noted herein may also be covered by one or more United States, international or foreign trademarks.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express

written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the

labeling can be reasonably expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and

acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any

use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related

information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its

representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.

www.diodes.com

DS21214 Rev. 10 - 3

3 of 3

www.diodes.com

DF15005M-DF1510M

DF1501M Related Products

	DF1501M	DF1502M	DF1510M	DF1506M
Description	Bridge Rectifiers 1.5A 100V	Bridge Rectifiers 1.5A 200V	Bridge Rectifiers 1.5A 1000V	Bridge Rectifiers 1.5A 600V
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated	Diodes Incorporated
package instruction	ROHS COMPLIANT, PLASTIC, DF-M, 4 PIN	ROHS COMPLIANT, PLASTIC, DF-M, 4 PIN	ROHS COMPLIANT, PLASTIC, DF-M, 4 PIN	ROHS COMPLIANT, PLASTIC, DF-M, 4 PIN
Contacts	4	4	4	4
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	100 V	200 V	1000 V	600 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.1 V	1.1 V	1.1 V	1.1 V
JESD-30 code	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4	R-PDIP-T4
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A
Number of components	4	4	4	4
Phase	1	1	1	1
Number of terminals	4	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	260	260	260	260
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	200 V	1000 V	600 V
surface mount	NO	NO	NO	NO
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	40	40	40	40
