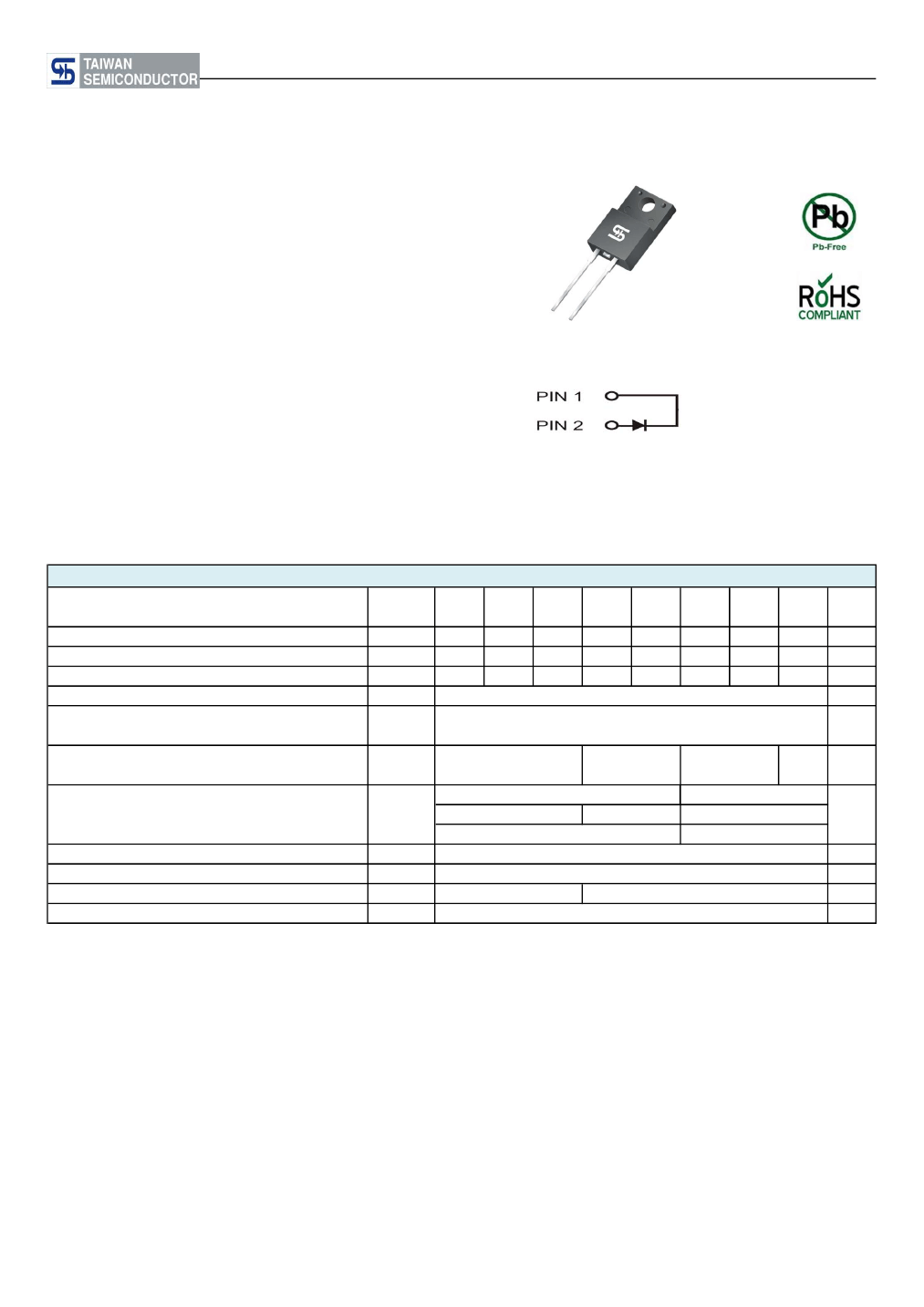

SRAF520 - SRAF5150
Taiwan Semiconductor
CREAT BY ART
5A, 20V - 150V Isolated Schottky Barrier Rectifiers
FEATURES
- Low power loss, high efficiency
- Guard ring for over-voltage protection
- High surge current capability
- UL Recognized File # E-326243
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21
1
2
MECHANICAL DATA
Case:
ITO-220AC
Molding compound: UL flammability classification rating 94V-0
Part no. with suffix "H" means AEC-Q101 qualified
Packing code with suffix "G" means green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 2 whisker test
Polarity:
As marked
Mounting torque:
0.56 Nm max.
Weight:
1.7 gram (approximately)
ITO-220AC
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25°C unless otherwise noted)
PARAMETER
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Maximum instantaneous forward voltage (Note 1)
I
F
= 5A
T
J
=25°C
Maximum reverse current @ Rated V
R
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: Pulse test with PW=300μs, 1% duty cycle
T
J
=100°C
T
J
=125°C
dV/dt
R
θJC
T
J
T
STG
- 55 to +125
- 55 to +150
I
R
15
-
10000
10
- 55 to +150
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
V
F
0.55
0.5
10
SRAF SRAF SRAF SRAF SRAF SRAF SRAF SRAF
520
20
14
20
530
30
21
30
540
40
28
40
550
50
35
50
5
120
0.70
0.85
0.2
-
5
V/μs
°C/W
°C
°C
mA
0.95
560
60
42
60
590
90
63
90
5100
100
70
100
5150
150
105
150
UNIT
V
V
V
A
A
V
Version: J1512
SRAF520 - SRAF5150
Taiwan Semiconductor
CREAT BY ART

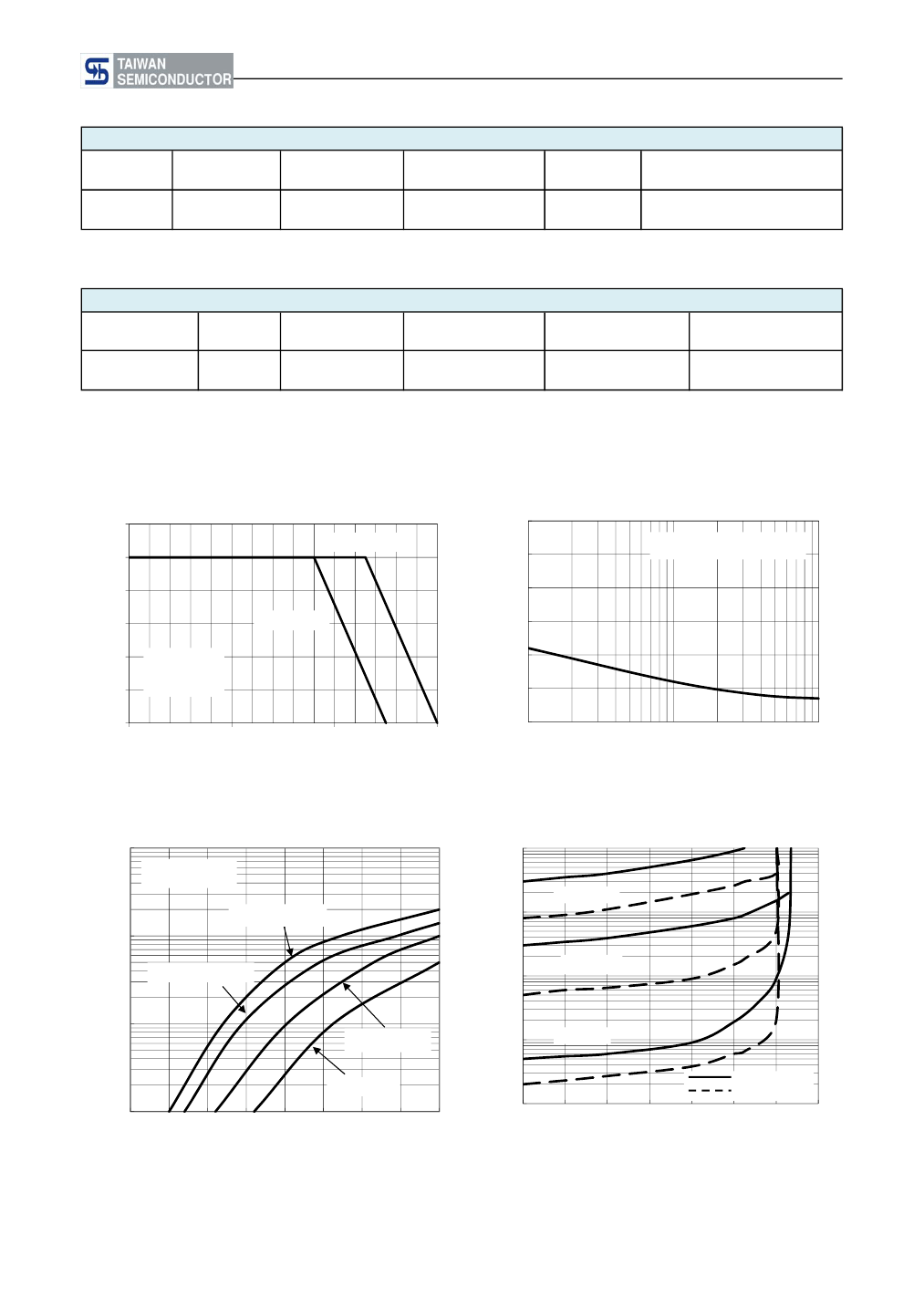

ORDERING INFORMATION
PART NO.
SRAF5xx
(Note 1)
*: Optional available
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
(*)
PACKAGE
ITO-220AC
PACKING
50 / Tube
Note 1: "xx" defines voltage from 20V (SRAF520) to 150V (SRAF5150)
EXAMPLE
EXAMPLE P/N
SRAF560HC0G
PART NO.
SRAF560
PART NO.
SUFFIX
H
PACKING CODE
C0
PACKING CODE
SUFFIX
G
DESCRIPTION
AEC-Q101 qualified
Green compound
RATINGS AND CHARACTERISTICS CURVES
(T
A
=25°C unless otherwise noted)
FIG.1 MAXIMUM FORWARD CURRENT
DERATING CURVE
6
AVERAGE FORWARD CURRENT (A)
300
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
PEAK FORWARD SURGE CURRENT (A)
SRAF550-5150
5
4
3
2
1
0
0
50
100
150
SRAF520-540
250
200
150
100
50
0
1
8.3ms single half sine wave
Resistive or
inductive load
with heat sink
10
NUMBER OF CYCLES AT 60 Hz
100
CASE TEMPERATURE (
°
C)
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
100
Pulse width=300μs
1% duty cycle
INSTANTANEOUS REVERSE CURRENT (mA)
INSTANTANEOUS FORWARD CURRENT (A)
10
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
T
J
=125
°
C
1
SRAF520-SRAF540
10
SRAF550-SRAF560
0.1
T
J
=75
°
C
1
SRAF590-5100
0.01
T
J
=25
°
C
SRAF5150
0.1
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
FORWARD VOLTAGE. (V)
0.001
0
20
40
60
80
SRAF520-560
SRAF590-5150
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE.(%)
Version: J1512
SRAF520 - SRAF5150
Taiwan Semiconductor
CREAT BY ART

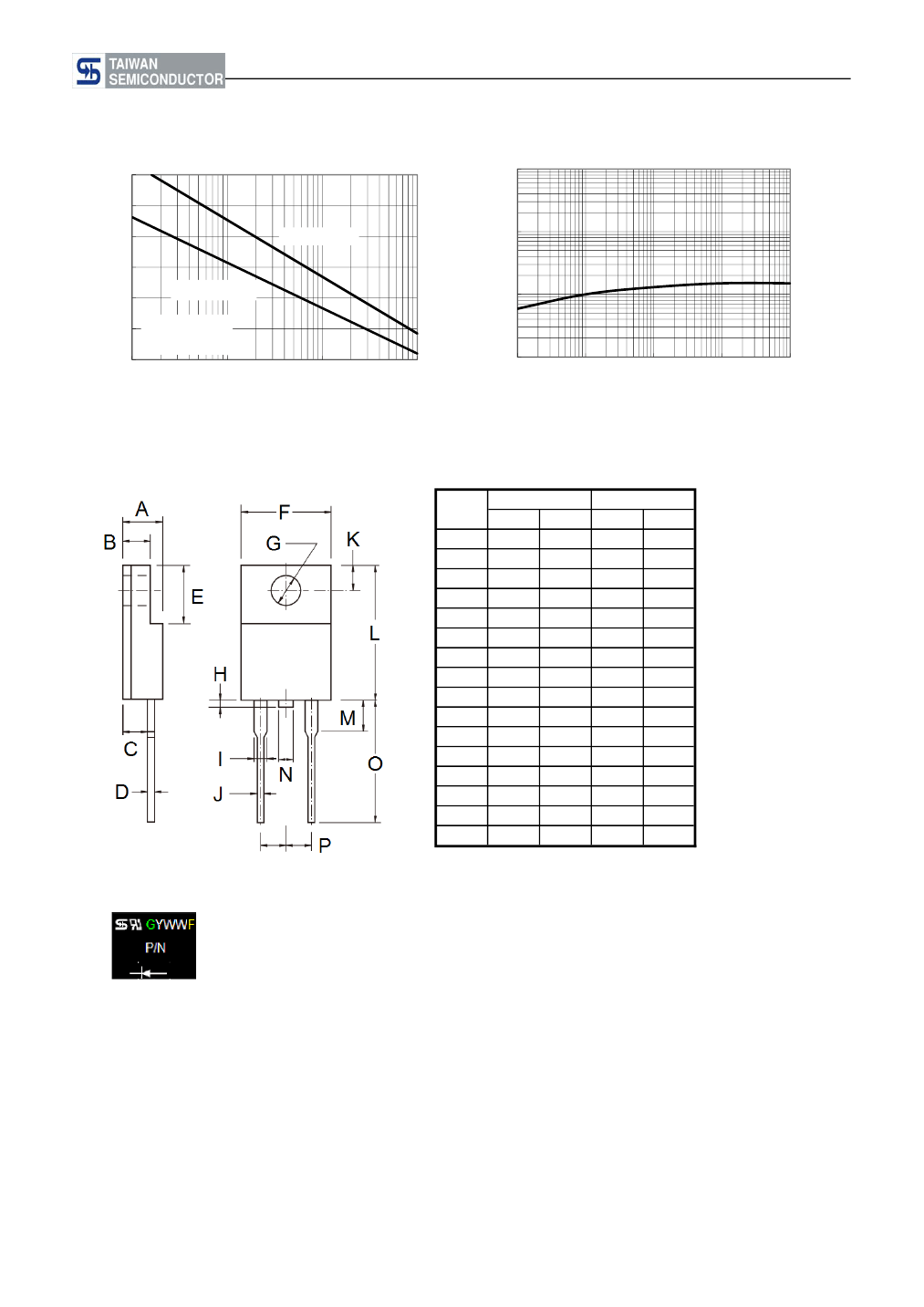

FIG. 5 TYPICAL JUNCTION CAPACITANCE
600
JUNCTION CAPACITANCE (pF)
500
TRANSIENT THERMAL
IMPEDANCE (°C/W)
400
300
200
100
0
0.1
1
10
100
REVERSE VOLTAGE (V)
SRAF590-5150
SRAF520-560
100
FIG. 6 TYPICAL TRANSIENT THERMAL
CHARACTERISTICS
10
1
f=1.0MHz
Vslg=50mVp‐p
0.1
0.01
0.1
1
10
100
T, PILSE DURATION. (s)
PACKAGE OUTLINE DIMENSIONS
ITO-220AC
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.00
0.95
0.50
2.40
14.80
-
-
12.60
4.95
Max
4.70
3.10
2.90
0.76
6.90
10.30
3.40
1.60
1.45
0.90
3.20
15.50
4.10
1.80
13.80
5.20
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.000
0.037
0.020
0.094
0.583
-
-
0.496
0.195
Max
0.185
0.122
0.114
0.030
0.272
0.406
0.134
0.063
0.057
0.035
0.126
0.610
0.161
0.071
0.543
0.205
MARKING DIAGRAM
P/N
G
YWW
F
= Specific Device Code
= Green Compound
= Date Code
= Factory Code
Version: J1512
SRAF520 - SRAF5150
Taiwan Semiconductor
CREAT BY ART
Notice
Specifications of the products displayed herein are subject to change without notice. TSC or anyone on its behalf,
assumes no responsibility or liability for any errors or inaccuracies.
Information contained herein is intended to provide a product description only. No license, express or implied, to
any intellectual property rights is granted by this document. Except as provided in TSC's terms and conditions of
sale for such products, TSC assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of TSC products including liability or warranties relating to fitness for a particular purpose,
merchantability, or infringement of any patent, copyright, or other intellectual property right.
The products shown herein are not designed for use in medical, life-saving, or life-sustaining applications.
Customers using or selling these products for use in such applications do so at their own risk and agree to fully
indemnify TSC for any damages resulting from such improper use or sale.
Version: J1512
