74AHCT595S16-13 datasheet, PDF

Datasheet> All Categories > logic> logic> 74AHCT595S16-13

74AHCT595S16-13: DescriptionCounter Shift Registers 8B SHIFT REGISTER W/ 8B OUT 4.5-5.5V; Categorylogic logic; File Size261KB，10 Pages; ManufacturerDiodes Incorporated; Environmental Compliance

Download Datasheet Parametric View All

74AHCT595S16-13 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	74AHCT595S16-13	-	-	View	Buy Now

74AHCT595S16-13 Overview

Counter Shift Registers 8B SHIFT REGISTER W/ 8B OUT 4.5-5.5V

74AHCT595S16-13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Diodes Incorporated
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	compliant
Factory Lead Time	17 weeks
Counting direction	RIGHT
series	AHCT/VHCT/VT
JESD-30 code	R-PDSO-G16
JESD-609 code	e3
length	9.9 mm
Logic integrated circuit type	SERIAL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	90000000 Hz
Humidity sensitivity level	1
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
power supply	5 V
propagation delay (tpd)	12 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal surface	Matte Tin (Sn)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Trigger type	POSITIVE EDGE
width	3.9 mm
minfmax	90 MHz

Preview

Download Datasheet

View All

74AHCT595

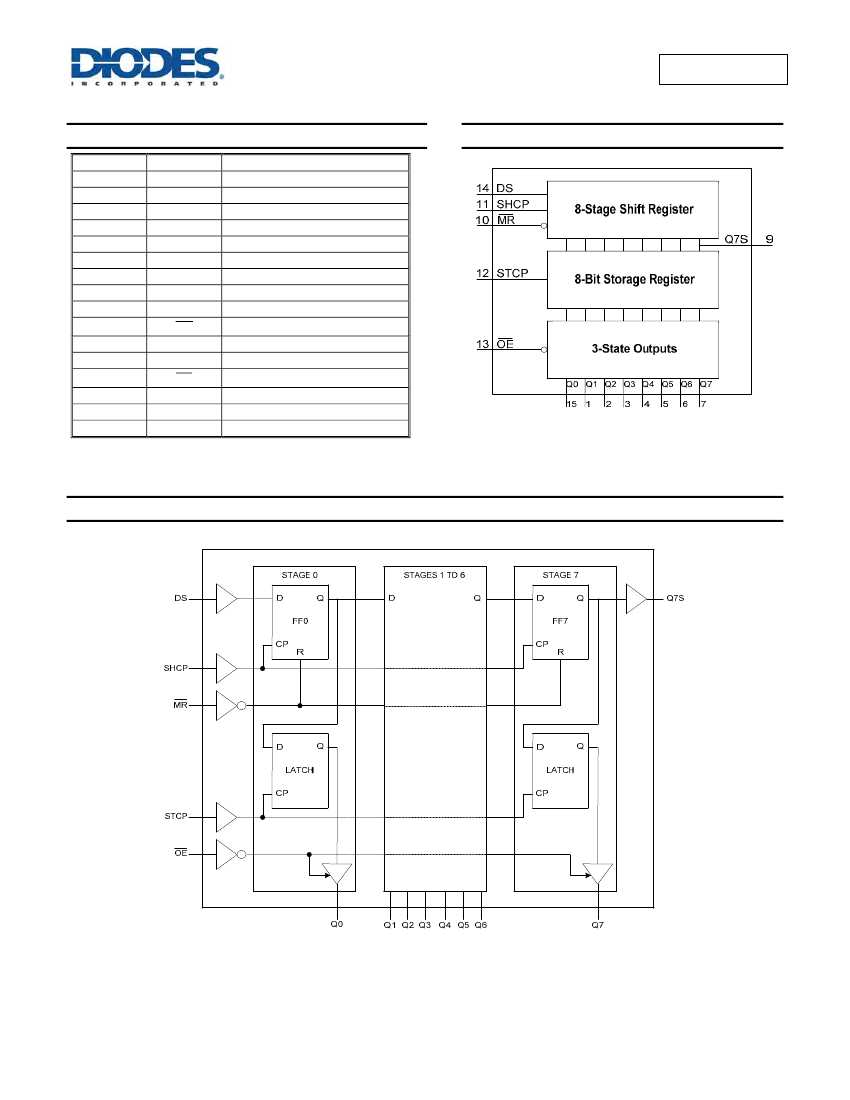

8-BIT SHIFT REGISTER 8-BIT OUTPUT REGISTER

Description

The 74AHCT595 is an advanced high speed CMOS device that is

designed to be pin compatable with 74LS low power Schottky types.

An eight bit shift register accepts data from the serial input (DS) on

each positive transition of the shift register clock (STCP).

zero and is independent of all clocks.

Data from the input serial shift register is placed in the output register

with a rising pulse on the storages resister clock (SHCP). With the

output enable (OE asserted low the 3-state outputs Q0-Q7 become

active and present.

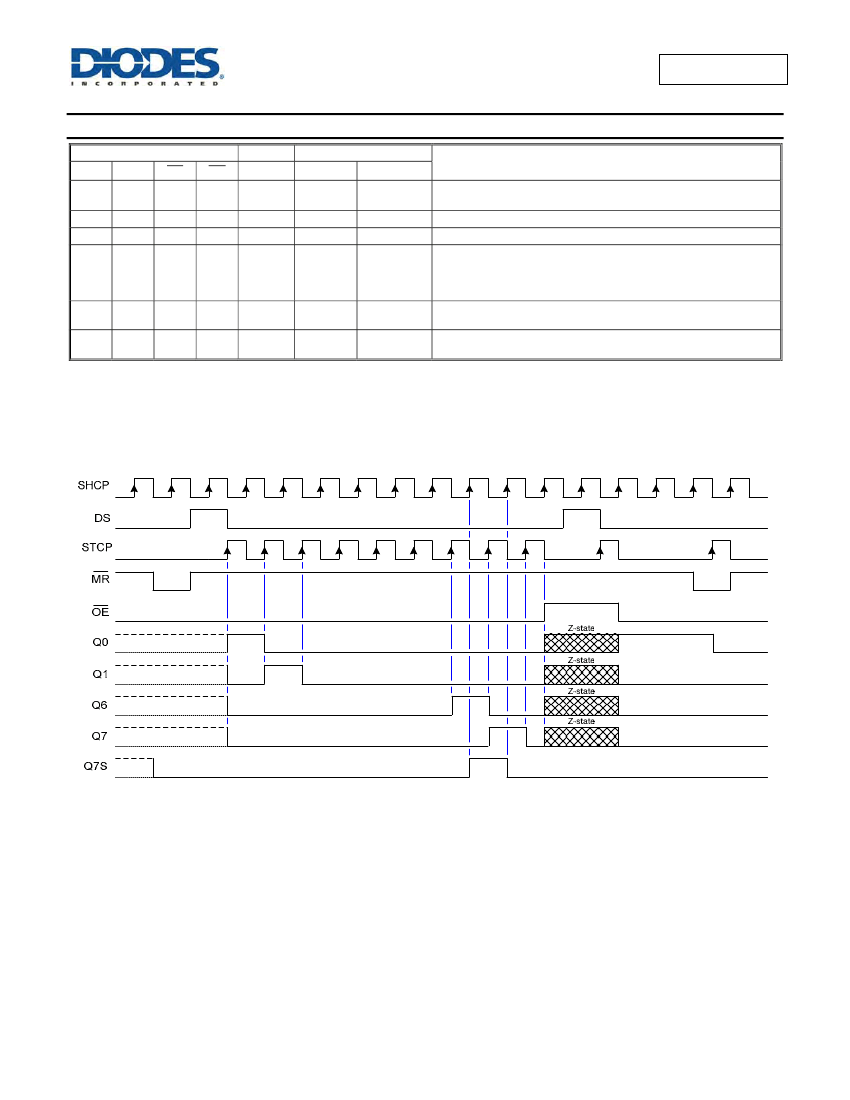

All registers capture data on rising edge and change output on the

falling edge. If both clocks are connected together, the input shift

When

asserted low, the reset function (MR) sets all shift register values to

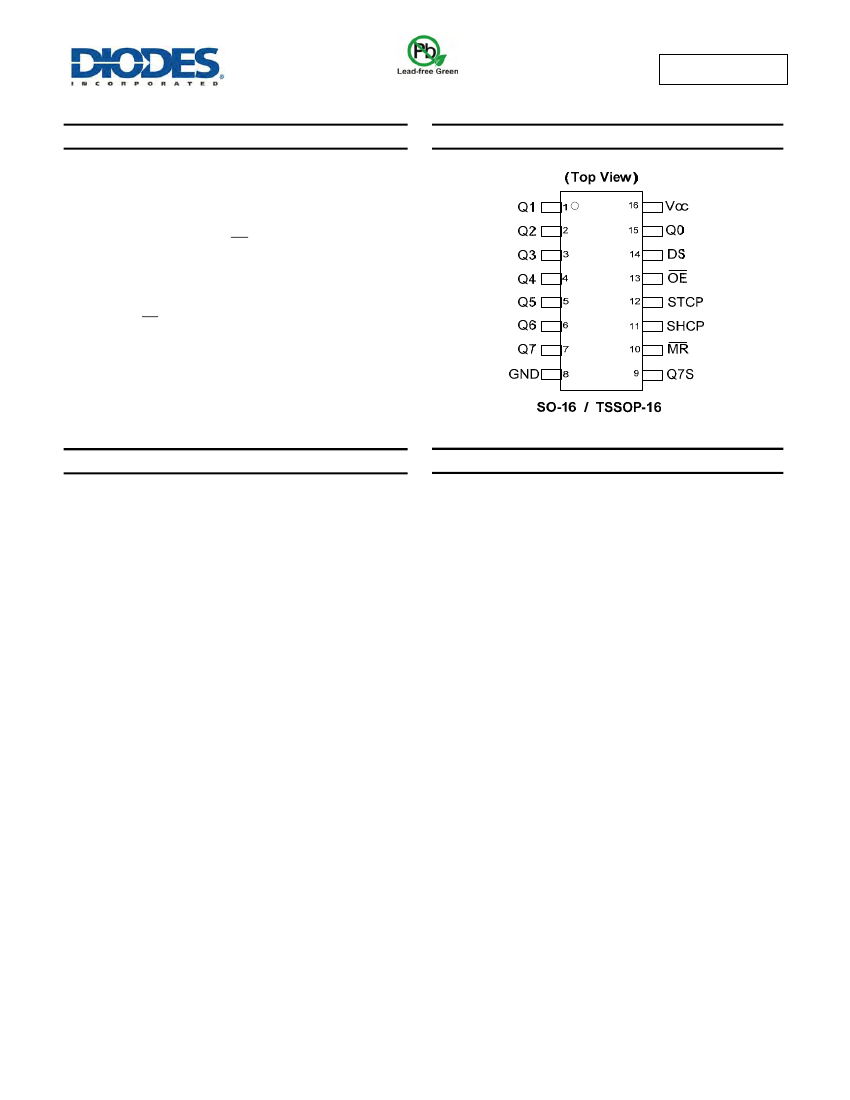

Pin Assignments

Features



Supply Voltage Range from 4.5V to 5.5V

Sinks or sources 8mA at V

= 4.5V

CMOS low power consumption

Schmitt Trigger Action at All Inputs

Inputs accept up to 5.5V

ESD Protection Tested per JESD 22





Exceeds 200-V Machine Model (A115-A)

Exceeds 2000-V Human Body Model (A114-A)

Exceeds 1000-V Charged Device Model (C101C)

Applications



General Purpose Logic

Serial to Parallel Data conversion

Capture and hold data for extended periods of time.

Allow simple serial bit streams from a microcontroller to control as

many peripheral lines as needed.

Wide array of products such as:



Computer peripherals

Appliances

Industrial control

Latch-Up Exceeds 250mA per JESD 78, Class II

Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

Click here for ordering information, located at the end of datasheet

74AHCT595

Document number: DS35487 Rev. 3 - 2

1 of 10

www.diodes.com

June 2013
